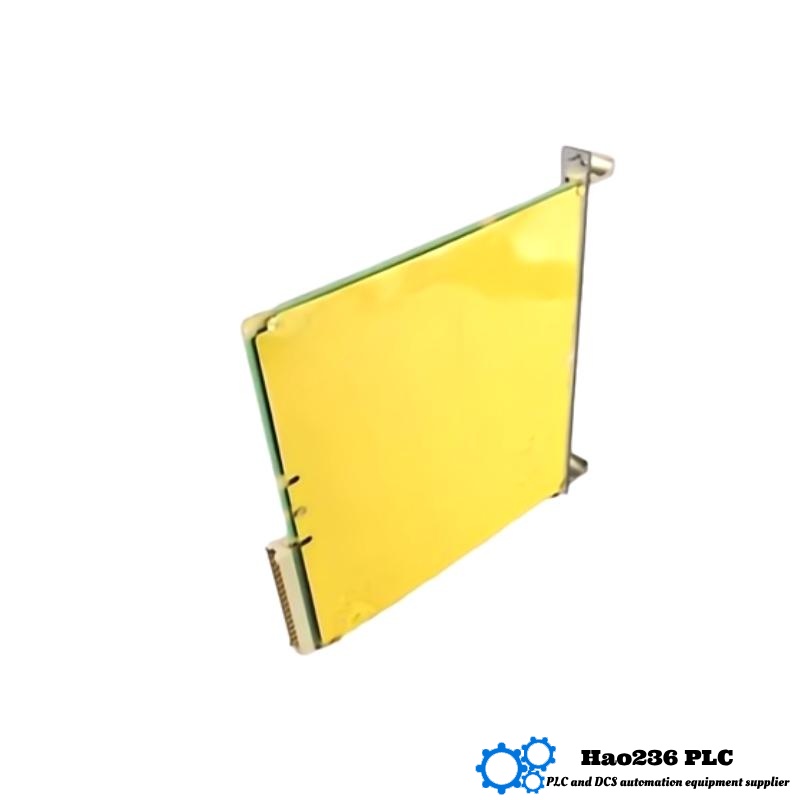

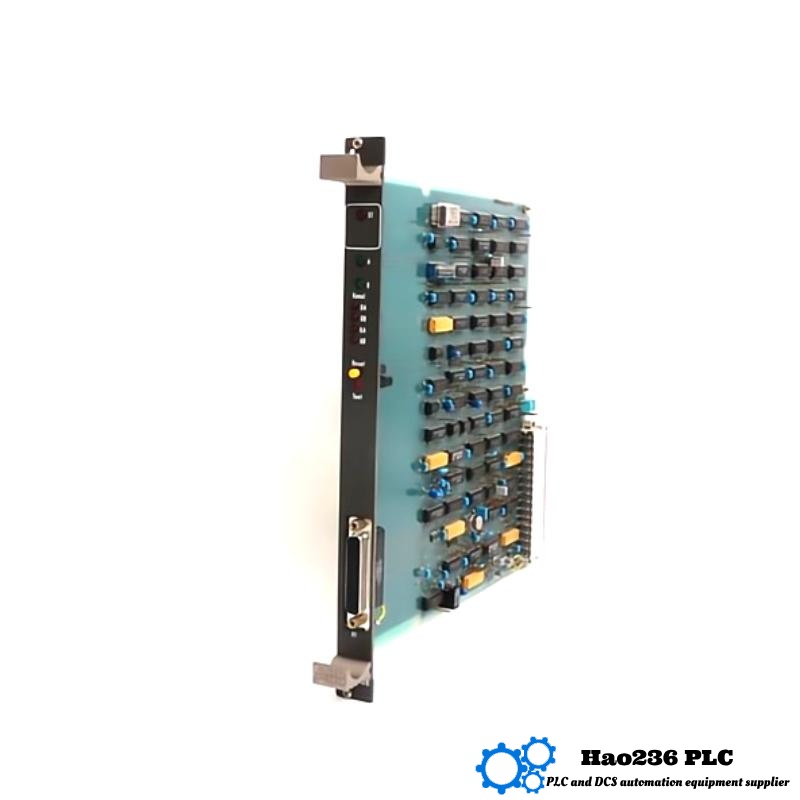

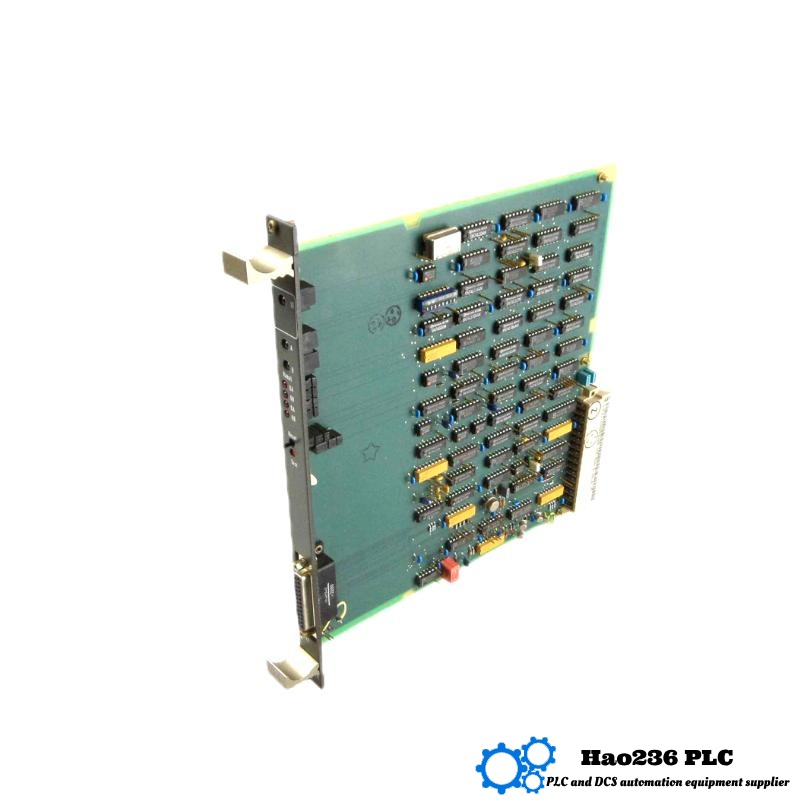

ABB 88FN02C-E GJR2370800R0200 Bus Coupling Module
Product Introduction
The ABB 88FN02C-E GJR2370800R0200 is a bus coupling module engineered for ABB’s AC 800M distributed I/O system. It serves as the communication gateway between the high-speed CEX bus and the local I/O module bus, ensuring reliable data exchange and synchronization across all connected I/O devices. Designed for industrial environments, the 88FN02C-E provides robust signal integrity, advanced diagnostics, and plug-and-play simplicity for seamless system integration.
This coupling module facilitates modular expansion, allowing engineers to add or replace I/O stations without disrupting the overall network. Its durable housing and standardized mounting make it suitable for harsh process applications, including chemical plants, power stations, and manufacturing facilities.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | 88FN02C-E GJR2370800R0200 |
| Dimensions | 190 × 110 × 40 mm |
| Weight | 0.58 kg |
| Module Type | Bus Coupling Module |
| Communication Interface | CEX Bus ↔ Module Bus |
| Power Supply | 24 V DC |
| Mounting | DIN-rail or Panel mount |
| Operating Temperature | –20 °C to +60 °C |
| Diagnostics | Status and error LEDs |
| Protection Rating | IP20 (panel mount), IP65 kit optional |
Product Applications
The 88FN02C-E bus coupling module is deployed in:
-
Process Automation: Linking remote I/O in chemical, petrochemical, and refining applications.
-
Power Generation: Synchronizing field devices in turbine and generator control systems.
-
Water & Wastewater: Coordinating sensors, pumps, and valves over extended plant layouts.
-
Manufacturing Lines: Integrating safety interlocks, machine sensors, and actuators in high-speed operations.
-
Oil & Gas Facilities: Providing reliable I/O coupling in drilling, wellhead, and pipeline monitoring networks.
Product Advantages
-
Seamless Connectivity: Ensures error-free communication between central controller and distributed I/O modules.
-
Modular Scalability: Supports hot-swap addition or removal of I/O stations without network interruption.
-
Advanced Diagnostics: Onboard LEDs and fault logging accelerate troubleshooting and maintenance.
-
Rugged Design: Withstands vibration, electrical noise, and temperature extremes in industrial settings.
-
Compact Footprint: Slim 40 mm profile saves panel space while delivering high channel density.
-
Flexible Mounting: DIN-rail or panel mounting options adapt to varied control cabinet layouts.
-
Low Power Draw: Optimized electronics reduce heat generation and overall power consumption.
-
Industry Proven: Built to ABB’s stringent quality standards for mission-critical automation.
Brand and Series Information
-
Brand: ABB
-
Series: AC 800M Distributed I/O
ABB’s AC 800M series is a field-proven automation platform offering high availability, modularity, and rich diagnostics for process industries worldwide.
Related Models from the Same Series
| Model | Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| 88FN01C-E | Module Bus Coupler | 190 × 110 × 40 | 0.55 |
| 88FN03C-E | Redundant Bus Coupler | 190 × 110 × 40 | 0.60 |
| 88FN04C-E | Profibus-DP Interface | 190 × 110 × 40 | 0.58 |
| 88FN05C-E | DeviceNet Interface | 190 × 110 × 40 | 0.62 |
| 88FN06C-E | Ethernet/IP Interface | 190 × 110 × 40 | 0.65 |
Recommended Popular ABB Modules
| Model | Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| CI854A | Profibus-DP Interface Module | 115 × 35 × 120 | 0.20 |
| AI810 | 4-ch Analog Input Module (HART) | 186 × 59 × 107 | 0.18 |
| DO810 | 16-ch Digital Output Module | 186 × 59 × 107 | 0.20 |
| PM861AK01 | AC 800M CPU Module | 200 × 140 × 125 | 1.30 |
| TU830 | Terminal Unit | 126 × 76 × 46 | 0.15 |
FAQ (QA Format)
Q1: What is the role of the 88FN02C-E module?
A1: It couples the high-speed CEX bus to the local I/O module bus, enabling seamless data exchange.
Q2: Which communication buses does it support?
A2: It interfaces between ABB’s CEX bus and the module bus used by AC 800M I/O modules.
Q3: How is the module powered?
A3: It uses a 24 V DC supply common to the AC 800M I/O rack.
Q4: What are the physical dimensions?
A4: The module measures 190 × 110 × 40 mm.
Q5: How much does it weigh?
A5: It weighs approximately 0.58 kg.
Q6: What diagnostics are available?
A6: Status and error LEDs, plus an internal error log accessible via controller diagnostics.
Q7: Can I mount this in a panel?
A7: Yes, it supports DIN-rail mounting and panel mounting with the optional IP65 kit.
Q8: What temperature range can it operate in?
A8: –20 °C to +60 °C.
Q9: Is this module hot-swappable?
A9: Yes, it allows hot-swap of downstream I/O modules without network disruption.
Q10: Which industries commonly use this coupling module?
A10: Chemical, oil & gas, power generation, water treatment, and general manufacturing.
