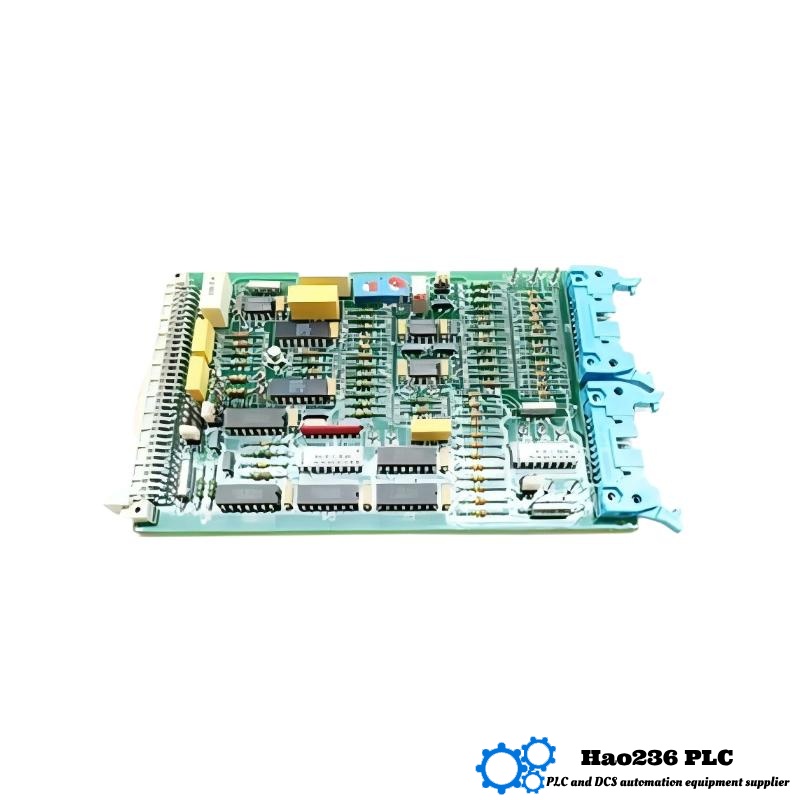

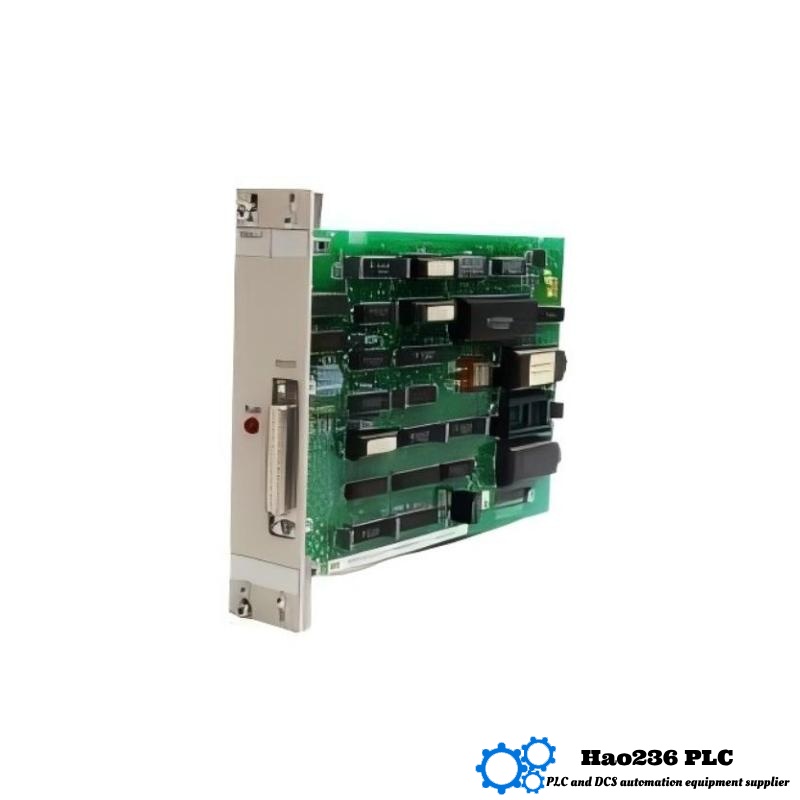

ABB 70BK03C-E HESG447440R0001 Bus Coupling Module
Product Overview
The ABB 70BK03C-E (Part No: HESG447440R0001) is a modular bus coupling unit engineered to seamlessly interface ABB’s PROCONTROL P distributed control system (DCS) with external RS232-based devices. Designed for rugged industrial environments, it provides reliable data exchange, high signal integrity, and plug-and-play simplicity to support critical process control applications.
This module sits in a standard PROCONTROL P I/O rack slot and draws power directly from the backplane bus, eliminating the need for separate power wiring. Its automatic initialization and configuration capabilities significantly reduce commissioning time, while its durable construction withstands harsh conditions such as vibration, temperature extremes, and electromagnetic interference.
Technical Specifications
Parameter Table
| Parameter | Specification |
|---|---|
| Model Number | 70BK03C-E |
| Part Number | HESG447440R0001 |
| Communication Interface | RS232 Serial |
| Supported Baud Rate | 19 200 baud |
| Module Type | Plug-in Bus Coupling |
| Mounting | PROCONTROL P Rack Slot |
| Hot-Swappable | Yes |
| Country of Origin | Sweden |
| Dimensions (L × W × H) | 250 × 170 × 157.4 mm |
| Weight | 0.447 kg |
| Operating Temperature Range | –20 °C to +70 °C |
| Power Supply | Via Backplane Bus (no external power needed) |
| Warranty | 1–2 years |
Applications
The 70BK03C-E HESG447440R0001 is ideal for a wide spectrum of industrial scenarios:
-
Process Control Systems: Bridges meters, analyzers, and serial controllers to the central DCS for synchronized operation and data logging.
-
Legacy Equipment Integration: Enables older RS232-only field instruments—such as flow meters, temperature transmitters, and pressure modules—to communicate with modern control architectures.
-
Remote Terminal Units (RTUs): Acts as a gateway in remote automation shelters, gathering serial data from multiple devices and relaying it upstream securely.
-
Manufacturing Execution Systems (MES): Provides a reliable data feed from shop-floor serial devices into enterprise-level production management platforms.
-
Oil & Gas and Chemical Plants: Ensures continuous, error-monitored data flow in critical processes such as reactor control, batch sequencing, and safety interlocks.
Advantages
-
Hot-Swap Capability
Allows removal and insertion during live operation without disrupting the remainder of the rack or system, maximizing uptime. -
Auto-Detection and Configuration
On insertion, the module automatically identifies its slot address and network parameters, speeding up installation and reducing manual setup errors. -
Industrial-Grade Durability
Built to withstand shock, vibration, and wide temperature swings, ensuring consistent performance even in the harshest plant environments. -
Compact Footprint
At only 250 × 170 × 157.4 mm, it conserves cabinet space while offering high functionality, and its low 0.447 kg weight eases handling and mounting. -
Seamless ABB Integration
Fully compatible with PROCONTROL P I/O families and ABB’s suite of control hardware, software, and support services, providing a unified solution.
Brand Background
ABB (Asea Brown Boveri) is a global technology leader in automation, electrification, and motion, serving utilities, industries, transport, and infrastructure worldwide. ABB’s PROCONTROL P series has earned a reputation for exceptional reliability, scalability, and long-term lifecycle support. With headquarters in Zurich, Switzerland, and manufacturing excellence centers across Europe, ABB delivers solutions that optimize performance, enhance safety, and reduce environmental impact.
Related Models in the Same or Compatible Series
| Model | Part Number | Interface | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| 70BK03C-E/R3 | HESG447440R3 | RS485 | 250 × 170 × 157.4 | 0.450 |
| 70BK06A-ES | HESG332194R0001 | PROFIBUS DP | 230 × 150 × 140 | 0.500 |
| 70BK03B-ES | HESG447271R0002 | RS232 Alarm Module | 250 × 170 × 157.4 | 0.440 |
| 88QT03C-E | GJR2374500R2111 | RS232/RS485 Combo | 260 × 180 × 160 | 0.480 |
| 70WB01/R1 | HESG447308R0002 | Bus Telegram Coupler | 240 × 160 × 150 | 0.460 |
Popular ABB Models (Same Brand)
| Model | Part Number | Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| 70EA02-E/R1 | HESG447308R0002 | Analog Input (1 ch) | 120 × 50 × 150 | 0.200 |
| 70EB01-E/R1 | HESG447310R0001 | Binary Input (1 ch) | 120 × 50 × 150 | 0.180 |
| 70AS06/R1 | HESG447330R0001 | Compact Drive Control | 200 × 100 × 80 | 0.350 |
| 70WB01/R1 | HESG447308R0002 | Control Room Coupler | 240 × 160 × 150 | 0.460 |
| 70CP01-ES | HESG332250R0001 | PROCONTROL P CPU Module | 300 × 180 × 120 | 0.750 |
Frequently Asked Questions (FAQ)
Q1: What bus does the 70BK03C-E interface with?
A1: It connects the PROCONTROL P station bus to external RS232 devices for bidirectional data exchange.
Q2: Can I swap this module without shutting down the rack?
A2: Yes, its hot-swap feature allows removal or insertion during live operations.
Q3: Does the module require external power?
A3: No, it draws all required power from the PROCONTROL P backplane bus.
Q4: What is the module’s serial communication speed?
A4: It supports the standard 19 200 baud RS232 rate.
Q5: Is there a variant for RS485 networks?
A5: Yes, use model 70BK03C-E/R3 for RS485 connectivity.
Q6: What environmental standards does it meet?
A6: It is rated for –20 °C to +70 °C, IEC-grade shock and vibration, and EMC immunity.
Q7: How is the module configured?
A7: Configuration is automatic on hot-plug via the PROCONTROL P system’s CPU detection routine.
Q8: Where is the 70BK03C-E manufactured?
A8: It is produced in ABB’s Sweden facility, ensuring stringent quality control.
Q9: Which industries commonly use it?
A9: Widely used in power generation, oil & gas, chemical processing, water treatment, and manufacturing.
Q10: What support options are available?
A10: ABB offers comprehensive documentation, global technical support, and certified partner services for installation and maintenance.
