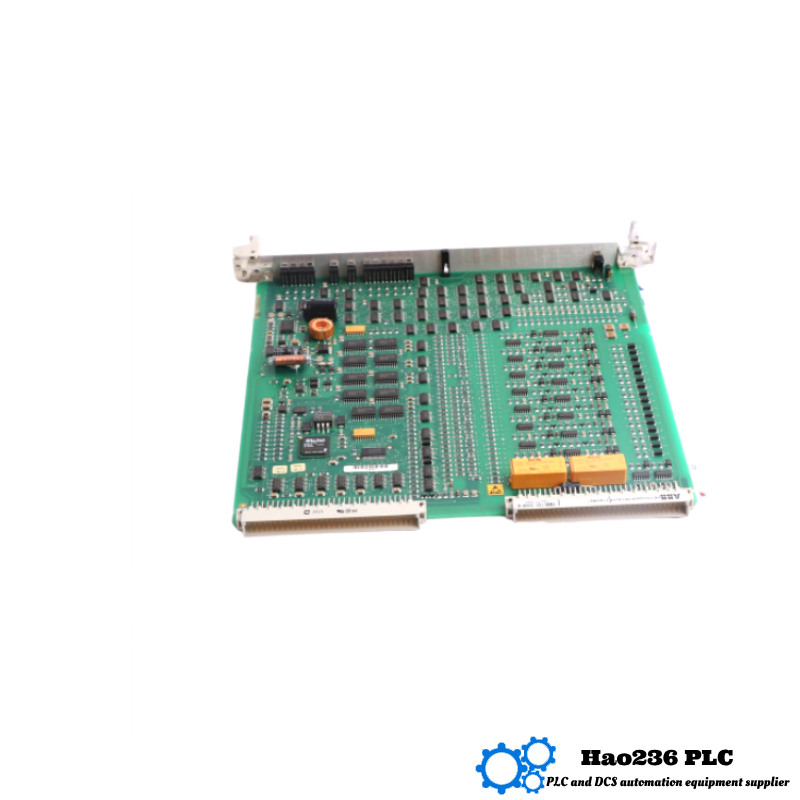

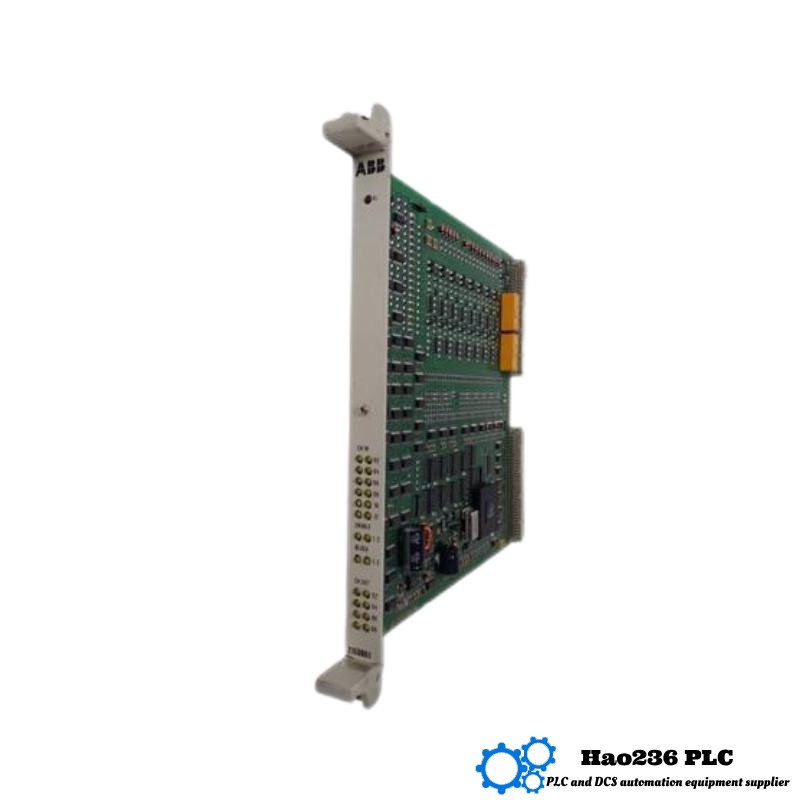

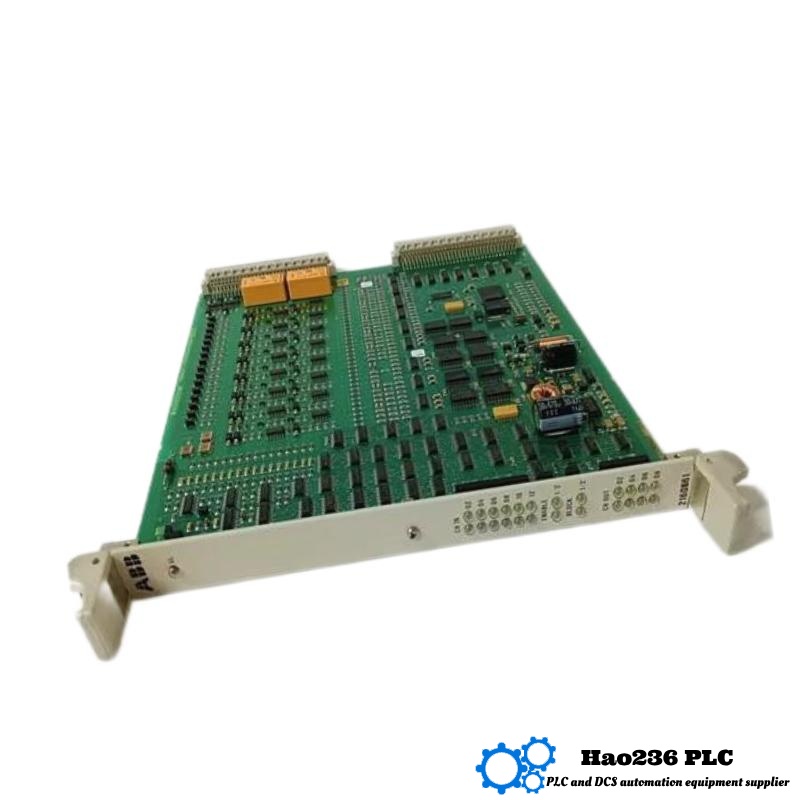

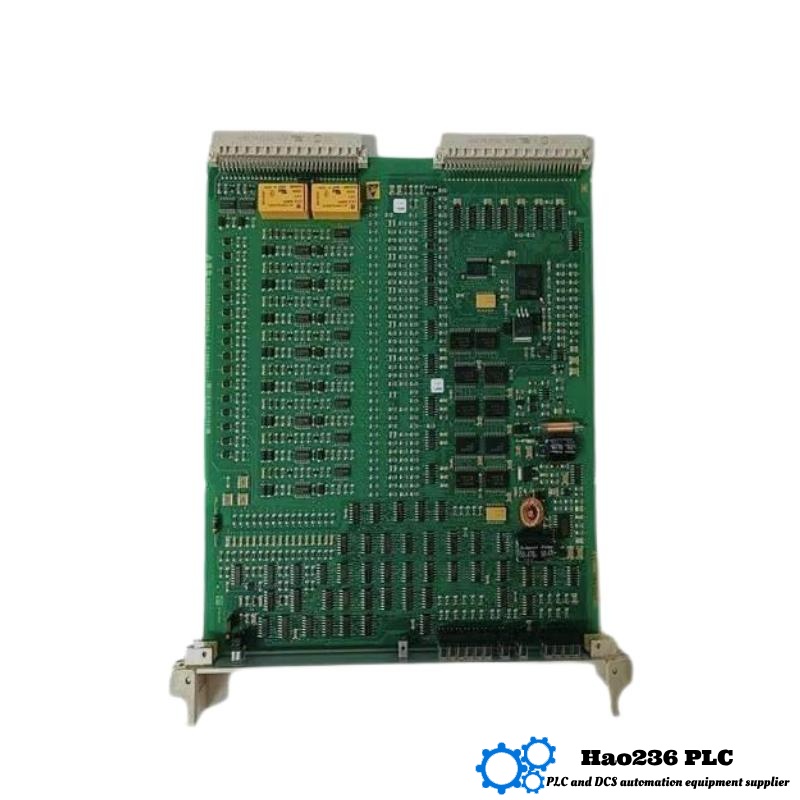

ABB 216DB61 HESG324063R100 Binary I/P and Trip Unit
Product Description
The ABB 216DB61 HESG324063R100 is a sophisticated Binary I/P and Trip Unit, designed to provide reliable control and protection for various industrial applications. This unit is part of the ABB series of process control and automation solutions. It is engineered for seamless integration into control systems and provides binary signal processing to control pneumatic actuators. Additionally, it is equipped with a trip unit for protecting equipment from damage by monitoring system health and performance.
The 216DB61 HESG324063R100 model works by converting digital binary signals (either ON or OFF) into proportional pneumatic control signals, providing control for valves, dampers, and other equipment that require such input for their operation. Its integration with the trip unit ensures that operational issues, such as overloads or fault conditions, are identified and addressed promptly, thus minimizing downtime and safeguarding machinery.
Applications
The ABB 216DB61 HESG324063R100 is widely used in:
-
Process Control Systems: Ideal for automation in oil & gas, chemical, and petrochemical industries.
-
Industrial Automation: Used in applications that require accurate binary-to-pneumatic signal conversion, such as valve control and damper operation.
-
Power Generation: Ensures protection and control of critical systems in power plants by monitoring and regulating the actuation of machinery.
-
Water Treatment Plants: Employed for controlling pneumatic valves, pumps, and other equipment in water treatment systems.
-
HVAC Systems: Controls pneumatic dampers and valves in large heating, ventilation, and air conditioning systems.
-
Safety Systems: The trip unit ensures safe shutdowns or automatic control in case of faults, providing protection to the system and reducing risks.
Advantages
-
Reliable Control: Converts binary signals to pneumatic outputs with precision, ensuring accurate control of industrial equipment.
-
Integrated Trip Unit: The built-in trip unit offers an added layer of protection, providing fail-safe mechanisms and preventing damage due to fault conditions.
-
Versatile Use: Suitable for a wide range of industrial applications, from automation to safety systems, making it a versatile choice for modern control systems.
-
Compact and Efficient: With its compact size of 127 x 76 x 178 mm, the unit fits into space-constrained control cabinets without sacrificing performance.
-
Robust and Durable: Designed to operate in harsh industrial environments, ensuring long-lasting reliability and high performance.
-
Cost-Effective: The integration of the binary I/P and trip unit in one device reduces the need for multiple components, simplifying installations and reducing overall system costs.
-
Easy Integration: It can be easily integrated into existing control systems with minimal disruption, making upgrades or replacements straightforward.
Brand
-
Brand Name: ABB
Technical Specifications
| Parameter | Details |
|---|---|
| Model | ABB 216DB61 HESG324063R100 |
| Type | Binary I/P and Trip Unit |
| Dimensions | 127 x 76 x 178 mm |
| Weight | 0.5 kg |
| Input Type | Binary Signal Input |
| Output Type | Pneumatic Signal Output |
| Trip Unit Type | Integrated Trip Protection |
| Voltage Range | 24V DC to 110V DC |
| Control Signal | Binary ON/OFF |
| Temperature Range | –20°C to +60°C |
| Humidity Range | 5% to 95% (non-condensing) |
| Mounting Type | Panel Mount |
| Protection | Overload, Short Circuit, Overvoltage |
| Material | Industrial-grade, durable construction |
| Environment Rating | IP20 |
Recommended Models from the Same Series or Related Models
| Model | Description | Key Features | Dimensions | Weight |
|---|---|---|---|---|
| ABB 216DB62 HESG324063R101 | Similar I/P and Trip Unit | Enhanced control and protection features | 127 x 76 x 178 mm | 0.5 kg |
| ABB 216DB60 HESG324063R102 | Dual binary-to-pneumatic conversion unit | Dual inputs for flexible control | 127 x 76 x 178 mm | 0.5 kg |
| ABB 216DB63 HESG324063R103 | Extended-range I/P and Trip Unit | Suitable for larger industrial setups | 140 x 80 x 190 mm | 0.6 kg |
| ABB 216DB65 HESG324063R104 | I/P and Trip Unit with fault detection | Fault detection and prevention | 130 x 78 x 180 mm | 0.5 kg |
| ABB 216DB64 HESG324063R105 | High-precision I/P Unit with trip control | High precision for critical applications | 125 x 74 x 176 mm | 0.5 kg |
Popular ABB Models
| Model | Description | Key Features | Dimensions | Weight |
|---|---|---|---|---|
| ABB 216DB60 HESG324063R101 | I/P and Trip Unit for general control | General-purpose unit with trip protection | 127 x 76 x 178 mm | 0.5 kg |
| ABB 216DB70 HESG324063R100 | Compact control unit with integrated trip | Space-saving design with high reliability | 120 x 70 x 170 mm | 0.45 kg |
| ABB 216DB71 HESG324063R102 | Advanced I/P Unit with digital output | Digital output, easy integration | 130 x 75 x 180 mm | 0.55 kg |
| ABB 216DB72 HESG324063R103 | Heavy-duty I/P Unit with extended range | High durability for harsh conditions | 140 x 80 x 190 mm | 0.6 kg |
| ABB 216DB73 HESG324063R104 | Industrial-grade I/P Unit | High reliability, low maintenance | 127 x 78 x 176 mm | 0.5 kg |
FAQ
Q1: What is the primary function of the ABB 216DB61 HESG324063R100 unit?
A1: The primary function of the ABB 216DB61 HESG324063R100 is to convert binary input signals into proportional pneumatic output signals for controlling equipment such as valves, actuators, and dampers, with an integrated trip unit for protection.
Q2: Can this unit handle both binary input and output?
A2: Yes, the unit handles binary input signals and outputs pneumatic control signals based on these inputs.
Q3: What are the operating temperature and humidity ranges for this unit?
A3: The operating temperature range is –20°C to +60°C, and the humidity range is 5% to 95% (non-condensing).
Q4: What type of protection does this unit provide?
A4: The trip unit offers protection against overload, short circuits, and overvoltage conditions, ensuring the system’s safety and reliability.
Q5: What power supply is required for this unit?
A5: The unit operates on a 24V DC to 110V DC power supply.
Q6: Can this unit be mounted easily in existing systems?
A6: Yes, the ABB 216DB61 HESG324063R100 is designed for panel mounting, making it easy to integrate into control panels and existing systems.
Q7: How does the trip unit help in preventing damage?
A7: The trip unit detects faults such as overloads and short circuits, automatically triggering protective measures to prevent further damage to equipment.
Q8: Is this unit suitable for heavy industrial environments?
A8: Yes, the unit is built to withstand the rigors of industrial environments, with an IP20 rating for protection against dust and water.
Q9: What is the weight of the unit?
A9: The unit weighs 0.5 kg, making it lightweight and easy to install.
Q10: What is the size of the ABB 216DB61 HESG324063R100 unit?
A10: The unit measures 127 x 76 x 178 mm, making it compact and suitable for installations where space is limited.
