ProductPRODUCT
Featured products
Contact Us
- Yokogawa
- YS1700-001/S01
- Programmable Indicator Controller
- Japan
- 144 x 72 x 250 mm
- 1.6 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 8
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

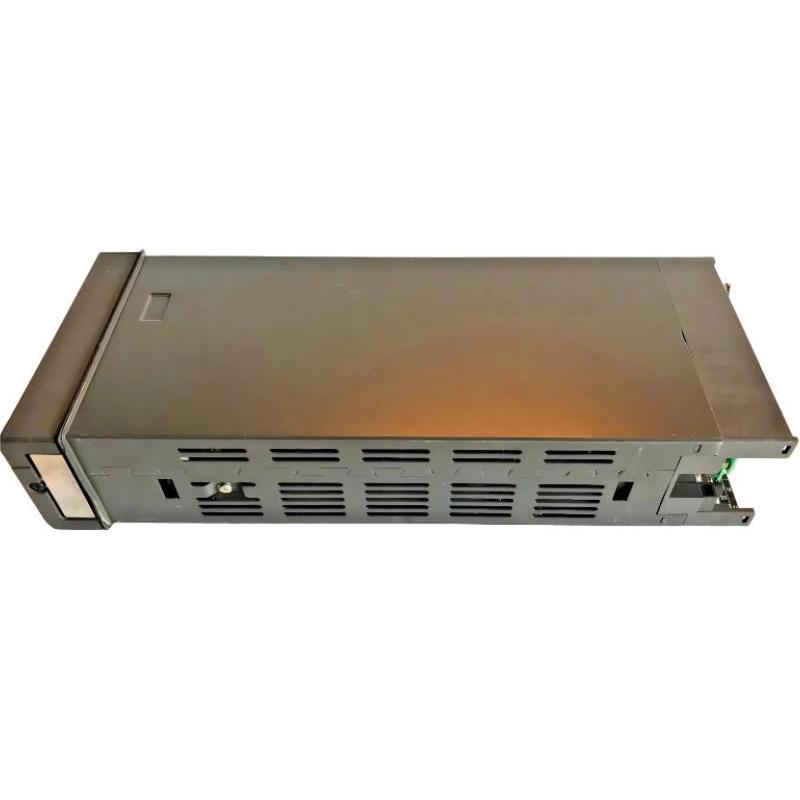

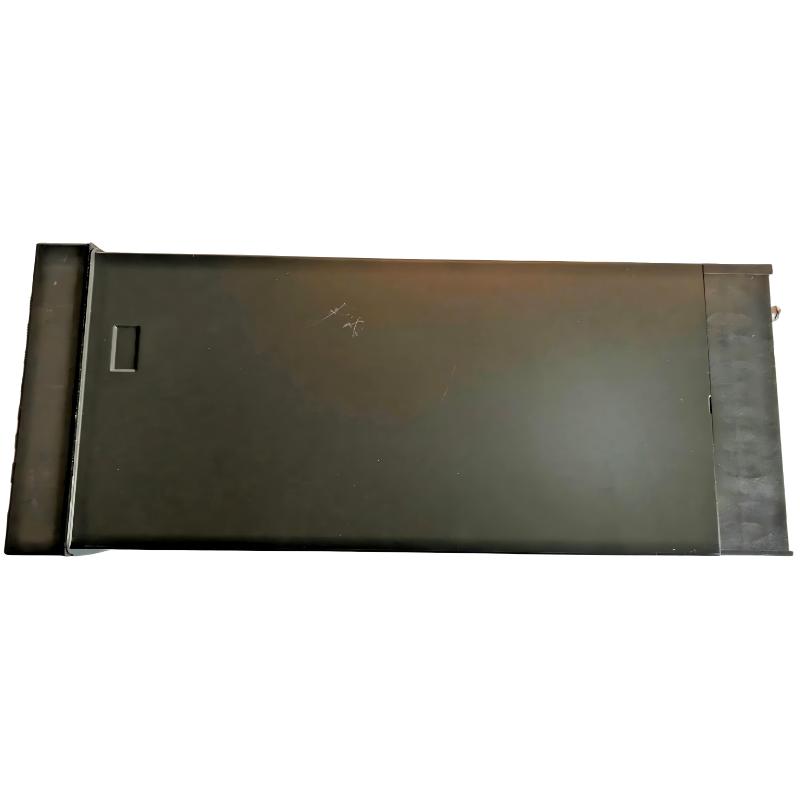

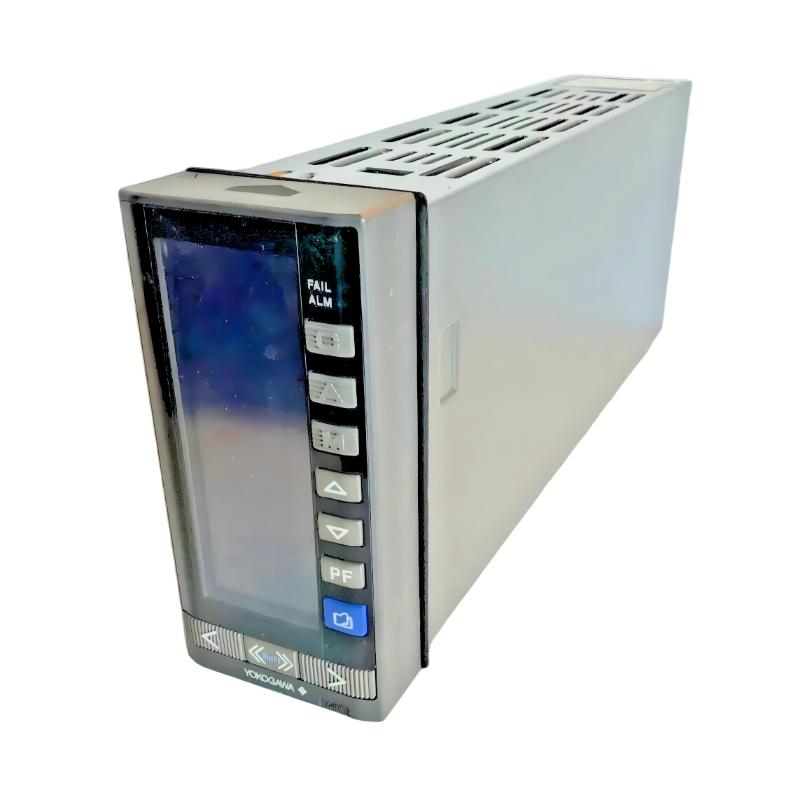

The Yokogawa YS1700-001/S01 is a single-loop programmable indicator controller from the YS1000 series, designed for industrial process control applications.
It integrates measurement, PID control, logic execution, and process indication in one panel-mounted device.
It is commonly used for temperature, pressure, flow, and level control loops in industrial automation systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model | YS1700-001/S01 |
| Product Type | Programmable Indicator Controller |
| Series | YS1000 Series |
| Control Type | Single-loop PID controller |
| Function | Process control + indication + logic programming |
| Inputs | Analog / digital configurable |
| Outputs | Analog / digital configurable |
| Communication | Optional (Ethernet / RS485 / DCS integration) |
Physical Specifications
| Parameter | Details |
|---|---|
| Dimensions | 144 × 72 × 250 mm |
| Weight | 1.6 kg |
Function and Working Principle
The YS1700-001/S01 operates as a microprocessor-based process loop controller.
Core Working Principle
- Receives process variable (PV) from field instruments (e.g., 4–20 mA signal)
- Compares PV with setpoint (SV)
- Executes PID control algorithm or logic program
- Calculates control output (MV)
- Sends output signal to final control element (valve, actuator, VFD)
- Displays real-time process values on front panel
Key Functions
- Single-loop PID control
- Process variable indication (PV / SV / MV)
- Function block or logic programming
- Alarm and event handling
- Manual / automatic mode switching
- Data calculation and signal processing
System Role
In an industrial control loop:
- Sensor measures process condition
- Signal is sent to YS1700 controller
- Controller compares PV with setpoint
- PID algorithm calculates correction
- Output is sent to actuator (valve or drive)
- Process is continuously stabilized
Advanced Features
1. PID Control
- Standard proportional, integral, derivative control
- Stable and precise process regulation
2. Function Block Programming
- Modular control logic design
- Flexible control strategies
3. Multi-Function Control Modes
- Single-loop control
- Cascade control
- Selector control
4. Setpoint Handling
- Smooth setpoint tracking
- Reduced overshoot and instability
Industrial Applications
The YS1700-001/S01 is widely used in:
- Boiler control systems
- Chemical dosing systems
- Furnace temperature control
- Compressor control systems
- Flow and pressure regulation loops
- Water treatment systems
- Power plant auxiliary systems
Key Features
- Compact panel-mounted design
- High reliability industrial controller
- Flexible input/output configuration
- Built-in PID and logic control capability
- Suitable for standalone or system integration
- Operator-friendly front panel interface
Advantages
- Combines indicator + controller in one device
- Reduces need for separate PLC in small loops
- High stability in continuous process control
- Easy configuration and operation
- Flexible integration into control systems
Installation Notes
- Panel-mounted installation (standard cutout size)
- Requires stable power supply (AC or DC depending model config)
- Uses standard analog signals (commonly 4–20 mA)
- Output connected to actuators or control devices
- Optional communication setup for DCS/SCADA integration
FAQ
Q: What is YS1700-001/S01 used for?
It is used for single-loop industrial process control with PID functionality.
Q: Is it a PLC?
No, it is a dedicated loop controller with programmable functions.
Q: Can it operate independently?
Yes, it can work as a standalone controller.
Q: What industries use it?
Oil & gas, chemical, power generation, water treatment, and manufacturing.
Conclusion
The Yokogawa YS1700-001/S01 Programmable Indicator Controller is a reliable single-loop control device designed for industrial process automation.
It combines control, indication, and logic functions into one compact unit, making it suitable for precise and stable regulation of industrial processes.
