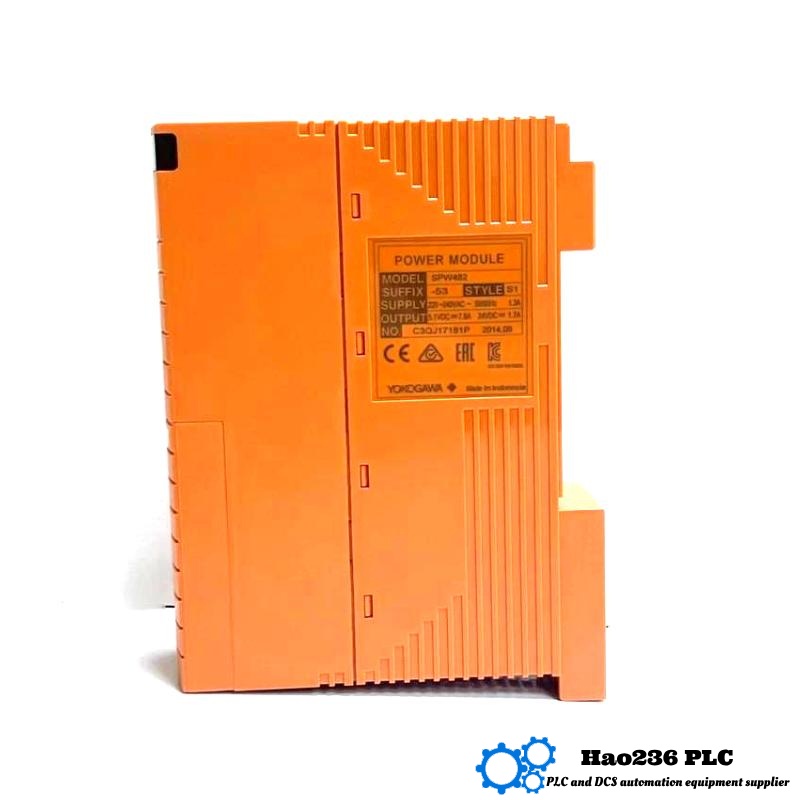

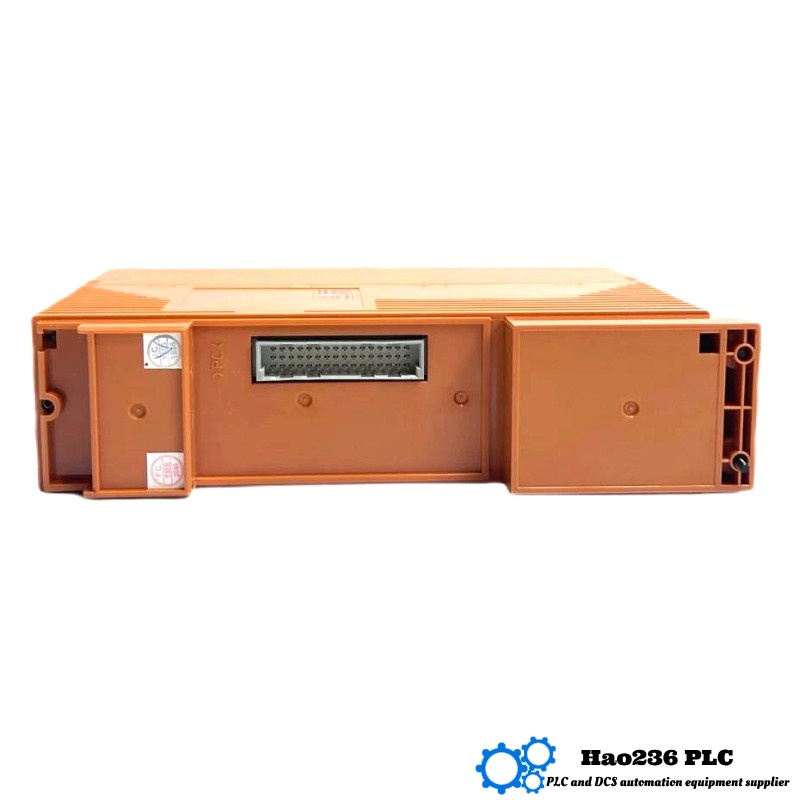

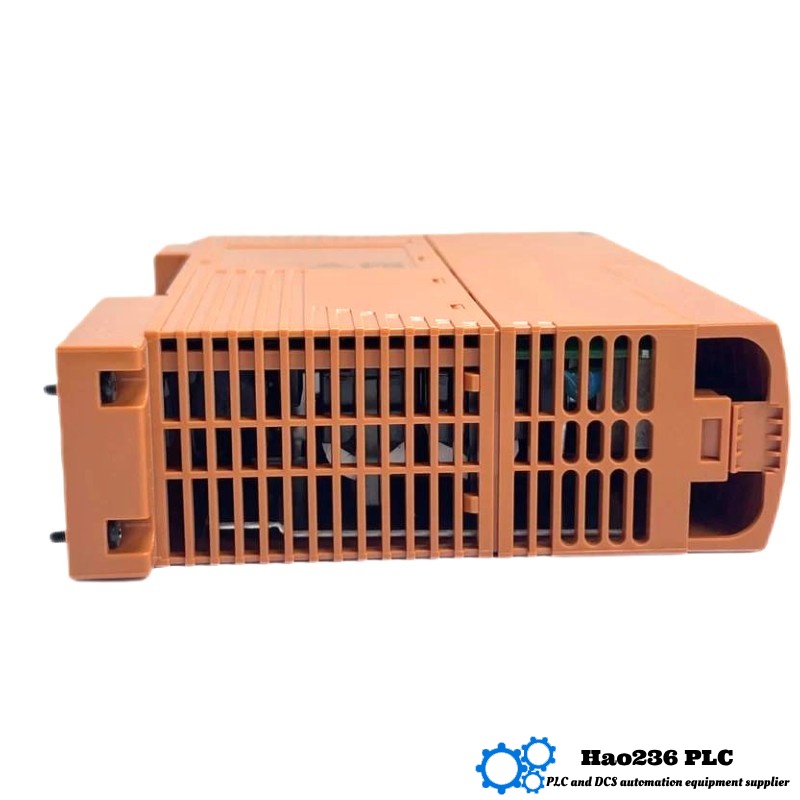

Product Introduction – SPW482‑53
The SPW482‑53 is a dual‑output power supply module intended for industrial control / field control / node units. It accepts AC input (nominal 220‑240 VAC) and provides two DC outputs (one low voltage for internal control logic, another higher voltage for field devices). It is designed to work under harsh ambient conditions (temperature, vibration, etc.), with good efficiency, isolation, and compact dimension so it can be installed in dense control cabinets or distributed control systems (DCS). It belongs to Yokogawa’s family of power supply modules used with field control units, node units, safety control units, etc.
Technical Specifications – SPW482‑53
| Parameter | Specification |
|---|---|
| Model | SPW482‑53 |
| Module Type | AC input dual output power supply |
| Input Voltage | 220‑240 VAC ±10%, 50/60 Hz |
| Input Power (Max) | 230 VA |
| Output1 | 5.1 V DC at 7.8 A (for control units) |
| Output2 | 24 V DC at 1.7 A (for field or I/O devices) |
| Efficiency | ~92% under normal load |
| Operating Temperature | ‑20 °C to +70 °C |
| Storage Temperature | ~ ‑40 °C to +85 °C |
| Humidity | 5% to 95% RH (non‑condensing) |
| Isolation / Safety | High isolation between input AC side and DC outputs; protective measures (overvoltage, overcurrent) |
| Mounting / Interface | Module backplane or dedicated connector system compatible with Yokogawa node/control units |
| Protection / Standards | Compliance with industrial safety norms; ISA G3 for certain temperature/corrosion resistance |
| Dimensions (W × H × D) | 22.5 mm × 99 mm × 114 mm |
| Weight | 0.34 kg (module itself); shipping / packed ≈ 1 kg |
Applications
-
Supplying stable power to field control units and node units in distributed control systems.
-
Powering internal control logic (low voltage) and field devices (higher voltage) simultaneously.
-
Retrofit or expansion of DCS cabinets where dual‑output power supply reduces wiring complexity.
-
Industrial plants (petrochemical, power generation, water treatment, etc.) requiring robust modules tolerating wide temperature ranges.
-
Environments requiring redundancy or spare capacity (using multiple SPW482 modules to share load or provide backup).
Advantages
-
Dual output capability (both low‑voltage logic output and higher field output) reduces number of separate power supplies.
-
High efficiency (~92%) lowers heat generation, energy waste, and improves reliability.
-
Wide operating temperature (‑20‑70 °C) enabling usage in harsher climates.
-
Compact form (22.5 mm width) saves space in racks / cabinets with many modules.
-
Reasonable weight (≈0.34 kg) simplifies handling and mounting.
-
Safety features (overvoltage, overcurrent protection, good isolation) enhance durability and protect downstream devices.
-
ISA G3 standard compliance in corrosion resistance for industrial harsh environments.
Brand & Series
| Field | Description |
|---|---|
| Brand | Yokogawa |
| Product Type | Power Supply Module |
| Series / Family | SPW‑series Supply Modules (used in Field Control Units, Node Units, etc.) |
| System Compatibility | Yokogawa DCS / Field Control Units / Node Units / Safety‑Node Infrastructures |
| Use Environment | Industrial automation, process control, harsh/variable temperature |
Related / Similar Models (Same Series or Related Function)
| Model | Function / Purpose | Dimensions (W × H × D) | Weight (kg) | Key Specs / Notes |
|---|---|---|---|---|
| SPW481‑53 | Power supply module for 100‑120 VAC input variant | ~22.5 mm × 99 mm × 114 mm | ~0.34 kg | Similar dual output; suited for lower input voltage regions |
| SPW484‑53 | Power supply module, 24 V DC input version | ~22.5 mm × 99 mm × 114 mm | ~0.34 kg | For applications where AC mains not available, or DC supply preferred |
| SPW482‑51 | Earlier revision or variant with lower ambient temp range | ~22.5 mm × 99 mm × 114 mm | ~0.34 kg | Possibly less efficient / lower tolerance for harsh temperature |
| SPW482‑54 | Slightly different output (e.g. higher current on 5.1 V or 24 V) | Similar footprint | ~0.34‑0.40 kg | Useful when higher field device loads needed |
| SPW483‑53 | Node power supply with explosion protection / hazardous area rating | Similar or slightly larger | ~0.40 kg | For deployment in hazardous or explosive atmospheres |
Other Popular Models from the Same Brand
| Model | Function / Use Case | Dimensions (approx) | Weight (kg) | Key Highlights |
|---|---|---|---|---|
| SCP451‑53 | Analog output module (4 channels) | ~123 mm × 122 mm × 100 mm | ~1.5 kg | Precision analog outputs; safety‑oriented I/O |
| SCP451‑11 | Logic / Processor module | ~123 × 122 × 100 mm | ~1.2 kg | Core for safety logic execution |
| SEC401‑51 | Discrete input module (digital I/O) | ~123 × 30 × 100 mm | ~0.18 kg | For alarm/trip circuits etc. |
| ADV151‑P00 | Digital output module | ~123 × 122 × 100 mm | ~0.9 kg | High speed discrete outputs |
| CP701 | Field control CPU / station processor | larger; depends on frame | ~1.7 kg | Central control tasks; high processing capability |
FAQ (10 Questions & Answers)
Q1: What are the dual outputs of SPW482‑53 used for?
A1: One output (5.1 V DC) is intended for internal control logic or modules in the node/control unit, while the other (24 V DC) supplies field devices or I/O modules needing higher voltage.
Q2: What AC input voltage does the module accept?
A2: It accepts 220‑240 VAC ±10%, at either 50 or 60 Hz.
Q3: What is the maximum power input or consumption?
A3: The module is rated for up to about 230 VA input under full load; idle or partial load consumes less.
Q4: What is its efficient performance?
A4: Efficiency is about 92%, helping reduce waste heat and improve reliability.
Q5: What are its physical size and weight?
A5: It measures roughly 22.5 mm × 99 mm × 114 mm, and weighs about 0.34 kg.
Q6: Over what temperature range does it reliably operate?
A6: From about ‑20 °C up to +70 °C.
Q7: What safety or protection features are built in?
A7: It includes overvoltage protection, overcurrent protection, and good voltage isolation between input and outputs.
Q8: Is it compatible with Yokogawa’s DCS / field control / node units?
A8: Yes; it is designed to integrate with such systems, being part of SPW series power supply modules used in node/control units.
Q9: What kind of mounting or connector interface does it use?
A9: Typically it plugs into a backplane or uses exclusive connectors compatible with Yokogawa’s node or field control unit architecture.
Q10: How does it behave under partial load or in redundancy setups?
A10: Under partial load its outputs remain stable; in systems requiring redundancy you can use dual SPW482‑53 modules or combinations so that one acts as backup to handle load in case of failure.
