- Yokogawa
- SNT401
- Optical Bus Repeater Main Module
- Japan
- 142.5 x 130 x 32.8 mm
- 0.3 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 3
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

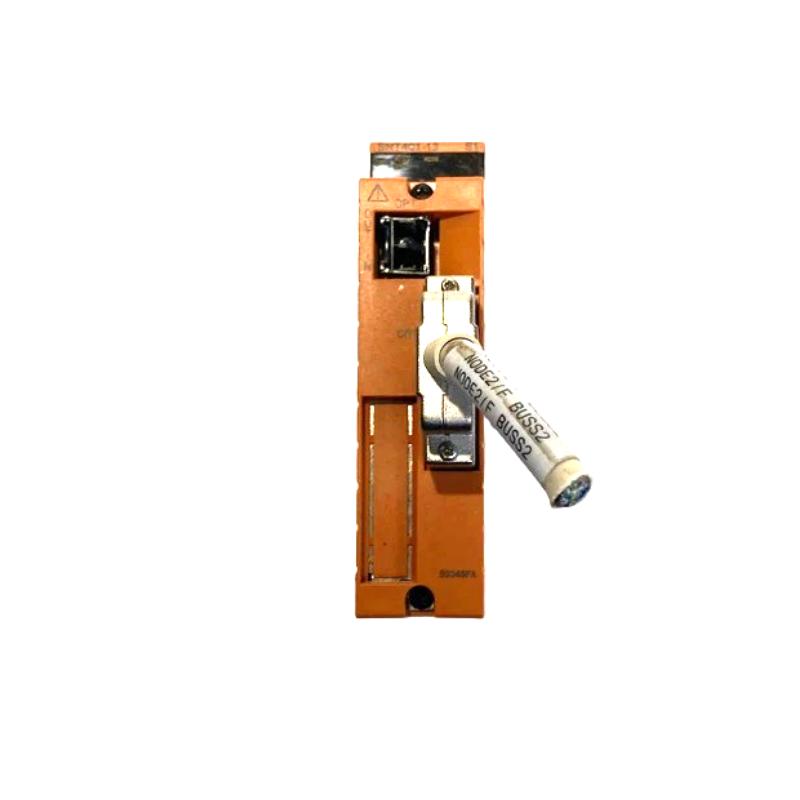

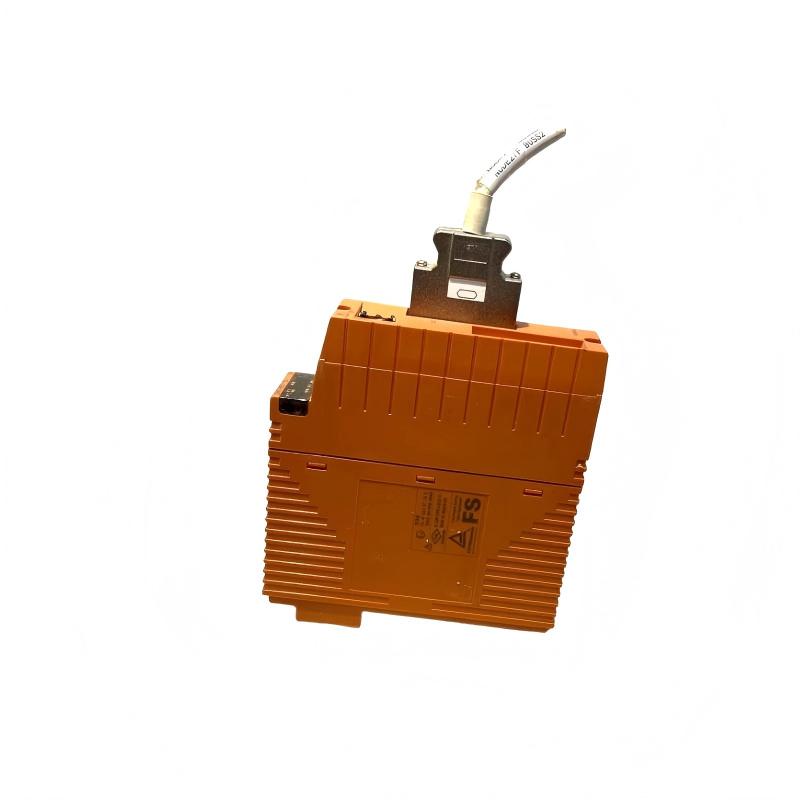

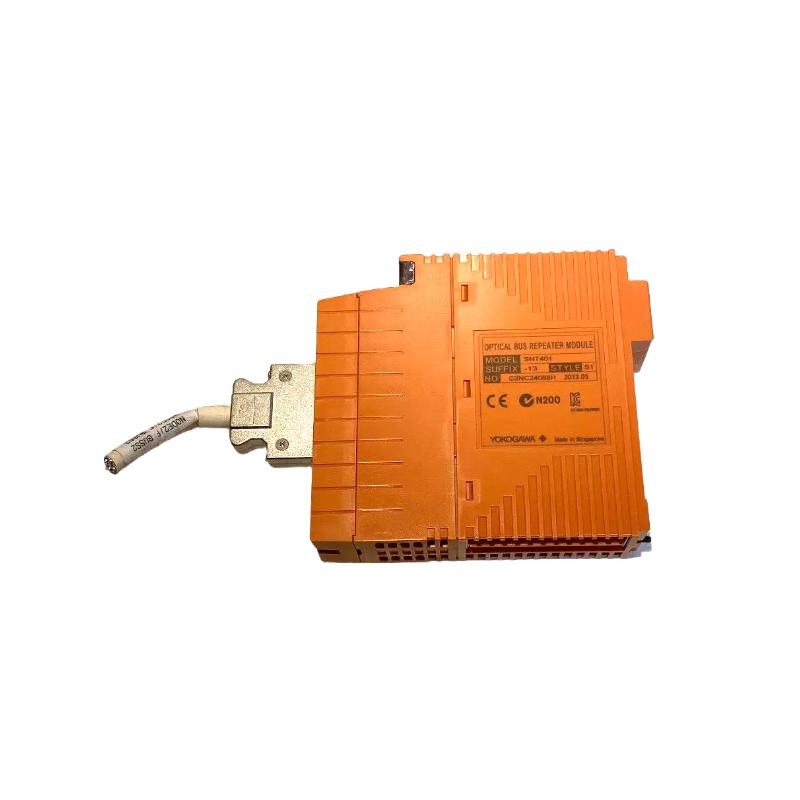

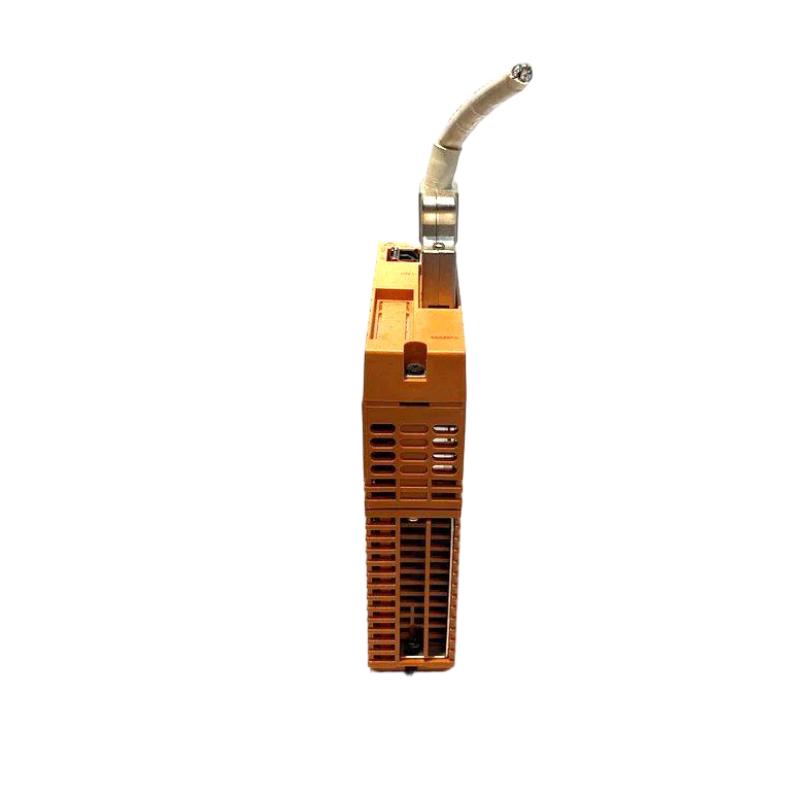

The Yokogawa SNT401 is an Optical ESB Bus Repeater Main Module used in ProSafe-RS Safety Instrumented Systems (SIS). It is designed to convert electrical ESB bus signals into optical signals, enabling long-distance, high-integrity communication between safety controllers and distributed safety nodes.
The SNT401 works as the master-side repeater module in an optical ESB communication pair, typically used together with an SNT501 slave module to extend system communication via fiber optic cables.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model | SNT401 |
| Product Type | Optical ESB Bus Repeater Main Module |
| System Platform | ProSafe-RS SIS |
| Function | ESB bus optical signal conversion and extension |
| Communication Type | Optical ESB Bus |
| Mounting Type | 19-inch rack mounted |
| Dimensions | 142.5 x 130 x 32.8 mm |
| Weight | 0.3 kg |
| Operating Role | Master-side optical repeater module |
| System Compatibility | ProSafe-RS safety systems |
Function and Working Principle
The SNT401 operates as a communication conversion module within a safety network.
Main functions:
- Converts ESB bus electrical signals into optical signals
- Extends ESB communication distance using fiber optic cables
- Maintains data integrity in distributed safety systems
- Supports star and chain network topologies
- Works in combination with SNT501 slave module
System Flow
Safety Controller / SNB10D Node → ESB Bus → SNT401 → Fiber Optic Cable → SNT501 → Remote Safety Node
System Role
The SNT401 serves as the master-side optical interface in Yokogawa safety communication architecture.
It is typically used to:
- Extend communication between remote SIS nodes
- Connect distributed safety cabinets
- Improve noise immunity in industrial environments
- Enable large-scale plant safety system design
Industrial Applications
- Oil & gas production facilities
- Petrochemical plants
- Refinery systems
- Offshore platforms
- Power generation stations
- Chemical processing industries
- Safety Instrumented Systems (SIS)
- Emergency Shutdown Systems (ESD)
- Fire & Gas detection systems
Installation Notes
- Installed in standard 19-inch control racks
- Requires pairing with SNT501 slave module
- Fiber optic cabling required for communication link
- Must follow ESB network design rules
- Proper grounding required for system stability
Compatible Components
- SNT501 Optical ESB Bus Repeater Slave Module
- SNB10D Safety Node Units
- SEC401 / SEC402 ESB bus coupler modules
- ProSafe-RS safety controllers
- Fiber optic communication cables
Alternative / Related Models
- SNT501 (slave module counterpart)
- SNT10D (repeater unit housing system)
- SEC401 / SEC402 ESB couplers
- SNB10D safety node series
Key Advantages
- Enables long-distance ESB communication
- High noise immunity using fiber optics
- Supports large-scale distributed SIS architecture
- Flexible network topologies (star / chain)
- Reliable operation in harsh industrial environments
- Essential for multi-cabinet safety system design
FAQ
Q: Is SNT401 a controller?
No. It is a communication repeater module, not a control processor.
Q: What is its main function?
It converts ESB electrical signals into optical signals for long-distance transmission.
Q: Does it work alone?
No. It must be used with an SNT501 slave module.
Conclusion
The Yokogawa SNT401 Optical ESB Bus Repeater Main Module is a key communication component in distributed safety systems, enabling reliable optical extension of ESB bus networks for large-scale ProSafe-RS SIS architectures.
