Product Overview

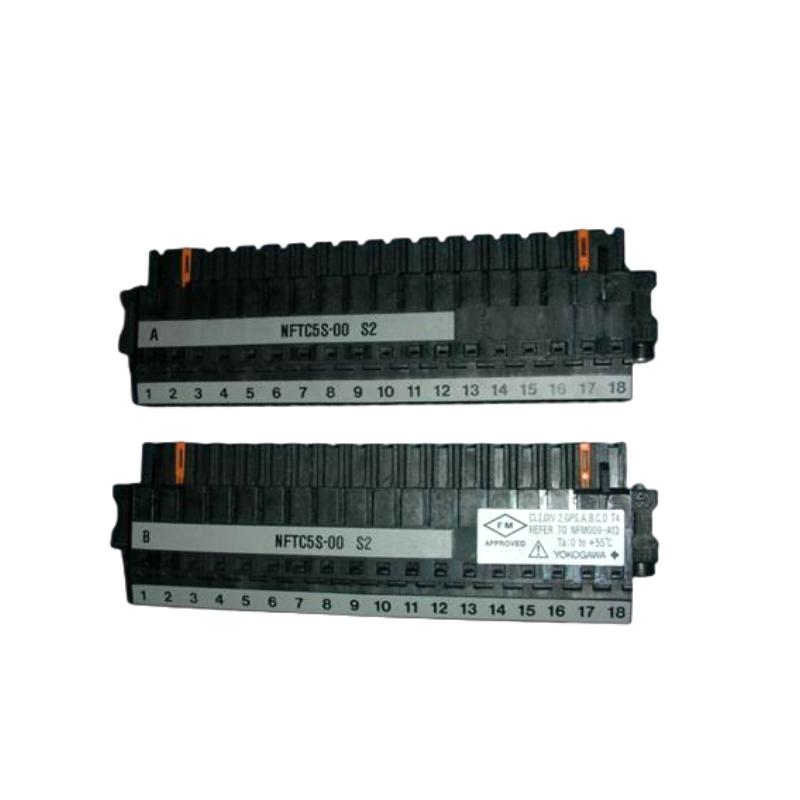

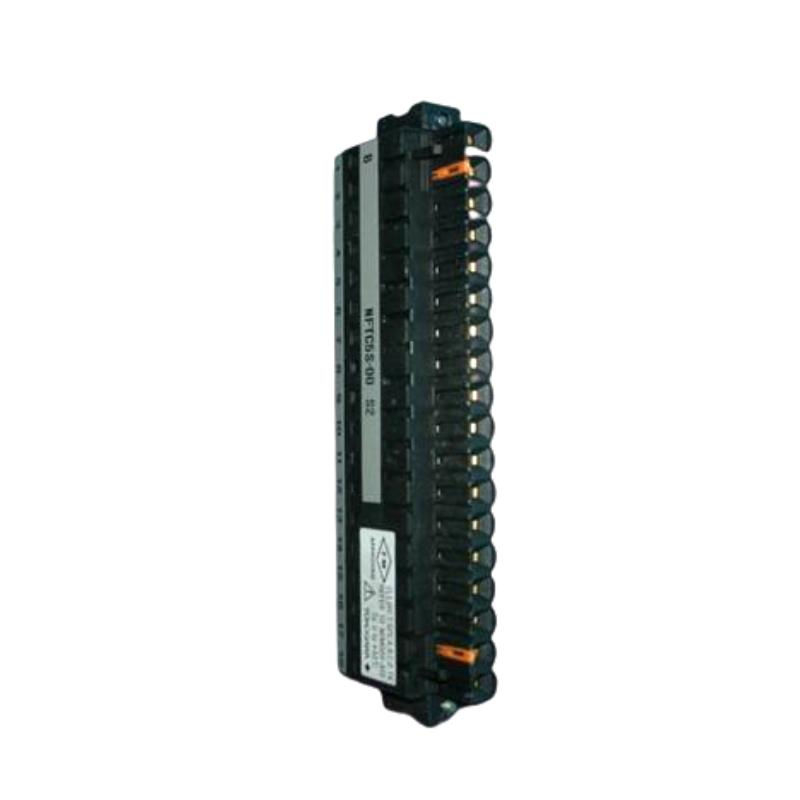

The Yokogawa NFTC5S-00 Digital Pressure Clamp Terminal is an industrial terminal block designed for digital I/O module connection in distributed control system (DCS) and industrial automation applications.

The NFTC5S-00 provides a reliable interface between field wiring and digital I/O modules, helping simplify cabinet wiring, improve signal connection reliability, and support efficient maintenance in process automation systems.

Designed for industrial installation, the unit features a compact structure with dimensions of 155 × 100 × 40 mm and a weight of 0.5 kg, making it suitable for control cabinets, I/O racks, and automation panels where space-saving installation is required.

Technical Specifications

Product Function

The Yokogawa NFTC5S-00 Digital Pressure Clamp Terminal is designed to:

• Provide field wiring connections for digital I/O modules
• Simplify signal cable termination
• Improve wiring organization inside control cabinets
• Support reliable signal transmission
• Reduce installation complexity
• Improve maintenance efficiency

The terminal unit acts as an intermediate connection point between field devices and digital I/O modules, providing a structured and reliable wiring solution for industrial automation systems.

Key Features

1. Reliable Pressure Clamp Connection

The NFTC5S-00 uses a pressure clamp terminal design to provide stable electrical connections.

Benefits include:

• Secure wire fixing
• Reduced risk of loose connections
• Improved vibration resistance
• Easier maintenance operations

2. Digital I/O System Integration

The terminal is designed for connection with digital signal modules and supports applications such as:

• Digital input signal connection
• Digital output signal connection
• Field equipment interface
• Control system signal distribution

It helps create an organized connection structure between field devices and automation controllers.

3. Compact Industrial Design

With dimensions of 155 × 100 × 40 mm, the NFTC5S-00 is suitable for installations where cabinet space is limited.

Advantages include:

• Compact footprint
• Easy rack integration
• Flexible cabinet arrangement
• Convenient wiring access

4. Improved System Maintenance

The terminal block design helps maintenance engineers:

• Quickly identify wiring points
• Perform troubleshooting efficiently
• Replace connected components more easily
• Reduce system downtime

System Applications

The Yokogawa NFTC5S-00 Digital Pressure Clamp Terminal is commonly used in:

• Distributed control systems (DCS)
• Industrial automation systems
• Process control plants
• Chemical production facilities
• Oil and gas installations
• Power generation systems
• Water treatment plants
• Manufacturing automation equipment

Installation & Integration

During installation:

1. Mount the NFTC5S-00 terminal unit inside the designated control cabinet.
2. Connect field signal cables to the pressure clamp terminals.
3. Connect the dedicated interface cable to the related I/O module.
4. Verify terminal wiring and signal allocation.
5. Check input/output signal operation during commissioning.

Proper installation ensures stable signal transmission and reliable communication between field devices and control systems.

Compatible Components

The Yokogawa NFTC5S-00 can be integrated with:

• Digital I/O modules
• Field control units
• Distributed control system components
• Industrial sensors
• Switches and contact devices
• Automation cabinets
• Process monitoring equipment

Advantages

• Reliable digital signal connection
• Compact terminal block design
• Simplifies industrial wiring
• Improves cabinet organization
• Easy installation and maintenance
• Suitable for continuous process operation
• Enhances system reliability
• Reduces troubleshooting time

Common Fault Diagnosis

1. Digital Signal Loss

Possible Causes:

• Loose terminal connection
• Incorrect wiring
• Damaged field cable

Recommended Checks:

• Inspect terminal tightening condition
• Verify cable connection
• Check field device status

2. I/O Module Signal Error

Possible Causes:

• Incorrect terminal assignment
• Connection mismatch
• Faulty interface cable

Recommended Checks:

• Confirm wiring configuration
• Check connector condition
• Verify I/O module settings

3. Intermittent Signal Problem

Possible Causes:

• Poor contact
• Vibration affecting wiring
• Cable damage

Recommended Checks:

• Inspect pressure clamp terminals
• Check cable routing
• Replace damaged wiring if necessary

4. System Communication Abnormality

Possible Causes:

• Incorrect module connection
• Interface cable failure
• Control system configuration issue

Recommended Checks:

• Verify system connections
• Check related modules
• Confirm configuration parameters

FAQs

Q1: What is Yokogawa NFTC5S-00 used for?
The NFTC5S-00 is used as a digital signal terminal connection unit for industrial automation and DCS applications.

Q2: What type of signals does NFTC5S-00 handle?
It is designed for digital input and digital output signal connections.

Q3: Where is NFTC5S-00 installed?
It is typically installed inside industrial control cabinets, I/O racks, and automation panels.

Q4: What is the weight of NFTC5S-00?
The unit weighs approximately 0.5 kg.

Q5: What are the benefits of using a pressure clamp terminal?
Pressure clamp terminals provide secure wiring, easier maintenance, and improved connection reliability.

Conclusion

The Yokogawa NFTC5S-00 Digital Pressure Clamp Terminal is a reliable industrial connection component designed for digital I/O signal wiring in process automation systems. With its compact structure, secure terminal connection design, and easy maintenance characteristics, it provides an efficient solution for improving wiring reliability and system performance in industrial control environments.
