Product Overview

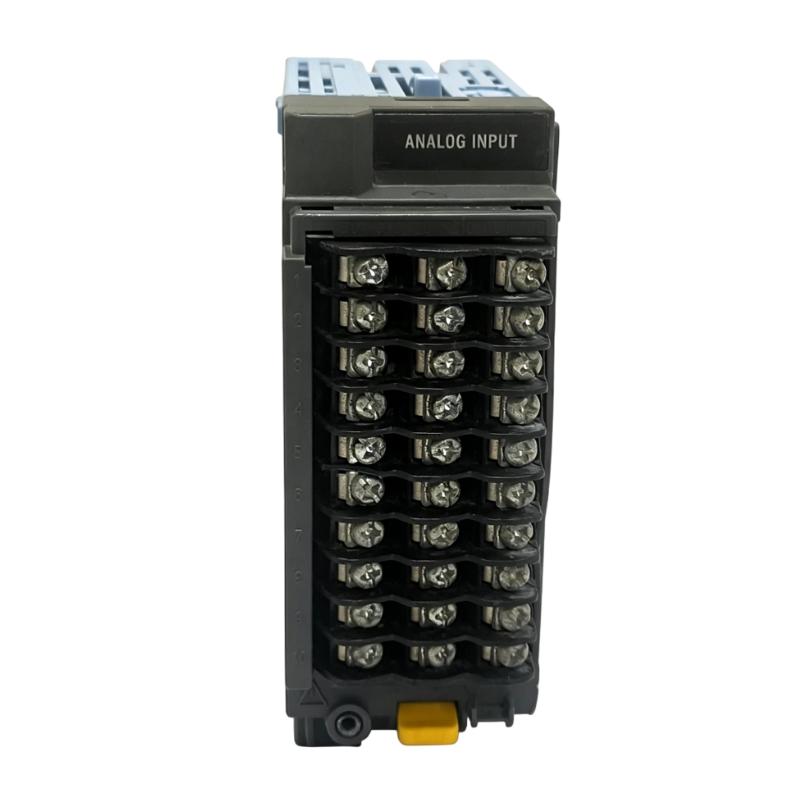

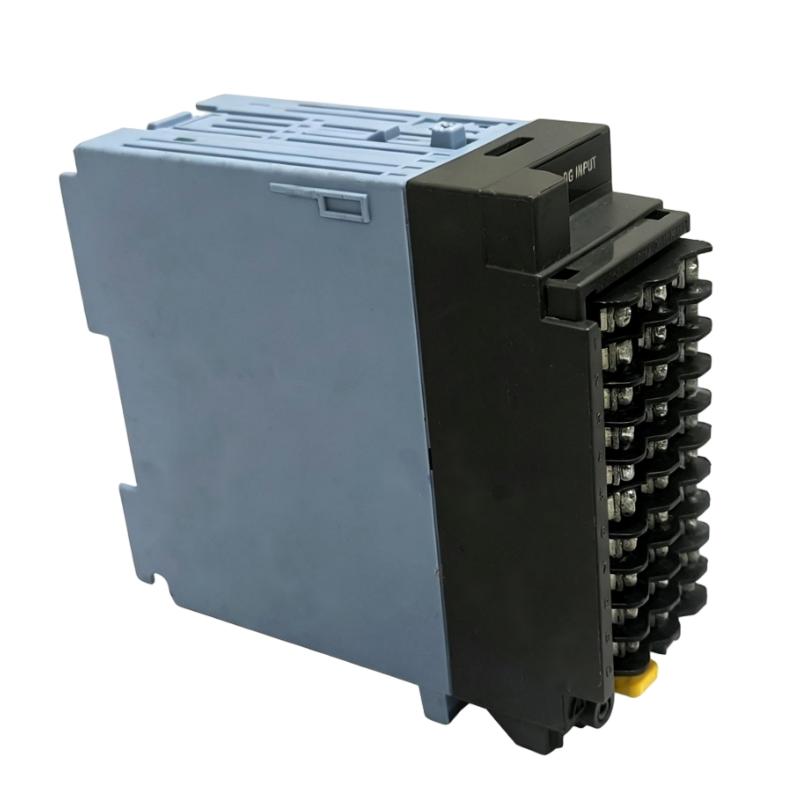

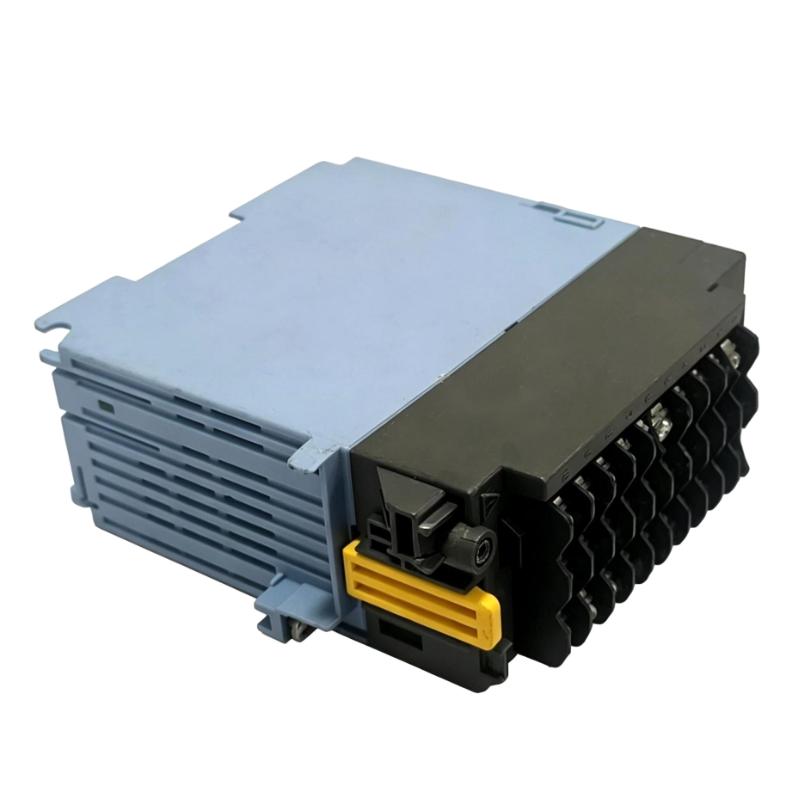

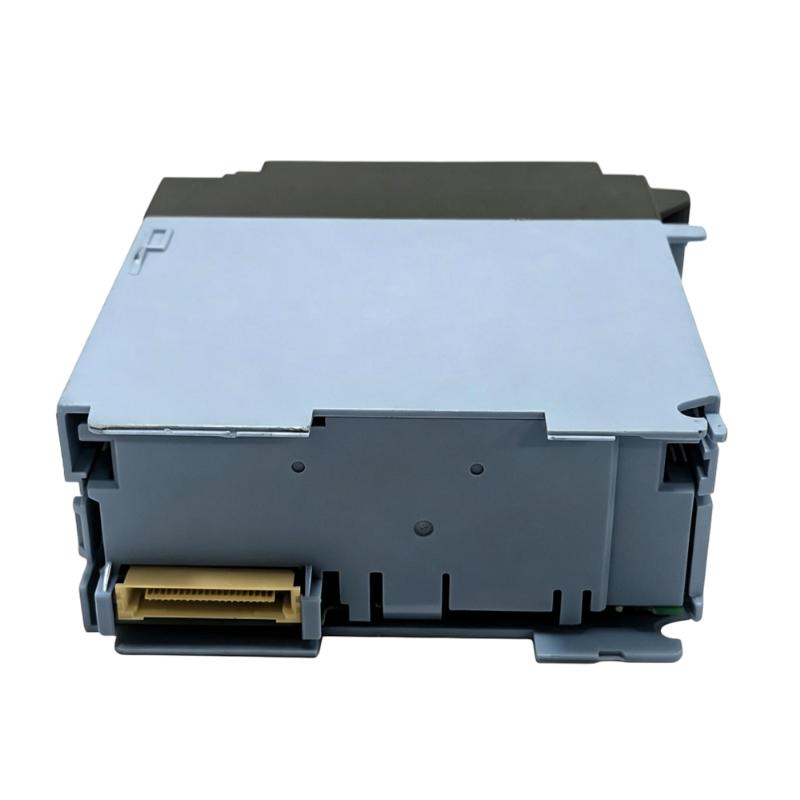

The Yokogawa GX90XA-10-U2N-3N is a SMARTDAC+ Analog Input Module used to acquire analog measurement signals within the SMARTDAC+ GX series data acquisition platform. It provides the input interface between field measurement devices and the data acquisition system, allowing process values to be collected for monitoring, recording, and analysis.
The module is suitable for applications where multiple analog variables need to be brought into a centralized or distributed data acquisition system. Typical measurements can include process temperature, pressure, flow, level, and other continuously changing industrial variables, depending on the configured input type and application.
In a production or test installation, the GX90XA-10-U2N-3N can be installed as part of a SMARTDAC+ system to collect signals from field instruments and make the resulting measurement data available to the system’s recording and monitoring functions. This allows engineers to review process trends and investigate changes in equipment operation.
For replacement work, the complete GX90XA reference should be checked against the installed SMARTDAC+ system configuration, input requirements, wiring arrangement, and controller or recorder configuration before installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Model | GX90XA-10-U2N-3N |
| Product Family | SMARTDAC+ |
| Product Type | Analog Input Module |
| Module Function | Analog measurement signal acquisition |
| Application | Industrial data acquisition and process monitoring |
| System | SMARTDAC+ GX Series |
| Input Type | Analog input |
| Installation | Modular SMARTDAC+ system |
| System Role | Field signal acquisition |
| Measurement Data | Process and equipment measurement signals |
| Dimensions | 133.1 × 45.2 × 111 mm |
| Weight | 0.3 kg |
Product Features
- SMARTDAC+ analog input module
- Provides analog signal acquisition within the GX Series platform
- Suitable for industrial process and equipment measurements
- Supports integration of field measurement signals into the data acquisition system
- Suitable for continuous process monitoring and recording
- Can be used for temperature, pressure, flow, level, and other analog measurements according to system configuration
- Modular installation within a SMARTDAC+ system
- Supports centralized collection of distributed measurement signals
- Suitable for production monitoring and equipment testing
- Can provide measurement data for historical trend analysis and troubleshooting
Working Principle
The GX90XA-10-U2N-3N operates as the analog signal acquisition interface within a SMARTDAC+ system. Field sensors or transmitters provide analog measurement signals, and the module acquires these signals so that the system can process, display, and record the corresponding process values.
The typical signal path can be represented as:
Field Sensor / Transmitter → GX90XA Analog Input Module → SMARTDAC+ System → Recording / Monitoring → Engineering Analysis
The input stage receives the analog signal from the connected field instrument and converts the measurement into data that can be handled by the SMARTDAC+ system. The acquired value can then be used for process display, historical recording, trend analysis, or equipment diagnostics.
For example, a process transmitter can provide a continuously changing signal representing pressure or flow. The analog input module acquires that signal, while the SMARTDAC+ system handles the subsequent monitoring and recording functions. This separation allows the input hardware to focus on signal acquisition while the system provides the higher-level data functions.
Role in a SMARTDAC+ Data Acquisition Control Architecture
The GX90XA-10-U2N-3N occupies the analog input layer of the SMARTDAC+ architecture. It connects field measurement devices with the data acquisition and recording functions of the host system.
Field Instruments → GX90XA Analog Input Module → SMARTDAC+ System → Recording / Display → Engineering Analysis
| System Element | Function |
|---|---|
| Field Sensor | Measures the physical process variable |
| Field Transmitter | Converts the measured variable into an instrumentation signal |
| GX90XA Analog Input Module | Acquires analog measurement signals |
| SMARTDAC+ System | Processes, displays, records, and manages acquired data |
| Recording Function | Maintains historical measurement information |
| Monitoring Interface | Allows operators to observe current and historical process values |
| Engineering Workstation | Supports configuration, analysis, troubleshooting, and reporting |
The final architecture depends on the selected SMARTDAC+ host system, installed modules, field signal requirements, and application configuration.
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Monitoring | Acquiring continuous process variables for recording and analysis |
| Temperature Monitoring | Collecting temperature measurements from industrial sensors |
| Pressure Monitoring | Acquiring pressure transmitter signals from process equipment |
| Flow Measurement | Recording flow-related analog measurements |
| Level Monitoring | Collecting continuous tank and vessel level measurements |
| Manufacturing Equipment | Monitoring analog operating parameters of production equipment |
| Equipment Testing | Acquiring measurement signals during commissioning and performance testing |
| Laboratory Systems | Collecting analog measurements for test and research applications |
| Utility Monitoring | Monitoring operating variables in plant utility systems |
| Maintenance Diagnostics | Using recorded measurement trends to investigate equipment behavior |
Installation and Maintenance
- Confirm the exact GX90XA-10-U2N-3N reference and the intended SMARTDAC+ system configuration before installation.
- Verify that the selected input module matches the signal type and measurement requirements of the connected field instruments.
- Check the host SMARTDAC+ system and available module positions before mounting the analog input module.
- Switch the system to the appropriate maintenance condition before installing or removing the module.
- Verify field wiring and terminal assignments before connecting measurement signals.
- Keep analog signal wiring separated from high-power cables, motor circuits, and other potential sources of electrical noise.
- Confirm the configured input type and measurement range for each connected channel.
- Check the acquired values against known field conditions during commissioning.
- Review the recorded trend after startup to identify unstable signals, unexpected changes, or signal interruptions.
- Inspect terminals, connectors, and associated wiring periodically for looseness, corrosion, or mechanical damage.
- If a channel produces an abnormal value, check the field instrument, signal wiring, terminal connections, configuration, and associated system modules before replacing the input module.
- Record the existing channel assignments and system configuration before replacement to simplify recommissioning and future maintenance.
Related Components
| Component | Function |
|---|---|
| SMARTDAC+ GX Series Main Unit | Provides the host platform for data acquisition and recording |
| GX90XA Analog Input Modules | Acquire analog signals from connected field instruments |
| SMARTDAC+ Communication Functions | Provide system-level data communication and integration |
| Process Sensors | Detect physical process variables |
| Process Transmitters | Convert measured variables into usable analog signals |
| Instrument Signal Wiring | Transfers measurement signals from field devices to the acquisition system |
| Recording Functions | Store acquired measurement data for historical analysis |
| Monitoring Interface | Provides operator access to process measurements and trends |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Yokogawa GX90XA-10-U2N-3N | SMARTDAC+ Analog Input Module | Analog process signal acquisition |
| Yokogawa GX90XA Series | SMARTDAC+ Analog Input Modules | Modular analog measurement acquisition |
| Yokogawa SMARTDAC+ GX10 | Data Acquisition / Recorder System | Compact industrial data acquisition |
| Yokogawa SMARTDAC+ GX20 | Data Acquisition / Recorder System | Larger-scale process data acquisition |
| Yokogawa SMARTDAC+ GM10 | Modular Data Acquisition System | Distributed industrial measurement |
| Yokogawa DX1000 Series | Data Acquisition Recorder | Industrial process measurement and recording |
| Yokogawa DX2000 Series | Data Acquisition Recorder | Multi-channel industrial data acquisition |
Key Advantages
- Dedicated analog signal acquisition for SMARTDAC+ systems
- Suitable for continuous industrial measurement
- Supports integration of field analog signals into the acquisition architecture
- Modular installation within the SMARTDAC+ platform
- Suitable for process and equipment monitoring
- Useful for historical trend recording and analysis
- Supports applications ranging from production monitoring to equipment testing
- Simplifies integration of analog measurement points into a centralized acquisition system
Technical FAQs
What is the function of the Yokogawa GX90XA-10-U2N-3N?
The GX90XA-10-U2N-3N is an analog input module used to acquire analog measurement signals within a SMARTDAC+ system. It provides the signal acquisition interface between field measurement devices and the system’s monitoring and recording functions.
What types of process measurements can an analog input module be used for?
Depending on the configured input type and connected instrumentation, analog input modules can be used for measurements such as temperature, pressure, flow, level, and other continuously varying process variables. The actual input capability should be matched to the module configuration and field instrument.
What should be checked before replacing the GX90XA-10-U2N-3N?
Check the installed SMARTDAC+ host system, module position, input configuration, field wiring, channel assignments, and measurement range. Recording the existing configuration before removal can help avoid errors during recommissioning.
What can cause an abnormal analog input reading?
Possible causes include an incorrect field signal, transmitter problems, damaged or loose wiring, incorrect terminal connections, unsuitable input configuration, or a problem elsewhere in the acquisition system. Checking the field signal first can help isolate the source of the abnormal reading.
