- Yokogawa
- F3XC08-0N
- No-Voltage Contact Input Module
- Japan
- 100 × 28.9 × 83.2 mm
- 0.14 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 4
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

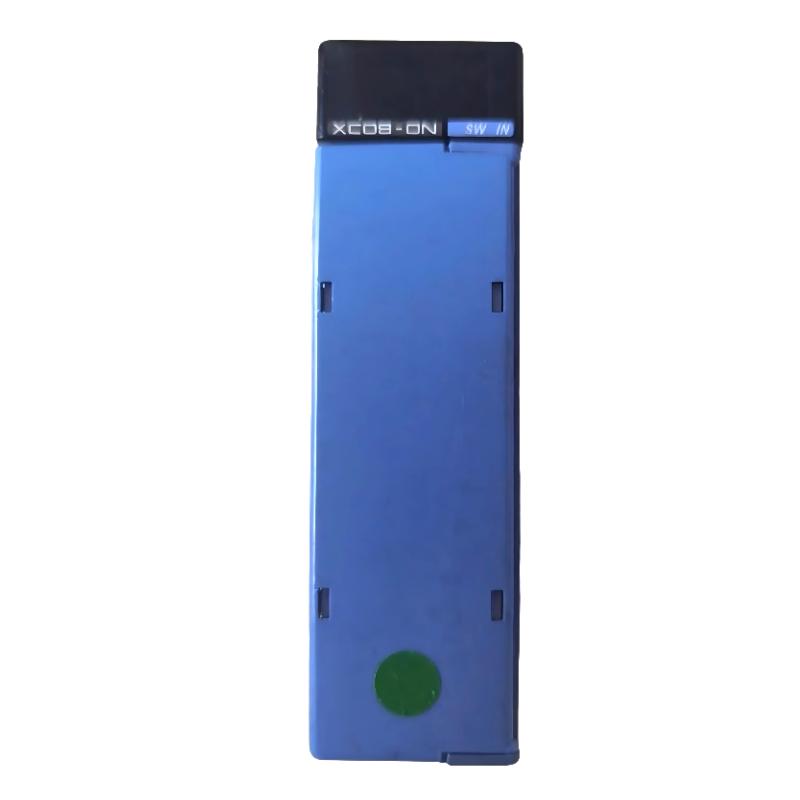

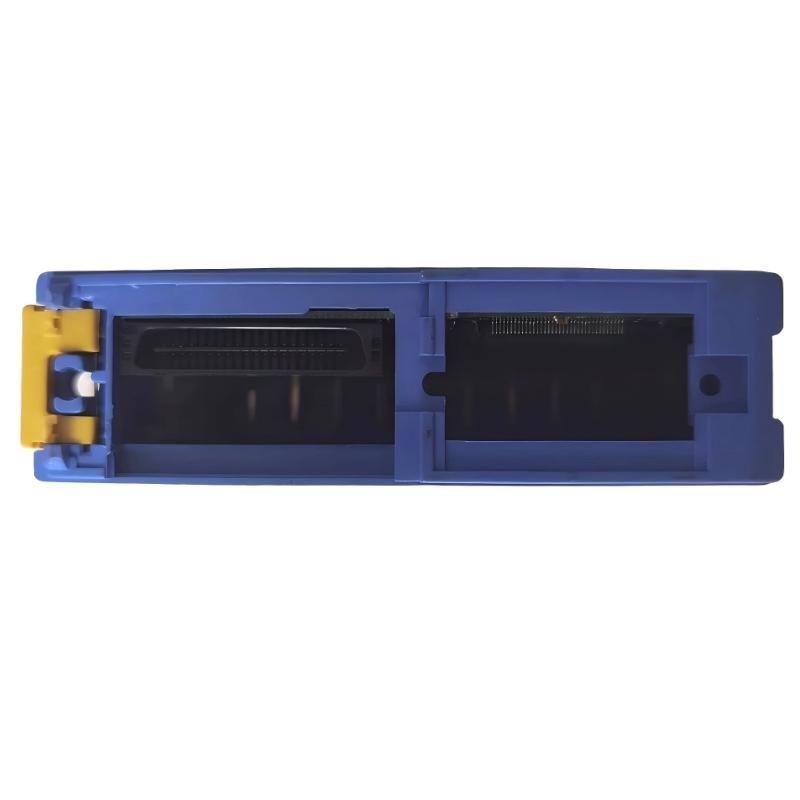

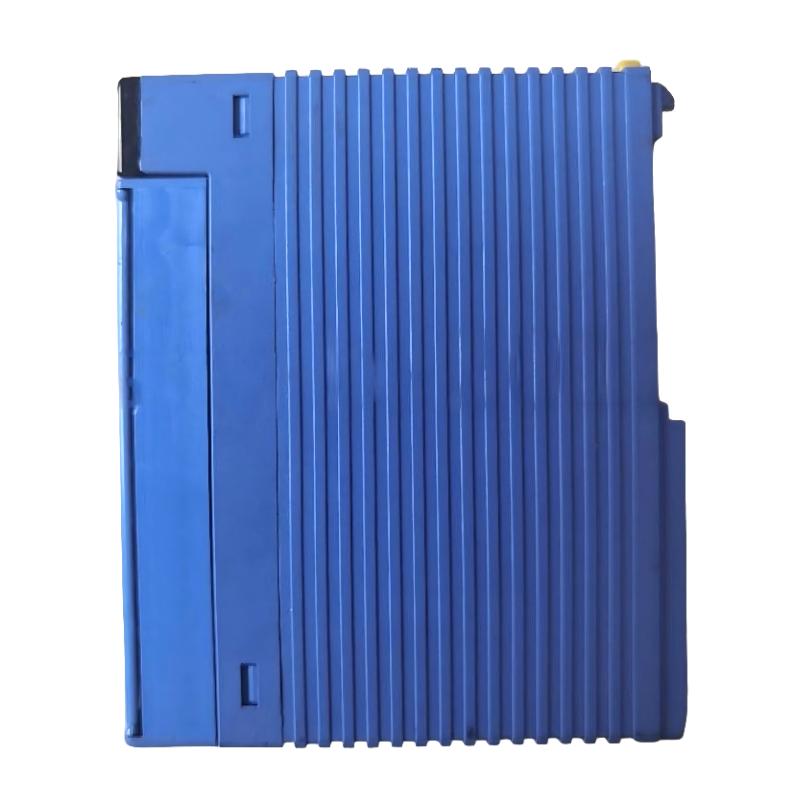

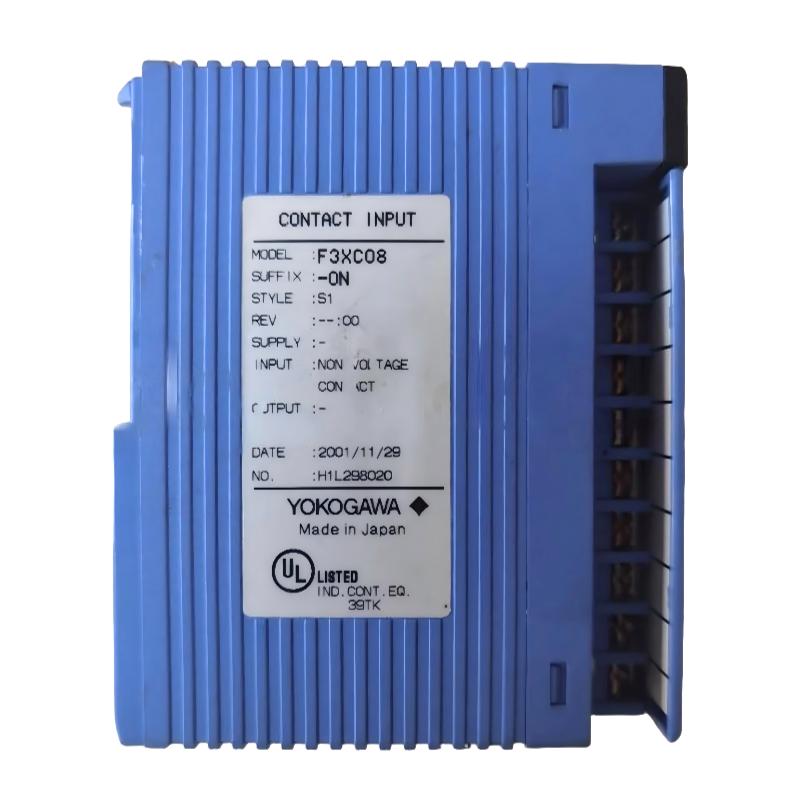

The Yokogawa F3XC08-0N No-Voltage Contact Input Module is a digital input module designed for industrial PLC and automation applications. It is used to collect ON/OFF signals from external no-voltage contact devices such as switches, relays, and mechanical contact sensors.
The module provides reliable digital signal acquisition for equipment monitoring, machine control, and industrial automation systems. Its compact modular structure makes it suitable for installation in control cabinets where space efficiency and stable signal processing are required.
The F3XC08-0N provides 8-channel no-voltage contact inputs, transformer isolation, and a lightweight design with dimensions of 100 × 28.9 × 83.2 mm and a weight of 0.14 kg.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model Number | F3XC08-0N |
| Product Type | No-Voltage Contact Input Module |
| Application | PLC digital input signal acquisition |
| Input Type | No-voltage contact input |
| Number of Input Points | 8 points |
| Common Line Type | 8 points/common line |
| Isolation Method | Transformer insulation |
| Dimensions | 100 × 28.9 × 83.2 mm |
| Weight | 0.14 kg |
| Installation Type | PLC modular installation |
| Signal Type | ON/OFF contact signal |
| External Connection | Terminal block connection |
| Input Display | LED status indication |
| Operating Environment | Industrial automation environments |
Product Function
The Yokogawa F3XC08-0N No-Voltage Contact Input Module is designed to:
- Receive digital signals from external contact devices
- Convert contact status into PLC input signals
- Monitor equipment operation conditions
- Support industrial sequence control
- Provide stable field signal acquisition
- Improve automation system monitoring capability
The module is suitable for connecting:
- Push buttons
- Relay contacts
- Limit switches
- Alarm contacts
- Equipment status switches
- Mechanical contact sensors
Key Features
1. 8-Channel Digital Contact Input
The F3XC08-0N provides eight independent input channels for collecting external contact signals.
Typical applications include:
- Machine operation monitoring
- Equipment status feedback
- Alarm signal collection
- Control command input
- Industrial sequence operations
The multi-channel design allows multiple field devices to be connected through one compact PLC module.
2. No-Voltage Contact Input Design
The module is designed for dry contact signal applications.
Advantages include:
- Simple field wiring
- Reliable ON/OFF signal detection
- Compatibility with relay contact devices
- Reduced external signal conversion requirements
- Easy integration with industrial equipment
The no-voltage contact design is commonly used for passive switching devices that provide contact closure signals.
3. Transformer Isolation Protection
The F3XC08-0N uses transformer isolation between field input circuits and internal circuits.
Benefits include:
- Improved electrical protection
- Reduced signal interference
- Enhanced system stability
- Increased reliability in industrial environments
4. Compact Modular Structure
With dimensions of 100 × 28.9 × 83.2 mm and a weight of only 0.14 kg, the module is designed for compact automation systems.
Advantages include:
- Reduced cabinet installation space
- Easy module replacement
- Flexible system expansion
- Convenient maintenance
System Applications
The Yokogawa F3XC08-0N No-Voltage Contact Input Module is commonly used in:
- Factory automation systems
- Machine control systems
- Production equipment
- Industrial control panels
- Process automation systems
- Equipment monitoring applications
- Manufacturing facilities
- Utility control systems
Installation & Integration
During installation:
- Install the module into the PLC base system.
- Connect external no-voltage contact devices to input terminals.
- Confirm terminal wiring and signal assignment.
- Check input status indicators.
- Configure PLC input addresses.
- Perform system testing and commissioning.
Correct installation ensures reliable signal detection and stable PLC operation.
Compatible Components
The Yokogawa F3XC08-0N can be integrated with:
- Yokogawa PLC systems
- Digital I/O modules
- Relay output devices
- Industrial switches
- Alarm monitoring devices
- Machine control equipment
- Factory automation systems
Advantages
- 8-channel digital contact input capability
- Compact and lightweight design
- Reliable no-voltage signal detection
- Transformer isolation protection
- Simple field wiring
- Easy PLC integration
- Suitable for industrial automation applications
- Improves equipment monitoring efficiency
Common Fault Diagnosis
1. Input Signal Not Detected
Possible Causes:
- Incorrect terminal wiring
- Loose connection
- Faulty external contact device
Recommended Checks:
- Verify input wiring
- Check external switch operation
- Inspect terminal connections
2. Input Channel Always OFF
Possible Causes:
- Open contact circuit
- Incorrect PLC configuration
- Damaged field device
Recommended Checks:
- Test contact operation
- Verify PLC input settings
- Inspect signal cables
3. Input Signal Unstable
Possible Causes:
- Poor terminal contact
- Mechanical vibration
- Electrical interference
Recommended Checks:
- Tighten terminal connections
- Check equipment installation
- Inspect signal wiring condition
4. Module Failure
Possible Causes:
- Incorrect module installation
- PLC configuration problem
- Internal hardware fault
Recommended Checks:
- Confirm module installation
- Check PLC settings
- Verify module status indicators
FAQs
Q1: What is Yokogawa F3XC08-0N used for?
The F3XC08-0N is used to collect ON/OFF signals from no-voltage contact devices in industrial PLC systems.
Q2: How many input points does F3XC08-0N have?
The module provides 8 digital no-voltage contact input points.
Q3: What devices can connect to this module?
It can connect with switches, relay contacts, alarm contacts, and other dry contact devices.
Q4: What is the weight of F3XC08-0N?
The module weighs approximately 0.14 kg.
Q5: Where is this module installed?
It is installed in PLC systems, automation cabinets, and industrial control equipment.
Conclusion
The Yokogawa F3XC08-0N No-Voltage Contact Input Module is a compact and reliable digital input solution designed for industrial PLC and automation systems. With 8-channel contact input capability, transformer isolation, and efficient modular construction, it provides stable field signal acquisition for machine control, equipment monitoring, and industrial automation applications.
