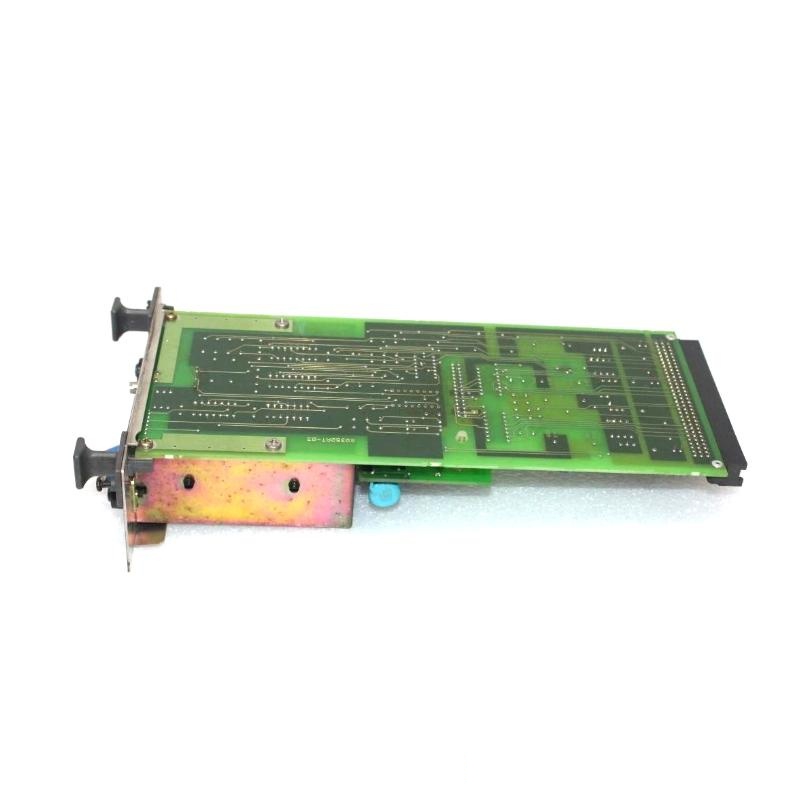

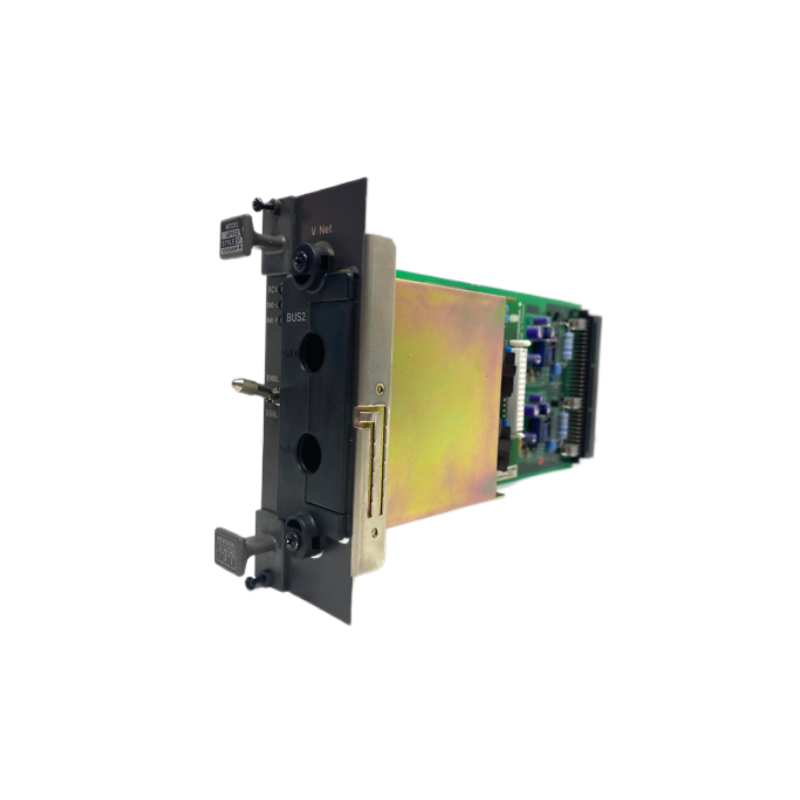

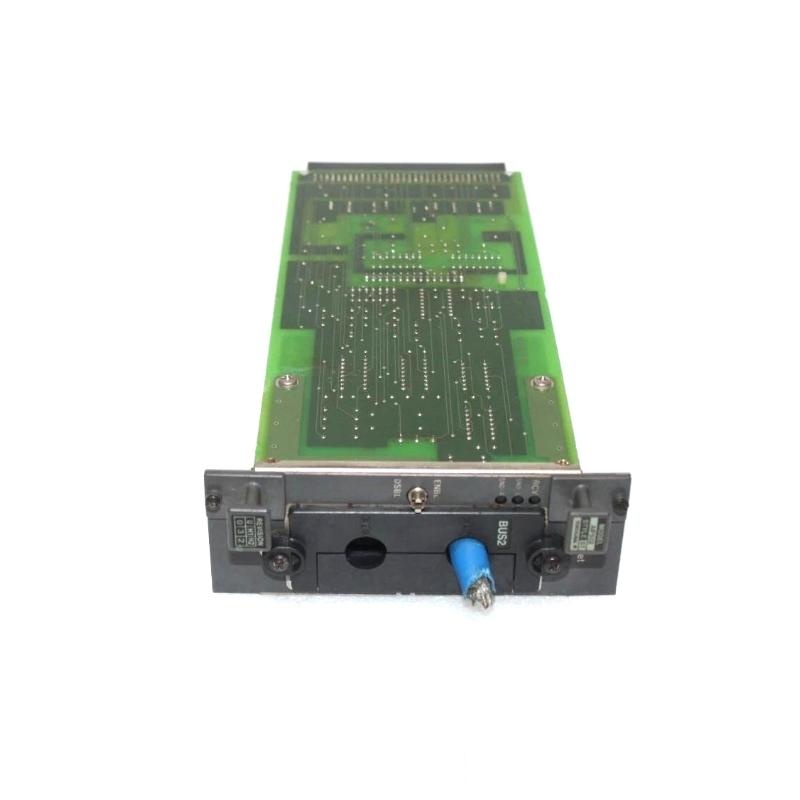

Yokogawa AIP502-S1 Coupler Module
Product Introduction
The Yokogawa AIP502-S1 is a coupler module designed for high-performance data communication in industrial automation systems. It provides the necessary interface for connecting different components within a system, facilitating seamless communication between devices that operate on different protocols or communication standards. The AIP502-S1 enables efficient data transfer while ensuring stability, security, and error-free communication in demanding industrial environments.
As part of Yokogawa’s AIP series, the AIP502-S1 is engineered for flexibility and integration into various system architectures, making it ideal for diverse applications across industries such as energy, manufacturing, and process control. It offers high reliability, ensuring that operations can continue without disruption, even in mission-critical applications.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | AIP502-S1 |
| Type | Coupler Module |
| Series | Yokogawa AIP Series |
| Dimensions | 22 x 124 x 126 mm |
| Weight | 1.5 kg |
| Interface Type | Multi-protocol Coupler |
| Operating Voltage | 24 V DC |
| Mounting | DIN rail or panel-mounted |
| Data Transfer Speed | 10 Mbps |
| Temperature Range | -10°C to +60°C |
| Humidity Range | 5% to 95% non-condensing |
| Environmental Protection | IP20 |
| Protocol Support | Supports multiple protocols including Modbus, Profibus, and Ethernet |
| Error Detection | Built-in error checking and retry mechanism |
Product Applications
-
Industrial Automation Systems
The AIP502-S1 is ideal for connecting PLC systems, DCS, and other industrial devices, enabling reliable and efficient communication between components in automation systems. -
Data Communication Integration
This coupler module is perfect for connecting devices using different communication protocols, bridging gaps between legacy systems and modern networks for seamless data exchange. -
Energy Management
Used in energy systems to transmit data between different energy management devices, ensuring precise control and monitoring across the grid. -
Manufacturing and Process Control
Ensures robust communication between various equipment and control systems in manufacturing plants, providing accurate data for monitoring and optimizing processes. -
Remote Monitoring Systems
The AIP502-S1 can be utilized in SCADA and remote monitoring systems, enabling data collection and control over long distances for industries like utilities and oil and gas.
Product Advantages
-
Multi-Protocol Support
The AIP502-S1 supports multiple communication protocols, including Modbus, Profibus, and Ethernet, making it a flexible solution for various applications across industries. -
Error Detection and Resilience
The module is equipped with advanced error detection and retry mechanisms, ensuring data integrity and reliability even in noisy or unstable communication environments. -
Robust Environmental Protection
With an IP20 rating, the AIP502-S1 provides protection against dust and physical damage, ensuring continuous performance even in harsh industrial conditions. -
High-Speed Data Transfer
The AIP502-S1 supports 10 Mbps data transfer speed, making it suitable for real-time data exchange and high-speed applications in process control. -
Versatile Mounting Options
The coupler module can be mounted either on DIN rails or directly to a panel, offering flexible integration into different system configurations. -
Wide Temperature Range
It operates effectively in temperatures ranging from -10°C to +60°C, making it suitable for both indoor and outdoor industrial environments.
Brand Information
Yokogawa is a global leader in industrial automation, process control, and instrumentation. The AIP502-S1 is part of their AIP series, known for delivering high-performance, reliable, and flexible solutions that meet the diverse needs of industries like energy, chemical processing, and manufacturing.
Related Models in Yokogawa AIP Series
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| AIP501-S1 | Communication Interface Module | 22 x 120 x 125 | 1.2 |
| AIP503-S1 | Ethernet Communication Module | 22 x 130 x 128 | 1.3 |
| AIP504-S2 | Modbus TCP Coupler Module | 24 x 125 x 130 | 1.4 |
| AIP505-S3 | Process Control Communication Module | 20 x 115 x 120 | 1.2 |
| AIP506-S4 | SCADA Communication Module | 23 x 124 x 127 | 1.5 |
Popular Yokogawa Models
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| AIP171-S2 | Transceiver Control Module | 27.2 x 130 x 176 | 0.3 |
| AIP172-S1 | Digital Communication Interface | 30 x 135 x 180 | 0.35 |
| AIP175-S4 | Industrial Communication Module | 33 x 125 x 175 | 0.32 |
| AIP176-S2 | Process Control Interface Module | 35 x 140 x 185 | 0.33 |
| AIP173-S3 | Multi-Protocol Control Module | 29 x 125 x 170 | 0.3 |
FAQs
Q1: What is the AIP502-S1 used for?
A1: The AIP502-S1 is a coupler module used to interface various industrial communication protocols, enabling seamless data transfer between devices in automation systems.
Q2: What protocols does the AIP502-S1 support?
A2: It supports Modbus, Profibus, and Ethernet protocols, offering flexible communication between different systems.
Q3: What is the data transfer speed of the AIP502-S1?
A3: The module supports 10 Mbps data transfer speed, allowing for fast and efficient communication.
Q4: How is the AIP502-S1 mounted?
A4: The AIP502-S1 can be mounted on DIN rails or directly to a panel, providing versatile installation options.
Q5: What is the operating temperature range of the AIP502-S1?
A5: The module operates in a temperature range of -10°C to +60°C.
Q6: What is the weight of the AIP502-S1?
A6: The AIP502-S1 weighs 1.5 kg.
Q7: What environmental protection does the AIP502-S1 offer?
A7: It has an IP20 rating, protecting it from dust and physical damage.
Q8: Is the AIP502-S1 suitable for outdoor use?
A8: Yes, the module can be used outdoors as it operates in a wide temperature range and has an IP20 rating for basic protection.
Q9: Can the AIP502-S1 interface with legacy systems?
A9: Yes, the module supports multiple protocols, making it compatible with both legacy and modern systems.
Q10: How reliable is the AIP502-S1?
A10: The AIP502-S1 is highly reliable, offering error detection and retry mechanisms to ensure data integrity.
