Product Introduction – ADV569‑P00

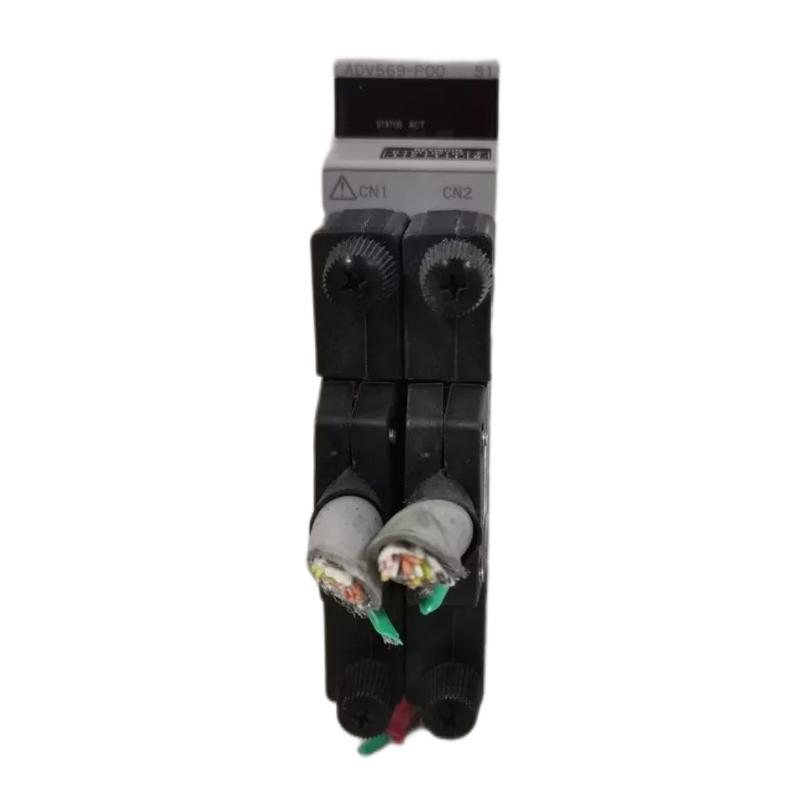

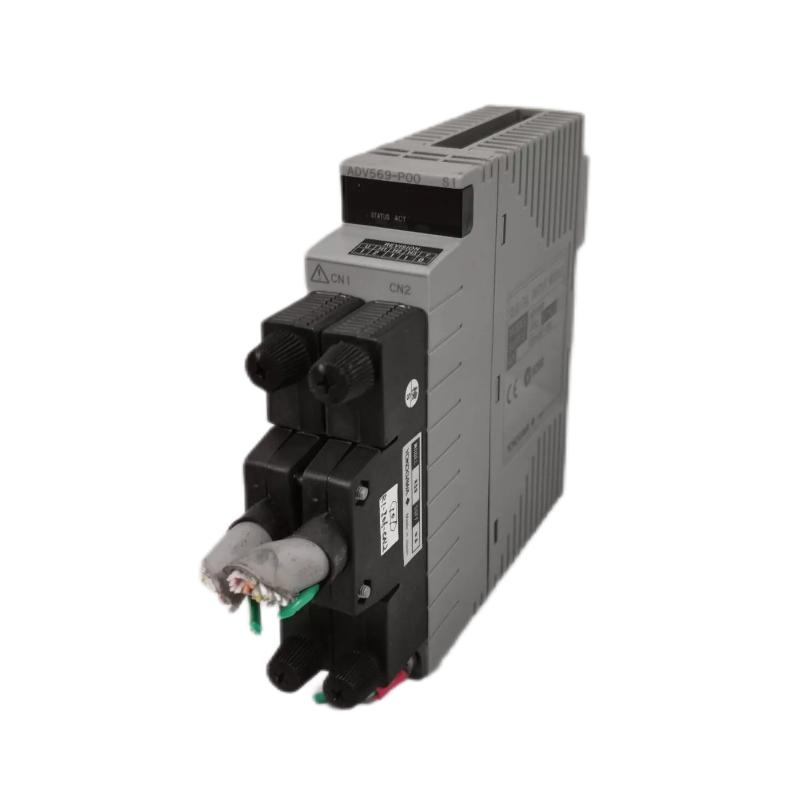

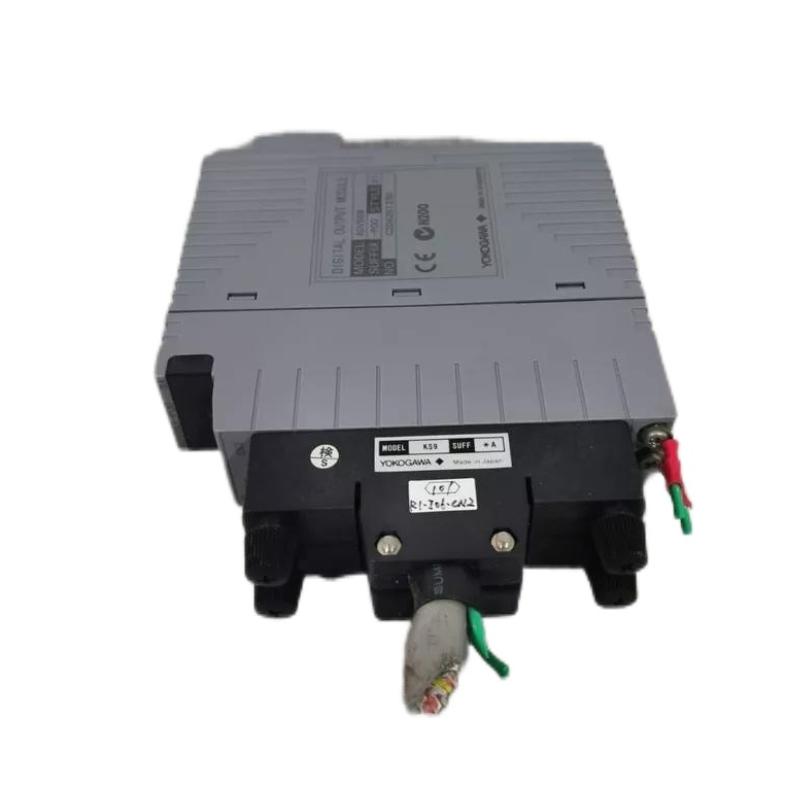

The Yokogawa ADV569‑P00 is a 64‑channel digital output module designed for high‑capacity, modular control systems. It provides isolated 24 V DC transistor (current-sink) outputs, making it suitable for driving a large number of field devices such as solenoid valves, relays, contactors, indicator lamps, and alarm elements.
This module is part of Yokogawa’s ADV series I/O family and is built to integrate into modular racks or distributed control system (DCS) frameworks. Its “P00” variant supports status, pulse‑width, and time‑proportional control, giving system designers both precise timing control and reliable discrete output handling. The high channel count allows for consolidation of many outputs in one module, reducing panel complexity and system footprint.
Technical Specifications
| Parameter | Specification |
|---|---|
| Number of Output Channels | 64 |
| Output Type | 24 V DC transistor, current-sink, isolated |
| Rated Voltage | 24 V DC |
| Supply Voltage Range | ~20.4 – 26.4 V DC |
| Maximum Load Current (per channel) | 100 mA |
| OFF‑State Leakage Current | ≤ 0.1 mA per channel |
| ON‑State Voltage Drop | ≤ ~2 V DC |
| Output Response Time | ≤ 3 ms (status), ≤ 10 ms (pulse‑width or time-proportional) |
| Pulse‑Width / Time‑Proportional Range | 8 ms – 7200 s |
| Pulse-Width Resolution | 8 ms increments |
| Isolation: Output to System | ~2 kV AC (1 minute) |
| Isolation: Between Commons | ~500 V AC between each 16‑channel common group (1 minute) |
| Status Indication | Module‑level or group‑level status (depending variant) |
| Connection Interface | Dedicated terminal / cable connector (modular rack) |
| Dimensions | Approx. 144 mm (W) × 100 mm (H) × 30 mm (D) |
| Weight | Approx. 0.33 kg |
| Redundancy Support | Supports dual‑redundant configuration |
| Operating Environment | Industrial control racks, distributed I/O systems |
Applications
The ADV569‑P00 module is well suited for:
-
Large Process Automation: Controlling multiple valves, actuators, relays, and alarms in chemical, petrochemical, or batch processing plants.
-
Power‑Generation Systems: Driving auxiliary device relays, instrument contactors, and signal annunciators in generation stations.
-
Water / Wastewater Treatment: Operating pumps, gates, mixers, blowers, and time-based control sequences.
-
Oil & Gas Safety Control: Providing timed control and status outputs for safety valves, emergency shutdown (ESD) functions, and interlocks.
-
Factory Automation: Managing high-density robotic peripherals, conveyors, packaging machinery, and machines requiring timed actuation.
-
Redundant / High‑Availability Systems: Integrated in dual-redundant rack architectures to support critical processes and reduce downtime.
Advantages
-
Very High Output Capacity: 64 discrete outputs in a single module reduce the number of modules needed, saving rack and panel space.
-
Flexible Timing Control: Supports pulse-width modulation and time-proportional control for duty‑cycle management and timed sequences.
-
Strong Electrical Isolation: Robust isolation protects control and field wiring from interference and surges.
-
Scalable & Modular Design: Easily integrated into modular racks or DCS systems, facilitating system expansion or replacement.
-
Redundancy Capable: Supports dual-redundant setup for high-availability applications.
-
Reliable Digital Switching: Designed for continuous operation, with stable current-sink capability for solenoids, relays, and other actuators.
-
Compact Form Factor: Lightweight and compact, which reduces mechanical load and saves space.
-
Cost-Efficient Timing Features: Provides timing functions without requiring separate timing relay modules.
Brand & Series Information
-
Brand: Yokogawa
-
Series: ADV Series – Digital I/O Modules
-
Sub‑Series: ADV569 – High‑density digital output modules (64-channel) designed for precise timing and high-volume discrete control.
Recommended Models – Same Series or Related
Here are five related models in the same series or closely associated families (with bold model names):
| Model | Channels | Key Features | Notes |
|---|---|---|---|
| ADV569‑P00 | 64 | Pulse-width, time-proportional, status | Base high-capacity output module |
| ADV569‑P01 | 64 | Environmental rating + timing control | Designed for challenging industrial environments |
| ADV561‑P00 | 64 | Timing control + status | Similar channel count in a different sub-line |
| ADV561‑P50 | 64 | Pulse-width / time-proportional without status LED | Cost-efficient timing option |
| ADV551‑P00 | 32 | Basic 32-channel output | When fewer outputs are needed |
Recommended Popular Models – Same Brand
Here are five popular modules from the same brand that are widely used:
| Model | Type | Channels | Application / Role |
|---|---|---|---|
| ADV151‑P60 | Digital Input | 32 | Collecting discrete input signals from field devices |
| ADV161‑P00 | Digital Input | 64 | High‑density input module for large control systems |
| ADV559‑P00 | Digital Output | 32 | 32-channel output module for mid-size I/O needs |
| ADV561‑P10 | Digital Output | 64 | Precise timing control with PWM and proportion |
| ADV869‑P01 | Mixed I/O | 32 in / 32 out | Combined input / output for flexible installation |
FAQ – 10 Questions (Q/A)
Q1: How many discrete output channels does the ADV569‑P00 support?
A1: It supports 64 separate output channels.
Q2: What types of output control are available?
A2: Pulse-width modulation (PWM) and time-proportional control, in addition to digital status output.
Q3: What is the nominal drive voltage for its outputs?
A3: The outputs are designed to drive 24 V DC.
Q4: How much current can each channel handle?
A4: Up to 100 mA per output channel.
Q5: What is the speed of output switching?
A5: It can switch status in ≤ 3 ms; timed pulses or proportional switching in ≤ 10 ms.
Q6: Is there isolation between the outputs and the control system?
A6: Yes — strong isolation, approximately 2 kV AC between outputs and the system, and ~500 V between common groups.
Q7: Does this model support redundancy?
A7: Yes, it can be used in dual‑redundant architectures for higher system reliability.
Q8: What are the physical dimensions and weight of the module?
A8: Approximate size is 144 mm × 100 mm × 30 mm, and weight is about 0.33 kg.
Q9: Where is this module most suitably applied?
A9: In large process plants, water treatment, power systems, and any application requiring high‑density, timed discrete outputs.
Q10: Why choose P00 versus other variants?
A10: The P00 variant offers a balance of full timing control (PWM / proportion) and status feedback, at a lower cost compared to environmental/hard‑spec variants.
