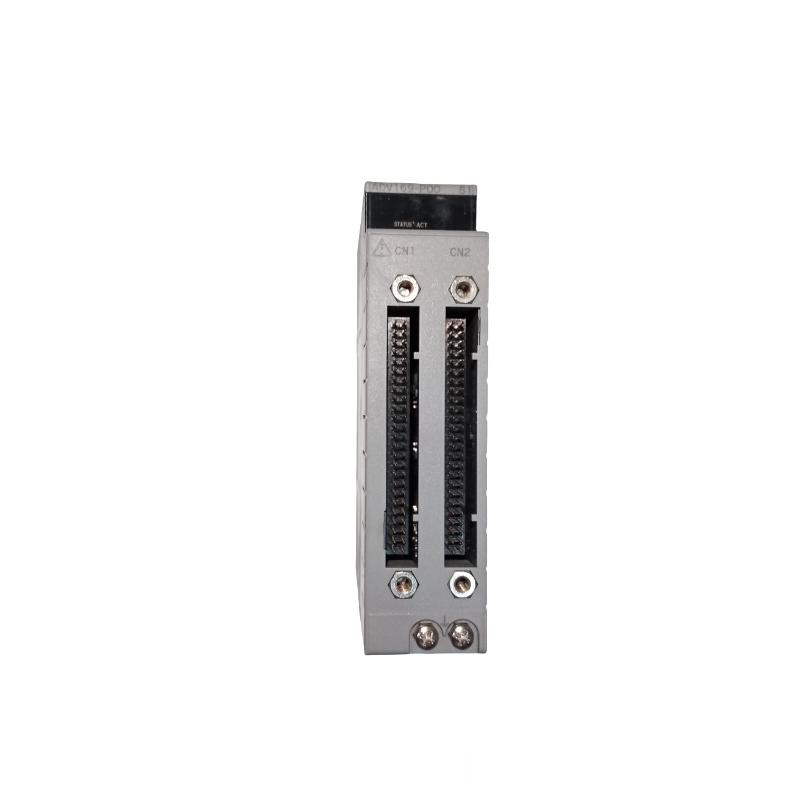

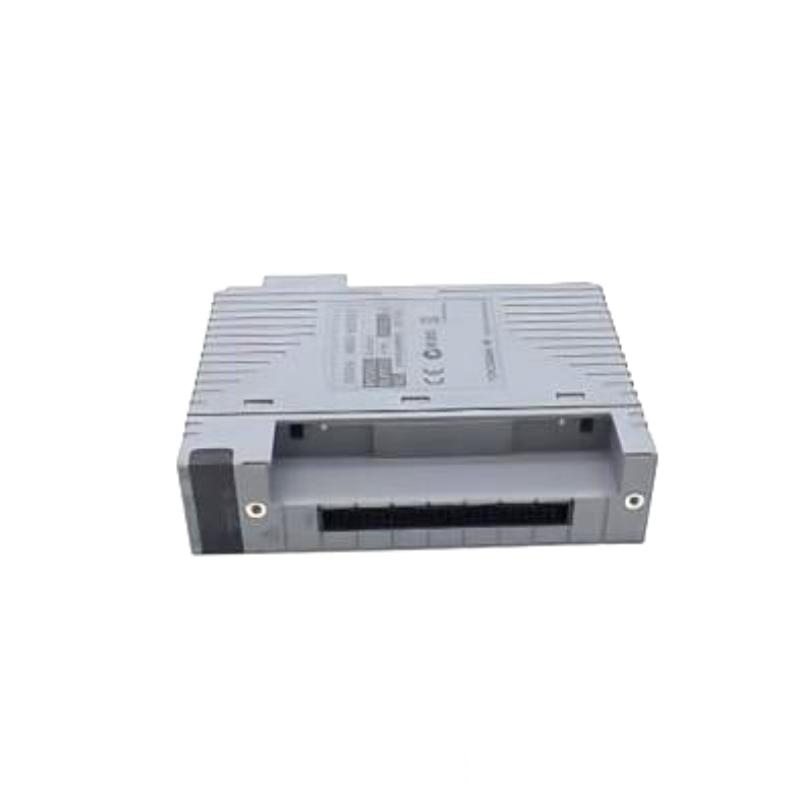

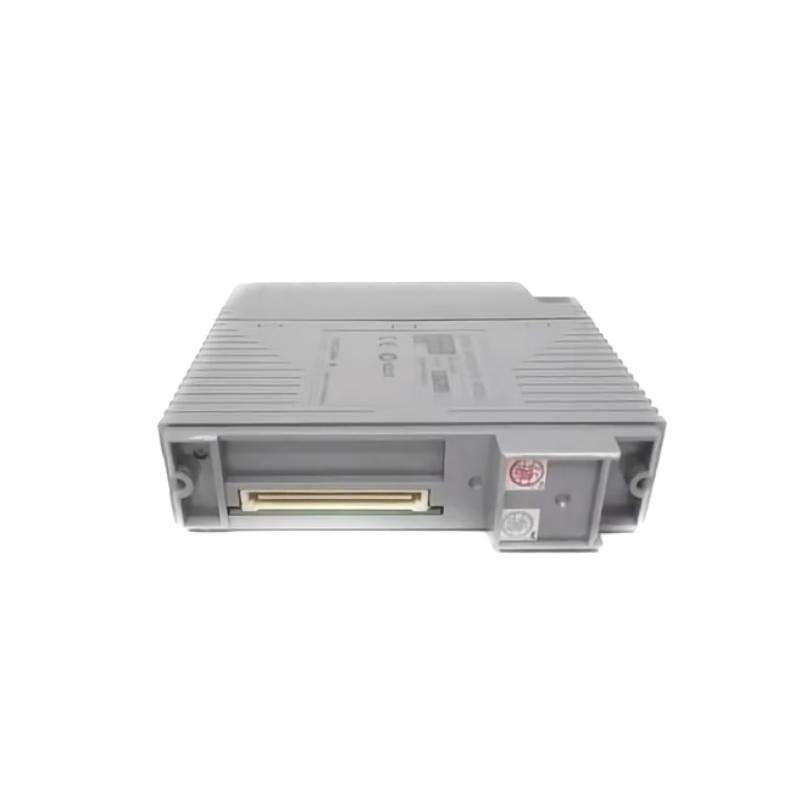

Yokogawa ADV569 Digital I/O Module
Product Description
The Yokogawa ADV569 is a digital input/output (I/O) module designed for use in industrial control and automation systems. As part of Yokogawa’s advanced process control solutions, the ADV569 provides high-performance digital I/O functionality, allowing precise monitoring and control of industrial processes. This module is engineered to seamlessly interface with a wide range of industrial equipment, offering reliable digital signal input and output in critical applications such as factory automation, power plants, and oil & gas industries.
The ADV569 module is specifically designed to integrate into Yokogawa’s Centum VP and Exa systems, providing exceptional reliability, stability, and ease of integration. With its robust design, it can withstand challenging environmental conditions, making it an ideal choice for deployment in harsh industrial environments.
This module offers high-speed data exchange and can handle up to 64 digital inputs and outputs in a compact form factor. With a size of 130 x 127.2 x 32.8 mm and a weight of 0.3 kg, the ADV569 is built for efficient, high-density installation while maintaining high reliability and uptime for industrial operations.
Product Specifications
| Specification | Value |
|---|---|
| Module Type | Digital Input/Output |
| Dimensions | 130 x 127.2 x 32.8 mm |
| Weight | 0.3 kg |
| Input Channels | 32 Digital Inputs |
| Output Channels | 32 Digital Outputs |
| Voltage Rating | 24V DC |
| Communication | Modbus RTU, Yokogawa Protocol |
| Environmental Protection | IP20 |
| Temperature Range | -10°C to +55°C |
| Signal Isolation | Yes |
| Mounting | DIN Rail |
| Certification | CE, UL, Exida |
Applications
The Yokogawa ADV569 Digital I/O module is suitable for a broad range of applications, offering high reliability in industrial process control systems:
-
Factory Automation:
The ADV569 provides real-time control and monitoring of industrial processes in factory automation systems. It is particularly suited for controlling machinery, actuators, and sensors in automated assembly lines, production units, and testing systems. -
Power Plant Control Systems:
Used in power plants, this module allows operators to monitor digital signals for control systems, ensuring accurate operation of safety and control mechanisms. The module facilitates communication between different levels of the control system and external equipment. -
Oil and Gas Industry:
The ADV569 is employed in oil and gas plants to monitor equipment status, such as pumps, valves, and safety switches. It provides a reliable method of monitoring and controlling processes in demanding environments such as offshore platforms and remote facilities. -
Building Automation Systems:
In building automation systems, the module is used for managing HVAC systems, lighting control, and access systems. It helps ensure seamless integration of digital I/O in modern smart buildings for efficient control and automation. -
Water Treatment Plants:
The ADV569 module plays a crucial role in the water treatment industry by controlling and monitoring digital signals from various sensors and actuators that regulate the treatment processes, including flow meters, valve actuators, and chemical dosing equipment.
Product Advantages
The Yokogawa ADV569 offers several key advantages for industrial applications:
-
High-Performance I/O Handling:
With 32 digital inputs and 32 digital outputs, the ADV569 enables high-speed, reliable data exchange between equipment, ensuring quick response times and minimizing delays in critical applications. -
Compact Design:
Despite its high-performance capabilities, the ADV569 has a compact size of 130 x 127.2 x 32.8 mm, making it easy to integrate into tight spaces while maximizing system efficiency. -
Enhanced Signal Isolation:
The ADV569 module provides signal isolation, which protects sensitive equipment from electrical surges and spikes, ensuring that it operates safely in environments with fluctuating electrical conditions. -
Rugged Durability:
With an IP20 protection rating, the module is suitable for industrial environments, offering protection from dust and physical damage, ensuring reliable operation over the long term. -
Flexible Communication:
The ADV569 supports Modbus RTU and Yokogawa proprietary protocols, enabling seamless integration with other Yokogawa systems and third-party equipment, providing a high degree of flexibility in system design. -
Energy Efficient:
This module operates with a 24V DC power supply, making it energy-efficient and reducing operational costs by consuming minimal power during operation.
Brand: Yokogawa
Yokogawa Electric Corporation is a global leader in industrial automation, process control, and measurement solutions. Known for its high-precision instruments and reliable systems, Yokogawa has been at the forefront of providing automation solutions for a wide range of industries, including oil & gas, chemical, power, and pharmaceuticals. Their solutions, including the Centum VP and Exa systems, provide high availability, security, and ease of use, making them the choice of industries that require highly reliable, real-time control and monitoring systems.
Recommended Models in the Same or Related Series
| Model | Description | Application | Input/Output Channels | Weight (kg) | Temperature Range | Signal Isolation |
|---|---|---|---|---|---|---|
| ADV561 | Digital I/O Module | General I/O Monitoring | 16 Inputs / 16 Outputs | 0.25 | -10°C to 55°C | Yes |
| ADV563 | Analog I/O Module | Signal Conversion | 8 Inputs / 8 Outputs | 0.3 | -10°C to 55°C | Yes |
| ADV567 | High-Speed Digital I/O Module | High-Speed Monitoring | 32 Inputs / 32 Outputs | 0.3 | -10°C to 55°C | Yes |
| ADV551 | Relay Output Module | Alarm and Control Signals | 8 Outputs | 0.2 | -10°C to 55°C | Yes |
| ADV570 | Digital I/O Module | Process Control Systems | 16 Inputs / 16 Outputs | 0.3 | -10°C to 55°C | Yes |
Recommended Popular Models from the Same Brand
| Model | Description | Dimensions (mm) | Weight (kg) | Application |
|---|---|---|---|---|
| AEPV7D-215 | High-performance model with extended I/O and enhanced features | 215 × 145 × 90 | 1.6 | Industrial automation and control |
| AEPV7D-115 | Compact version with essential communication features | 115 × 90 × 70 | 1.2 | Machinery diagnostics and monitoring |
| AEPV7D | Standard model for general-purpose automation systems | 150 × 120 × 80 | 1.4 | Process control and data collection |
| AEP9D | Advanced version with additional safety features | 200 × 150 × 100 | 1.8 | Critical applications and safety systems |
| AEPV7D-125 | Mid-range model with optimized performance and I/O | 125 × 100 × 75 | 1.3 | Industrial systems and robotics |
Frequently Asked Questions (FAQ)
Q1: What is the voltage rating of the Yokogawa ADV569 module?
A1: The ADV569 module operates with a 24V DC power supply.
Q2: How many digital inputs and outputs does the ADV569 support?
A2: The ADV569 supports 32 digital inputs and 32 digital outputs.
Q3: What is the protection rating of the Yokogawa ADV569 module?
A3: The module has an IP20 protection rating, which provides protection from dust and physical damage.
Q4: Can the ADV569 module communicate with third-party systems?
A4: Yes, the ADV569 supports Modbus RTU and Yokogawa proprietary protocols, allowing integration with third-party systems.
Q5: What is the environmental temperature range of the ADV569?
A5: The module operates within a temperature range of -10°C to +55°C.
Q6: How is the ADV569 module mounted?
A6: The module is designed for DIN rail mounting, making installation quick and straightforward.
Q7: What is the weight of the ADV569 module?
A7: The module weighs 0.3 kg.
Q8: Is the Yokogawa ADV569 module suitable for harsh industrial environments?
A8: Yes, the ADV569 is designed to withstand industrial environments and is IP20 rated for protection.
Q9: Does the ADV569 module provide signal isolation?
A9: Yes, the module provides signal isolation, ensuring protection against electrical surges and spikes.
Q10: What are the main applications of the Yokogawa ADV569?
A10: The ADV569 is used in factory automation, power plant control, oil and gas, and water treatment systems.
