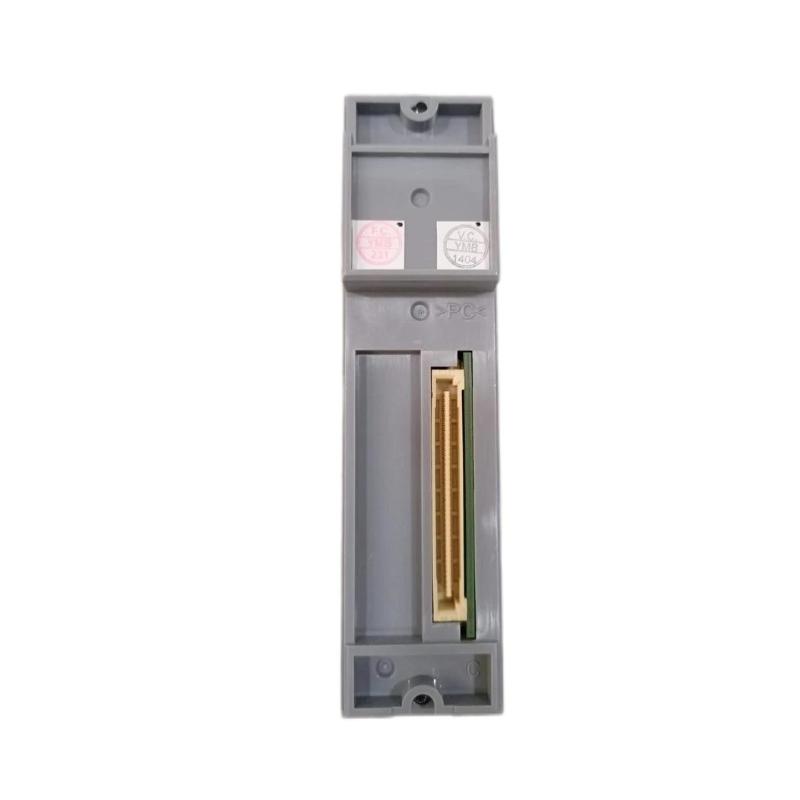

Yokogawa ADV559‑P01
Product Introduction
The Yokogawa ADV559‑P01 is a 32-channel digital output module designed for modular control systems. It provides isolated 24 V DC transistor outputs, enabling safe and reliable switching of field devices such as solenoid valves, relays, indicator lamps, alarms, and other discrete actuators.
The “P” indicates support for pulse-width and time-proportional output, allowing precise duty-cycle control, while the “01” represents a high-reliability industrial variant suitable for extended temperature ranges.
This module is ideal for industrial environments that require both high channel density and advanced output timing, including process plants, utilities, water treatment, and factory automation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Number of Output Channels | 32 |
| Output Type | 24 V DC transistor (current-sink) |
| Maximum Load | 30 V DC, 100 mA per channel |
| Output Response Time | ≤16 ms |
| Pulse-Width / Time-Proportional Range | 8 ms – 7200 s |
| Pulse-Width Resolution | 8 ms increments |
| Isolation | Fully isolated per channel |
| Power (Logic) | ~570 mA at 5 V DC |
| External Connection | Dedicated cable (KS2 style) |
| Compatible Backplane | ST4 modular system |
| Dimensions | 144 mm × 100 mm × 30 mm |
| Weight | 0.30 kg |
| Operating Temperature | Extended industrial range (G3) |
Applications
-
Process Automation: Controlling valves, relays, actuators, and indicators.
-
Power Generation & Utilities: Auxiliary system switching, alarm signalling.
-
Oil & Gas / Petrochemical: Emergency shutdown outputs, valve sequencing.
-
Water & Wastewater Treatment: Pump and valve control, time-proportional operations.
-
Factory Automation: Robotics, machine I/O, interlocks, packaging lines.
-
Distributed Control Systems: Modular rack expansions for high-density output.
Product Advantages
-
High Channel Density: 32 channels in one compact module.
-
Pulse-Width & Time-Proportional Output: Enables advanced duty-cycle control.
-
Strong Electrical Isolation: Reduces cross-talk and noise interference.
-
Modular Design: Easy installation, maintenance, and system expansion.
-
Compact & Lightweight: Saves panel space (0.30 kg).
-
Wide Environmental Range: Extended industrial operating conditions.
-
Simplified Wiring: Dedicated cable interface for fast installation.
-
Industrial Reliability: Robust, continuous operation with fast response.
Brand & Series
-
Brand: Yokogawa
-
Series: ADV Series (Digital I/O Modules), specifically the ADV559 line, designed for 32-channel isolated outputs with pulse-width capabilities.
Recommended Models – Same Series / Related
| Model | Output / Type | Key Features | Notes |
|---|---|---|---|
| ADV559‑P01 | 32-channel digital output | Pulse-width & time-proportional | Current model |
| ADV559‑P00 | 32-channel digital output | Basic output, no pulse features | Simple version |
| ADV569‑P01 | 64-channel digital output | High-density, pulse-capable | Larger output module |
| ADV551‑P00 | 32-channel digital output | Basic variant, alternate family | Standard output module |
| ADV551‑P10 | 32-channel digital output | Pulse & timing options | ADV551 series option |
Recommended Popular Models – Same Brand
| Model | Type | Channels | Application / Role |
|---|---|---|---|
| ADV151‑P10 | Digital Input | 32 | Field status input |
| ADV161‑P00 | Digital Input | 64 | High-density input expansion |
| ADV569‑P01 | Digital Output | 64 | High-channel output |
| ADV869‑P01 | Digital I/O | 32 in / 32 out | Combined input/output module |
| SDV531‑S23 | Digital Output | 32 | Alternative output module |
FAQ – 10 Questions
Q1: How many channels does ADV559‑P01 provide?
A1: 32 independent output channels.
Q2: Maximum load per channel?
A2: 30 V DC, 100 mA per channel.
Q3: What does “P” signify?
A3: Pulse-width and time-proportional output support.
Q4: Meaning of “01” suffix?
A4: G3 industrial-grade option with extended temperature range.
Q5: Output response time?
A5: Typically ≤16 ms.
Q6: Are outputs isolated?
A6: Yes, each channel is fully isolated.
Q7: How to connect field devices?
A7: Via dedicated KS2-style cable.
Q8: Compatible backplane?
A8: ST4 modular system.
Q9: Physical dimensions and weight?
A9: 144×100×30 mm, 0.30 kg.
Q10: Ideal applications?
A10: Process plants, utilities, water treatment, factory automation, and high-density output control.
