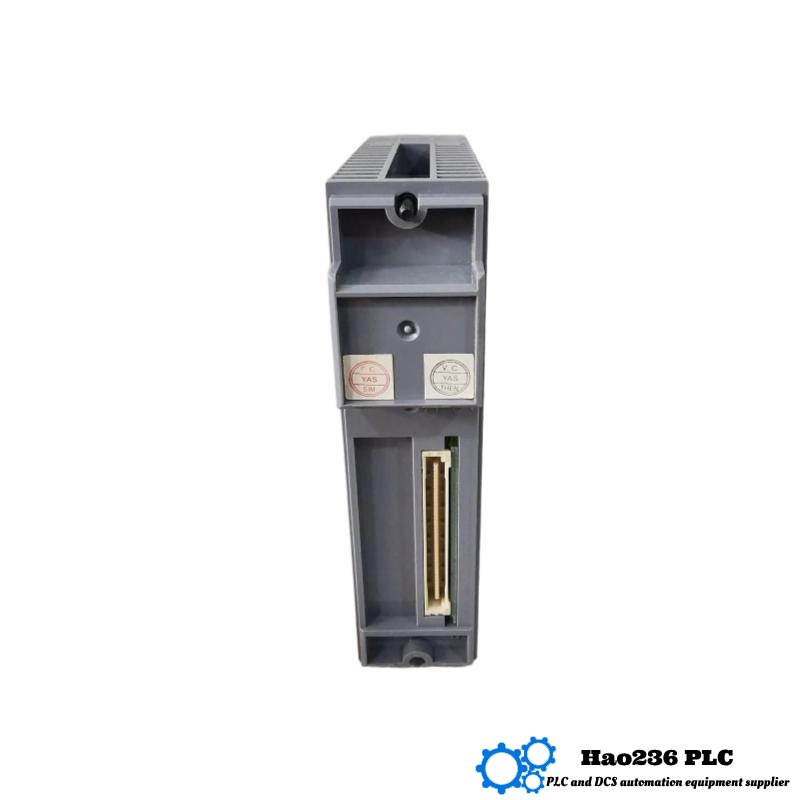

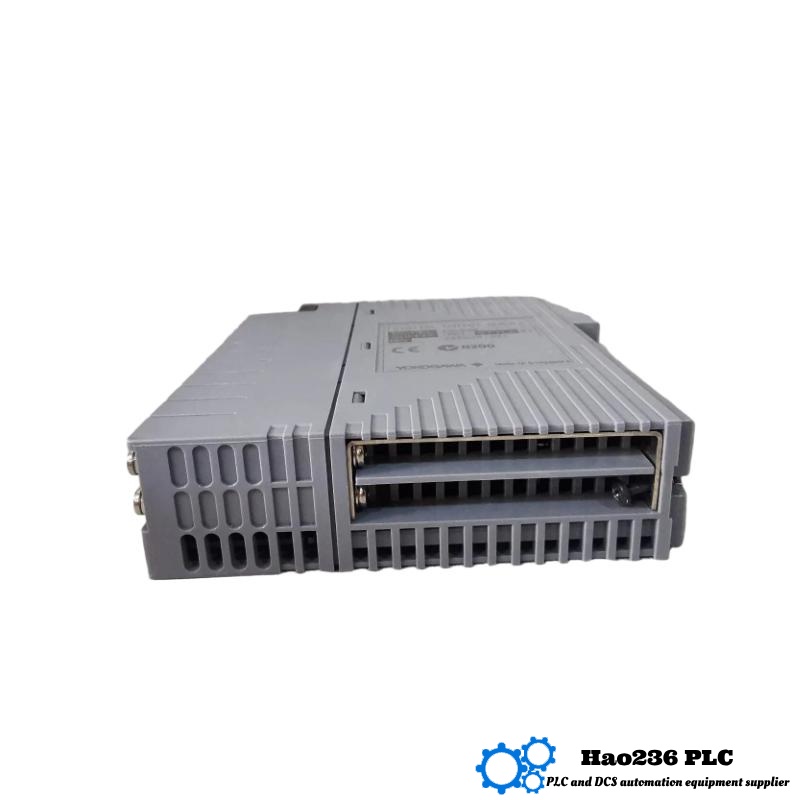

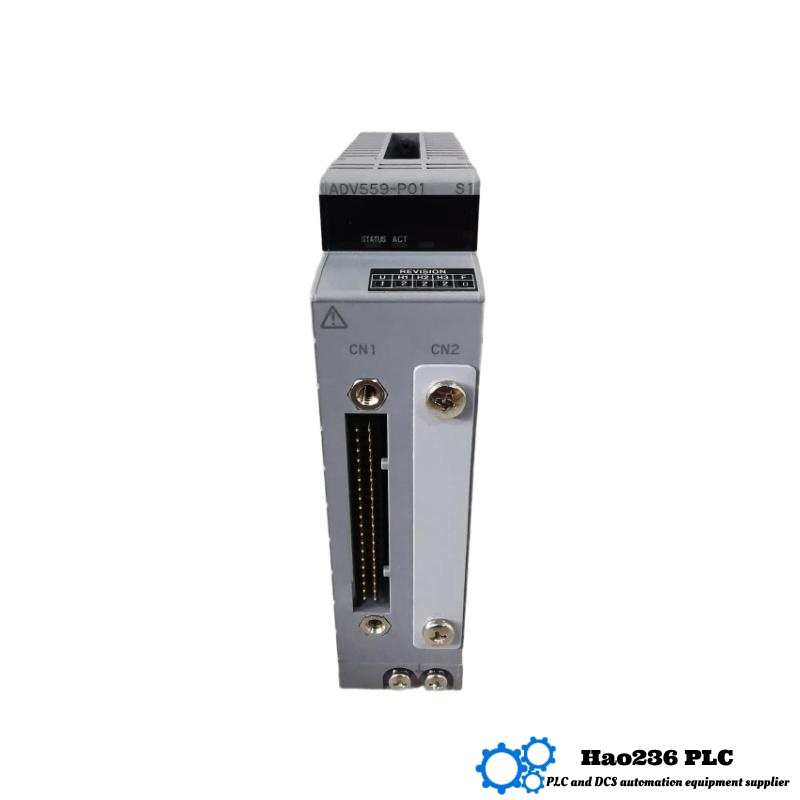

Yokogawa ADV559-P01 Digital I/O Module
Product Introduction
The Yokogawa ADV559-P01 Digital I/O Module is a high-performance industrial input/output module designed for seamless integration into automation systems. It provides reliable, high-speed digital input and output channels, making it suitable for a wide range of industrial control applications. The module is part of the Yokogawa AIP (Automation and Industrial Process) Series, which is known for its modular, scalable, and flexible solutions in industrial automation.
The ADV559-P01 module supports both digital input and output functions, allowing it to control and monitor devices such as sensors, switches, relays, and actuators. With its compact design, robust construction, and advanced features, the ADV559-P01 module is ideal for environments where fast, reliable data processing and control are essential. It is designed to handle high-density I/O requirements, ensuring efficient performance in large-scale automation systems.
Product Parameters
| Specification | Details |
|---|---|
| Model | ADV559-P01 |
| Dimensions (L x W x H) | 130 x 127.2 x 32.8 mm |
| Weight | 0.3 kg |
| Input Voltage | 24V DC |
| Input Channels | 8 Channels |
| Output Channels | 8 Channels |
| Output Type | Open Collector (NPN) |
| Input Rating | 24V DC |
| Output Rating | 24V DC, 0.5A |
| Communication Protocol | Yokogawa Standard Bus |
| Response Time | 10 ms |
| Mounting Type | DIN Rail |
| Operating Temperature Range | -20°C to +60°C |
| Protection Class | IP20 |
Product Applications
The Yokogawa ADV559-P01 Digital I/O Module is designed for use in a variety of industrial applications where reliable, fast, and efficient control and monitoring of digital signals are required. Some of the typical applications include:
-
Process Control: The module is used to control or monitor input/output devices such as sensors, switches, relays, and actuators in process automation systems.
-
Manufacturing Automation: Provides control for machinery, assembly lines, and robotic systems, enabling the automation of various manufacturing processes.
-
Building Automation: Used in building management systems (BMS) to control lighting, HVAC, security systems, and other critical building services.
-
Energy and Utilities: The ADV559-P01 is suitable for controlling pumps, valves, and other industrial equipment in energy plants, water treatment facilities, and power distribution systems.
-
Industrial Equipment Control: Ideal for controlling heavy machinery, conveyors, and other devices in industrial environments, ensuring precise, real-time control.
Product Advantages
-
High-Density I/O: The ADV559-P01 offers 8 digital input channels and 8 digital output channels, allowing for the monitoring and control of multiple devices in a single module.
-
Compact Size: With dimensions of 130 x 127.2 x 32.8 mm and a weight of only 0.3 kg, the module is compact and easy to install in space-constrained environments.
-
Fast Response Time: The module offers a response time of just 10 ms, ensuring that signals are processed and executed quickly, which is essential for real-time control applications.
-
Flexible Output Configuration: The ADV559-P01 uses open collector (NPN) outputs, providing flexibility in controlling a wide range of industrial devices.
-
Robust Protection: Featuring an IP20 protection class, this module is designed to withstand moderate exposure to dust and moisture, making it suitable for industrial environments.
-
Easy Integration: Its DIN rail mounting and compatibility with Yokogawa’s standard bus protocol make it easy to integrate into existing systems without requiring additional complex configurations.
Brand Information
The Yokogawa ADV559-P01 Digital I/O Module is manufactured by Yokogawa, a leader in industrial automation and control solutions. Founded over 100 years ago, Yokogawa is known for its advanced, reliable, and innovative products that serve industries such as oil and gas, power generation, pharmaceuticals, and manufacturing. Yokogawa’s commitment to high-quality products and customer satisfaction has earned it a strong reputation worldwide for delivering cutting-edge automation solutions that improve safety, efficiency, and productivity.
Product Series
The ADV559-P01 is part of the Yokogawa AIP (Automation and Industrial Process) Series, which includes a range of I/O modules, controllers, and interface solutions tailored for industrial control systems. This series is recognized for its flexibility, scalability, and ease of integration into a wide variety of industrial applications.
Recommendations for Similar or Related Models
Here are five related models from the Yokogawa AIP Series or similar families:
| Model | Description | Parameters |
|---|---|---|
| ADV550-P01 | 8-Channel Digital I/O Module | Dimensions: 130 x 127.2 x 32.8 mm, Weight: 0.3 kg, Input: 24V DC |
| ADV552-P01 | 8-Channel Analog I/O Module | Dimensions: 130 x 127.2 x 32.8 mm, Weight: 0.3 kg, Output: 4-20mA |
| ADV553-P01 | Digital and Analog I/O Module | Dimensions: 130 x 127.2 x 32.8 mm, Weight: 0.3 kg, Output: 24V DC, 0.5A |
| ADV551-P01 | 8-Channel Digital Input Module | Dimensions: 130 x 127.2 x 32.8 mm, Weight: 0.3 kg, Input: 24V DC |
| ADV559-P02 | 16-Channel Digital I/O Module | Dimensions: 160 x 127.2 x 32.8 mm, Weight: 0.4 kg, Input: 24V DC |
Recommendations for Top Yokogawa Models
Here are five other popular Yokogawa models widely used in industrial automation:
| Model Number | Description |
|---|---|
| ADV142-P03 | Digital output module with enhanced signal processing |
| ADV151-D132 | High-speed digital input module for industrial control |
| ADV151-P10 S2 | Precision digital output module with extended range |
| ADV142-P04 | Advanced output module with increased performance |
| ADV151-D133 | Industrial-grade digital input module for real-time control |
FAQs
-
Q: What is the purpose of the Yokogawa ADV559-P01 Digital I/O Module?
A: The ADV559-P01 module is used for providing digital input and output capabilities, allowing control and monitoring of external devices like sensors, switches, relays, and actuators in industrial automation systems. -
Q: How many input and output channels does the ADV559-P01 support?
A: The module supports 8 digital input channels and 8 digital output channels, making it ideal for controlling and monitoring multiple devices simultaneously. -
Q: What is the maximum current rating for the ADV559-P01 output channels?
A: The module’s output channels can handle a maximum current of 0.5A per channel, with an output voltage rating of 24V DC. -
Q: What is the protection rating of the ADV559-P01?
A: The ADV559-P01 has an IP20 protection class, providing basic protection against dust and moisture, making it suitable for most industrial environments. -
Q: How is the ADV559-P01 mounted?
A: The ADV559-P01 is designed for easy installation on a DIN rail, a standard mounting method commonly used in industrial control panels. -
Q: What is the response time of the ADV559-P01?
A: The module has a fast response time of 10 ms, ensuring quick processing of digital signals for time-sensitive applications. -
Q: Can the ADV559-P01 module be integrated into other Yokogawa control systems?
A: Yes, the ADV559-P01 is fully compatible with other Yokogawa products and can be easily integrated into existing control systems. -
Q: What is the operating temperature range for the ADV559-P01?
A: The ADV559-P01 operates within a temperature range of -20°C to +60°C, making it suitable for a wide range of industrial environments. -
Q: What is the weight of the ADV559-P01 module?
A: The module weighs 0.3 kg, which makes it easy to handle and install in industrial settings. -
Q: Does the ADV559-P01 module support open collector output?
A: Yes, the ADV559-P01 uses an open collector (NPN) output configuration, which is commonly used in industrial automation for controlling external devices.
