Product Introduction – ADV551-P63/D5A00

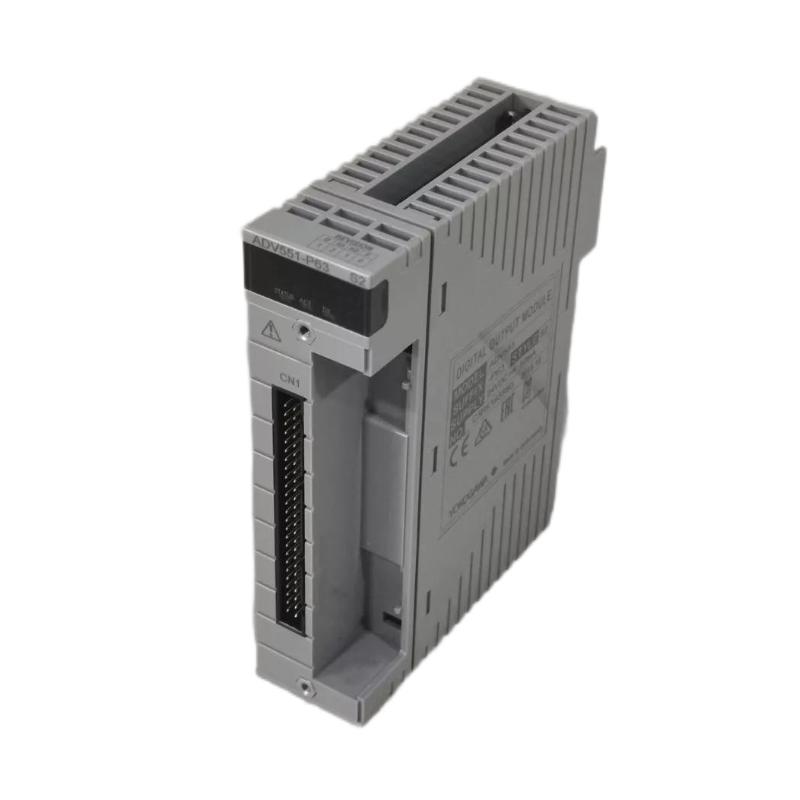

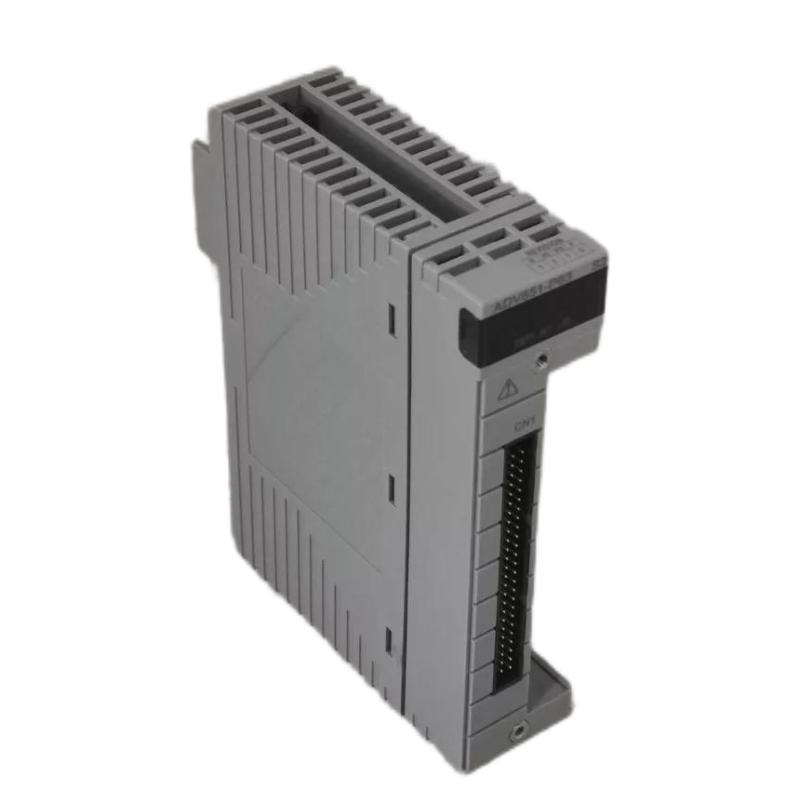

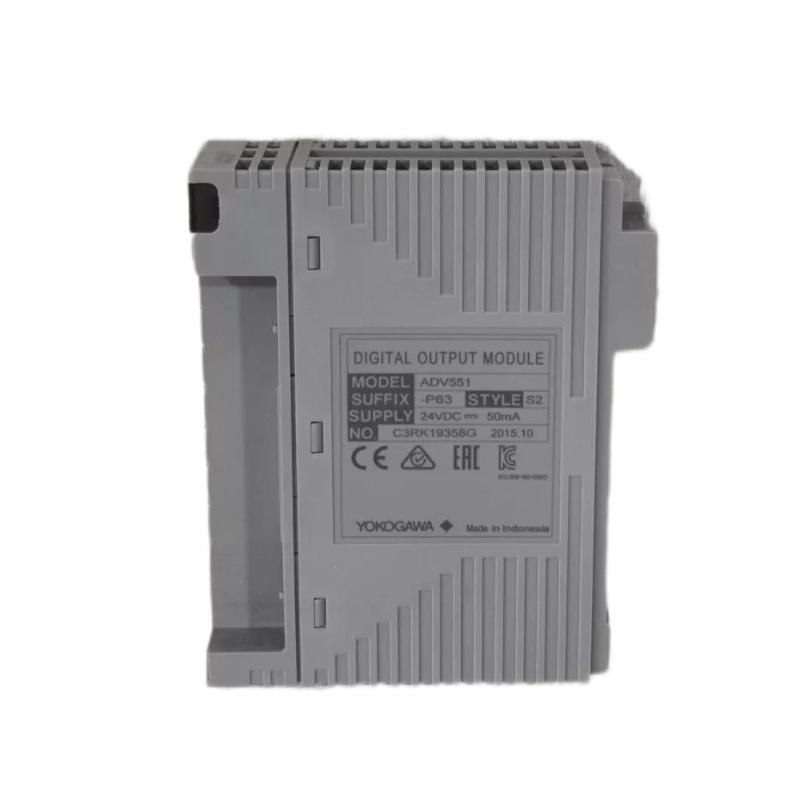

The ADV551-P63/D5A00 is a high-performance 32-channel digital output module designed for industrial automation and process control applications. Operating at 24 V DC, this module provides isolated transistor (current-sink) outputs capable of driving solenoids, relays, indicator lamps, contactors and other field devices. Its suffix codes signal that it includes pulse-width output, time-proportional output, status display indicators, and an extended temperature rating (–20 °C to +70 °C) compliant with ISA G3 specification. The “/D5A00” indicates the module uses a KS-cable interface adapter for its 32-channel digital output connections. This module belongs to the ADV551 series of digital output modules and is engineered to integrate into modular rack or bus-based control systems, offering high channel density, flexibility, fast response and robust isolation in demanding industrial environments.

Technical Specifications

Applications

The ADV551-P63/D5A00 is suitable for a wide range of industrial automation environments:

• Process control systems: Driving solenoid valves, actuators, pumps, indicator lamps, alarm devices; especially useful when output signals require timing, pulse control or time-proportional duty cycles.

• Power generation and utility systems: Controlling auxiliary equipment, annunciator or alarm panels, relay switching, instrumentation outputs under high reliability conditions.

• Oil, gas & petrochemical plants: Driving emergency shutdown valves, burner-management actuators, valve sequences, providing robust output modules for hazardous or harsh environments (–20 °C to +70 °C).

• Water & wastewater treatment: Managing pump stations, gate/valve operators, blower or mixer controls, timed or proportional control of process equipment, alarm or indicator outputs.

• Factory automation / discrete manufacturing: Where many output channels are needed in a compact footprint—e.g., packaging lines, robotics auxiliaries, machine interlocks, signal lamps and machine outputs.

Given its support for pulse-width output and time-proportional output, it is especially effective in scenarios requiring precise actuation timing, duty-cycle control of devices, sequencing of field actions and high-density output integration.

Product Advantages

• High channel density: 32 channels in one module reduce cabinet space requirements, simplify wiring and lower control panel complexity.

• Advanced timing functions: Pulse-width output (8 ms to 7200 s) and time-proportional output allow precise control of device activation durations and duty cycles beyond simple ON/OFF control.

• Status display indicators: The model features integrated LED indicators for channels or module status, improving visibility, diagnostics and maintenance.

• Extended operating temperature range: With the ISA G3 option (–20 °C to +70 °C), the module can operate reliably in more extreme industrial environments.

• Strong electrical isolation: 2 kV AC between outputs and system network, 500 V AC between channel commons ensures resilience to noise, surges and cross-channel interference.

• Flexible wiring interface: The KS-Cable adapter interface simplifies external wiring for 32-channel output, suitable for rack or field wiring installations.

• Compact & lightweight: At approximately 0.20 kg and a small module size, it contributes to lighter, smaller cabinets and easier installation/maintenance.

• Modular design & scalability: Part of a series offering plug-in modules, enabling system expansion, easier replacements and modular upgrades.

• Reliable industrial build: Designed for continuous operation in demanding environments, high reliability output switching, sturdy against environmental stress.

Brand & Series Information

• Brand: Yokogawa

• Series: ADV551 Series — 24 V DC Digital Output Modules

The ADV551 series comprises multiple variants distinguished by suffix codes for functionality (pulse width / time-proportional), status display, wiring interface and environmental ratings. For example, suffix “P” indicates support for pulse width/time-proportional, “6” indicates status display, “3” indicates G3/extended temperature, and option codes like “/D5A00” or “/D5S00” denote wiring or interface types.
