Product Introduction

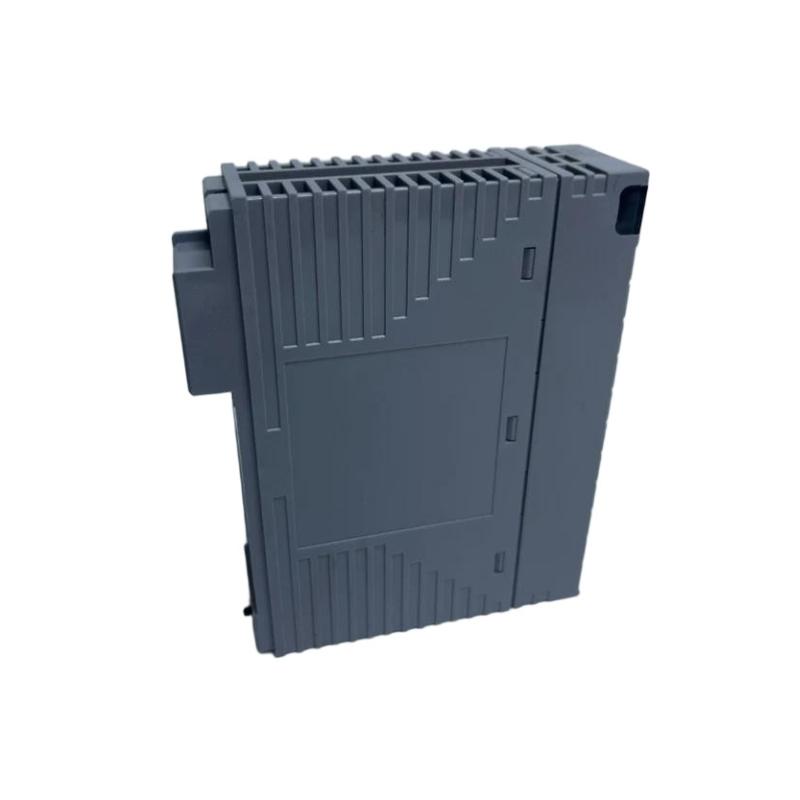

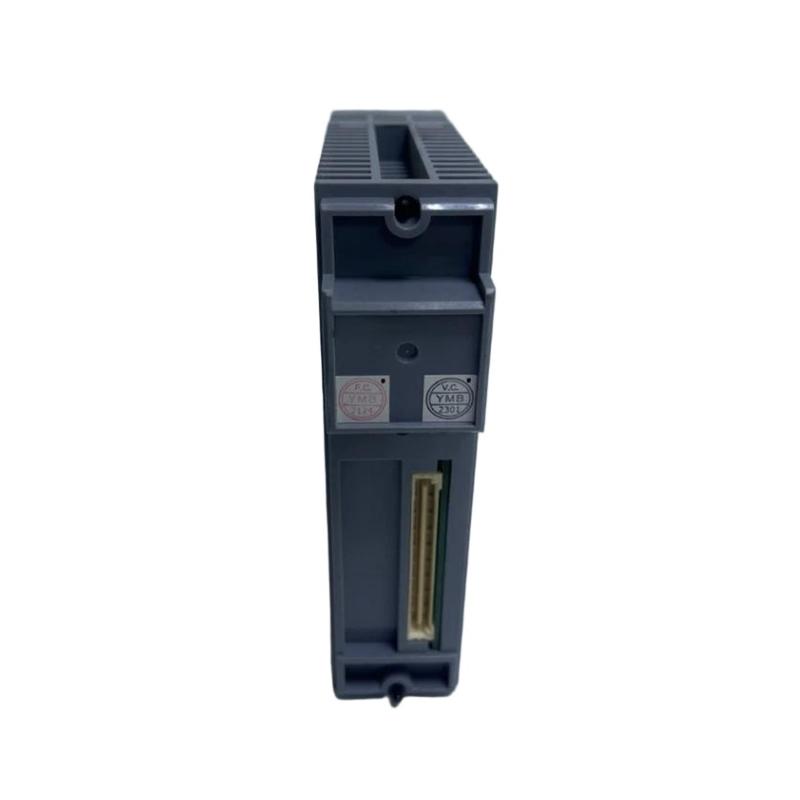

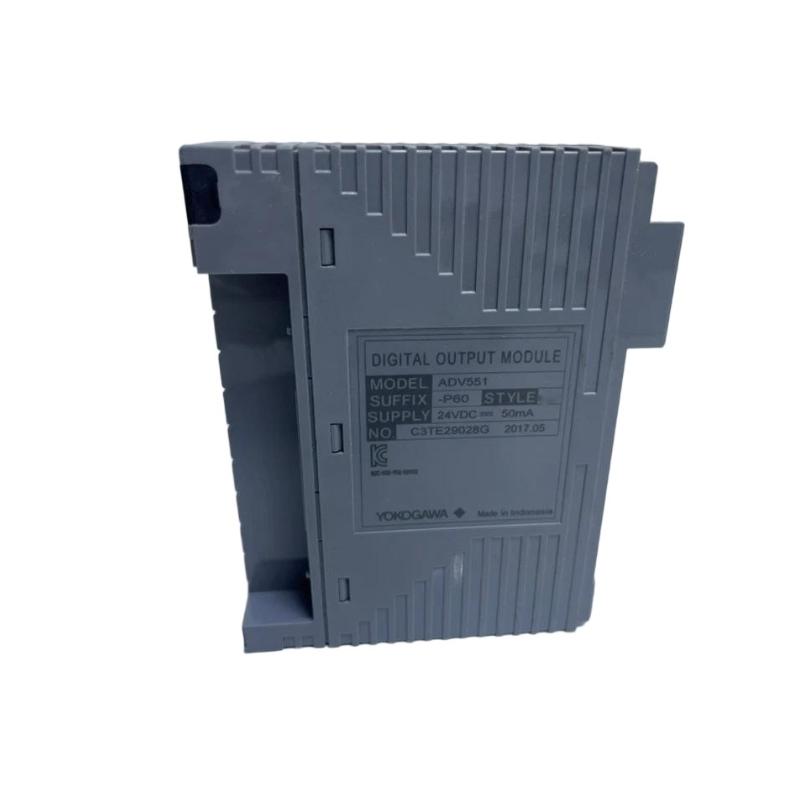

The Yokogawa ADV551-P60/D5A00 is a high-performance 32-channel digital output module designed for industrial process control systems. It operates with a 24 V DC supply and provides isolated transistor outputs to drive solenoids, relays, indicator lamps, actuators and other field devices. The “P60” suffix signifies the module includes both pulse-width and time-proportional output functions, as well as integrated status display indicators, enabling enhanced monitoring and control performance. The “/D5A00” suffix identifies the KS-Cable interface adapter version (for the specified digital interface connection). This module is part of the ADV551 series of digital output modules from the brand, and is engineered for seamless integration into rack or chassis-based automation systems, offering high density, rapid response times, and industrial reliability.

The module is well suited for process automation, power generation, chemical/petrochemical plants, water/waste-water treatment systems, and factory automation environments where numerous output channels, high reliability and flexible control are required. Its compact size, lightweight design and integration features render it highly practical for new installations, retrofits or expansions.

Technical Specifications

Applications

The ADV551-P60/D5A00 finds use in a broad range of industrial sectors, including:

• Process Automation: Controlling valve actuators, pumps, mixers, alarms, and indicator devices; supporting timed and proportional output control.

• Power Generation: Switching auxiliary equipment, instrumentation relays, annunciator lamps, turbine control systems.

• Oil & Gas / Petrochemical: Emergency shutdown system outputs, solenoid valve control, burner management systems, flame detection systems.

• Water & Waste-Water Treatment: Managing pump stations, gate/valve mechanisms, blower systems, flow regulators, alarm panels.

• Factory Automation / Discrete Manufacturing: Driving machine actuators, indicator lamps, packaging system outputs, interlock relays, robotics ancillary outputs.

Because it offers high channel density, pulse-width/time-proportional functions and strong isolation, this module is particularly effective where fine timing control and robust performance are required—such as timed valve sequences, high-speed switching, duty-cycle control of loads, and where field wiring must be minimized or simplified.

Product Advantages

• High channel density: 32 outputs in a single module reduce rack/ cabinet space and simplify wiring.

• Pulse-width & time-proportional output support: Enables advanced control beyond simple ON/OFF, allowing duty cycle, timed sequences, and precise output timing.

• Status display: The “P60” variant includes channel status indicators, making monitoring and troubleshooting in the field simpler.

• Robust isolation: 2 kV AC between outputs and system plus 500 V AC between commons provides excellent protection against surge, ground fault, noise and interference.

• Compact and lightweight: At approx. 0.2 kg and small dimensions, the unit is easy to install, maintain and replace.

• Flexible wiring interface: The /D5A00 cable adapter option simplifies external wiring and standardizes connection methodology, supporting both direct terminal and adapter cable wiring.

• Industrial-grade reliability: Built for continuous operation in demanding industrial environments, with fast response times and stable output performance.

• Seamless system integration: Designed to work with a compatible automation bus or backplane system, making expansion or retrofit straightforward.

Brand & Series Information

• Brand: Yokogawa

• Series: ADV551 Series — Digital Output Modules (24 V DC)

The ADV551 series comprises multiple variations with different suffixes and interface options (for example P00, P50, P60, P63, D5S00, D5A00, etc.). The suffixes reflect functionality such as presence of pulse output, status display, wiring type, temperature range, explosion protection. The /D5A00 interface denotes the KS-Cable adapter interface.
