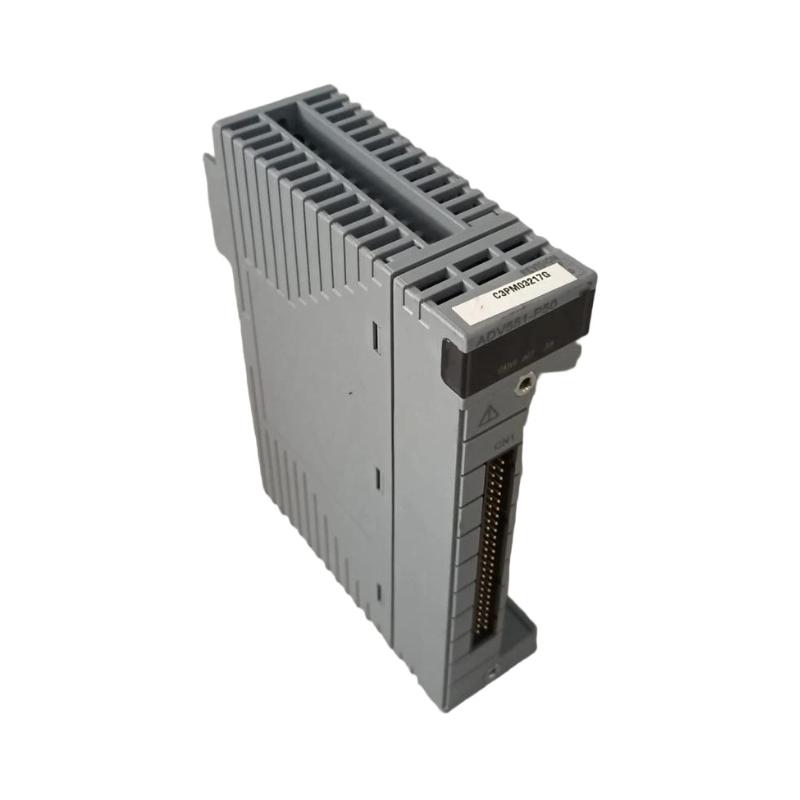

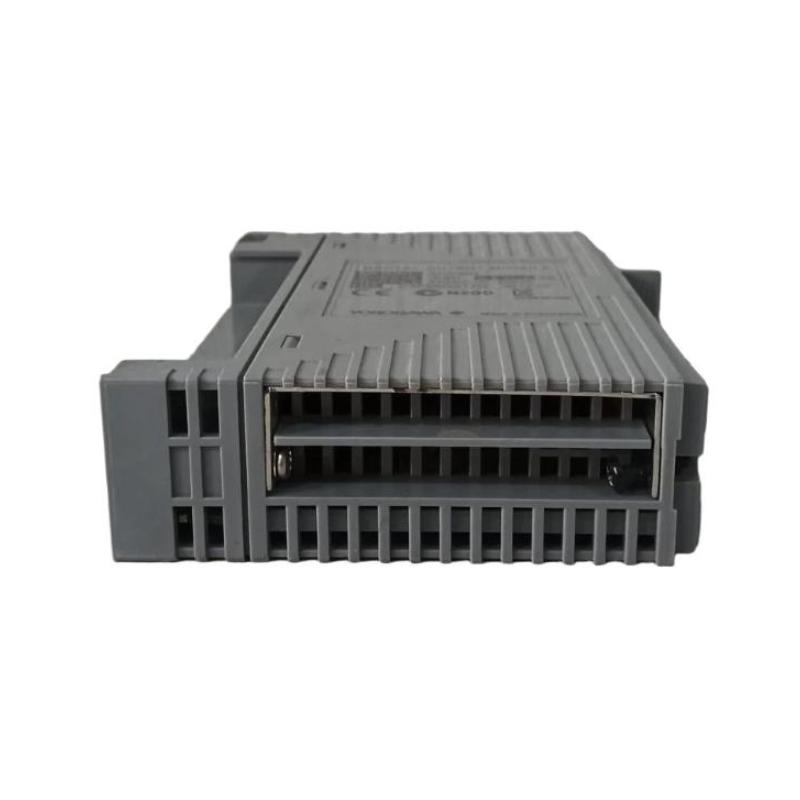

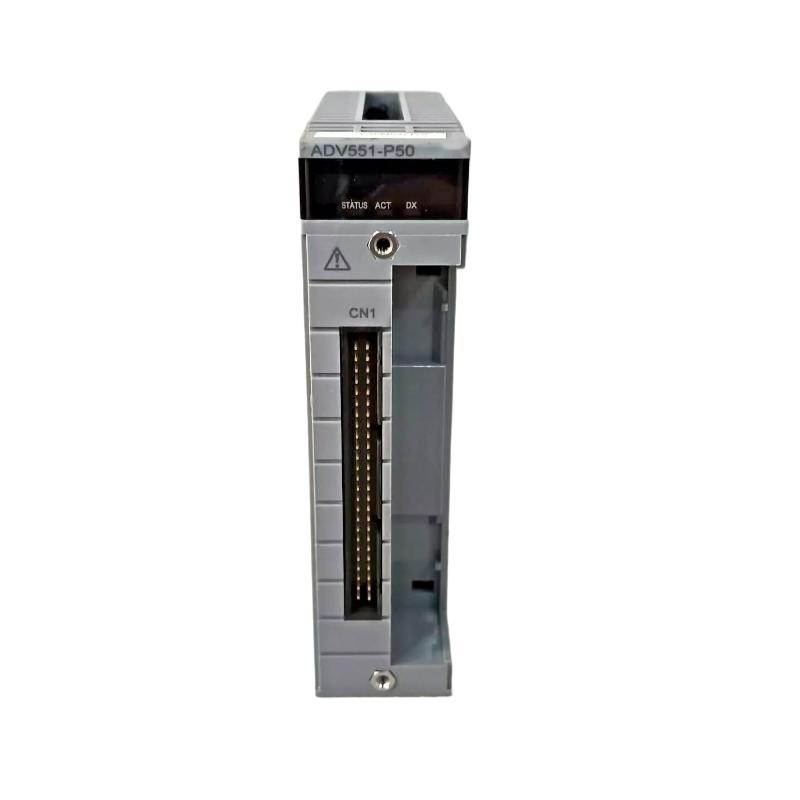

Product Introduction – Yokogawa ADV551-P50/D5S00
The ADV551-P50/D5S00 is a 32-channel Digital Output Module designed for industrial automation and process control systems. It provides 24 V DC transistor outputs suitable for switching solenoid valves, relays, alarms, contactors, and other field devices.
This model supports pulse-width and time-proportional output functions, enabling precise timing control required in process industries. The “S00” suffix indicates a screw-type terminal block wiring method, making the module suitable for installations that require direct field wiring or frequent maintenance access.
The module is lightweight, compact, and integrates seamlessly with control system backplanes. Its high isolation, fast response and stable output capability make it a reliable choice for both continuous and batch industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Output Type | 24 V DC transistor (current-sink) |
| Number of Output Channels | 32 channels |
| Rated Load Voltage | 20.4 – 26.4 V DC |
| Rated Output Current | 50 mA per channel (typical) |
| Maximum Output Current | Up to approx. 100 mA per channel |
| OFF-state Leakage Current | ≤ 0.1 mA |
| ON-state Voltage Drop | ≤ 2 V DC |
| Output Response Time | ≤ 3 ms (standard switching) / ≤ 10 ms (pulse mode) |
| Pulse-Width Output Range | 8 ms – 7200 s |
| Pulse-Width Resolution | 8 ms |
| Isolation – Output to System | 2 kV AC, 1 minute |
| Isolation – Group to Group | 500 V AC, 1 minute |
| Channel Grouping | 32 channels, divided into two 16-channel commons |
| Wiring Method | Screw-type terminal block (S00) |
| Installation | Plug-in modular card |
| Dimensions | Approx. 110 mm × 30 mm × 130 mm |
| Weight | Approx. 0.2 kg |
Applications
The ADV551-P50/D5S00 is engineered for a wide range of industrial environments:
Process Control Systems
-
Solenoid valve actuation
-
Pneumatic/hydraulic actuator operation
-
On/off switching of pumps and motors
-
Time-proportional output for temperature or flow adjustment
Power Generation
-
Relay output control
-
Alarm annunciation
-
Auxiliary system switching
Oil & Gas, Petrochemical
-
Shutdown valve output control
-
Burner management sequencing
-
Process interlock actuation
Water Treatment & Environmental Systems
-
Pump stations and blower control
-
Valve gate operation
-
System alarm output
Factory Automation
-
Indicator lights
-
Machine indexing and interlocks
-
Robotics peripheral activation
Product Advantages
-
High-density 32-channel output
Consolidates large output requirements into a single module, reducing wiring and panel space. -
Pulse-width and time-proportional capabilities
Ideal for duty-cycle operations, timed sequences and precision control applications. -
Screw-type terminal wiring (S00)
Provides secure, direct field wiring and simplifies maintenance in industrial environments. -
Fast switching performance
Rapid response supports real-time process control and safety-related operations. -
Industrial-grade isolation
Protects both system and field wiring from electrical noise, surges and cross-channel interference. -
Lightweight and compact design
Improves cabinet layout flexibility and reduces structural load. -
Modular architecture
Allows easy installation, system expansion and quick replacement. -
High reliability for continuous operation
Suited for harsh settings requiring long-term stability and predictable performance.
Brand & Series Information
-
Brand: Yokogawa
-
Series: ADV551 Series — 24 V DC Digital Output Modules
This series contains multiple output modules with variations in pulse function, wiring type, status indicators, environmental tolerance and interface options.
Recommended Models (Same Series or Related Series)
(“Model” column in bold)
| Model | Output Channels | Key Features | Notes |
|---|---|---|---|
| ADV551-P50/D5A00 | 32 | Pulse output, cable adapter wiring | Similar core module with different wiring |
| ADV551-P60/D5S00 | 32 | Pulse output, status indicators | With front-panel indicators |
| ADV551-P63/D5S00 | 32 | Extended-temperature version | Harsh-environment variation |
| ADV551-P00/D5S00 | 32 | Standard digital output only | Without pulse-width function |
| ADV551-P53/D5S00 | 32 | Time-proportional output, ruggedized | Enhanced environmental robustness |
Recommended Popular Models from the Same Brand
| Model | Type | Channels | Main Application |
|---|---|---|---|
| ADV151-P60 | Digital Input | 32 | High-speed sensing and status feedback |
| ADV161-P50 | Digital Input | 64 | High-density input for large systems |
| ADR541 | Relay Output | 16 | AC/DC relay switching for high-power devices |
| ADV559 | Digital Output | 32 | Alternative output platform module |
| ADV569-P00 | Digital Output | 64 | High-density 64-channel output module |
FAQ – 10 Common Questions (QA Format)
Q1: How many output channels does the ADV551-P50/D5S00 provide?
A1: It provides 32 independent 24 V DC transistor output channels.
Q2: What wiring method is used for the D5S00 version?
A2: It uses a screw-type terminal block for direct field wiring.
Q3: Does this module support pulse-width output?
A3: Yes. The “P50” type includes pulse-width and time-proportional control capabilities.
Q4: What is the typical output current rating?
A4: 50 mA per channel, with higher allowable peak current.
Q5: How fast is the module’s response?
A5: Standard output switching is within approximately 3 milliseconds.
Q6: Is the module isolated from the system?
A6: Yes, it provides strong electrical isolation between output circuits and the system bus.
Q7: What is the weight of the ADV551-P50/D5S00?
A7: The module weighs roughly 0.2 kg.
Q8: Can the module be used with redundant configurations?
A8: Yes, it can operate as part of redundant setups used in process automation.
Q9: What devices can it drive?
A9: Solenoid valves, relays, indicators, alarms, contactors and other 24 V DC field devices.
Q10: Is the D5S00 version suitable for hazardous locations?
A10: This version is not hazardous-area rated; special variants are required for such environments.
