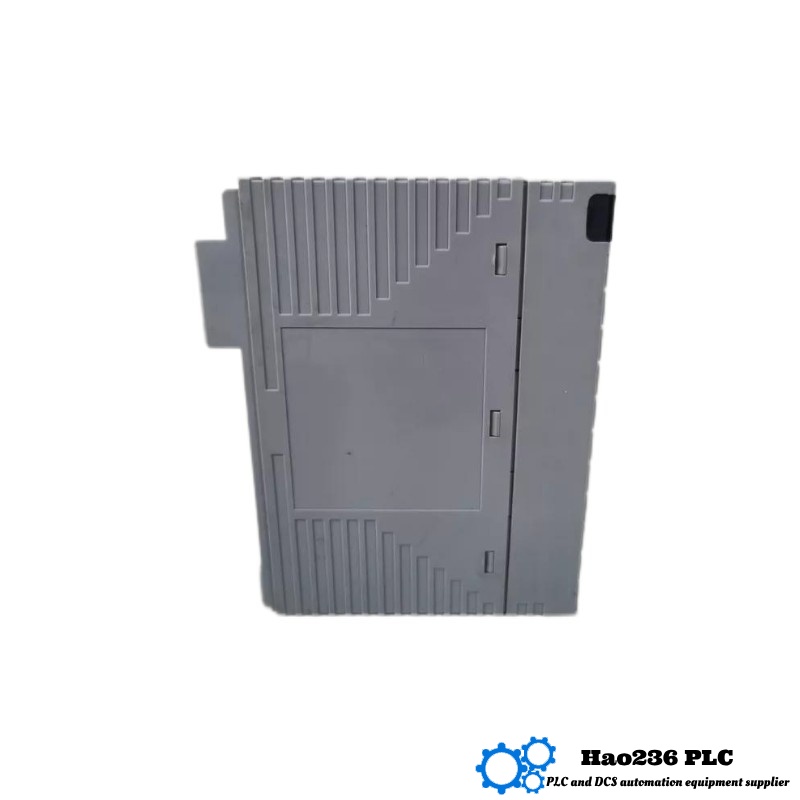

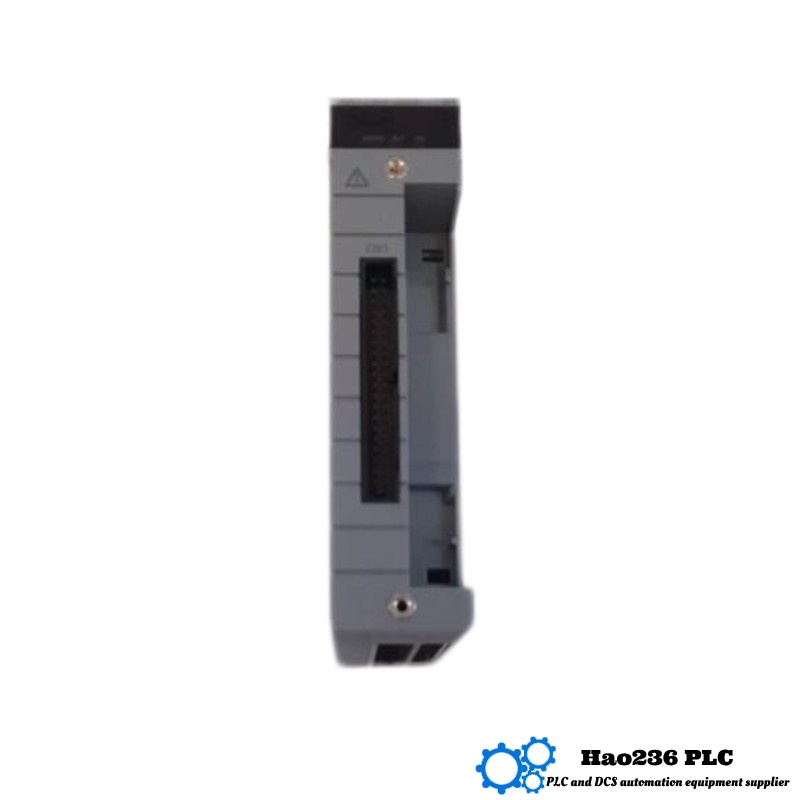

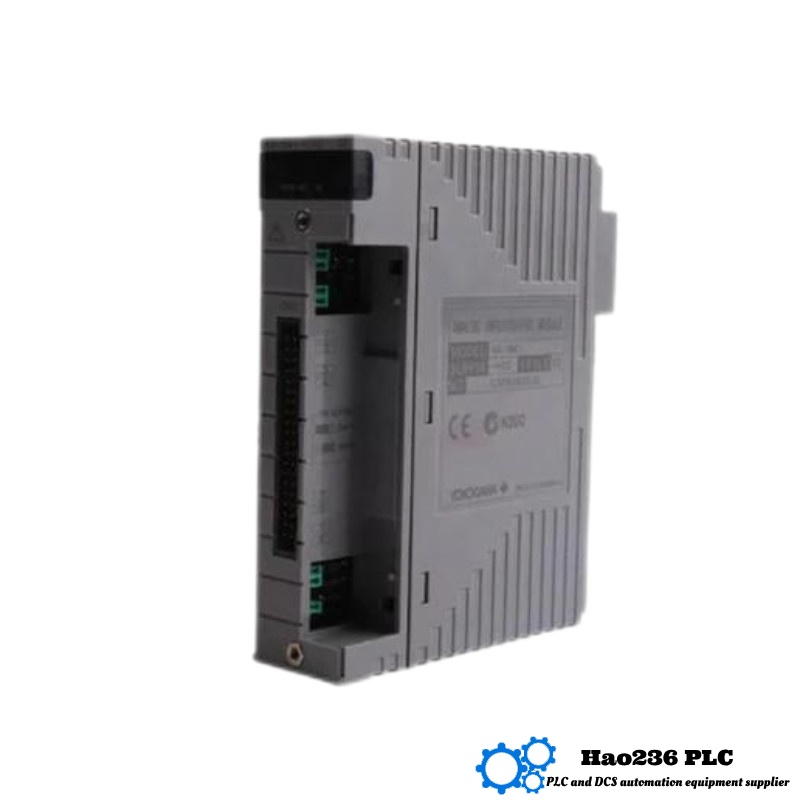

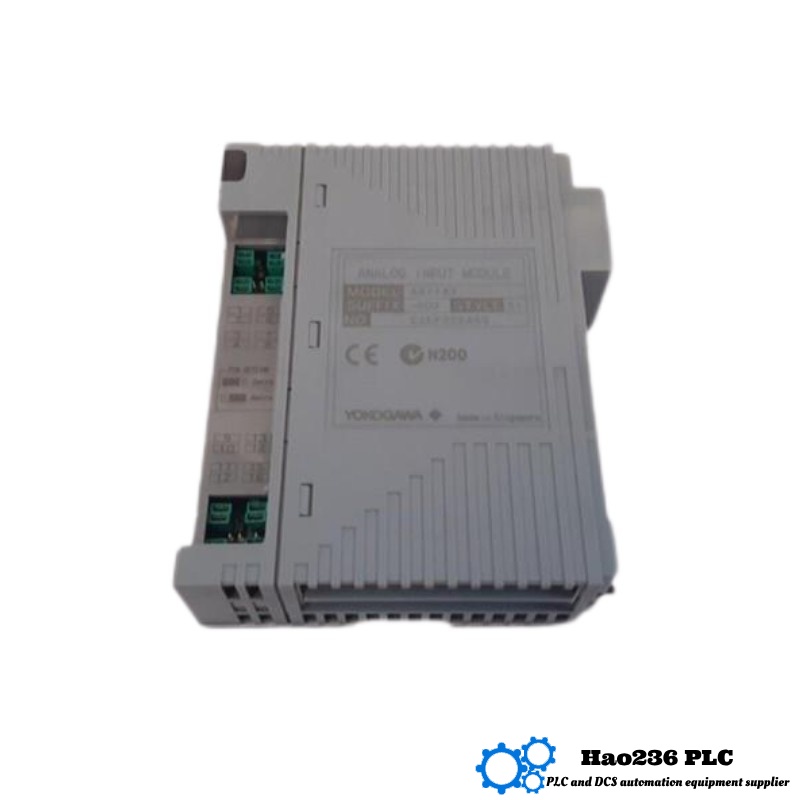

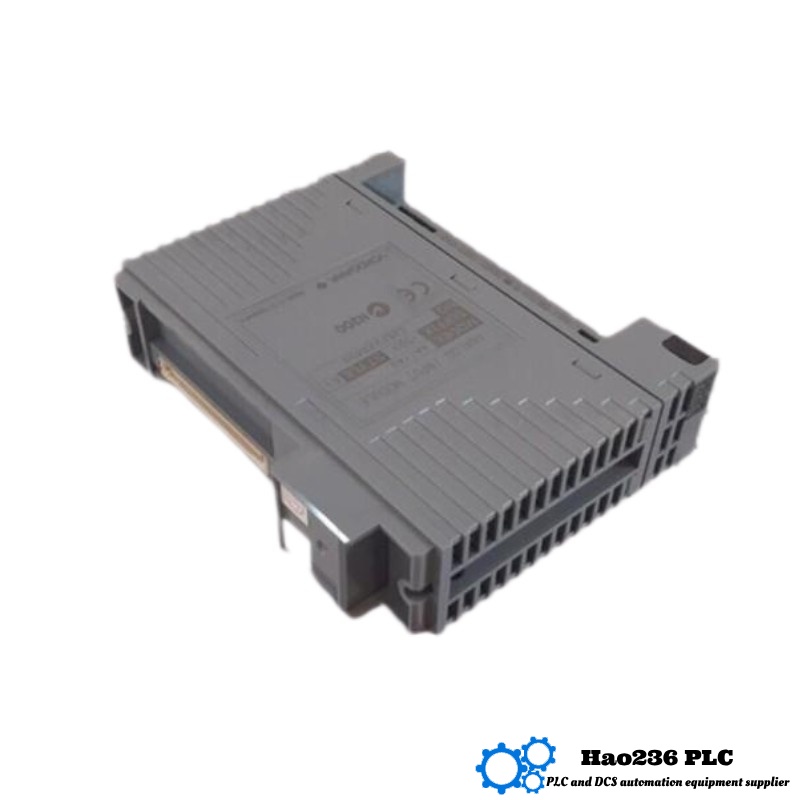

Product Overview: Yokogawa AAI143‑S53 S1
Product Introduction
The AAI143‑S53 S1 is a precision-engineered, 16-channel analog input module tailored for high‑reliability process control systems. It supports 4–20 mA input signals across individually isolated channels, delivering exceptional stability and noise immunity. Featuring a widened operating temperature range and robust electrical protection, this module is ideal for demanding industrial environments requiring extended performance. The S53 variant extends temperature endurance, while “S1” denotes standard loop-powered input configuration.
Technical Specifications
| Specification | Details |
|---|---|
| Model | AAI143‑S53 S1 |
| Input Signal | 4–20 mA DC |
| Channels | 16 (individually isolated) |
| Accuracy | ±16 µA |
| Input Resistance | 270–350 Ω (typically across input range) |
| Data Update Interval | 10 ms |
| Isolation Voltage | 1500 V AC (input to system, 1-minute hold) |
| Transmitter Loop Power | 19–25.5 V DC (max 25 mA per channel) |
| Operating Temperature Range | –20 °C to +70 °C |
| Storage Temperature Range | –40 °C to +85 °C |
| Interface Type | S1 loop-powered input |
| Mounting | Baseplate or rack-mountable module |
| Dimensions (L × W × H) | 107.5 mm × 32.8 mm × 130 mm |
| Weight | 0.30 kg |
| Power Consumption | Approx. 230 mA (5 V DC), 540 mA (24 V DC) |
| Certification | Standard industrial safety & EMC compliance |
Product Applications
-
Refineries & Petrochemical Units
Capturing analog readings from flow and pressure transmitters under high-temperature field conditions. -
Power Plants
Interface for temperature and turbine instrumentation in boiler and steam feed systems. -
Water Treatment Facilities
Multi-point analog sensing of chemical dosing, tank levels, and filtration systems. -
Pharmaceutical Production
Secure and accurate analog signal capture in clean‑room and temperature‑controlled environments. -
Heavy Industry Automation
Used in steel, mining, or pulp & paper plants that require durable analog input under extended temperature swings.
Product Advantages
-
Extended Temperature Capability
Rated for operation up to 70 °C, providing stability in hot or enclosed process zones. -
Strong Electrical Isolation
1500 V AC isolation suppresses interference and ensures safety in dense signal environments. -
High Precision
Delivers ±16 µA accuracy for reliable process readouts. -
Fast Data Throughput
10 ms update ensures controllers and human‑machine interfaces reflect near-real-time process changes. -
Compact & Modular
Slim design enables tight integration in control cabinet racks with ease of swapping.
Brand & Series
-
Brand: Yokogawa
-
Series: AAI143 Series – Isolated 4–20 mA Analog Input Modules, including variations for temperature range, HART capability, interface type, etc.
Related Models (Same Series / Closely Related)
| Model | Input Type | Channels | Temperature Range | Interface Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| AAI143‑S50 S1 | 4–20 mA | 16 | –20 °C to +60 °C | S1 (loop-powered) | 107.5×32.8×130 | 0.30 |
| AAI143‑H53 S1 | 4–20 mA + HART | 16 | –20 °C to +70 °C | S1 (loop-powered) | 107.5×32.8×130 | 0.30 |
| AAI143‑S53 K4A00 | 4–20 mA | 16 | –20 °C to +70 °C | K4A00 (KS cable) | 107.5×32.8×130 | 0.30 |
| AAI143‑S53/K4S00 | 4–20 mA | 16 | –20 °C to +70 °C | K4S00 (KS cable) | 107.5×32.8×130 | 0.30 |
| AAI143‑S53/A4S00 | 4–20 mA | 16 | –20 °C to +70 °C | A4S00 (clamp block) | 107.5×32.8×130 | 0.30 |
Popular Models from the Same Brand
| Model | Type | Channels | Output/Input | Interface | Temp Range | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| AAI543‑S53 S1 | Analog Output | 16 | Output | S1 loop | –20 °C to +70 °C | 107.5×32.8×130 | 0.30 |
| AAI143‑H50 S1 | Analog Input + HART | 16 | Input | S1 loop | –20 °C to +60 °C | 107.5×32.8×130 | 0.30 |
| AAI543‑H53 K4S00 | Analog Output + HART | 16 | Output | K4S00 | –20 °C to +70 °C | 107.5×32.8×130 | 0.30 |
| AAI143‑H53 K4A00 | Analog Input + HART | 16 | Input | K4A00 | –20 °C to +70 °C | 107.5×32.8×130 | 0.30 |
| AAB841‑S00/S1 | Mixed I/O | 8 in / 8 out | In/Out | S1 loop | –20 °C to +60 °C | 107.5×32.8×130 | 0.30 |
Frequently Asked Questions (QA Format)
Q1: What temperature range does the AAI143‑S53 S1 support?
A1: It operates reliably from –20 °C up to +70 °C.
Q2: How many analog input channels are included?
A2: There are 16 individual, fully isolated input channels.
Q3: Is HART communication supported?
A3: No, this is the S‑series (analog-only) variant without HART. Use H53 models for HART support.
Q4: What isolation voltage is provided?
A4: Each channel has 1500 V AC isolation from the system for robust electrical protection.
Q5: What is the module’s accuracy?
A5: It achieves ±16 µA precision per channel.
Q6: What is the signal update interval?
A6: Data is refreshed every 10 ms.
Q7: What interface does it use?
A7: It uses a standard S1 loop-powered connection.
Q8: Is it compact enough for dense system racks?
A8: Yes, it’s compact—107.5 × 32.8 × 130 mm—and lightweight at 0.30 kg.
Q9: Can it provide loop power to transmitters?
A9: Yes, it supplies up to 25 mA per channel for loop-powered sensors.
Q10: Is this module suitable for high-temperature environments?
A10: Absolutely. It’s designed for high ambient temperatures, up to +70 °C.
