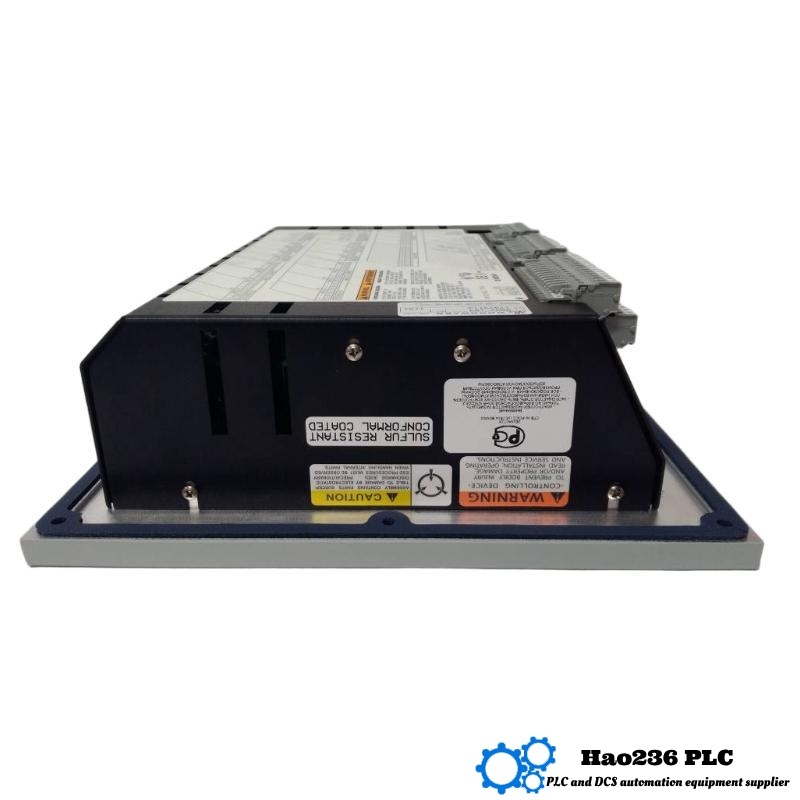

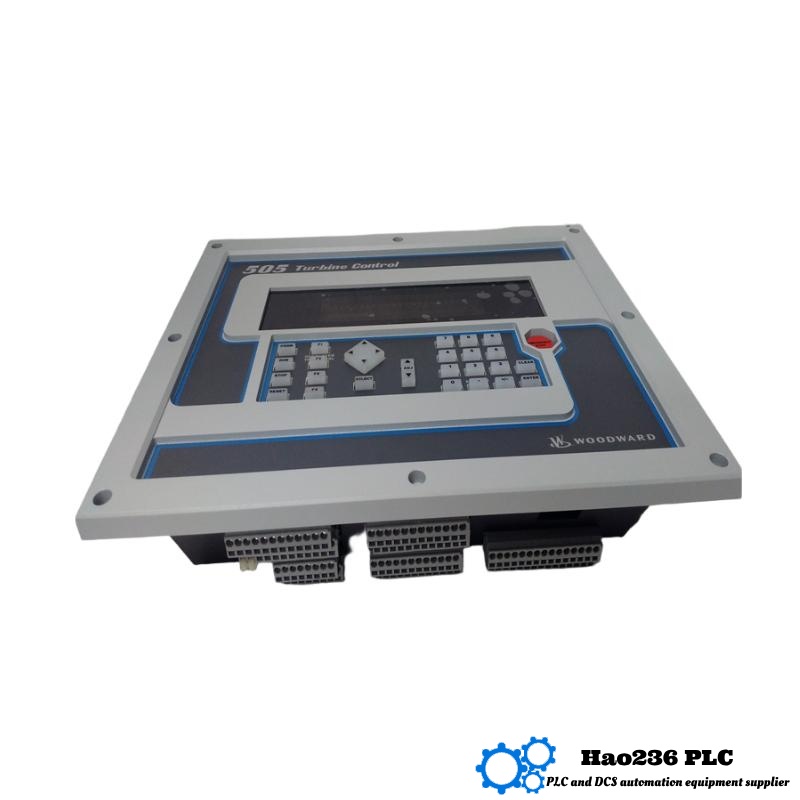

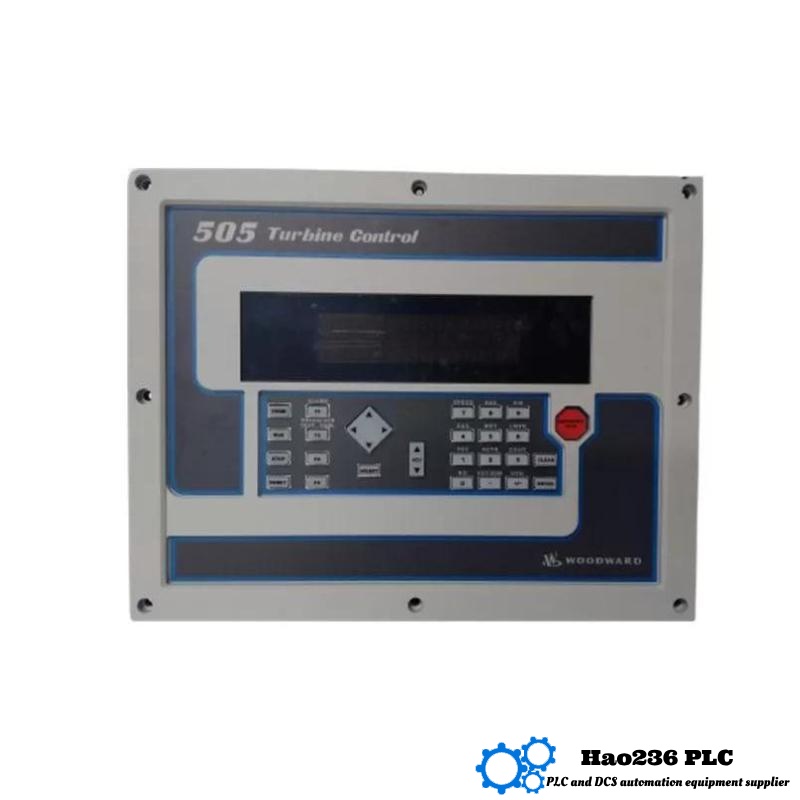

Woodward 9905-263 Digital Control Module
Product Introduction
The Woodward 9905-263 is a high-performance digital control module designed to provide precise and reliable control for industrial engines and generator sets. It incorporates advanced microprocessor technology to deliver flexible and scalable control solutions for a variety of power generation and engine control applications. The module is engineered to handle complex control algorithms, real-time data processing, and system diagnostics, enabling optimal engine and generator performance.
With its rugged design and sophisticated software, the 9905-263 supports multiple communication protocols and extensive input/output configurations, making it ideal for integration into modern automated control systems. It is widely valued for its robustness, ease of programming, and operational reliability under demanding industrial environments.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model Number | 9905-263 |
| Dimensions | 216 x 191 x 50 mm |
| Weight | 1.1 kg |
| Power Supply | 24 VDC nominal |
| Input Voltage Range | 18 – 32 VDC |
| Operating Temperature | -40°C to +85°C |
| Communication Protocol | Modbus RTU, CANbus, J1939 |
| Inputs | Analog, Digital |
| Outputs | Relay, Analog, Digital |
| Control Functions | Speed control, load management, protection |
| Mounting | Panel mount |
Product Applications
The Woodward 9905-263 digital control module is used extensively in:
-
Industrial generator sets requiring precise digital control and monitoring
-
Engine control systems for both diesel and gas engines in power plants
-
Marine power generation applications where robust, reliable controls are essential
-
Backup and emergency power systems requiring automated control and fault diagnostics
-
Hybrid and microgrid energy systems needing flexible control and communication
The module’s ability to manage complex control sequences and communicate with other system components makes it highly suitable for modern energy and industrial environments.
Product Advantages
-
Advanced Digital Control: Utilizes microprocessor technology for accurate and dynamic engine and generator management.
-
Multi-Protocol Communication: Supports Modbus RTU, CANbus, and J1939 for seamless integration with various industrial networks.
-
Comprehensive I/O: Wide range of input and output options to accommodate diverse control and monitoring needs.
-
Robust and Reliable: Designed to perform reliably in harsh conditions with extensive protection against electrical and environmental stresses.
-
User-Friendly Programming: Simplified configuration tools allow easy customization and rapid deployment.
-
Diagnostics and Monitoring: Provides real-time system diagnostics, alarms, and fault logging to enhance maintenance and uptime.
Brand Information
Woodward is a global leader in control solutions for engines, turbines, and power generation equipment. With a heritage spanning over 130 years, Woodward’s innovative products are trusted worldwide for delivering precision, reliability, and efficiency in critical control applications. The company continuously invests in technology and quality to support sustainable and advanced energy solutions.
Recommended Related Models in the Same Series
| Model Number | Description | Dimensions (mm) | Weight (kg) | Key Features |
|---|---|---|---|---|
| 9905-260 | Digital Control Module Basic | 216 x 191 x 50 | 1.0 | Basic digital engine control |
| 9905-264 | Enhanced Digital Control Module | 216 x 191 x 50 | 1.2 | Expanded I/O and communications |
| 9905-270 | Advanced Digital Generator Control | 220 x 195 x 55 | 1.3 | Multi-gen control and protection |
| 9905-275 | Digital Load Sharing Module | 215 x 190 x 50 | 1.1 | Load sharing and synchronization |
| 9905-280 | Digital Control with CANbus Support | 218 x 192 x 52 | 1.15 | CANbus communication enabled |
Popular Woodward Models from the Same Brand
| Model Number | Description | Dimensions (mm) | Weight (kg) | Key Features |
|---|---|---|---|---|
| 2301-527 | Digital Generator Control Unit | 200 x 180 x 45 | 0.95 | Modular digital control |
| 2301-561 | Speed Governor Control Module | 210 x 190 x 50 | 1.10 | Precise speed regulation |
| 9905-150 | Automatic Load Sharing Module | 215 x 190 x 55 | 1.05 | Load sharing and communications |
| 2301-547 | Generator Protection Relay | 180 x 160 x 40 | 0.85 | Generator fault protection |
| 9905-101 | Load Control & Voltage Regulator | 220 x 200 x 60 | 1.20 | Voltage and load regulation |
Frequently Asked Questions (FAQ)
Q1: What is the main application of the Woodward 9905-263?
A1: It is designed for digital control of engines and generator sets, offering precise speed control, load management, and protection.
Q2: What voltage range does the module support?
A2: The module operates with a nominal 24 VDC power supply, supporting input voltages from 18 to 32 VDC.
Q3: Which communication protocols are supported?
A3: It supports Modbus RTU, CANbus, and J1939 for flexible integration.
Q4: What are the physical dimensions of the module?
A4: The dimensions are approximately 216 x 191 x 50 mm.
Q5: How much does the Woodward 9905-263 weigh?
A5: The weight is around 1.1 kg.
Q6: Can this module be used in marine environments?
A6: Yes, it is rugged and suitable for marine applications requiring reliable control.
Q7: Does the module support multiple input and output types?
A7: Yes, it supports analog, digital, and relay inputs and outputs.
Q8: Is programming the module complex?
A8: No, it offers user-friendly software for easy configuration and customization.
Q9: What kind of diagnostics does the module provide?
A9: It includes real-time diagnostics, fault logging, and alarm monitoring.
Q10: Can the 9905-263 module control multiple generators?
A10: It is primarily for individual engine/generator control but can be part of a multi-unit system.
