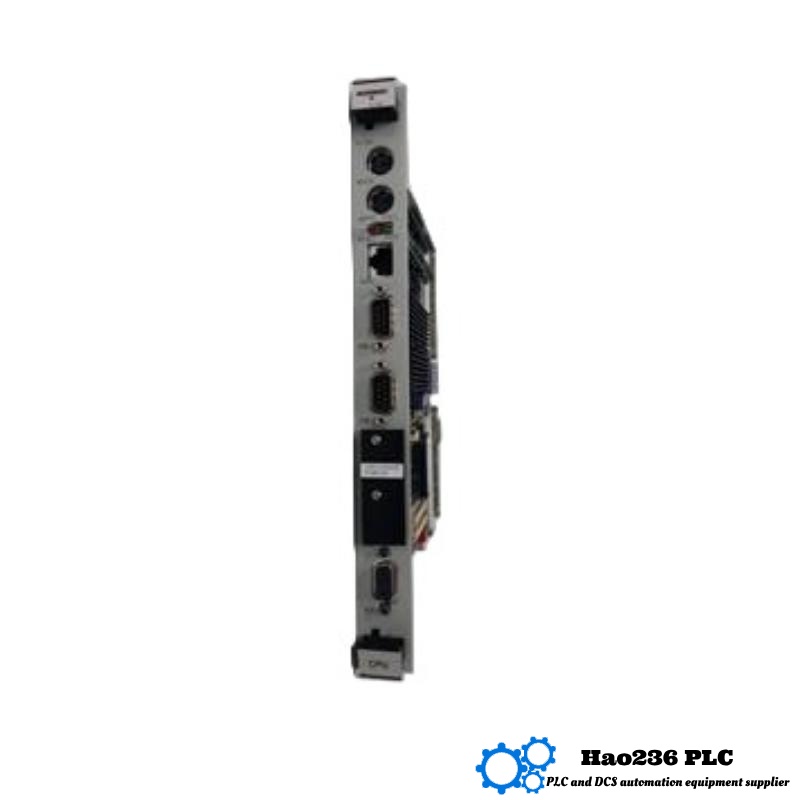

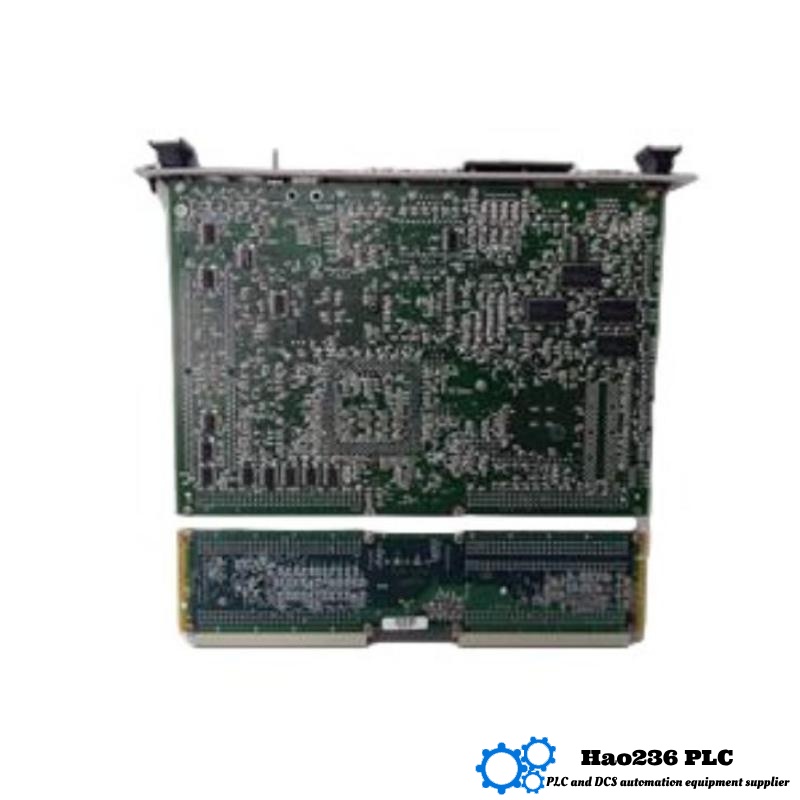

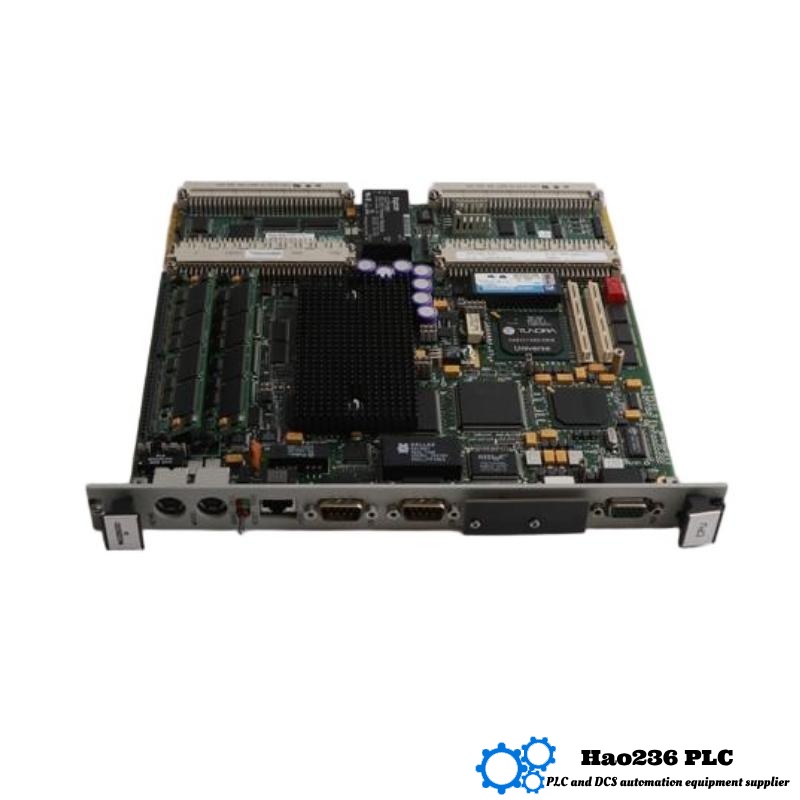

Woodward 5466-409 MicroNet Digital Control Series Pentium CPU Module
Product Overview
The Woodward 5466-409 is part of the MicroNet Digital Control Series, designed to deliver high-performance control and monitoring capabilities for complex industrial applications. The module features a Pentium-based CPU, providing robust processing power, high-speed operation, and reliable performance for controlling turbines, generators, and other industrial machinery. The 5466-409 is a versatile and scalable solution for applications in power generation, oil & gas, and other industries requiring advanced control and monitoring systems.
The MicroNet series from Woodward is known for its modular design, allowing for easy integration into both new and existing systems. With its high level of processing capacity and advanced diagnostic features, the 5466-409 is ideal for applications where real-time control and monitoring are critical to operational safety and efficiency.
Key Features
-
Pentium-Based Processing Power: Equipped with a Pentium CPU, the 5466-409 provides fast, reliable processing to handle complex control tasks in real-time.
-
High-Speed Performance: The module is designed for high-speed data processing, making it suitable for high-demand industrial environments.
-
Flexible Integration: It easily integrates with other MicroNet control modules, as well as third-party systems, providing flexible control solutions for a wide range of industrial applications.
-
Advanced Diagnostics: Equipped with built-in diagnostics, the module helps in identifying faults quickly, preventing system failures and reducing downtime.
-
Robust Construction: With dimensions of 260 x 150 x 40 mm and a weight of 1 kg, the 5466-409 offers durability and reliability in harsh industrial environments.
Product Applications
The Woodward 5466-409 is used in a variety of applications, particularly in industries where high-speed control and monitoring are crucial. Some common applications include:
-
Power Generation: The 5466-409 is used to control turbines, generators, and other key equipment in power plants, ensuring efficient and safe operation.
-
Oil & Gas: The module is used in oil refineries, offshore platforms, and gas processing plants to control and monitor equipment like compressors, pumps, and engines.
-
Industrial Automation: In manufacturing environments, it can be used to manage complex automated processes, optimizing efficiency and safety.
-
Turbine and Engine Control: The module is frequently used to manage the speed, load, and operational parameters of turbines and engines in various industries.
-
Backup Power Systems: The 5466-409 is suitable for use in backup power systems, ensuring smooth transitions between power sources during outages.
Advantages
-
High Processing Power: The Pentium-based CPU offers fast processing speeds, making it ideal for real-time control and monitoring applications.
-
Modular and Scalable: The MicroNet system is modular, allowing for easy expansion or modification as the needs of the system change.
-
Advanced Fault Detection: Built-in diagnostics and fault detection capabilities help identify issues before they lead to failures, reducing downtime and repair costs.
-
Durable and Reliable: Designed for harsh industrial environments, the module ensures long-term reliability and operational continuity.
-
Flexible Integration: The 5466-409 can be easily integrated with existing systems, whether they are Woodward or third-party, offering great flexibility and ease of use.
Brand
-
Woodward: Woodward is a leading global provider of control solutions for power generation, aerospace, and industrial automation. Known for their high-quality products, Woodward’s MicroNet series is widely regarded as a top choice for real-time control and monitoring in complex industrial systems.
Series
-
MicroNet Digital Control Series: The MicroNet series includes a range of advanced digital control modules designed to deliver high-speed, reliable performance for industrial applications. The series features modular and scalable solutions for applications in power generation, oil & gas, and other demanding industries.
Product Specifications
| Parameter | Value |
|---|---|
| Model | 5466-409 |
| Dimensions | 260 x 150 x 40 mm |
| Weight | 1 kg |
| CPU | Pentium Processor |
| Input Type | Digital / Analog Inputs |
| Output Type | Digital / Analog Outputs |
| Power Supply | 24V DC |
| Operating Temperature | -40°C to +70°C |
| Communication Protocol | Modbus, Ethernet, Profibus |
| Mounting Type | Rack Mount |
| Memory | 64MB RAM |
| Response Time | Real-Time |
Related Models in the MicroNet Series
| Model | Dimensions | Weight | Communication Protocol | CPU | Power Supply |
|---|---|---|---|---|---|
| 5466-408 | 260 x 150 x 40 mm | 1 kg | Modbus, Ethernet | Pentium | 24V DC |
| 5466-410 | 260 x 150 x 40 mm | 1 kg | Modbus, Ethernet | Pentium | 24V DC |
| 5466-411 | 260 x 150 x 40 mm | 1 kg | Modbus, Ethernet | Pentium | 24V DC |
| 5466-412 | 260 x 150 x 40 mm | 1 kg | Modbus, Ethernet | Pentium | 24V DC |
| 5466-413 | 260 x 150 x 40 mm | 1 kg | Modbus, Ethernet | Pentium | 24V DC |
Other Popular Woodward Models
| Model | Dimensions | Weight | Communication Protocol | CPU | Power Supply |
|---|---|---|---|---|---|
| 505-110 | 150 x 120 x 40 mm | 1.2 kg | Modbus, Ethernet | ARM | 24V DC |
| 505-120 | 150 x 120 x 40 mm | 1.1 kg | Modbus, Ethernet | ARM | 24V DC |
| 5100-100 | 200 x 180 x 50 mm | 1.5 kg | Profibus, Ethernet | Intel Celeron | 24V DC |
| 505-200 | 150 x 120 x 40 mm | 1.2 kg | Modbus, Ethernet | ARM | 24V DC |
| 505-300 | 150 x 120 x 40 mm | 1.3 kg | Modbus, Ethernet | ARM | 24V DC |
FAQs
Q1: What is the Woodward 5466-409 used for?
A1: The 5466-409 is used for high-performance control and monitoring in industrial applications, particularly in power generation, oil & gas, and automation.
Q2: What CPU does the 5466-409 use?
A2: The module uses a Pentium-based CPU for high-speed, real-time processing.
Q3: What communication protocols are supported by the 5466-409?
A3: The 5466-409 supports Modbus, Ethernet, and Profibus protocols for flexible integration with control systems.
Q4: How is the 5466-409 powered?
A4: The module operates with a 24V DC power supply.
Q5: What is the weight of the Woodward 5466-409?
A5: The 5466-409 weighs 1 kg.
Q6: Can the 5466-409 be integrated with other systems?
A6: Yes, it can integrate with other Woodward and third-party control systems.
Q7: What are the environmental limits for the 5466-409?
A7: The module operates within a temperature range of -40°C to +70°C.
Q8: Is the 5466-409 easy to install?
A8: Yes, it is designed for easy installation with a rack-mount configuration.
Q9: What industries use the 5466-409?
A9: The 5466-409 is used in power generation, oil & gas, industrial automation, and other applications requiring advanced control.
Q10: What are the dimensions of the 5466-409?
A10: The module measures 260 x 150 x 40 mm.
