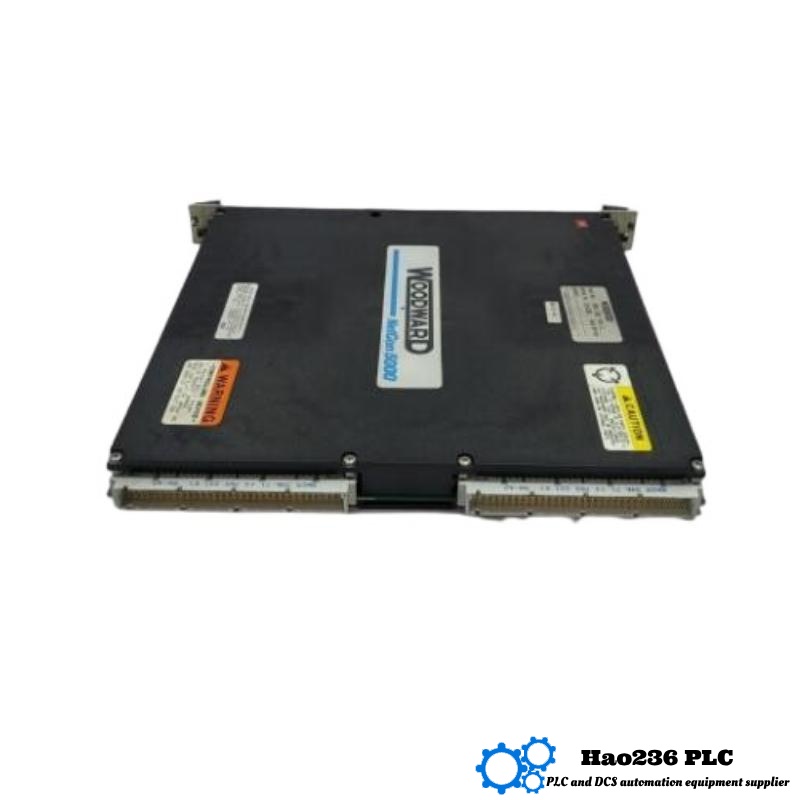

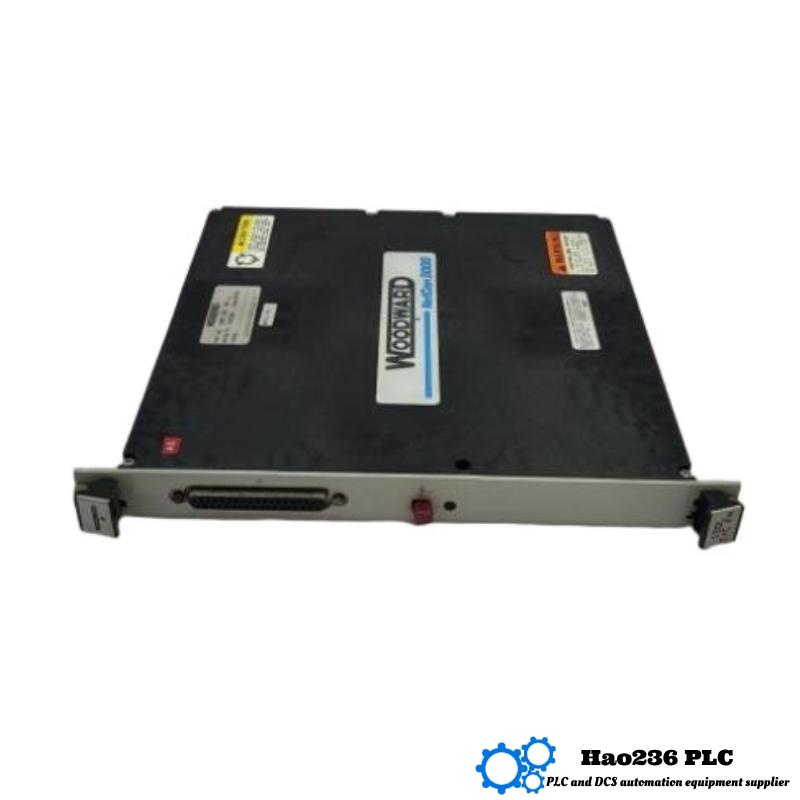

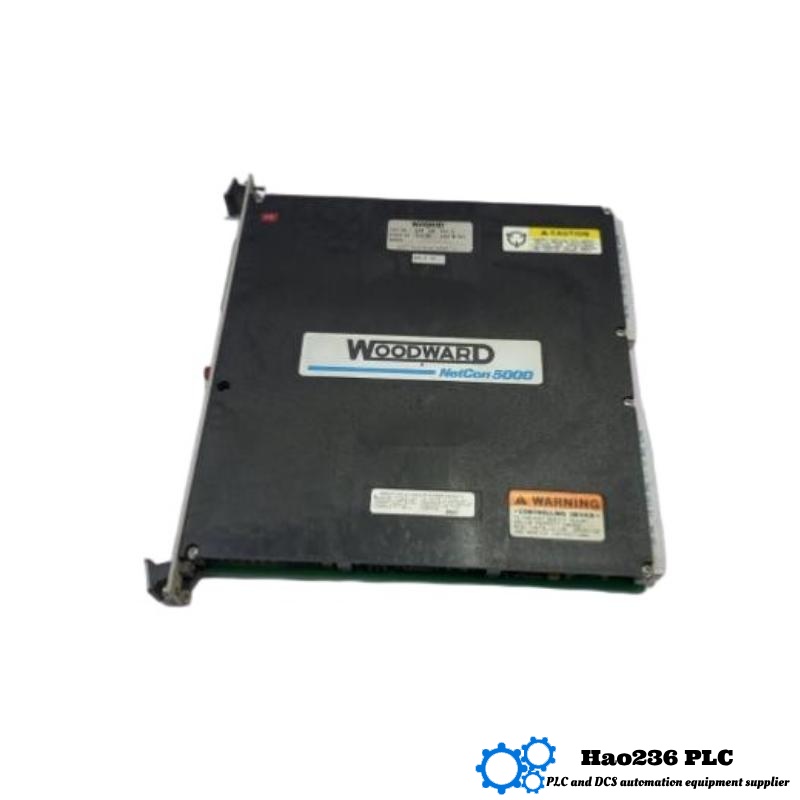

Woodward 5464-210 Actuator Driver Module
Product Introduction
The Woodward 5464-210 is an advanced actuator driver module designed for use in industrial control systems, particularly for gas turbines, steam turbines, and diesel engines. This actuator driver module provides the precise control required to operate the actuators in these applications, ensuring that systems are efficient, responsive, and highly reliable.
The 5464-210 actuator driver is engineered to interface directly with a wide range of control systems, offering high-performance control over actuator positions. By offering flexible input/output configurations, the module can handle complex control strategies, including speed control, position control, and even torque control in some cases. Woodward’s focus on high precision and safety makes the 5464-210 ideal for mission-critical applications where system reliability and safety are paramount.
Product Parameters
| Parameter | Description |
|---|---|
| Model | 5464-210 |
| Type | Actuator Driver Module |
| Dimensions | 160 x 120 x 50 mm |
| Weight | 1.2 kg |
| Power Supply | 24 V DC (Nominal) |
| Input Signals | 4-20 mA, 0-10 V, Discrete Inputs |
| Output Signals | 4-20 mA, Pulse Output |
| Communication Protocol | CANopen, Modbus, Ethernet (Optional) |
| Operating Temperature | -40°C to +70°C |
| Mounting | DIN Rail Mountable |
| Response Time | < 5 ms |
| Protection Class | IP20 |
| Certification | CE, UL, IEC 61508 |
Product Applications
The Woodward 5464-210 actuator driver module is used in a variety of high-reliability, high-precision applications, including:
-
Gas and Steam Turbine Control: Enables precise control over turbine actuators, ensuring optimal performance and efficiency in power generation applications.
-
Diesel Engine Control: Ensures proper actuator operation in diesel engine systems, providing reliable fuel control and speed regulation.
-
Industrial Automation: The module can be used in automated manufacturing environments to control the positioning of valves, actuators, and other critical components.
-
Renewable Energy: It is also used in wind turbine systems for controlling the pitch of the blades, ensuring the system operates efficiently and safely.
-
Marine and Aerospace: Used in marine and aerospace systems for precise control of various actuators and valves that control critical functions.
Product Advantages
-
High Precision Control: The 5464-210 provides highly accurate and responsive actuator control, ideal for applications that require precise adjustments such as turbine speed control or valve positioning.
-
Wide Input Compatibility: The module supports a variety of input signal types, including 4-20 mA, 0-10 V, and discrete inputs, allowing it to integrate easily into existing systems.
-
Flexible Output Options: Outputs include 4-20 mA signals and pulse output, providing versatile control options for different types of actuators.
-
Multiple Communication Protocols: Supports CANopen, Modbus, and Ethernet (optional), offering flexible communication for integration with different control systems.
-
Robust Temperature Range: With an operating temperature range of -40°C to +70°C, the 5464-210 can be used in harsh environmental conditions.
-
Compact and Mountable: The DIN rail mountable design saves space in control panels and ensures easy integration into control systems.
-
Certified Safety Standards: The module meets essential safety standards such as CE, UL, and IEC 61508, ensuring reliable operation in safety-critical applications.
Brand
-
Brand: Woodward
Woodward is a recognized leader in providing high-performance control systems for turbines, engines, and other critical industrial systems. Their solutions are widely used in power generation, aviation, oil & gas, and industrial automation industries. With over 150 years of experience, Woodward offers advanced solutions that ensure efficiency, reliability, and safety for a wide range of applications.
Related Models in the Same Series
| Model | Description | Dimensions | Weight |
|---|---|---|---|
| 5464-215 | Advanced Actuator Driver with Enhanced Communication Options | 160 x 120 x 50 mm | 1.3 kg |
| 5464-220 | Dual-Channel Actuator Driver Module | 160 x 120 x 50 mm | 1.4 kg |
| 5464-230 | Actuator Driver with Modbus and CANopen Integration | 160 x 120 x 50 mm | 1.2 kg |
| 5464-240 | Compact Actuator Driver for Marine Applications | 160 x 120 x 50 mm | 1.1 kg |
| 5464-250 | High-Power Actuator Driver for Gas Turbine Control | 160 x 120 x 50 mm | 1.5 kg |
Popular Models from Woodward
| Model | Description | Dimensions | Weight |
|---|---|---|---|
| 5053-100 | Turbine Controller for Power Generation | 200 x 150 x 60 mm | 2.3 kg |
| 5101-150 | Multi-Channel Controller for Engine Management | 250 x 200 x 75 mm | 3.5 kg |
| 5057-200 | Fuel Control Module for Gas Turbines | 180 x 120 x 50 mm | 1.8 kg |
| 5145-250 | Advanced Engine Control for Aviation Applications | 220 x 150 x 60 mm | 2.2 kg |
| 5065-100 | Gas Turbine Speed Control System | 190 x 130 x 60 mm | 2.0 kg |
FAQ (10 Questions and Answers)
Q1: What is the function of the Woodward 5464-210 actuator driver module?
A1: The 5464-210 is designed to precisely control actuators in systems such as turbines, engines, and valves, ensuring efficient and reliable operation.
Q2: What types of input signals does the 5464-210 support?
A2: The 5464-210 supports 4-20 mA, 0-10 V, and discrete inputs, making it adaptable to different system requirements.
Q3: What communication protocols are supported by the 5464-210?
A3: The module supports CANopen, Modbus, and Ethernet (optional), allowing for flexible integration with various control systems.
Q4: What is the operating temperature range of the 5464-210?
A4: The 5464-210 operates in temperatures ranging from -40°C to +70°C, making it suitable for challenging industrial environments.
Q5: How is the 5464-210 mounted?
A5: The 5464-210 is designed for DIN rail mounting, ensuring easy integration into control panels.
Q6: Is the Woodward 5464-210 suitable for use in power generation applications?
A6: Yes, the 5464-210 is specifically designed for high-precision control in gas turbines, steam turbines, and other power generation equipment.
Q7: What is the weight of the Woodward 5464-210 actuator driver module?
A7: The 5464-210 weighs 1.2 kg.
Q8: What type of actuator does the 5464-210 control?
A8: The 5464-210 can control a wide range of actuators, including those used in turbine speed control, valve positioning, and engine management.
Q9: What certifications does the 5464-210 module meet?
A9: The 5464-210 meets CE, UL, and IEC 61508 safety standards.
Q10: What makes the Woodward 5464-210 module suitable for industrial applications?
A10: The 5464-210 offers high precision, flexible input/output options, multiple communication protocols, and wide operating temperature range, making it ideal for demanding industrial environments.
