Product Overview

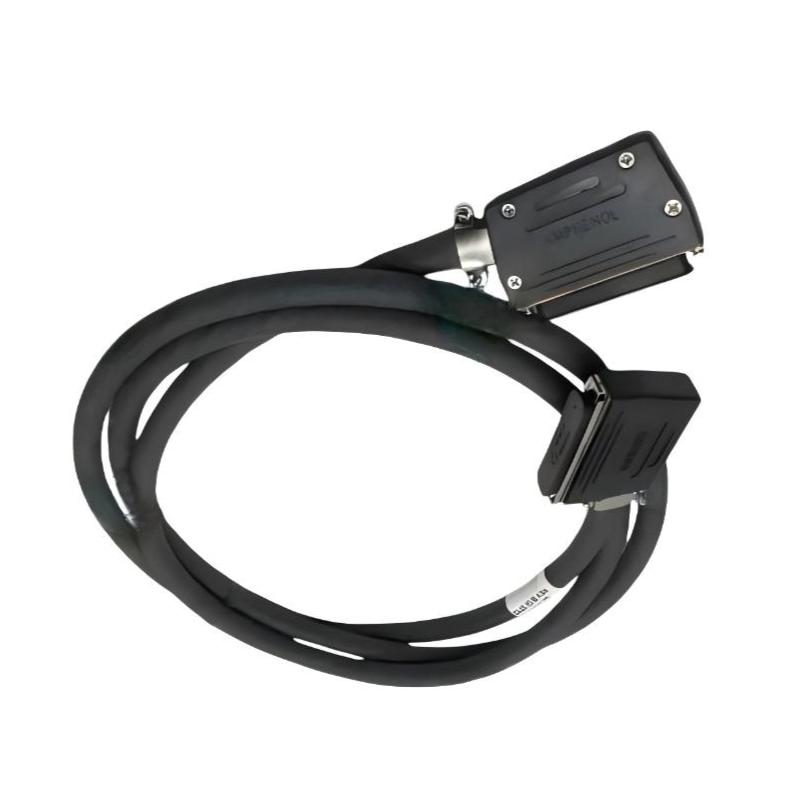

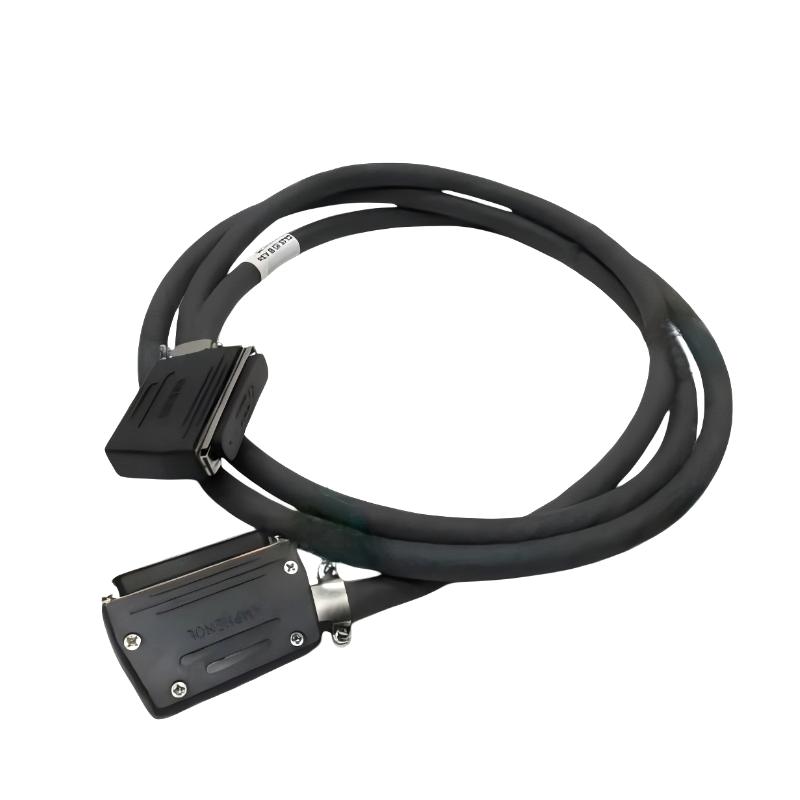

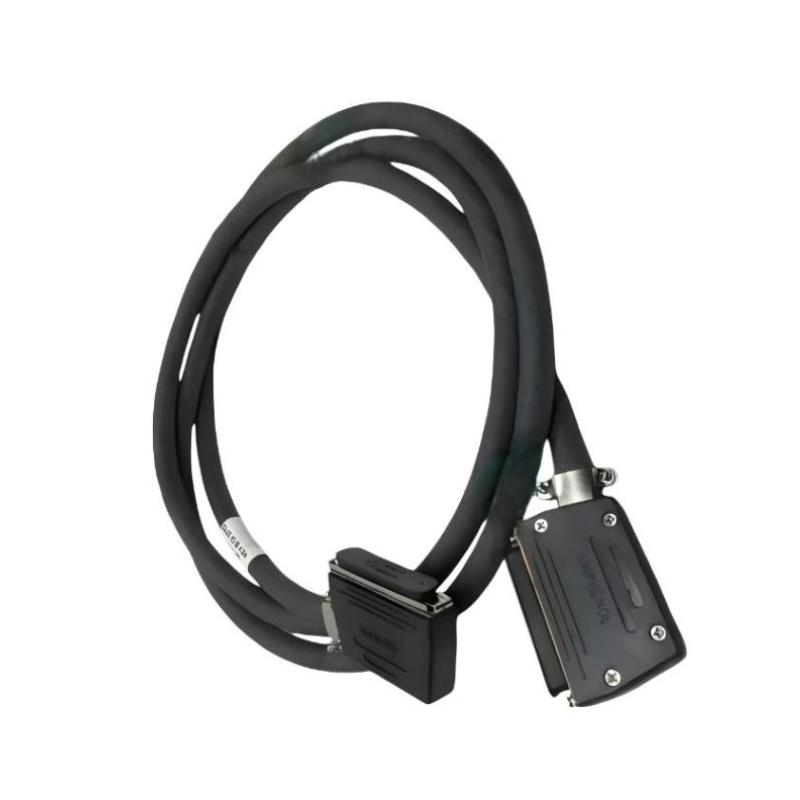

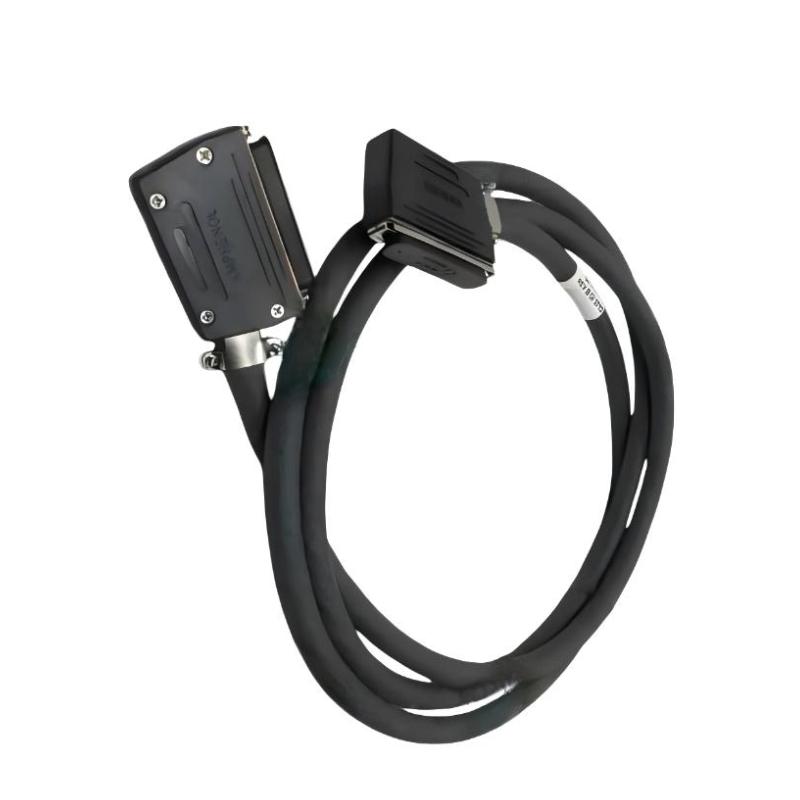

The Woodward 8923-1182 L-Series Service Cable is a service and maintenance cable used with compatible Woodward L-Series control equipment. It is intended for technicians who need a direct connection between service equipment and the controller during commissioning, configuration, diagnostic work, or troubleshooting.
In practical maintenance work, a service cable such as the 8923-1182 can be used when a controller needs to be connected to a service interface without modifying the permanent field wiring. This is useful during startup, parameter verification, controller replacement, and fault investigation on engine and generator control systems.
The cable is particularly relevant to service engineers working on installed Woodward equipment where access to controller configuration or diagnostic functions is required. Keeping the service connection separate from normal control wiring can also make maintenance work more organized and reduce unnecessary disturbance to field circuits.
For replacement planning, technicians should verify the controller family, service interface, connector arrangement, and required cable configuration before installation. The cable length is specified as optional, so the required configuration should be matched to the actual service setup.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 8923-1182 |
| Product Family | Woodward L-Series |
| Product Type | Service Cable |
| Primary Function | Service and maintenance connection |
| System Role | Controller service interface |
| Application | Controller commissioning, configuration, diagnostics, and maintenance |
| Cable Length | Optional |
| Shipping Weight | 3 kg |
Product Features
- Service cable for compatible Woodward L-Series equipment
- Intended for controller maintenance and service operations
- Suitable for commissioning and troubleshooting activities
- Allows service equipment to connect through the appropriate controller interface
- Useful for parameter configuration and diagnostic work
- Keeps temporary service connections separate from permanent field wiring
- Suitable for maintenance teams supporting installed Woodward control systems
- Optional cable length allows the service arrangement to be matched to the installation
Working Principle
The Woodward 8923-1182 establishes a service communication path between compatible L-Series control equipment and the technician’s service equipment. Once the correct service connection is established, the technician can access applicable controller functions for configuration, monitoring, diagnostics, or maintenance.
Service Equipment → 8923-1182 L-Series Service Cable → Woodward L-Series Controller → Engine / Generator Control System
The cable itself acts as the physical interface between the service device and controller. It does not replace the controller’s control logic or field I/O functions. Its primary purpose is to provide the connection required for service operations, making connector compatibility and the correct L-Series equipment configuration important during selection.
Role in a Woodward L-Series Control Architecture
The service cable sits outside the normal field control signal path and is used when technicians need direct service access to the controller.
Service Laptop / Service Equipment → 8923-1182 Service Cable → L-Series Controller → Control System → Engine / Generator
| System Element | Function |
|---|---|
| Service Equipment | Provides configuration, monitoring, or diagnostic functions |
| 8923-1182 | Establishes the physical service connection |
| L-Series Controller | Receives service commands and provides applicable controller information |
| Engine Control System | Executes engine-related control functions |
| Generator / Driven Equipment | Performs the controlled mechanical or electrical operation |
Industrial Applications
| Application | Typical Use |
|---|---|
| Engine Control Systems | Controller commissioning and service access |
| Generator Control | Diagnostic and configuration work |
| Power Generation | Maintenance of Woodward control equipment |
| Engine Commissioning | Initial controller setup and parameter verification |
| Field Service | Temporary connection of service equipment |
| Industrial Maintenance | Troubleshooting and controller replacement activities |
Installation and Maintenance
- Confirm that the 8923-1182 is intended for the specific Woodward L-Series equipment being serviced.
- Verify the service connector on the controller before making the connection.
- Inspect both cable connectors for bent, damaged, or contaminated contacts.
- Ensure the service equipment is configured for the applicable Woodward controller.
- Disconnect unnecessary service equipment before beginning normal controller operation.
- Avoid pulling or sharply bending the cable during connection and removal.
- Keep the service cable away from sources of mechanical damage and excessive heat.
- Do not use a cable with damaged insulation, connectors, or strain relief.
- When troubleshooting communication problems, first verify connector seating and service-device configuration.
- Confirm controller power and operating status before attempting service communication.
- Store the cable in a clean and dry location when it is not in use.
- Before ordering a replacement, verify the model number, controller compatibility, connector configuration, and required cable-length option.
Related Components
| Component | Function |
|---|---|
| Woodward L-Series Controller | Main control device accessed during service operations |
| Service Laptop | Provides controller configuration and diagnostic functions |
| Woodward Service Software | Used for applicable controller setup and troubleshooting |
| Controller Service Port | Provides the physical connection for service equipment |
| Engine Control Equipment | Executes engine control functions |
| Generator Control Equipment | Manages generator-related control functions |
| Control Panel | Houses and protects controller equipment |
| Controller Power Supply | Supplies operating power to the control system |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Woodward 8923-1182 | L-Series Service Cable | Controller service and maintenance |
| Woodward L-Series | Controller Family | Engine and generator control |
| Woodward Service Cables | Service Cable | Controller configuration and diagnostics |
| Woodward Engine Controllers | Engine Control Module | Engine management and control |
| Woodward Generator Controllers | Generator Control Module | Generator and power-system control |
| Woodward Controller Service Interfaces | Service Interface | Maintenance and commissioning |
| Woodward Control System Accessories | Control Accessories | Controller installation and service |
| Woodward Configuration Equipment | Service Equipment | Controller setup and troubleshooting |
Key Advantages
- Provides a dedicated service connection for compatible L-Series equipment
- Useful for commissioning, diagnostics, and controller maintenance
- Helps technicians access controller service functions without changing permanent field wiring
- Suitable for field service and workshop maintenance
- Optional cable length supports different service arrangements
- Practical accessory for maintaining Woodward L-Series control systems
Technical FAQs
What is the primary purpose of the Woodward 8923-1182?
The 8923-1182 is a service cable used to connect compatible Woodward L-Series control equipment with appropriate service equipment for configuration, diagnostics, monitoring, or maintenance.
Can the 8923-1182 be treated as a permanent control-system cable?
It is primarily a service connection rather than a normal field control cable. It should be used according to the applicable L-Series controller service requirements and should not be assumed to replace permanent control or field wiring.
What should be checked if the controller cannot be accessed through the service cable?
Check the connector seating, cable condition, controller power, service equipment configuration, and compatibility between the cable and the specific L-Series controller. If the physical connection is correct, the service software or controller communication settings should also be checked.
How should the correct cable configuration be selected?
Verify the exact Woodward controller model and its service-interface requirements first. Because the cable length is specified as optional, the required length should be selected according to the physical service arrangement rather than assuming a fixed cable length.
