Product Overview

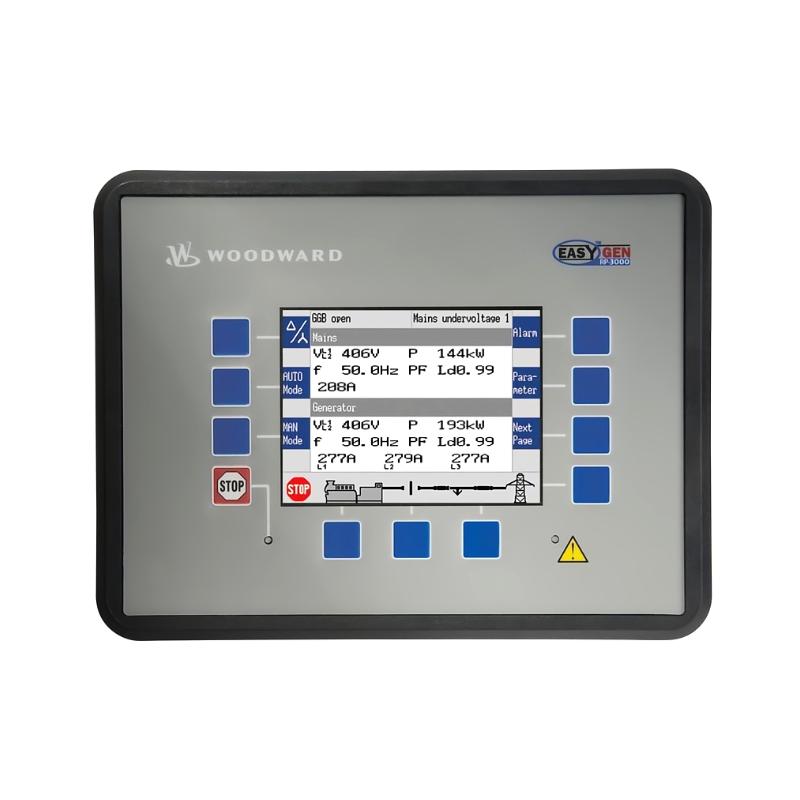

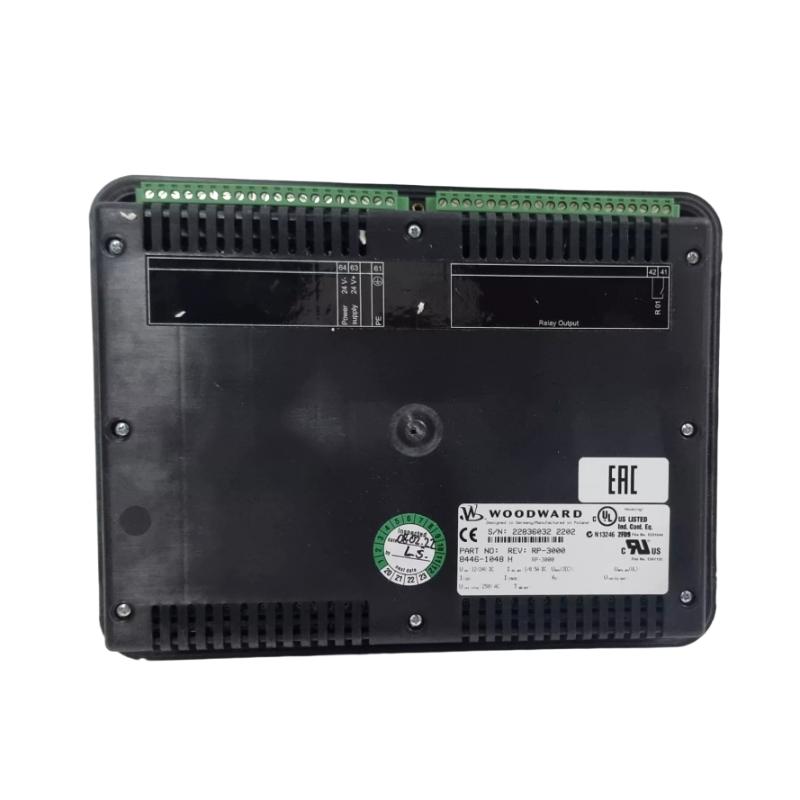

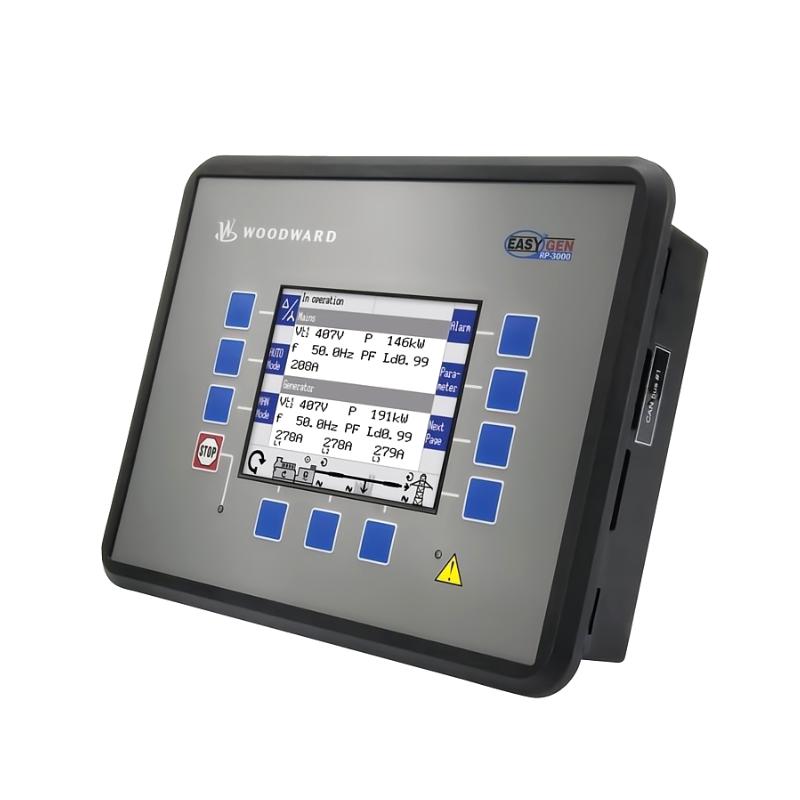

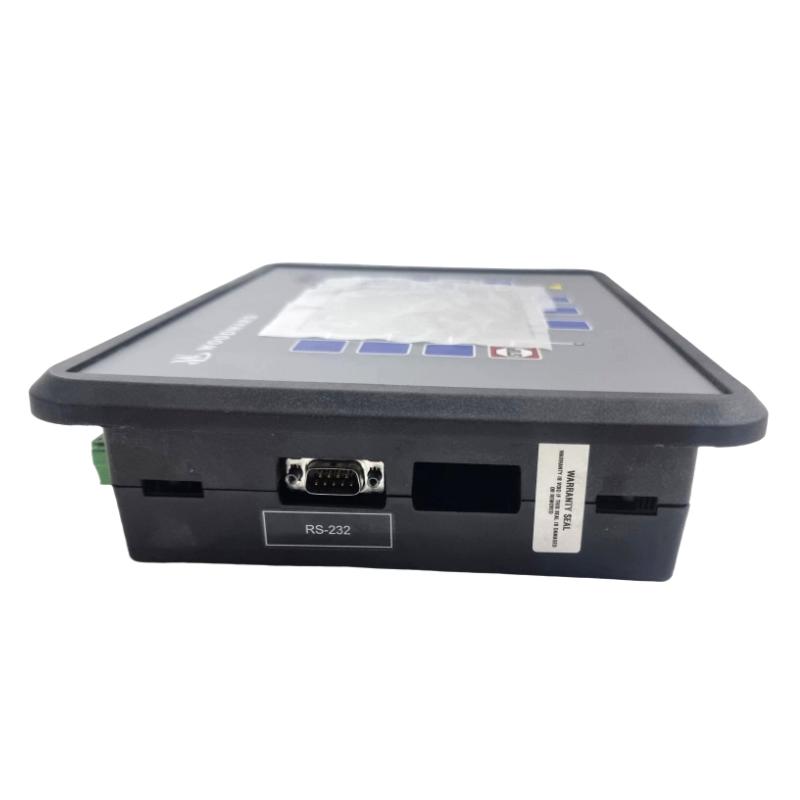

The Woodward 8446-1048 is an RP-3000 Remote Panel used to provide local or remote access to engine and generator control information. It allows operators to monitor operating conditions and interact with compatible Woodward control systems without needing to work directly at the main controller or generator control cabinet.
The panel is suited to installations where the engine or generator package is located away from the normal operator position. Typical arrangements include generator rooms, engine enclosures, power-generation facilities, and control rooms where operating personnel need a dedicated interface for status monitoring and control functions.
During operation, the RP-3000 can serve as an operator interface for viewing system information, checking alarms, and issuing permitted commands through the connected control system. This makes it useful for applications where routine operation and troubleshooting need to be performed from a convenient remote location.
The RP-3000 Remote Panel can also simplify service activities by giving maintenance personnel access to relevant controller information without repeatedly accessing the engine or generator equipment itself. Its role depends on the connected Woodward control architecture and the functions configured for the particular installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 8446-1048 |
| Product Family | RP-3000 |
| Product Type | Remote Panel |
| Primary Function | Remote monitoring and control interface |
| System Role | Operator interface |
| Application | Engine and generator control systems |
| Dimensions | 282 × 217 × 67 mm |
| Weight | 1.3 kg |
Product Features
- RP-3000 Remote Panel for remote interaction with compatible Woodward control systems.
- Provides an operator interface for monitoring engine and generator operating information.
- Allows permitted control functions to be accessed from a remote operating position.
- Useful for installations where the primary controller is located near the engine or generator.
- Supports operator access to system status and alarm information.
- Suitable for generator rooms, engine rooms, control panels, and remote operating stations.
- Can reduce the need for routine operation directly at the main control cabinet.
Working Principle
The remote panel communicates with the associated Woodward control system and presents available operating information to the operator. Controller data such as operating status, alarms, measurements, and configured system information can be displayed through the panel interface.
When an authorized operator enters a command, the panel transfers the command information to the connected control system. The controller then determines whether the requested action is valid and executes the corresponding control sequence.
Woodward Controller → 8446-1048 RP-3000 → Operator Interface
Operator Command → RP-3000 → Woodward Controller → Engine / Generator Control
The panel therefore acts as an interface layer rather than the primary control processor. The main control logic remains within the associated Woodward control system while the RP-3000 provides the operator with access to configured monitoring and control functions.
Role in an Engine and Generator Control Architecture
The 8446-1048 occupies the operator-interface level of a Woodward control architecture. It connects the operating personnel with the controller responsible for engine or generator management.
Architecture chain
Operator → RP-3000 Remote Panel → Woodward Controller → Engine / Generator Equipment
| System Element | Function |
|---|---|
| Operator | Monitors operating conditions and issues permitted commands |
| 8446-1048 RP-3000 | Provides the remote operator interface |
| Woodward Controller | Executes control, monitoring, and protection logic |
| Engine Control System | Manages engine operating functions |
| Generator Equipment | Produces electrical power |
| Alarm / Protection System | Reports abnormal conditions and initiates configured protective actions |
Industrial Applications
| Application | Typical Use |
|---|---|
| Generator Sets | Remote monitoring and operator control of generator systems |
| Power Generation | Operator interface for engine-driven generating equipment |
| Engine Rooms | Access to controller information from a convenient operating position |
| Industrial Facilities | Remote supervision of engine and generator packages |
| Utility Systems | Monitoring of distributed power-generation equipment |
| Standby Power Systems | Local access to generator operating and alarm information |
Installation and Maintenance
- Confirm that the RP-3000 is compatible with the intended Woodward control system before installation.
- Review the system communication architecture and panel connection requirements.
- Install the remote panel at a suitable operator location with appropriate environmental protection.
- Verify communication wiring and connector assignments before applying power.
- Check the configured controller-to-panel communication path during commissioning.
- Confirm that the panel receives the expected operating information from the controller.
- Test configured operator commands under controlled commissioning conditions.
- Verify alarm and status indications against the actual engine or generator operating state.
- Check communication connections if displayed information becomes intermittent or unavailable.
- Inspect the panel interface and associated wiring during routine maintenance.
- When replacing the panel, record the existing configuration and communication settings before removal.
- After replacement, verify display functions, communication, alarms, and permitted control commands before returning the system to normal operation.
Related Components
| Component | Function |
|---|---|
| Woodward Engine Controller | Provides engine control and monitoring |
| Woodward Generator Controller | Manages generator operating functions |
| RP-3000 Remote Panel | Provides remote operator access |
| Generator Control Panel | Houses controller and associated electrical interfaces |
| Engine Sensors | Provide operating-condition feedback |
| Generator Sensors | Monitor electrical and mechanical parameters |
| Alarm System | Provides abnormal-condition notification |
| Communication Interface | Transfers data between the controller and operator interface |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Woodward RP-3000 Series | Remote Panel | Remote engine and generator monitoring |
| Woodward Engine Control Systems | Engine Controller | Engine operation and monitoring |
| Woodward Generator Control Systems | Generator Controller | Generator control and protection |
| Woodward Power Generation Controllers | Generator Control Module | Generator-set automation |
| Woodward Digital Control Systems | Digital Controller | Engine and power-system control |
| Woodward Operator Interface Panels | Operator Panel | Local and remote equipment supervision |
| Woodward Protection Modules | Protection Module | Engine and generator protection |
| Woodward Relay Interface Modules | Relay Module | Discrete control and status interfacing |
Key Advantages
- Provides a dedicated remote interface for Woodward control systems.
- Allows operators to monitor engine and generator conditions from a remote location.
- Supports convenient access to configured alarms and system information.
- Reduces the need for routine operation at the main controller location.
- Suitable for generator rooms, engine rooms, and industrial power facilities.
- Integrates the operator interface with the broader Woodward control architecture.
Technical FAQs
What information should be available on the RP-3000 during normal controller communication?
The available information depends on the connected Woodward control system and its configuration. A properly communicating panel should present the operating data, status information, alarms, and other interface functions assigned to the particular application.
Why might the RP-3000 display incomplete or unavailable controller information?
Communication interruptions, incorrect configuration, wiring problems, or issues within the connected controller can prevent normal data exchange. Troubleshooting should begin by checking the communication path and controller status before replacing the remote panel.
Can the RP-3000 replace the main engine or generator controller?
No. The remote panel functions as an operator interface, while the associated Woodward controller remains responsible for executing the control logic and managing the engine or generator. The panel provides access to configured information and operator commands.
What should be tested after installing an RP-3000 replacement?
The communication link should first be verified, followed by display and status information. Configured alarms and permitted operator commands should then be tested to confirm that the complete interface between the panel and the Woodward controller is functioning correctly.
