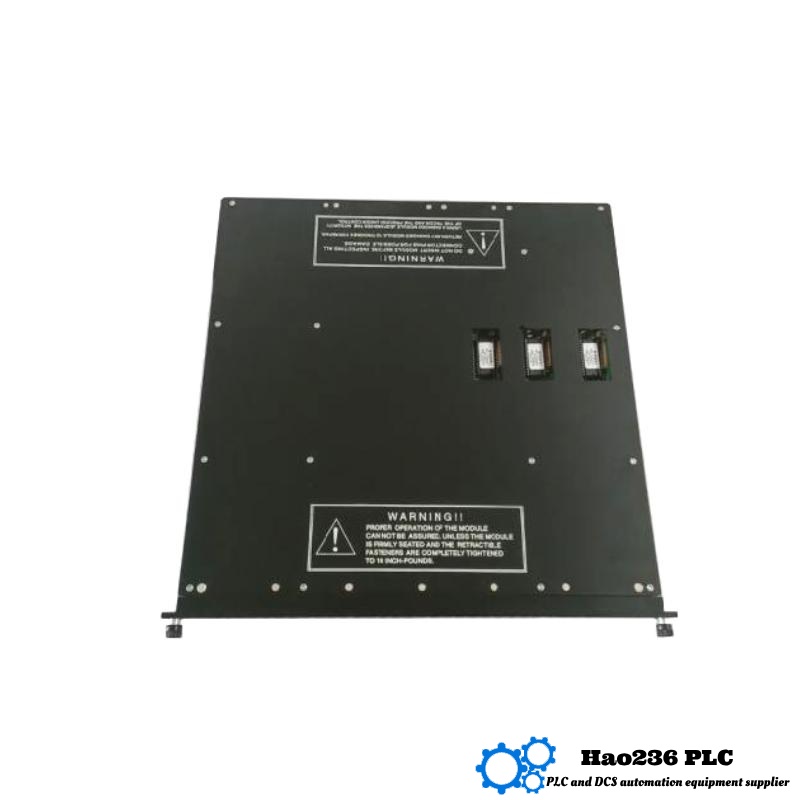

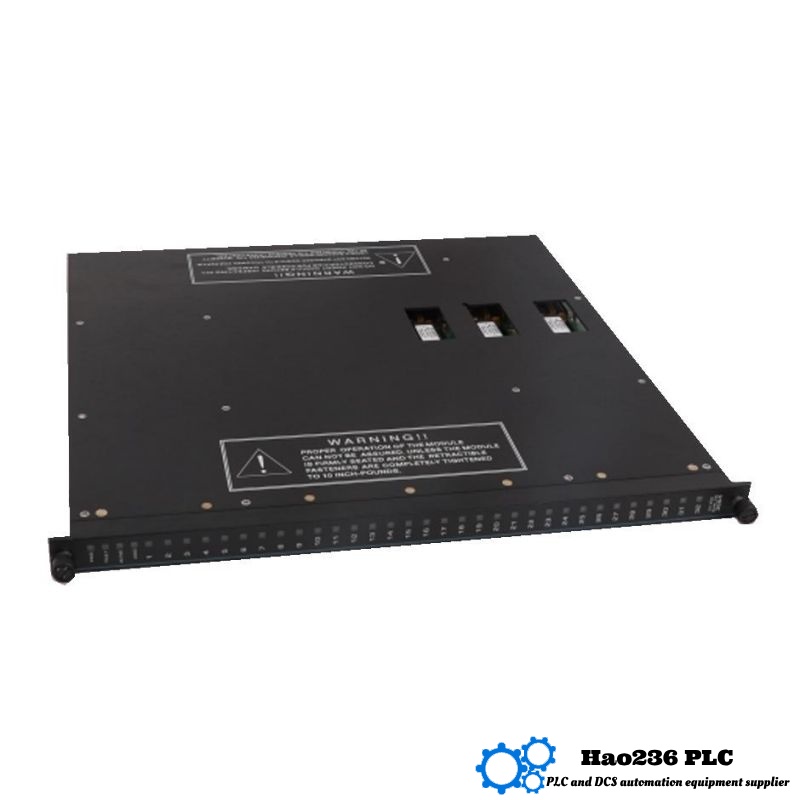

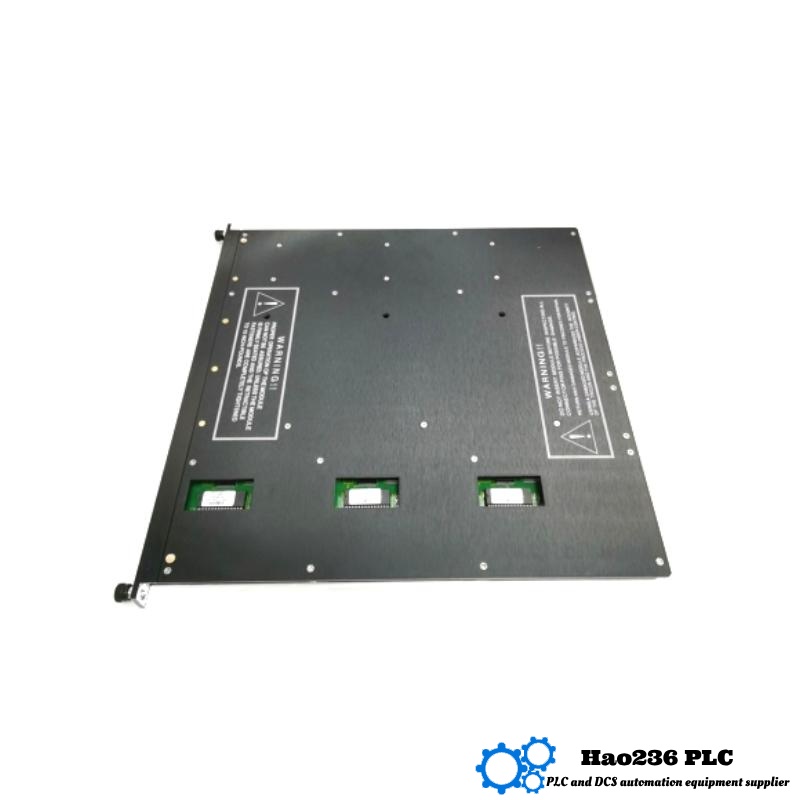

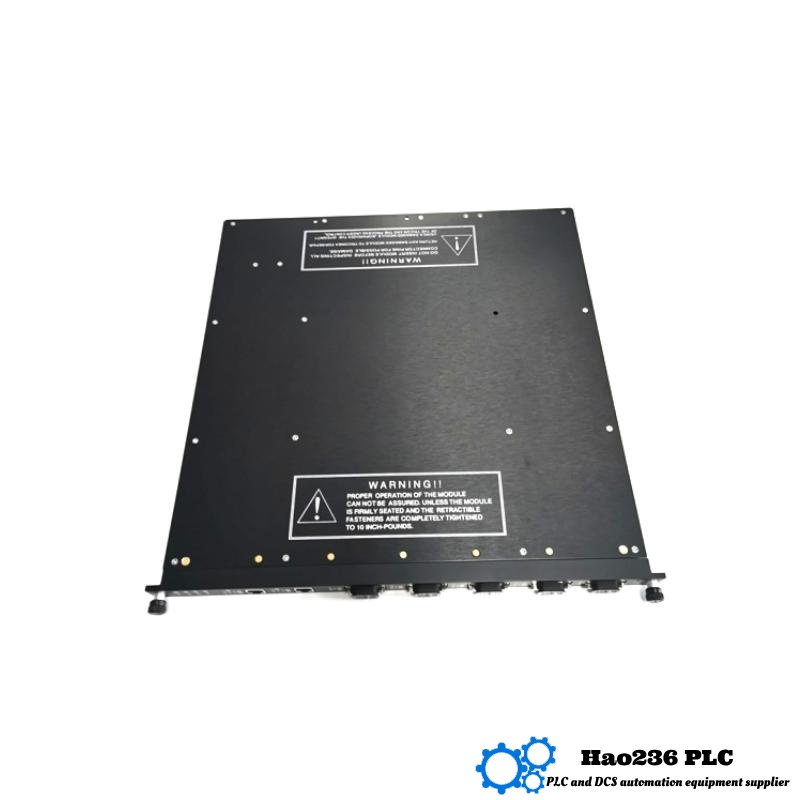

Triconex 3664 Digital Output Module
Product Introduction
The Triconex 3664 is a Digital Output Module designed for use in safety-critical industrial control systems. It is part of the Triconex series, which is renowned for its high-reliability and safety standards in industries such as oil & gas, chemical processing, and power generation. The 3664 module plays a key role in ensuring safe and reliable operation by providing precise and fast switching of digital outputs within safety instrumented systems (SIS).
The module is designed to meet the highest safety standards, including SIL 3 (Safety Integrity Level), ensuring that critical safety functions are executed without fail. With a compact size of 160 × 100 × 40 mm and a weight of 1.87 kg, the Triconex 3664 is optimized for space-constrained installations in control cabinets. This module supports redundant configuration, making it a perfect fit for demanding process control and emergency shutdown systems.
The Triconex 3664 is engineered to integrate seamlessly with other Triconex products, providing a modular and scalable solution for safety and control applications. Its rugged design ensures long-term, reliable performance even in harsh operating environments, ensuring a high level of availability and safety assurance.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | 3664 |
| Type | Digital Output Module |
| Series | Triconex |
| Dimensions (L × W × H) | 160 × 100 × 40 mm |
| Weight | 1.87 kg |
| Output Type | Digital (On/Off) |
| Output Channels | 16 Channels |
| Nominal Output Current | 0.5 A per Channel |
| Nominal Voltage | 24 V DC |
| Output Voltage Range | 10 to 30 V DC |
| Response Time | < 5 ms (per channel) |
| Mounting Type | DIN Rail |
| Protection Rating | IP20 |
| Operating Temperature | -20°C to +60°C |
| Certification | SIL 3, CE, UL |
Product Applications
The Triconex 3664 Digital Output Module is specifically designed for use in safety-critical applications, providing reliable digital outputs for industrial automation and control systems. It is widely used in various industries, including:
-
Safety Instrumented Systems (SIS): The module is ideal for safety functions in SIS, where SIL 3 compliance is required for high-integrity control systems.
-
Emergency Shutdown Systems (ESD): It plays a critical role in emergency shutdown systems, ensuring rapid activation and deactivation of processes to prevent accidents.
-
Process Control: The module is widely used in process control applications for controlling valves, relays, and other on/off operations in industrial processes.
-
Machine Safety: The 3664 is commonly employed in machinery control systems, enabling safe start/stop functions in automation environments.
-
Distributed Control Systems (DCS): The module can be integrated into DCS for monitoring and controlling digital output functions across multiple subsystems in large-scale industrial operations.
Product Advantages
-
High Safety Integrity: The Triconex 3664 is designed to meet the highest safety standards, including SIL 3 certification, ensuring it meets the stringent requirements for critical safety functions.
-
Fast Response Time: With a response time of less than 5 milliseconds per channel, the module offers quick activation and deactivation for real-time control of digital outputs.
-
Compact and Robust Design: The module’s compact size (160 × 100 × 40 mm) and lightweight (1.87 kg) design make it easy to integrate into control cabinets with limited space, while the rugged construction ensures it can withstand harsh environmental conditions.
-
Redundant Configurations: The Triconex 3664 supports redundant configurations, offering enhanced fault tolerance and high availability for critical control functions.
-
Wide Operating Temperature Range: Operating within -20°C to +60°C, the module is suitable for installation in diverse environments, from high-temperature processing plants to freezing cold locations.
-
Flexible Output Capabilities: With 16 channels of digital outputs, the module provides flexibility in configuring and controlling a wide range of industrial devices.
-
Easy Integration: The module is compatible with other Triconex safety and control systems, allowing for seamless integration into larger safety instrumented systems and distributed control systems.
Brand Information
Triconex, is a global leader in providing high-reliability safety systems for critical industries such as oil & gas, chemical, nuclear, and power generation. With over 30 years of experience, Triconex is renowned for delivering state-of-the-art safety instrumented systems (SIS) that meet the most demanding industry safety standards, including SIL 3 and SIL 4.
The Triconex 3664 is a key product within the Triconex safety series, designed to provide reliable digital output capabilities for high-integrity safety and control systems. The series offers modular and scalable solutions, allowing for custom configurations to meet specific operational needs.
Recommended Related Models (Same Series or Function)
| Model | Type | Dimensions (mm) | Weight (kg) | Response Time | Certification |
|---|---|---|---|---|---|
| 3665 | Digital Output Module (16 channels) | 160 × 100 × 40 | 1.87 | < 5 ms | SIL 3, CE, UL |
| 3666 | Digital Output Module (32 channels) | 160 × 100 × 40 | 1.95 | < 5 ms | SIL 3, CE, UL |
| 3601 | Digital Input/Output Module | 160 × 100 × 40 | 1.87 | < 5 ms | SIL 3, CE, UL |
| 3602 | Digital Input Module | 160 × 100 × 40 | 1.87 | < 5 ms | SIL 3, CE, UL |
| 3801 | 16-Channel Digital Output Module | 160 × 100 × 40 | 1.87 | < 5 ms | SIL 3, CE, UL |
Popular Triconex Models
| Model | Type | Dimensions (mm) | Weight (kg) | Key Features |
|---|---|---|---|---|
| 3802 | Analog Input Module | 160 × 100 × 40 | 1.87 | High-Precision Measurement |
| 3601 | Digital Input/Output Module | 160 × 100 × 40 | 1.87 | Flexible Input/Output Control |
| 4301 | Safety Logic Solver | 200 × 200 × 50 | 2.5 | SIL 3, Real-time Control |
| 4601 | I/O Safety Module | 160 × 100 × 40 | 1.87 | Easy Integration with DCS |
| 4901 | Remote I/O Module | 160 × 100 × 40 | 1.87 | Long-distance I/O Connectivity |
Product FAQ (Q&A)
Q1: What is the Triconex 3664 used for?
A1: The Triconex 3664 is a digital output module used in safety-critical and process control applications, providing reliable and fast switching of digital outputs in safety instrumented systems.
Q2: How many output channels does the 3664 have?
A2: The 3664 module provides 16 digital output channels, allowing for control of various industrial devices simultaneously.
Q3: What safety standards does the 3664 meet?
A3: The 3664 is certified to SIL 3, meeting the highest safety standards for use in high-integrity safety systems.
Q4: What is the response time of the Triconex 3664?
A4: The response time of the 3664 module is less than 5 milliseconds per channel, enabling fast and reliable switching.
Q5: What is the power supply requirement for the 3664 module?
A5: The Triconex 3664 operates with a 24 V DC power supply, with an output voltage range from 10 V to 30 V DC.
Q6: What is the operating temperature range for the 3664?
A6: The 3664 operates in temperatures ranging from -20°C to +60°C, making it suitable for a variety of environments.
Q7: How is the Triconex 3664 mounted?
A7: The 3664 is designed for DIN rail mounting, which simplifies installation and integration into control cabinets.
Q8: What industries typically use the Triconex 3664?
A8: The 3664 is used in industries such as oil & gas, chemical processing, nuclear, and power generation, where safety and reliability are paramount.
Q9: Can the 3664 be integrated with other Triconex modules?
A9: Yes, the 3664 can be easily integrated with other Triconex modules, providing a modular and scalable solution for larger safety and control systems.
Q10: Does the 3664 require frequent maintenance?
A10: Thanks to its rugged design and high reliability, the Triconex 3664 requires minimal maintenance, ensuring consistent performance and uptime.
