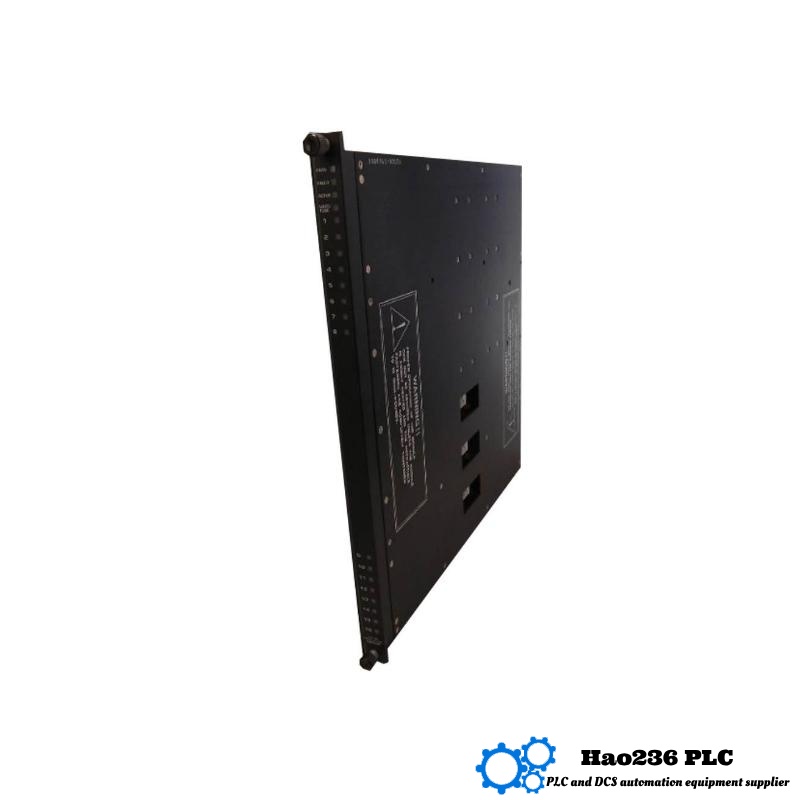

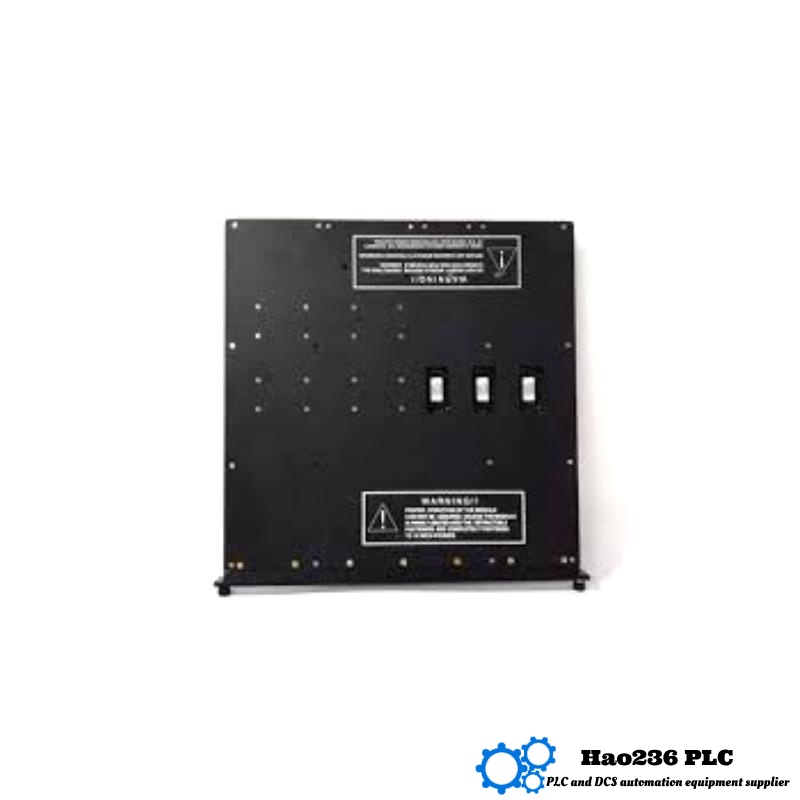

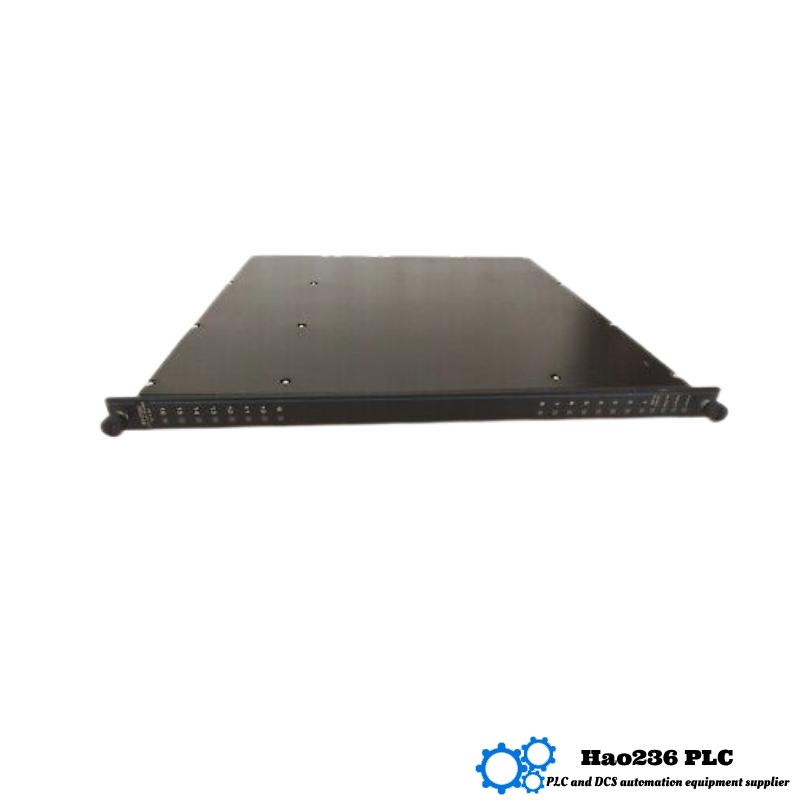

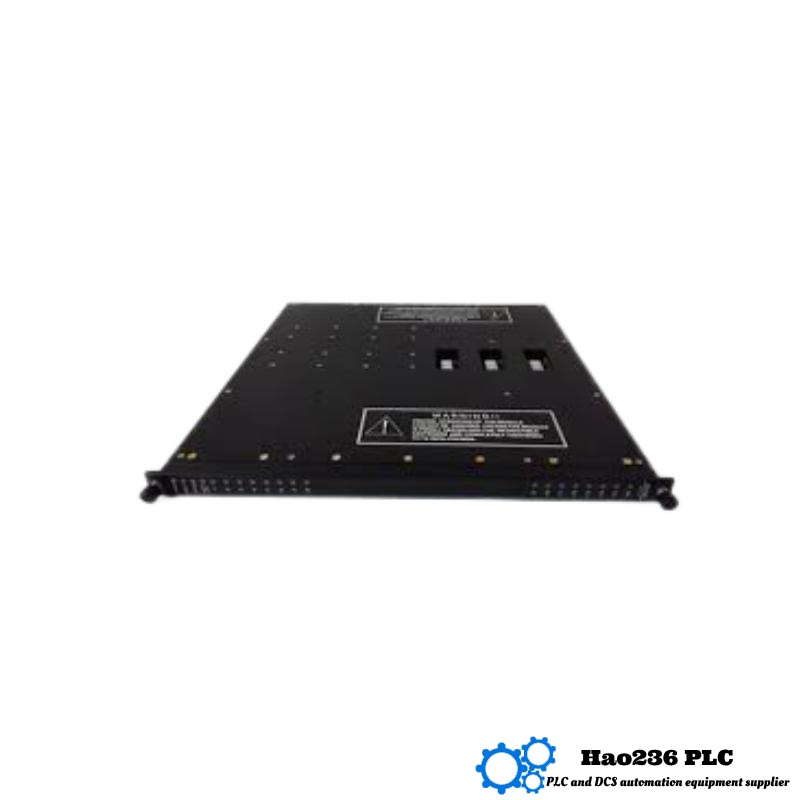

Triconex 3625N Digital Output Module

Product Introduction

The Triconex 3625N is a robust and reliable digital output module designed for critical safety systems in industrial applications. Part of the Triconex safety systems from Emerson, this module is engineered to handle the most demanding environments, ensuring high-performance operation and safety compliance. The 3625N module is integral in controlling digital output signals for safety-related processes, ensuring that processes can be monitored and controlled effectively, with real-time accuracy.

As part of the Triconex Safety System, this module supports the industry’s highest safety standards and is widely used in process industries, oil & gas, chemical plants, power generation, and other sectors where system integrity and safe operational shutdowns are paramount.

Equipped with advanced diagnostic capabilities, the 3625N ensures high operational availability and reliable safety control, providing operators with confidence that their systems will function under extreme conditions. Its compact design allows for easy installation and integration into existing safety and automation systems.

Product Parameters

Product Applications

The Triconex 3625N digital output module is essential in applications where functional safety is critical. Its primary function is to control safety-related output signals that directly impact the safety of automated systems. Key applications include:

1. Oil & Gas Industry: The 3625N is widely used in wellhead control systems, pipeline monitoring, and refinery safety systems. It ensures safe operations by enabling emergency shutdowns, controlling safety-critical equipment, and providing precise output control.

2. Chemical and Petrochemical Plants: The module is used in process control systems to ensure the safe operation of reactors, compressors, and pipelines. It enables timely responses to hazardous conditions, ensuring plant integrity and minimizing the risk of accidents.

3. Power Generation: The 3625N is a vital component of nuclear power stations, thermal power plants, and hydropower stations, where safety control and output signal management are critical. It helps control safety shutdowns, emergency alarms, and fault detection systems.

4. Mining Industry: In mining operations, the module helps control critical equipment such as conveyor belts, ventilation systems, and explosive devices, ensuring safe operations and emergency control in hazardous conditions.

5. Water Treatment Plants: The 3625N module is used in the control of water purification systems, ensuring that water quality is maintained and system failures are minimized, thereby supporting environmental protection and public health.

6. Transportation and Infrastructure: The 3625N also plays a crucial role in railway signaling, elevators, and tunnel safety systems, ensuring that operations are safely controlled and shutdowns are executed in emergencies.

Product Advantages

1. High Safety Integrity (SIL 3): The 3625N meets the SIL 3 safety requirements, making it ideal for safety-critical applications where reliability is paramount.

2. Fast Response Time: With a response time of just 10 ms, the module ensures quick and reliable output control, allowing for rapid system reactions during critical events.

3. High Channel Density: The 3625N offers 16 digital output channels, providing scalable control for larger systems without requiring additional modules, optimizing space and cost.

4. Compact Design: The module’s compact size (240 × 120 × 40 mm) ensures that it can be easily integrated into tight spaces in control panels and distributed systems, making it ideal for space-constrained environments.

5. Built-in Diagnostics: The 3625N module features built-in diagnostics and status LEDs, providing real-time feedback on system health and ensuring that any potential faults are detected and managed quickly.

6. Wide Operating Temperature Range: The operating temperature range of -40°C to +70°C makes the 3625N suitable for use in a wide variety of industrial environments, including harsh climates and high-temperature settings.

7. Robust Protection Features: The module offers short-circuit protection, overload protection, and other safety features, ensuring that it continues to operate safely under abnormal conditions.

8. Compatibility with Triconex Safety System: The 3625N integrates seamlessly with Triconex’s advanced safety systems, ensuring consistent and effective safety control across your entire plant or process.

9. Flexible Mounting: With DIN rail mounting capability, the 3625N module is easy to install and position within your existing infrastructure, offering flexibility in system design.

10. Global Certification: The module is certified to meet IEC 61508, IEC 61511, and other international safety standards, ensuring that it complies with global regulatory requirements.

Brand Overview

Their Triconex safety systems are designed for applications in critical infrastructure such as oil & gas, power generation, and chemical manufacturing. The 3625N is part of their innovative solutions that help companies meet industry standards and ensure operational safety across various hazardous industries.
