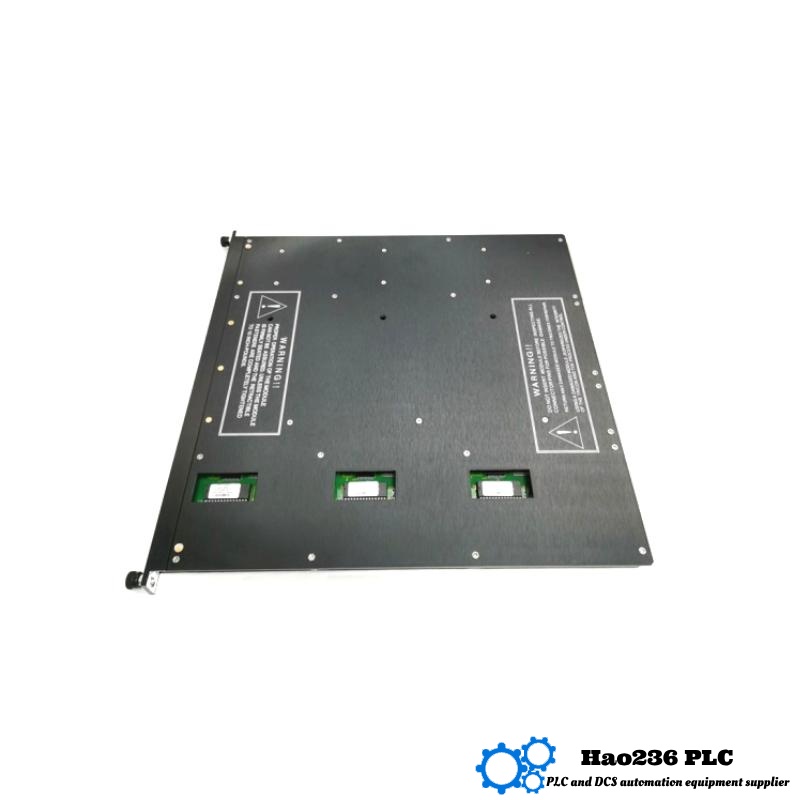

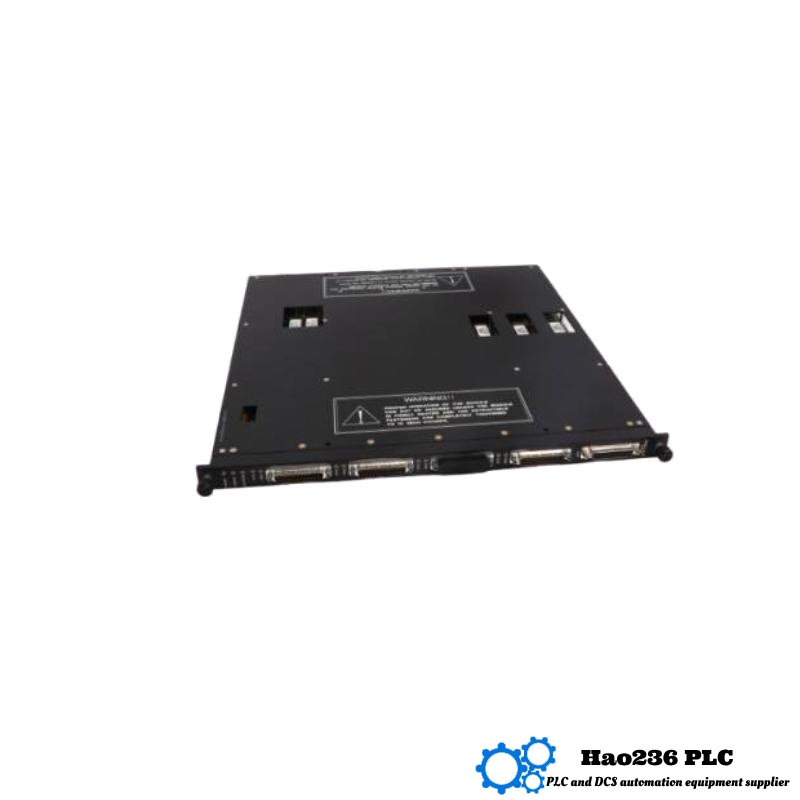

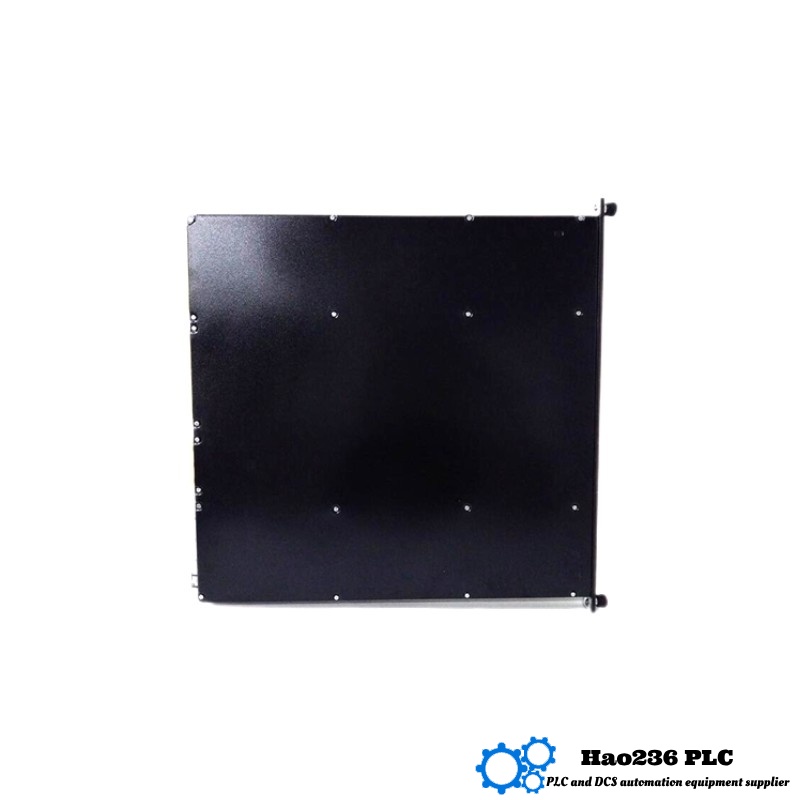

Triconex 3603T Digital Output Module
Product Overview
The Triconex 3603T digital output module is a key component in the Triconex Safety Systems. Designed for critical control applications in industrial automation, this module provides highly reliable output control signals for safety and process monitoring. With its advanced diagnostic capabilities, the 3603T ensures continuous and safe operation in demanding environments such as oil and gas, chemical, and power generation industries.
The 3603T module is known for its high-quality, robust construction and supports a wide range of output types, making it suitable for diverse applications requiring secure and fail-safe digital outputs. It is engineered to meet the highest standards of safety and efficiency in industrial control systems.
Product Parameters
| Parameter | Value |
|---|---|
| Model | 3603T |
| Type | Digital Output Module |
| Dimensions | 190 x 100 x 40 mm |
| Weight | 3.36 kg |
| Output Type | 24 V DC Digital Outputs |
| Number of Channels | 16 Channels |
| Output Current | 500 mA (per channel) |
| Isolation | 1500 V Isolation |
| Operating Temperature | -40°C to +70°C |
| Power Supply | 24 V DC |
| Communication Protocol | Modbus RTU |
| Mounting | DIN Rail |
| Diagnostic Features | Advanced Diagnostic LEDs |
| Protection Rating | IP20 |
Product Introduction
The Triconex 3603T is a highly reliable digital output module that plays a vital role in process automation, particularly where safety and operational reliability are critical. Its 16 independent output channels are capable of delivering 24 V DC digital signals to control a wide variety of field devices such as relays, solenoids, and valves.
With its advanced diagnostics and high isolation capabilities, this module ensures safe operation under extreme conditions. The module’s compact size and DIN rail mounting options provide flexibility for installation in tight spaces, which makes it an ideal choice for industrial control systems.
Product Advantages
-
High Channel Density: 16 independent channels allow for efficient use of panel space.
-
Advanced Diagnostics: LED indicators provide real-time status for each output, enhancing troubleshooting capabilities.
-
Robust Protection: 1500 V isolation ensures safe operation in harsh environments.
-
Wide Operating Temperature Range: Suitable for both extreme cold and high-temperature conditions, ranging from -40°C to +70°C.
-
Reliability and Safety: Designed to meet the highest safety standards for critical applications, making it ideal for safety systems.
-
Easy Integration: Compatible with Modbus RTU communication for seamless integration into existing control systems.
-
Compact Design: Its 190 x 100 x 40 mm size makes it easy to install in tight spaces.
Applications
-
Oil & Gas: Used to control and monitor critical field devices, such as valves and relays, in hazardous locations.
-
Chemical & Petrochemical: Controls digital outputs for process monitoring and safety functions, ensuring plant safety and efficiency.
-
Power Generation: Used to manage and monitor critical equipment such as turbines and generators.
-
Water Treatment: Controls the operation of pumps, valves, and other digital field devices in water treatment facilities.
-
Manufacturing Automation: Essential for controlling automated systems, providing safe and efficient operation for industrial processes.
Brand: Triconex
Triconex is a world leader in safety and control systems, providing highly reliable, fail-safe solutions for industrial automation. Their products are renowned for their robustness, accuracy, and reliability in mission-critical applications. The Triconex Safety Systems are widely trusted in industries such as oil and gas, petrochemical, power generation, and many others, where uptime and safety are paramount.
The Triconex 3603T module is a testament to the brand’s commitment to providing cutting-edge safety and control solutions. Triconex continues to lead the way in safety system technologies, ensuring that industries can meet their operational goals without compromising safety.
Related Models
| Model | Number of Channels | Output Type | Operating Temperature | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 3601T | 8 | 24 V DC Digital Output | -40°C to +70°C | 190 x 100 x 40 | 3.0 |
| 3602T | 16 | 24 V DC Digital Output | -40°C to +70°C | 190 x 100 x 40 | 3.3 |
| 3604T | 8 | 24 V DC Digital Output | -40°C to +70°C | 190 x 100 x 40 | 3.4 |
| 3605T | 16 | 24 V DC Digital Output | -40°C to +70°C | 190 x 100 x 40 | 3.5 |
| 3606T | 8 | 24 V DC Digital Output | -40°C to +70°C | 190 x 100 x 40 | 3.3 |
Popular Triconex Models
| Model | Type | Number of Channels | Output Type | Operating Temperature | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 3601T | Digital Output Module | 8 | 24 V DC Digital Output | -40°C to +70°C | 190 x 100 x 40 | 3.0 |
| 3602T | Digital Output Module | 16 | 24 V DC Digital Output | -40°C to +70°C | 190 x 100 x 40 | 3.3 |
| 3611T | Digital Output Module | 16 | 24 V DC Digital Output | -40°C to +70°C | 190 x 100 x 40 | 3.2 |
| 3604T | Digital Output Module | 8 | 24 V DC Digital Output | -40°C to +70°C | 190 x 100 x 40 | 3.4 |
| 3612T | Digital Output Module | 8 | 24 V DC Digital Output | -40°C to +70°C | 190 x 100 x 40 | 3.3 |
FAQ
-
Q: What is the output type of the Triconex 3603T?
A: The module provides 24 V DC digital outputs. -
Q: How many channels does the 3603T support?
A: The module supports 16 output channels. -
Q: What is the temperature range for the Triconex 3603T?
A: It operates in the temperature range of -40°C to +70°C. -
Q: What communication protocol does the 3603T use?
A: It uses the Modbus RTU communication protocol. -
Q: What is the power supply requirement for the 3603T?
A: The module requires a 24 V DC power supply. -
Q: Can the 3603T be used in hazardous environments?
A: Yes, the module is designed for harsh industrial conditions. -
Q: How does the 3603T handle diagnostics?
A: It features advanced diagnostic LEDs for real-time monitoring. -
Q: What is the protection rating for the 3603T?
A: The module has an IP20 protection rating. -
Q: What is the weight of the Triconex 3603T?
A: The module weighs 3.36 kg. -
Q: Is the 3603T suitable for process control applications?
A: Yes, it is ideal for critical process control and safety applications.
