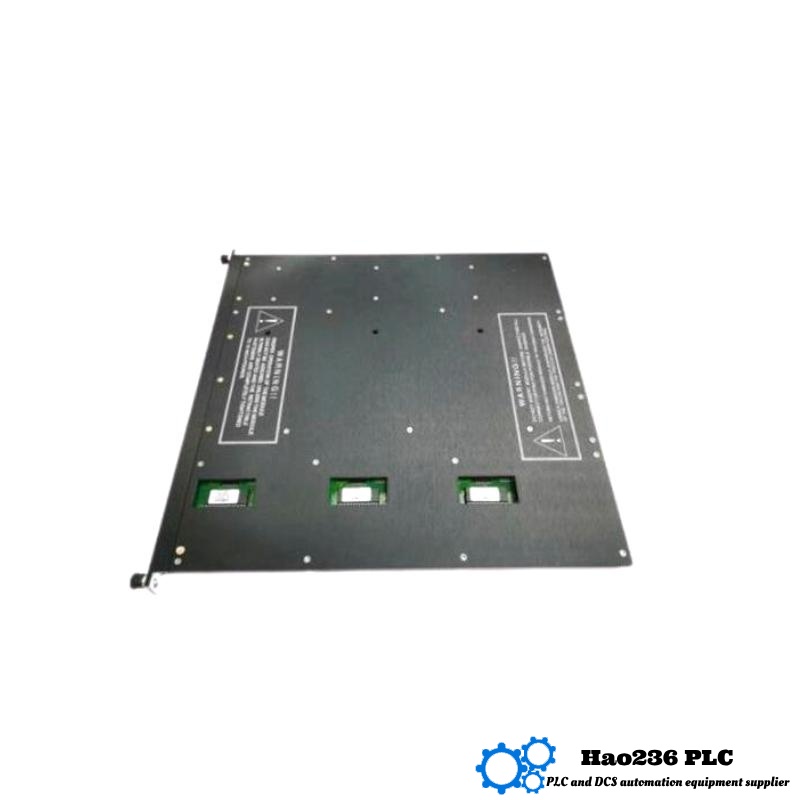

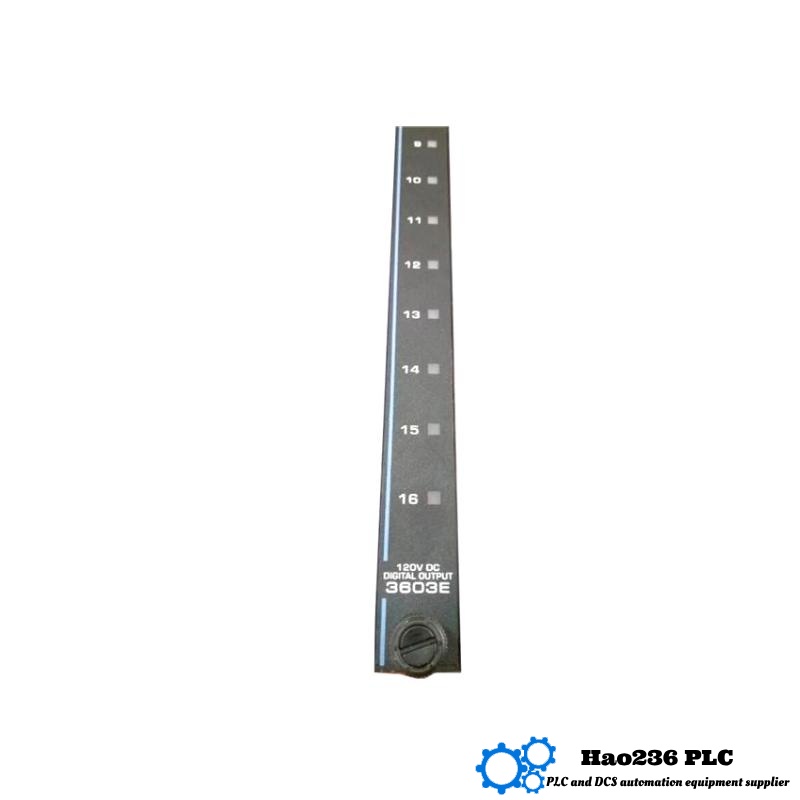

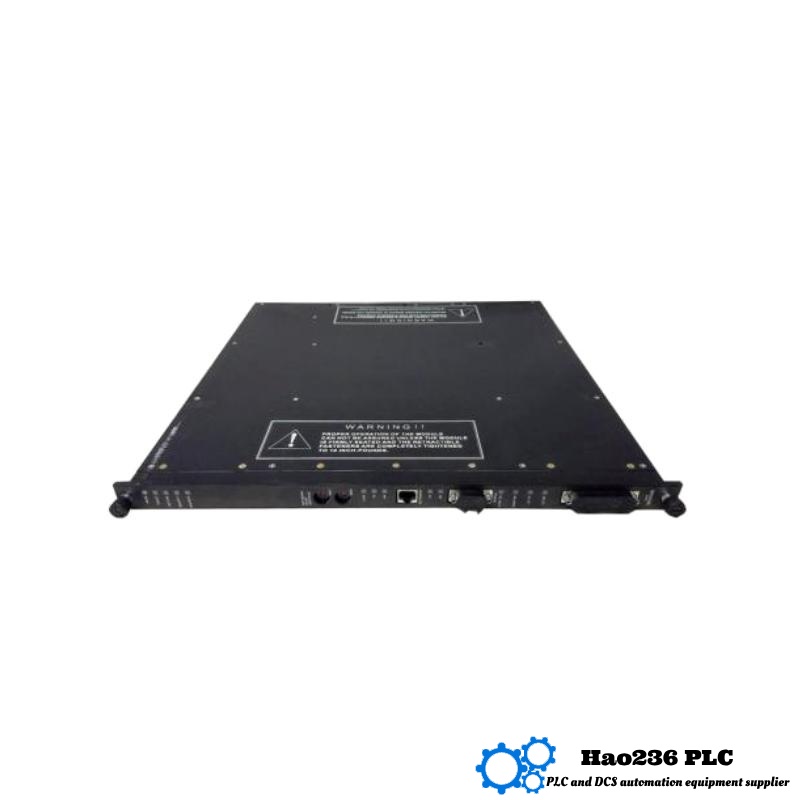

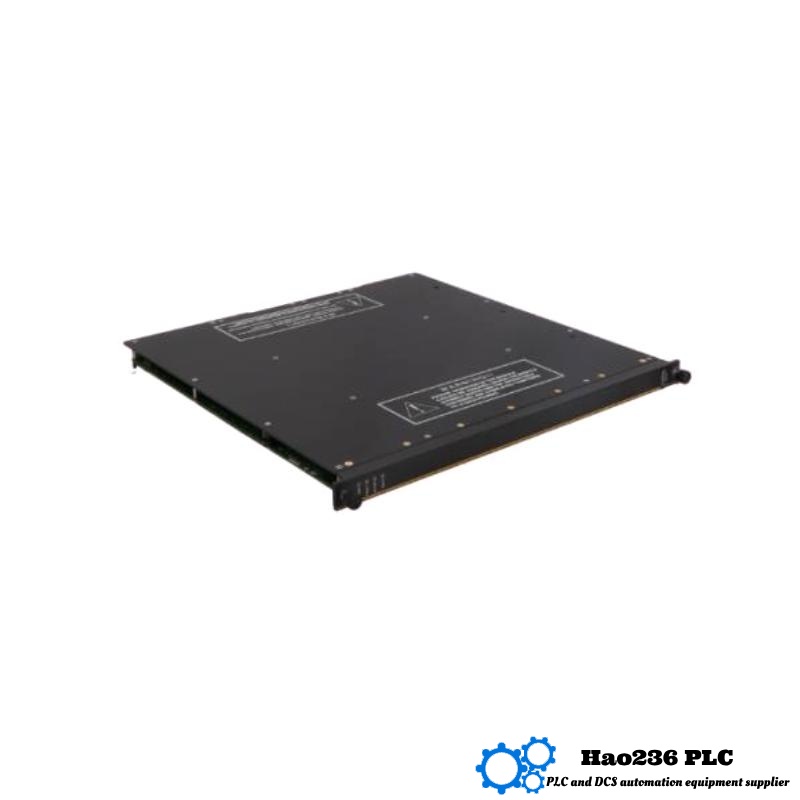

Triconex 3603E Digital Output Module
Product Introduction
The Triconex 3603E is a high-reliability digital output module designed to be part of the Triconex safety and control systems. Engineered for mission-critical applications, this module delivers precise and fail-safe digital output signals that command field devices such as actuators, valves, and relays. The 3603E is built to meet the stringent requirements of industries where safety and operational integrity are paramount, such as oil and gas, power generation, and petrochemical processing.
With a robust design housed in a compact form factor measuring 190 x 100 x 40 mm and weighing 1.45 kg, the 3603E integrates seamlessly into the Triconex Tricon control system rack. The module supports multiple discrete outputs and incorporates self-diagnostics and redundancy features that contribute to the overall system’s safety certification and reliability.
This digital output module is ideal for applications requiring fast, accurate switching of digital signals under fail-safe conditions, making it an essential component for protecting personnel, equipment, and the environment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 3603E |
| Dimensions | 190 x 100 x 40 mm |
| Weight | 1.45 kg |
| Output Type | Discrete Digital Outputs |
| Number of Outputs | 8 |
| Output Voltage | 24 V DC |
| Output Current | Up to 0.5 A per channel |
| Output Type | Relay/Transistor (depending on version) |
| Isolation | Optical isolation for each output channel |
| Operating Temperature | -40 °C to +70 °C |
| Humidity | 5% to 95% non-condensing |
| Communication Interface | Triconex proprietary backplane communication |
| Certifications | SIL 3, IEC 61508, ISO 13849 |
Product Applications
The Triconex 3603E digital output module is widely used in industries where safety and precise control of digital outputs are essential:
-
Oil & Gas: Controls valve actuators, shutdown systems, and emergency trip signals to prevent hazardous situations.
-
Power Generation: Operates protective relays and circuit breakers, ensuring quick response to abnormal system conditions.
-
Petrochemical: Manages critical process control outputs that require fail-safe operation for chemical reactor safety.
-
Nuclear Power Plants: Facilitates redundant digital output signaling in highly regulated safety systems.
-
Industrial Automation: Used in automated safety interlocks, ensuring compliance with functional safety standards.
Product Advantages
-
Safety Certified: Designed and certified to meet SIL 3 requirements under IEC 61508 and ISO 13849 standards, guaranteeing maximum operational safety.
-
High Reliability: Redundant internal diagnostics and fault-tolerant design minimize downtime and false trips.
-
Robust Construction: Built to withstand harsh industrial environments with wide temperature and humidity tolerances.
-
Easy Integration: Fits directly into Triconex Tricon system racks for plug-and-play deployment.
-
Versatile Output: Supports multiple discrete outputs, configurable for relay or transistor operation to meet diverse control requirements.
-
Isolation: Optical isolation per output channel ensures noise immunity and protects system integrity.
Brand
Triconex, is globally recognized for its advanced safety and critical control systems designed for industries demanding the highest levels of reliability and process safety.
Recommended Related Models (Triconex Digital Output Modules)
| Model Number | Module Type | Number of Outputs | Output Type | Dimensions (mm) | Weight (kg) | Notes |
|---|---|---|---|---|---|---|
| 3601E | Digital Output Module | 4 | Relay | 190 x 100 x 40 | 1.2 | Smaller channel count, relay outputs |
| 3602E | Digital Output Module | 8 | Transistor | 190 x 100 x 40 | 1.3 | Transistor output variant |
| 3604E | Digital Output Module | 16 | Relay | 190 x 100 x 70 | 2.1 | Higher channel count with relay outputs |
| 3605E | Digital Output Module | 8 | Solid State Relay | 190 x 100 x 40 | 1.5 | Solid state relay outputs for faster switching |
| 3606E | Digital Output Module | 8 | Relay | 190 x 100 x 40 | 1.45 | Enhanced diagnostics and isolation |
Recommended Popular Triconex Models
| Model Number | Description | Primary Use | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| 3603E | 8-Channel Digital Output Module | Discrete digital outputs | 190 x 100 x 40 | 1.45 |
| 3710 | CPU Module | Core control processing unit | 190 x 130 x 50 | 1.8 |
| 3720 | Power Supply Module | Provides power to the system | 190 x 100 x 40 | 1.3 |
| 3740 | Communication Module | Network interface module | 190 x 130 x 40 | 1.6 |
| 3607 | Analog Input Module | High-accuracy analog inputs | 190 x 100 x 40 | 1.5 |
Frequently Asked Questions (FAQ)
Q1: How many digital outputs does the 3603E support?
A1: The module supports 8 discrete digital output channels.
Q2: What is the maximum output current per channel?
A2: Each output channel can handle up to 0.5 A.
Q3: What type of output does the 3603E provide?
A3: It provides relay or transistor outputs depending on the module variant.
Q4: What safety certifications does the module have?
A4: The 3603E is certified for SIL 3 under IEC 61508 and complies with ISO 13849.
Q5: What are the physical dimensions of the 3603E?
A5: The module measures 190 mm (length) x 100 mm (width) x 40 mm (height).
Q6: What is the operating temperature range?
A6: It operates reliably from -40 °C to +70 °C.
Q7: How does the module ensure signal integrity?
A7: It uses optical isolation per output channel to prevent noise interference.
Q8: Can the 3603E be used in redundant safety systems?
A8: Yes, it is designed for fail-safe operation and is widely used in redundant safety architectures.
Q9: How is the module installed?
A9: It is mounted directly into the Triconex Tricon rack via a backplane connector.
Q10: What maintenance is required for the 3603E?
A10: Minimal maintenance is needed; periodic inspection for physical damage and connector condition is recommended.
