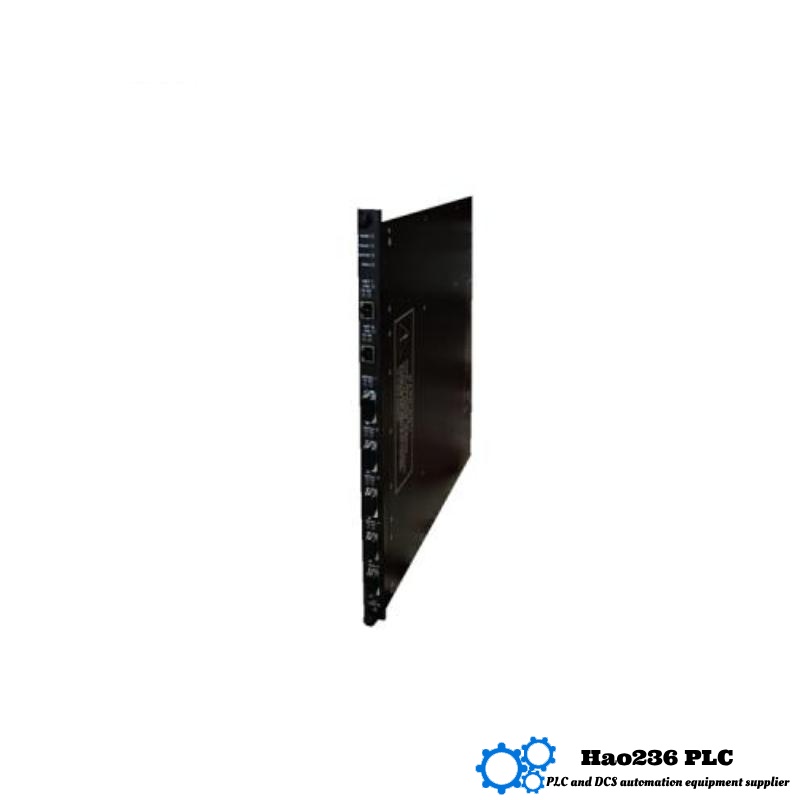

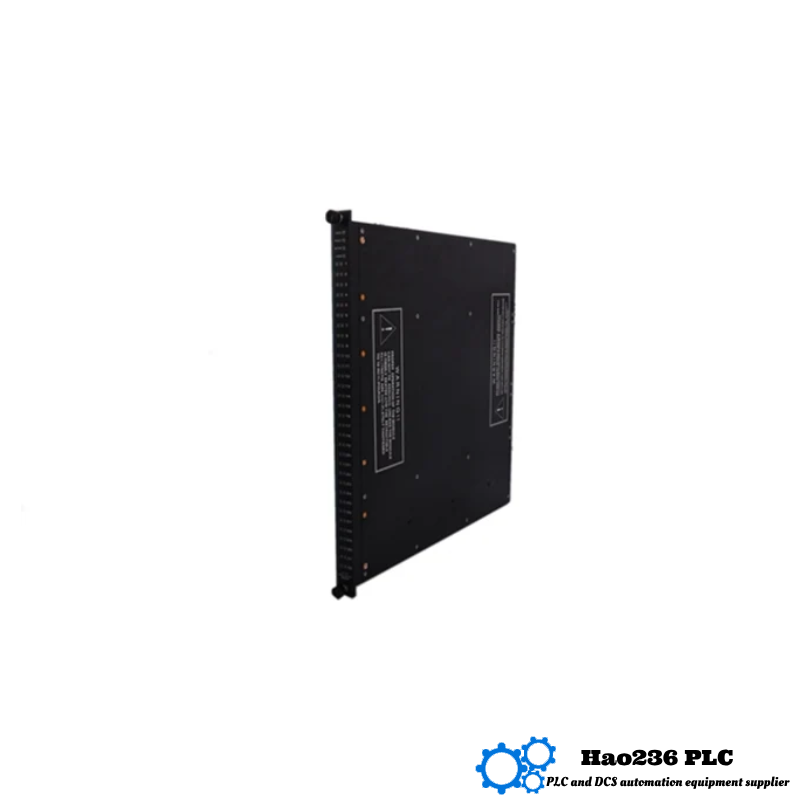

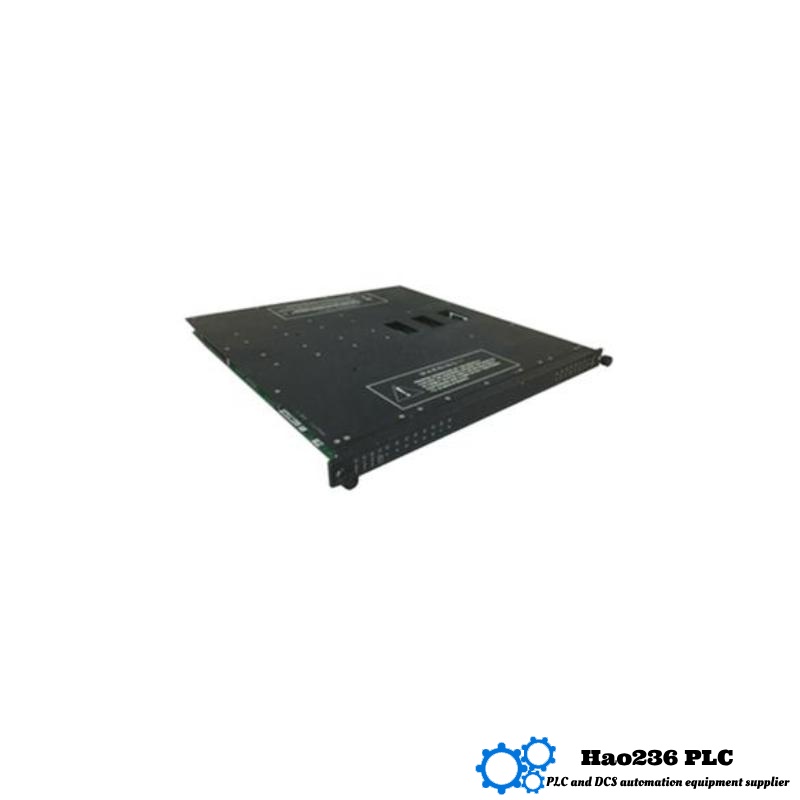

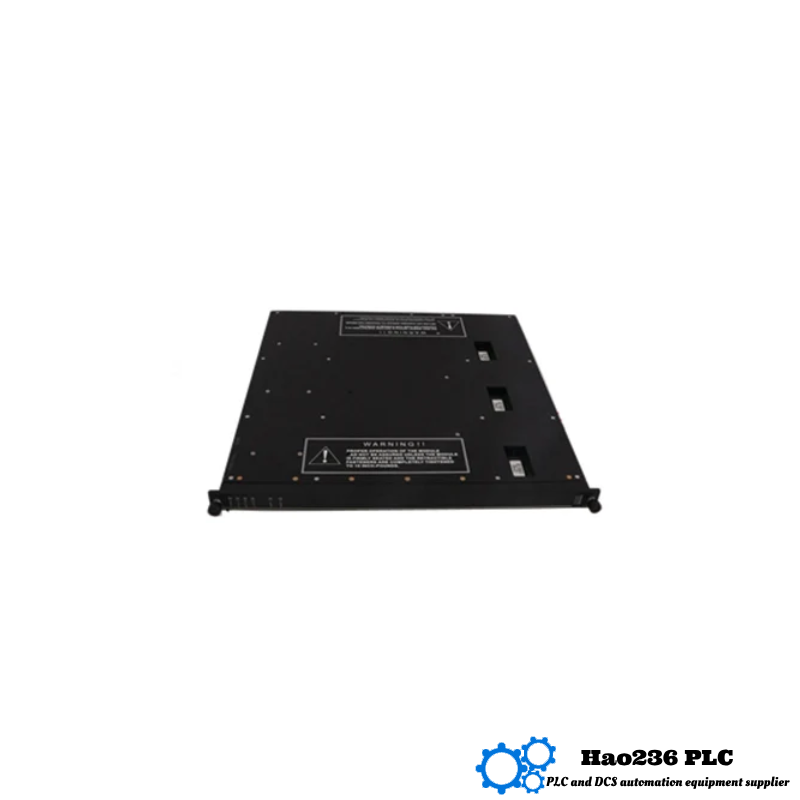

Triconex 3601 Digital Output Module
Product Introduction
The Triconex 3601 is a digital output module designed for use in Triconex safety systems, specifically for applications where high reliability, safety, and robustness are required. As part of the Tricon Safety Systems, the 3601 module is widely used in safety-critical industries like oil and gas, chemical, energy, and nuclear power plants.
The 3601 module interfaces with field devices and controls outputs to execute essential safety actions, including emergency shutdown, control valve operations, and system isolation. It is designed to work seamlessly with Triconex’s Tricon® safety controllers and supports both single and dual output operations for fail-safe system design.
This module is engineered for reliability, featuring high-quality construction and fail-safe architecture to meet stringent industrial safety standards. The Triconex 3601 ensures that critical systems remain operational, even in the event of component failures, offering unparalleled performance and fault tolerance.
With high-density output channels, wide operating temperature range, and redundant architecture, the 3601 module delivers highly dependable performance, making it a preferred choice in safety and control applications.
Applications
The Triconex 3601 Digital Output Module is used in applications that require high reliability and safety integrity, such as:
-
Emergency Shutdown Systems (ESD): Ensuring safe shutdown of equipment in the event of dangerous conditions or failures.
-
Fire and Gas Detection Systems: Controlling safety devices such as fire alarms, gas detectors, and suppression systems.
-
Process Control: Managing industrial processes such as chemical reactors, distillation columns, and refinery equipment.
-
Critical Control Functions: Control of safety valves, pumps, and motors in safety-critical environments.
-
Industrial Automation: Implementing control actions like ON/OFF switching, solenoid control, and valve operations in various industrial sectors.
Product Advantages
The Triconex 3601 module offers several key advantages for industrial applications:
-
High Reliability: The 3601 is designed for high reliability, ensuring that digital outputs perform as expected in critical conditions, even during system faults or component failures.
-
SIL 3 Certified: The 3601 meets SIL 3 (Safety Integrity Level 3) standards, ensuring that it is suitable for high-risk, safety-critical applications.
-
Redundant Outputs: The module supports dual output configuration, providing enhanced fault tolerance and fail-safe capabilities.
-
Wide Temperature Range: The 3601 operates in a wide temperature range from -40°C to +70°C, ensuring reliable performance in diverse environments.
-
Compact Design: The module’s compact size and modular configuration make it easy to install in space-constrained environments.
-
Easy Integration: Seamlessly integrates with the Triconex Tricon® safety system, enabling smooth communication and control across the safety infrastructure.
-
Maintenance-Friendly: Hot-swappable capabilities allow for maintenance without interrupting system operations, reducing downtime and improving uptime.
Brand
-
Brand: Triconex
Product Specifications
| Parameter | Value |
|---|---|
| Product Model | Triconex 3601 Digital Output Module |
| Type | Digital Output Module |
| Dimensions (L x W x H) | 140 x 140 x 32 mm |
| Weight | 3.56 kg |
| Number of Output Channels | 16 Digital Outputs |
| Output Voltage | 24 V DC (nominal) |
| Current per Output | 0.5 A |
| Temperature Range | -40°C to +70°C |
| Power Consumption | 5 W |
| Mounting Type | DIN Rail Mounting |
| Protection Class | IP20 |
| Safety Integrity Level | SIL 3 |
| Communication Interface | Triconex® Communication Bus (TBU) |
| Status Indication | LED Indicators for each output |
| Redundancy | Dual Output Configuration (optional) |
Recommended Models from the Same Series
| Model | Type | Number of Outputs | Safety Integrity Level | Weight |
|---|---|---|---|---|
| Triconex 3602 | Digital Output Module | 8 Digital Outputs | SIL 3 | 3.3 kg |
| Triconex 3603 | Digital Output Module | 16 Digital Outputs | SIL 3 | 3.6 kg |
| Triconex 3605 | Digital Output Module | 8 Analog Outputs | SIL 3 | 3.2 kg |
| Triconex 3607 | Digital Output Module | 4 Digital Outputs | SIL 3 | 3.0 kg |
| Triconex 3608 | Digital Output Module | 8 Digital Outputs | SIL 3 | 3.4 kg |
Top 5 Popular Triconex Products
| Model | Type | Number of Outputs | Safety Integrity Level | Weight |
|---|---|---|---|---|
| Triconex 3801 | Analog Input Module | 16 Analog Inputs | SIL 3 | 3.8 kg |
| Triconex 3802 | Analog Input Module | 8 Analog Inputs | SIL 3 | 3.4 kg |
| Triconex 3601 | Digital Output Module | 16 Digital Outputs | SIL 3 | 3.56 kg |
| Triconex 3600 | Digital Input Module | 16 Digital Inputs | SIL 3 | 3.5 kg |
| Triconex 3803 | Analog Output Module | 8 Analog Outputs | SIL 3 | 3.3 kg |
Frequently Asked Questions (FAQs)
-
Q: What is the main function of the Triconex 3601?
A: The Triconex 3601 is a digital output module used in Triconex safety systems to control various output devices like valves, solenoids, and emergency shutdown systems. -
Q: How many output channels does the Triconex 3601 have?
A: The Triconex 3601 has 16 digital output channels. -
Q: What safety standard does the Triconex 3601 comply with?
A: The Triconex 3601 complies with SIL 3 (Safety Integrity Level 3) standards, ensuring high reliability and safety in critical applications. -
Q: What is the power consumption of the Triconex 3601?
A: The Triconex 3601 has a power consumption of 5 W. -
Q: What temperature range can the Triconex 3601 operate in?
A: The Triconex 3601 operates in a temperature range from -40°C to +70°C. -
Q: Can the Triconex 3601 be integrated into existing Triconex systems?
A: Yes, the Triconex 3601 is designed for seamless integration with the Triconex Tricon® safety controller via Triconex® communication bus (TBU). -
Q: What is the weight of the Triconex 3601 module?
A: The Triconex 3601 weighs 3.56 kg. -
Q: Does the Triconex 3601 support redundant outputs?
A: Yes, the Triconex 3601 supports dual output configuration, providing increased fault tolerance and redundancy. -
Q: How is the status of the outputs indicated on the Triconex 3601?
A: The Triconex 3601 has LED indicators that show the status of each output channel. -
Q: What mounting option is available for the Triconex 3601?
A: The Triconex 3601 is designed for DIN rail mounting, making it easy to install in industrial environments.
