Product Description

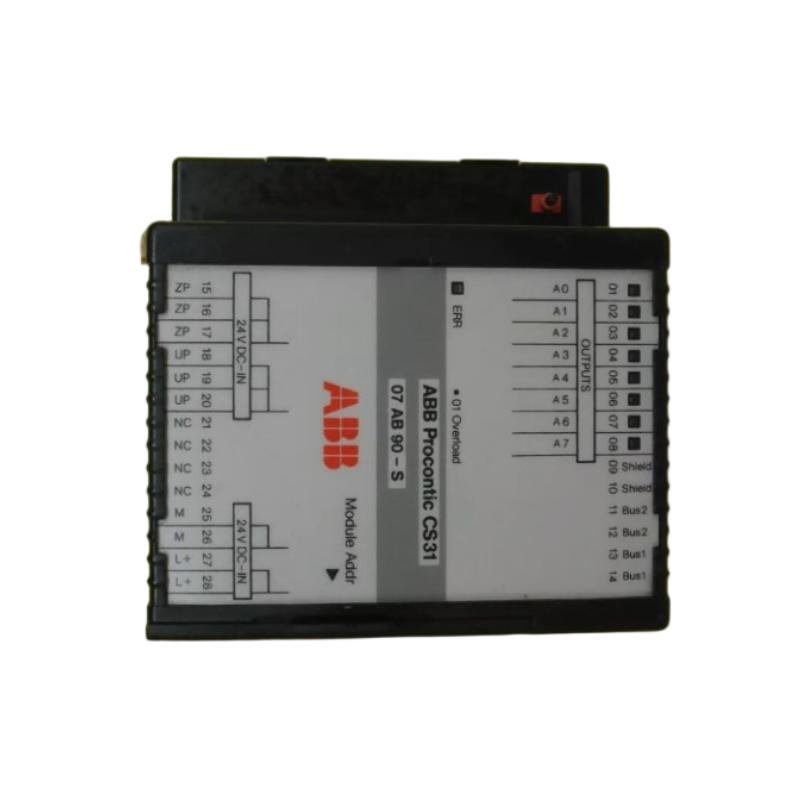

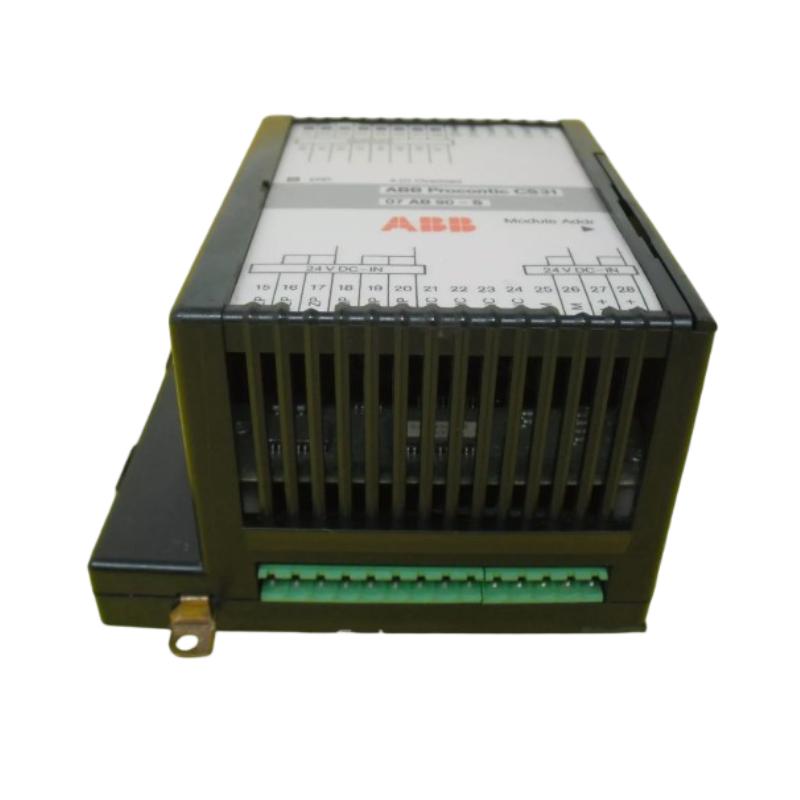

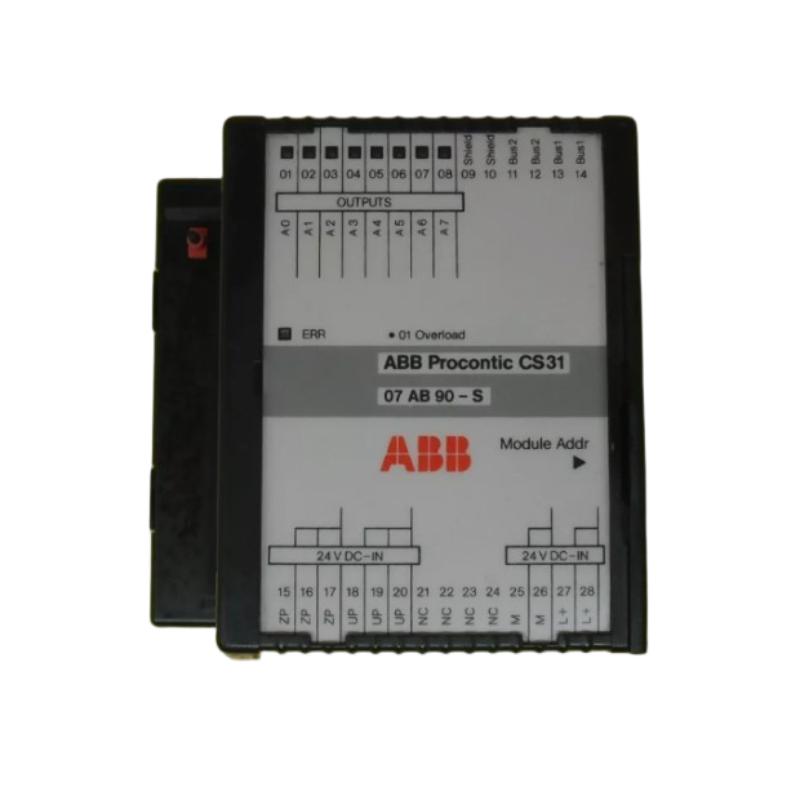

The ABB 07AB90-SD, part number GJR5250800R0101, is an industrial digital output module engineered for reliable actuator control within PLC automation systems.
Produced by ABB, the SD variant is designed for stable signal transmission, enhanced operational monitoring, and consistent switching performance in demanding industrial environments.
This module forms a critical link between control logic processing and field-level execution devices.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 07AB90-SD |
| Part Number | GJR5250800R0101 |
| Manufacturer | ABB |
| Product Type | Digital Output Module |
| Dimensions | 200 × 140 × 40 mm (H × W × D) |
| Weight | 1.2 kg |
| Installation Type | DIN rail / Control cabinet mounting |
| Output Technology | Digital switching outputs |
| Variant Type | SD (with extended diagnostic capability) |
| Protection Class | IP20 |
| Application Environment | Industrial automation systems |
| Series Compatibility | ABB modular PLC platforms |
Operational Function
The 07AB90-SD module transmits digital control commands from the PLC CPU to external devices. It enables precise switching operations required for automated production and process control systems.
Typical output targets include:
-
Solenoid valves
-
Control relays
-
Signal indicators
-
Contactor assemblies
-
Alarm systems
-
Industrial actuators
The SD variant is commonly selected when additional monitoring or diagnostic functionality is required in system architecture.
Industrial Use Cases
This module is frequently installed in:
-
Continuous production facilities
-
Automated packaging systems
-
Heavy industrial machinery
-
Energy management panels
-
Process automation installations
-
Infrastructure control applications
Its 200 × 140 × 40 mm housing provides mechanical robustness and secure cabinet integration.
Technical Strengths
-
High switching reliability under continuous load
-
Enhanced diagnostic compatibility (SD version)
-
Industrial-grade insulation and isolation
-
Stable output behavior in noisy environments
-
Designed for long service life
-
Fully compatible with ABB PLC expansion architecture
The SD model is particularly suitable for systems requiring improved monitoring at the output stage.
System Integration Architecture
The 07AB90-SD integrates with:
-
ABB PLC CPU units
-
Digital input modules
-
Analog I/O modules
-
ABB system power supplies
-
Communication interface modules
Together, these components create a scalable automation platform capable of supporting complex industrial operations.
Recommended Companion Modules
| Model | Description | Primary Application |
|---|---|---|
| 07DI92 | Digital Input Module | Field signal detection |
| 07EA63 | Analog Input Module | Process measurement |
| 07KR51 | PLC CPU Unit | Central processing control |
| 07LE90 | Power Supply Module | System voltage regulation |
| 07AB90-S | Standard Output Module | Basic switching control |
Final Summary
The ABB 07AB90-SD (GJR5250800R0101) digital output module delivers stable, high-reliability switching performance for PLC automation systems. With industrial dimensions of 200 × 140 × 40 mm and a weight of 1.2 kg, it is engineered for durable cabinet installation and consistent operational output.
For automation professionals requiring dependable digital control with enhanced system diagnostics, the 07AB90-SD remains a practical and scalable solution.
