Product Overview

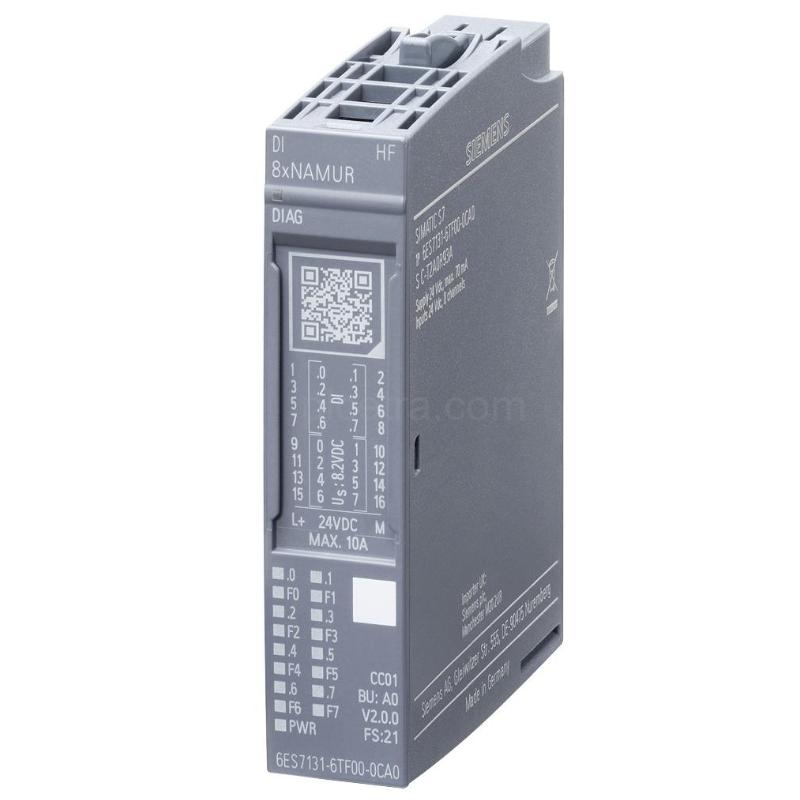

The Siemens 6ES7131-6TF00-0CA0 is a SIMATIC ET 200SP digital input module designated DI 8xNAMUR HF. It provides eight digital input channels for acquiring signals from NAMUR sensors and compatible switching contacts. The module is used in distributed automation systems where the controller needs to monitor discrete field conditions, particularly in installations that use NAMUR-based sensing arrangements.
NAMUR sensors are commonly used in industrial environments where equipment status must be detected through defined electrical signal characteristics. Typical applications include proximity detection, position monitoring, and the acquisition of switching states from compatible field devices. The module evaluates these signals and transfers the resulting information to the PLC through the ET 200SP station.
Unlike a conventional 24 V DC digital input module, the 6ES7131-6TF00-0CA0 uses an 8.2 V DC NAMUR input circuit. It supports compatible NAMUR sensors and changeover contacts, with configurable input processing and channel-level diagnostics. This makes it suitable for applications requiring more than basic on/off signal acquisition, including monitoring contact transitions and identifying certain wiring faults.
The module also supports counter operation, allowing it to handle compatible pulse signals in addition to standard digital input states. Its eight channels, diagnostic functions, and integration with the ET 200SP system make it useful in machine monitoring and industrial process applications. Correct selection still depends on the sensor type, input circuit configuration, required counting behavior, and the BaseUnit used in the station.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model / Article Number | 6ES7131-6TF00-0CA0 |
| Product Family | SIMATIC ET 200SP |
| Product Type | Digital Input Module |
| Module Designation | DI 8xNAMUR HF |
| Number of Digital Inputs | 8 |
| Input Type | NAMUR digital input |
| Rated Input Voltage | 8.2 V DC |
| Compatible Field Devices | NAMUR sensors and compatible switching contacts |
| BaseUnit Compatibility | BU type A0 |
| Color Code | CC01 |
| Counter Function | Supported |
| Maximum Counting Frequency | Up to 10 kHz, depending on the configured function |
| Input Diagnostics | Channel-level diagnostics supported |
| Wire-Break Detection | Supported |
| Short-Circuit Detection | Supported |
| Supply-Voltage Monitoring | Supported |
| Encoder Supply | 8.2 V DC NAMUR supply |
| Maximum Current Consumption | 70 mA |
| Maximum Encoder Supply Current | 8 mA per channel |
| Maximum Encoder Supply Current per Module | 64 mA |
| Configuration Software | STEP 7 / TIA Portal, or compatible GSD-based configuration |
| Dimensions | 15 × 73 × 58 mm |
| Weight | 0.041 kg |
Product Features
- Eight NAMUR input channels: Acquires discrete signals from compatible NAMUR sensors and switching contacts.
- 8.2 V DC input circuit: Supports the specified NAMUR sensing arrangement rather than conventional 24 V DC sensor wiring.
- High-feature functionality: Provides configurable signal processing and channel-level diagnostic capabilities.
- Counter operation: Supports counting applications when configured for the module’s supported operating mode.
- Wire-break monitoring: Helps identify certain open-circuit conditions in compatible sensor and contact circuits.
- Short-circuit diagnostics: Supports detection of specified short-circuit conditions in the input arrangement.
- Configurable signal evaluation: Allows input behavior to be adapted to supported switching and pulse-monitoring requirements.
- ET 200SP integration: Connects field-level signals to compatible SIMATIC automation systems through the station backplane.
Working Principle
The 6ES7131-6TF00-0CA0 evaluates the electrical current associated with a connected NAMUR sensor or compatible switching contact. Rather than treating the input as a conventional 24 V DC signal, the module uses the specified NAMUR circuit characteristics to distinguish between defined switching states.
A typical signal path follows this arrangement:
NAMUR Sensor or Switching Contact → Digital Input Channel → ET 200SP Backplane Bus → Interface Module → PLC
For example, a NAMUR proximity sensor can change its current consumption when a target enters its detection range. The input channel evaluates that change and reports the resulting state to the controller. The PLC can then use the information to confirm a component position, advance a machine sequence, or monitor a process condition.
The module supports configurable processing functions, including signal-edge evaluation and counter operation. In a counting application, suitable pulse signals can be evaluated according to the selected configuration. The maximum achievable counting rate depends on the operating mode and the signal characteristics, so the complete application requirements should be checked before commissioning.
Diagnostic functions help identify certain electrical faults, including supported wire-break and short-circuit conditions. The module can also monitor its supply voltage. These functions provide useful troubleshooting information, but they do not eliminate the need to inspect the sensor, field wiring, and terminal connections when an input behaves unexpectedly.
The 6ES7131-6TF00-0CA0 is a signal acquisition module, not an independent safety controller. Any safety-related response must be implemented using equipment and architectures specifically approved for the required safety function.

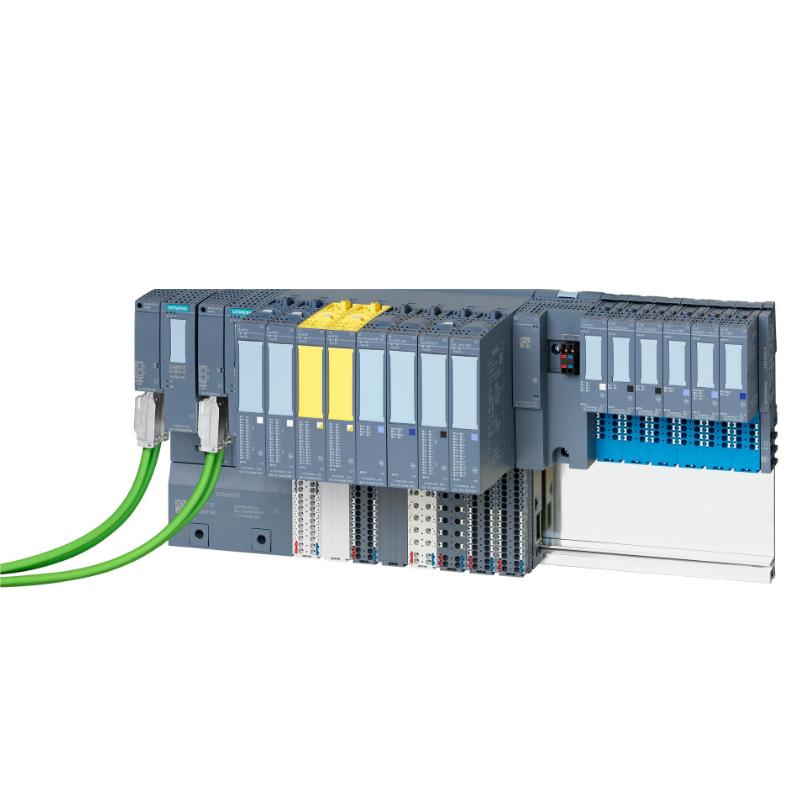

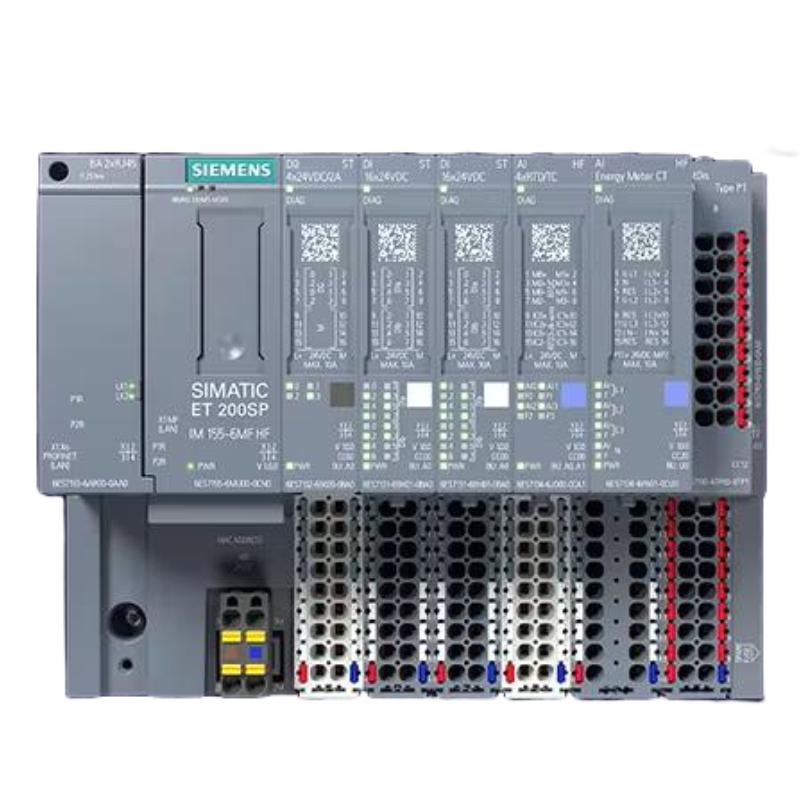

Role in the SIMATIC ET 200SP Control Architecture
The 6ES7131-6TF00-0CA0 occupies the field signal acquisition layer of a distributed automation system. It collects signals from compatible NAMUR devices and passes their states or supported counting information to the controller for processing.
NAMUR Field Devices → 6ES7131-6TF00-0CA0 → ET 200SP Backplane → Interface Module → PLC
| System Component | Function |
|---|---|
| NAMUR Sensors | Detect targets or changes in the monitored condition |
| Compatible Switching Contacts | Provide discrete contact states for input evaluation |
| 6ES7131-6TF00-0CA0 | Acquires eight NAMUR input signals and supports configured counting functions |
| ET 200SP BaseUnit, Type A0 | Provides the required mounting and electrical connection arrangement |
| ET 200SP Interface Module | Connects the distributed I/O station to the control network |
| SIMATIC PLC | Processes input states and counting information |
| STEP 7 / TIA Portal | Supports hardware configuration, parameterization, and diagnostics |
| Field Wiring | Connects the sensors and contacts to the input channels |
| Machine or Process Equipment | Generates the operating conditions monitored by the sensors |
Industrial Applications
| Application | Typical Use |
|---|---|
| Industrial Proximity Detection | Monitoring targets with compatible NAMUR sensors |
| Machine Position Monitoring | Acquiring discrete position states from sensing devices |
| Process Equipment | Collecting switching information from compatible field instruments |
| Material Handling | Detecting the position or passage of machine components |
| Production Lines | Monitoring discrete states at individual processing stations |
| Pulse Counting | Counting compatible pulses when the module is configured for counter operation |
| Equipment Status Monitoring | Acquiring switching states from compatible contact circuits |
| Packaging Machinery | Monitoring position and movement through suitable NAMUR sensing arrangements |
| Industrial Automation Panels | Integrating NAMUR field signals into distributed I/O stations |
| Condition Monitoring | Collecting sensor states used by PLC logic to identify changes in equipment operation |
Installation and Maintenance
- Verify the complete article number: Confirm 6ES7131-6TF00-0CA0 and distinguish it from ET 200SP modules designed for conventional 24 V DC inputs.
- Check the BaseUnit: Use a compatible BU type A0 BaseUnit and verify its connection arrangement against the station design.
- Confirm sensor compatibility: Check that each connected sensor or switching contact is supported by the module’s NAMUR input characteristics.
- Review the electrical circuit: Verify the sensor supply, terminal assignments, return connections, and any required external components before wiring.
- Isolate the station: Follow the applicable electrical safety procedure before inserting, removing, or rewiring the module.
- Select the operating mode: Determine whether each channel is used for standard digital input acquisition or a supported counting function, then configure the module accordingly.
- Configure signal processing: Set the available input parameters to match the sensor response, pulse characteristics, and machine sequence requirements.
- Enable relevant diagnostics: Configure supported wire-break, short-circuit, and supply-voltage monitoring where required by the application.
- Verify the engineering configuration: Confirm the module designation, firmware requirements, station configuration, and input addresses in the selected engineering environment.
- Test individual channels: Operate each connected sensor or contact and confirm that the corresponding input state is correctly detected by the module and controller.
- Investigate diagnostic messages: Check the sensor, wiring, terminal connections, supply voltage, and configured input mode if a channel reports an error or behaves unexpectedly.
- Record the final configuration: Document the sensor assignments, input parameters, counting settings where applicable, diagnostic configuration, and BaseUnit reference.
Compatible System Components
| Component | Function |
|---|---|
| Siemens ET 200SP BaseUnit, Type A0 | Provides the required mounting and electrical connection interface |
| Siemens ET 200SP Interface Module | Connects the I/O station to the automation network |
| SIMATIC S7 PLC | Processes digital input states and supported counting information |
| NAMUR Proximity Sensors | Provide compatible switching signals |
| Compatible Changeover Contacts | Supply discrete contact states for input evaluation |
| NAMUR Sensor Wiring | Connects the field devices to the module’s input circuits |
| Suitable Field Circuit Accessories | Support the specified sensor wiring arrangement |
| STEP 7 / TIA Portal | Supports module configuration and diagnostics |
| Industrial Control Cabinet | Houses the distributed I/O station and associated electrical equipment |
Recommended Related Models
| Model | Product Type | Typical Application |
|---|---|---|
| Siemens 6ES7131-6TF00-0CA0 | DI 8xNAMUR HF Digital Input Module | Eight-channel NAMUR signal acquisition with high-feature functions |
| Siemens 6ES7131-6BF00-0CA0 | DI 8x24VDC HF Digital Input Module | High-feature 24 V DC digital input applications |
| Siemens 6ES7131-6BF00-0DA0 | DI 8x24VDC Digital Input Module | Standard 24 V DC signal acquisition |
| Siemens 6ES7131-6BH01-0BA0 | DI 16x24VDC ST Digital Input Module | Sixteen-channel, 24 V DC digital input acquisition |
| Siemens 6ES7131-6CF00-0AU0 | DI 8x24VAC/48VUC BA Digital Input Module | Eight-channel, compatible AC/DC signal acquisition |
| Siemens 6ES7131-6FD01-0BB1 | DI 4×120..230VAC ST Digital Input Module | Four-channel, 120–230 V AC digital input applications |
Key Advantages
- Acquires eight signals from compatible NAMUR sensors and switching contacts.
- Supports configurable digital input processing and counter operation.
- Provides channel-level diagnostics for supported wiring and electrical faults.
- Integrates with the SIMATIC ET 200SP distributed I/O system.
- Helps combine field signal monitoring and compatible pulse-counting applications within one module.
Technical FAQs
What makes the 6ES7131-6TF00-0CA0 different from a standard ET 200SP digital input module?
This model uses an 8.2 V DC NAMUR input circuit and supports compatible NAMUR sensors and switching contacts. Conventional 24 V DC input modules have different electrical characteristics, so the two types should not be substituted without checking the field-device requirements.
Can the module count pulses as well as detect normal digital states?
Yes. Counter operation is supported. The appropriate operating mode, signal characteristics, and counting parameters must be configured for the application. Verify the required pulse frequency and counting behavior before using the module for a specific measurement task.
What should be checked if a NAMUR sensor produces no valid input state?
Check the sensor type, supply circuit, field wiring, terminal assignments, and channel configuration. Review the available diagnostic information for wire-break, short-circuit, or supply-voltage conditions, and confirm that the sensor’s electrical characteristics match the module’s input requirements.
Can the 6ES7131-6TF00-0CA0 be used as a safety-rated input module?
It should not be treated as a safety-rated input module. The application must use an appropriately certified safety architecture and components whenever a safety-related function is required. Standard input acquisition alone does not establish a safety function.
