Product Overview

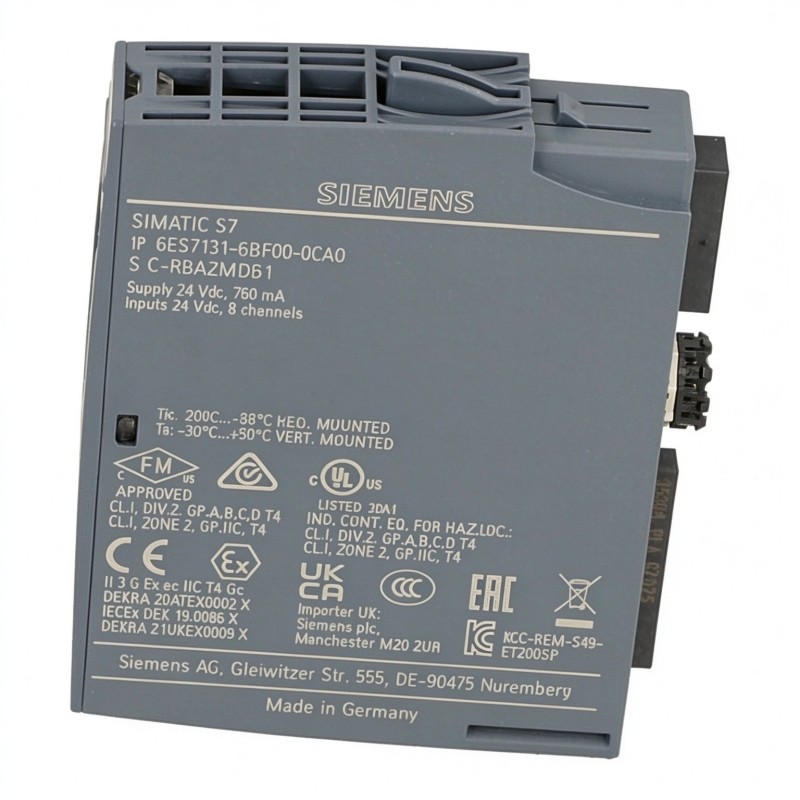

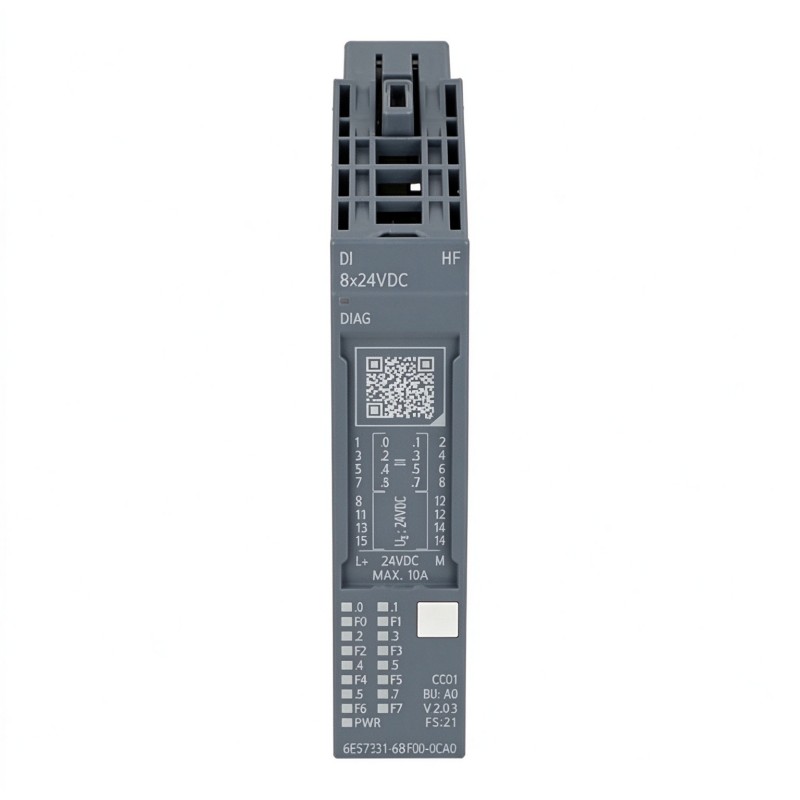

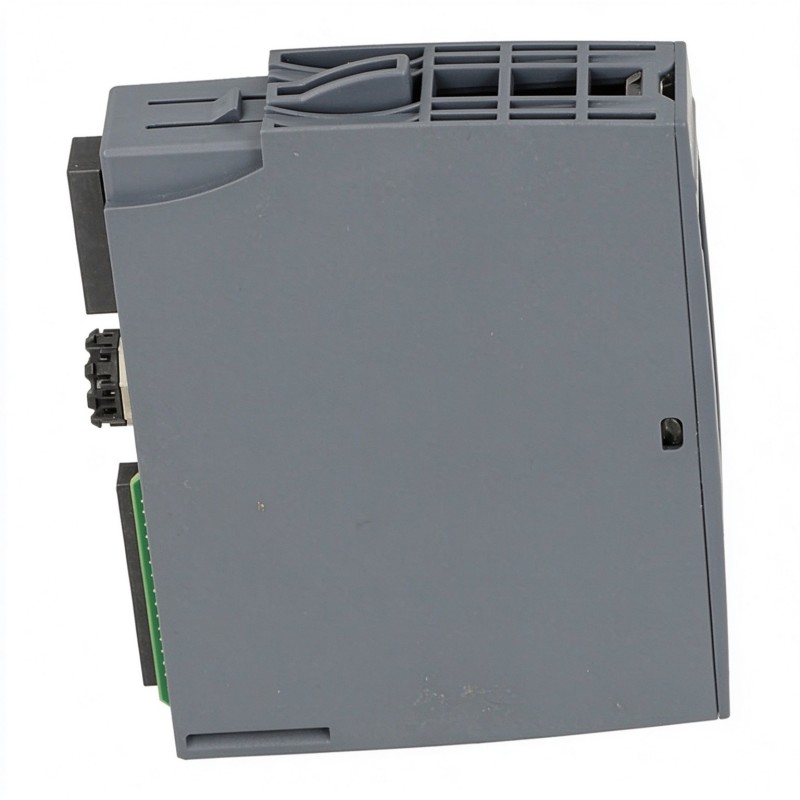

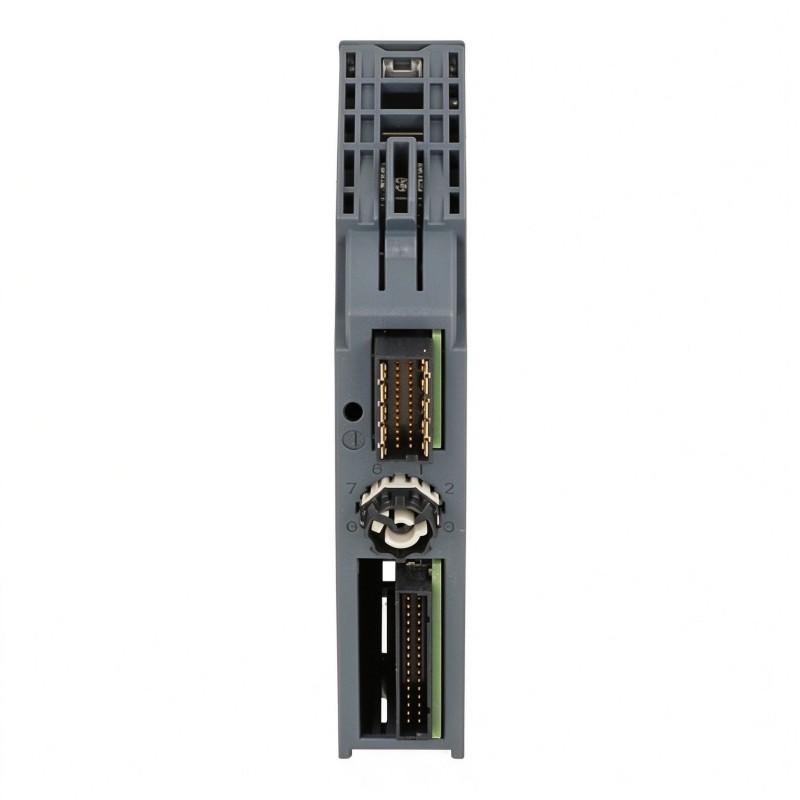

The Siemens 6ES7131-6BF00-0CA0 is a SIMATIC ET 200SP digital input module with eight 24 V DC inputs and High Feature functionality. It collects discrete signals from field devices and makes their states available to the automation controller through the ET 200SP distributed I/O system.
In a packaging machine, for example, the module can collect signals from position switches, presence sensors, and other compatible field devices. On a conveyor line, its inputs can be used to monitor equipment states and provide feedback for interlocks and sequence control. The controller processes these signals and determines the next machine action.
This module uses a sink-input configuration, identified by Siemens as PNP, sink input. It supports input delays configurable from 0.05 to 20 ms per channel, allowing signal filtering to be adjusted for the requirements of individual input signals. Its diagnostic functions can identify conditions including encoder power-supply short circuits, wire breaks, supply-voltage problems, and channel faults.
The 6ES7131-6BF00-0CA0 is suitable for applications requiring more than basic on/off signal acquisition. Its channel diagnostics help maintenance personnel distinguish certain wiring or supply problems from ordinary changes in sensor state, reducing the effort needed to investigate faults in a distributed control cabinet.
The module is intended for installation with a compatible SIMATIC ET 200SP BaseUnit of type A0. Correct selection also requires checking the field-device wiring, input characteristics, controller configuration, and available diagnostic functions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6ES7131-6BF00-0CA0 |
| Product Family | SIMATIC ET 200SP |
| Product Type | Digital Input Module |
| Module Designation | DI 8x 24 V DC HF |
| Number of Digital Inputs | 8 |
| Rated Input Voltage | 24 V DC |
| Input Type | Type 3 according to IEC 61131 |
| Input Configuration | Sink input (PNP, sink input) |
| Configurable Input Delay | 0.05–20 ms per channel |
| Channel Diagnostics | Supported |
| Compatible BaseUnit Type | A0 |
| Color Code | CC01 |
| Dimensions | 15 × 73 × 58 mm |
| Weight | 0.036 kg |
Product Features
- Eight 24 V DC digital inputs: Collects discrete signals from compatible switches and electronic sensors.
- High Feature functionality: Adds configurable input behavior and diagnostic capabilities beyond basic signal acquisition.
- Adjustable input delay: Allows each channel’s input delay to be configured between 0.05 and 20 ms.
- Channel-level diagnostics: Supports detection of specified wiring, supply, and channel fault conditions.
- Input signal monitoring: Provides digital status information for controller logic and machine sequencing.
- ET 200SP integration: Fits into a modular distributed I/O station using a compatible A0 BaseUnit.
- Diagnostic LED indication: Helps technicians identify module and channel status during commissioning and troubleshooting.
- Configurable engineering parameters: Allows the module’s supported functions to be set up through the applicable Siemens engineering environment.
Working Principle
The 6ES7131-6BF00-0CA0 receives discrete electrical signals from field devices and converts them into digital input states for the automation system. When a connected sensor changes state, the module processes the signal according to its configured input characteristics and makes the resulting state available to the controller.
A typical signal path is:
Field Sensor or Switch → 6ES7131-6BF00-0CA0 → ET 200SP Backplane → Interface Module → PLC
For example, a photoelectric sensor on a conveyor may detect a package entering a transfer station. The sensor’s output changes state, the input module registers that change, and the PLC uses the signal to control the conveyor sequence or trigger a downstream operation.
The configurable input delay is useful when a signal contains short disturbances or contact bounce. A suitable delay can prevent brief unwanted transitions from being interpreted as valid changes. However, increasing the delay also postpones recognition of genuine input changes, so the setting must reflect the machine’s response-time requirements.
The module’s diagnostic functions provide additional information when supported fault conditions occur. Depending on the wiring arrangement and configured diagnostics, the system can report issues such as a wire break or a problem with the encoder supply. These functions help maintenance personnel narrow down the cause of an abnormal input without treating every missing signal as a failed sensor.
The module is not a standalone controller. It depends on a compatible ET 200SP station, an appropriate interface module, a correctly configured controller, and field wiring that matches its electrical input characteristics.
Role in the SIMATIC ET 200SP Control Architecture
The 6ES7131-6BF00-0CA0 serves as the field-signal acquisition layer within a distributed automation station. It collects discrete input states close to the machine and transfers them through the ET 200SP station to the controller.
Field Devices → Digital Input Module → ET 200SP Interface Module → PLC → Machine Outputs
| System Element | Function |
|---|---|
| Field Sensors and Switches | Generate discrete signals representing machine conditions |
| 6ES7131-6BF00-0CA0 | Acquires eight 24 V DC digital input signals |
| ET 200SP BaseUnit | Provides the module’s mounting and electrical connection interface |
| ET 200SP Interface Module | Connects the distributed I/O station to the automation network |
| PLC or Automation Controller | Processes input states and executes the control program |
| Engineering Software | Configures module parameters and supported diagnostics |
| 24 V DC Field Supply | Supplies compatible sensors and associated field circuits |
| Diagnostic Indicators | Help identify module, channel, or supply-related conditions |
| Output Modules | Switch actuators or other output devices according to controller logic |
| Industrial Network | Carries process data between the distributed I/O station and controller |
Industrial Applications
| Application | Practical Use |
|---|---|
| Packaging Machinery | Monitoring package presence, machine positions, and sequence conditions |
| Conveyor Systems | Collecting sensor signals used for transfer control and interlocking |
| Assembly Lines | Reading fixture-position switches and part-detection sensors |
| Automated Material Handling | Monitoring equipment states at transfer and positioning stations |
| Production Machinery | Acquiring discrete feedback signals for PLC control logic |
| Machine Safety Status Monitoring | Reading ordinary process-status signals that are separate from safety-rated functions |
| Process Equipment | Collecting discrete operating and equipment-condition signals |
| Automated Inspection Stations | Receiving part-present and inspection-sequence signals |
| Industrial Test Equipment | Monitoring switches and discrete test-condition signals |
| Distributed Control Cabinets | Locating field-signal acquisition near the controlled machine |
Installation and Maintenance
- Verify the complete order number: Confirm 6ES7131-6BF00-0CA0 before installation, replacement, or engineering configuration.
- Check the BaseUnit: Use a compatible ET 200SP BaseUnit of type A0 and verify the required mechanical and electrical arrangement.
- Confirm the field-device output type: Check that the connected sensors and switches match the module’s specified input characteristics and wiring configuration.
- Isolate the electrical supply: Follow the panel’s approved isolation procedure before inserting the module or changing field wiring.
- Inspect the mounting position: Confirm that the module is correctly seated in the BaseUnit and that the station’s mechanical arrangement is secure.
- Verify terminal assignments: Match every field signal and its associated supply connection to the wiring diagram for the installed configuration.
- Check the 24 V DC supply: Confirm the field supply voltage, polarity, grounding arrangement, and supply capacity before commissioning.
- Configure the input delays: Set each channel’s delay according to the sensor behavior and the required machine response time.
- Enable the required diagnostics: Configure supported diagnostic functions in the engineering project and verify that the selected options match the field wiring.
- Test each input channel: Operate the connected switches or sensors individually and confirm that the corresponding input states change correctly in the controller.
- Investigate diagnostic messages: If a channel reports a fault or fails to change state, inspect the field wiring, sensor supply, terminal connections, parameter settings, and connected device before replacing the module.
- Document the final configuration: Record the channel assignments, input-delay settings, diagnostic configuration, and commissioning results for future maintenance.
Compatible System Components
| Component | Function |
|---|---|
| Siemens 6ES7131-6BF00-0CA0 | Acquires eight 24 V DC digital input signals |
| SIMATIC ET 200SP BaseUnit, Type A0 | Provides the mounting and electrical connection interface |
| SIMATIC ET 200SP Interface Module | Connects the I/O station to the controller network |
| SIMATIC S7 PLC | Processes acquired signals and executes machine logic |
| 24 V DC Power Supply | Supplies compatible field devices and associated circuits |
| PNP-Compatible Sensors | Generate discrete input signals for the module |
| Mechanical Limit Switches | Provide discrete position or end-of-travel feedback |
| Photoelectric Sensors | Detect the presence or passage of objects |
| Proximity Sensors | Detect the presence or position of compatible targets |
| Terminal Blocks and Field Wiring | Connect sensors and supply conductors to the I/O station |
| TIA Portal Engineering Environment | Supports configuration and diagnostics for compatible system versions |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Siemens 6ES7131-6BF00-0CA0 | SIMATIC ET 200SP DI 8x 24 V DC HF | Eight-channel digital input acquisition with High Feature functions |
| Siemens 6ES7131-6BF00-0DA0 | SIMATIC ET 200SP DI 8x 24 V DC High Speed | Applications requiring high-speed input acquisition and alternative operating modes |
| Siemens 6ES7131-6BH01-0BA0 | SIMATIC ET 200SP Digital Input Module | Comparing alternative digital input configurations |
| Siemens 6ES7132-6BF00-0CA0 | SIMATIC ET 200SP Digital Output Module | Adding digital output functions to a distributed I/O station |
| Siemens 6ES7134 Series | SIMATIC ET 200SP Analog Input Modules | Acquiring continuous electrical measurement signals |
| Siemens 6ES7135 Series | SIMATIC ET 200SP Analog Output Modules | Providing analog control signals to compatible field devices |
| Siemens 6ES7193-6BP00-0BA0 | SIMATIC ET 200SP BaseUnit | BaseUnit selection for compatible ET 200SP configurations |
| Siemens 6ES7155 Series | SIMATIC ET 200SP Interface Modules | Connecting distributed I/O stations to the automation system |
| Siemens 6ES7131-6TF00-0CA0 | SIMATIC ET 200SP Fail-Safe Digital Input Module | Evaluating safety-related input requirements with a suitable safety architecture |
| Siemens SIMATIC S7-1200 | PLC Family | Compact machine control with local or distributed I/O |
| Siemens SIMATIC S7-1500 | PLC Family | Machine and process automation requiring a broader controller architecture |
| Siemens ET 200SP | Distributed I/O System | Modular field-signal acquisition and output control |
| Siemens TIA Portal | Engineering Software | Configuring supported PLCs and distributed I/O modules |
Key Advantages
- Eight digital inputs in a modular ET 200SP format.
- Configurable per-channel input delays for different signal conditions.
- Diagnostic support for selected wiring and supply faults.
- Integration with compatible distributed I/O and PLC architectures.
- Channel-status indication that assists commissioning and troubleshooting.
Technical FAQs
How does the 6ES7131-6BF00-0CA0 differ from a basic ET 200SP digital input module?
This is a High Feature module with configurable input delays and supported channel diagnostics. These functions are useful where signal filtering and fault identification are important to machine operation and maintenance.
What should be considered when setting the input delay?
The delay should reflect the connected sensor’s behavior and the machine’s response-time requirements. A longer delay can suppress short unwanted transitions, but it can also postpone the detection of genuine input changes.
Can this module be installed directly in a control cabinet without a BaseUnit?
No. It is an ET 200SP electronic module intended for installation with a compatible BaseUnit. The BaseUnit provides the necessary mounting and electrical connection interface within the distributed I/O station.
Does the 6ES7131-6BF00-0CA0 replace a safety-rated digital input module?
No. It is a standard digital input module, not a fail-safe input module. Applications requiring safety-related signal processing need appropriately rated safety hardware and a safety architecture suitable for the required safety level.
