Product Overview

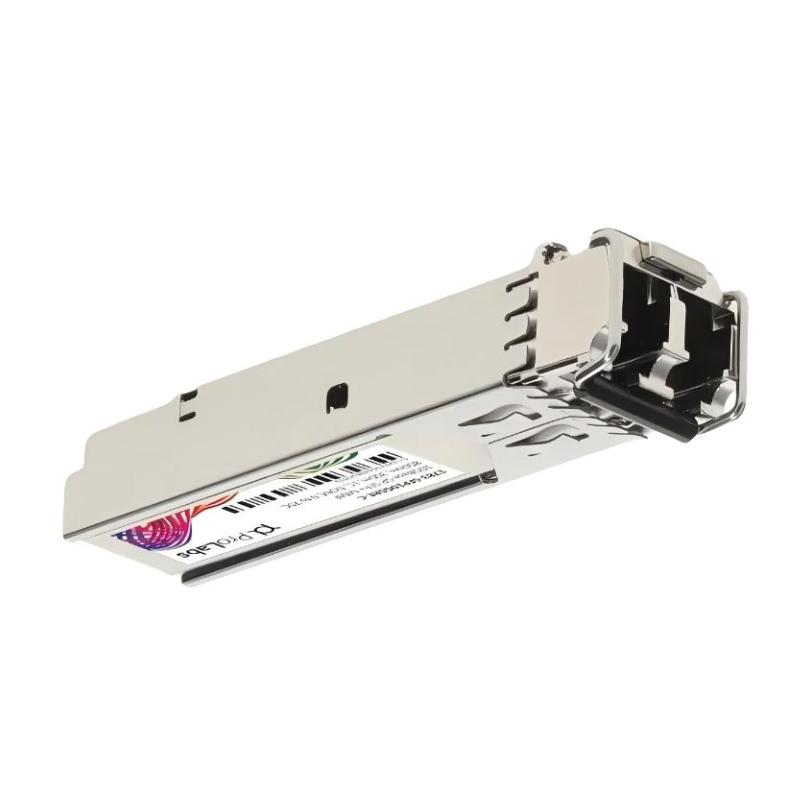

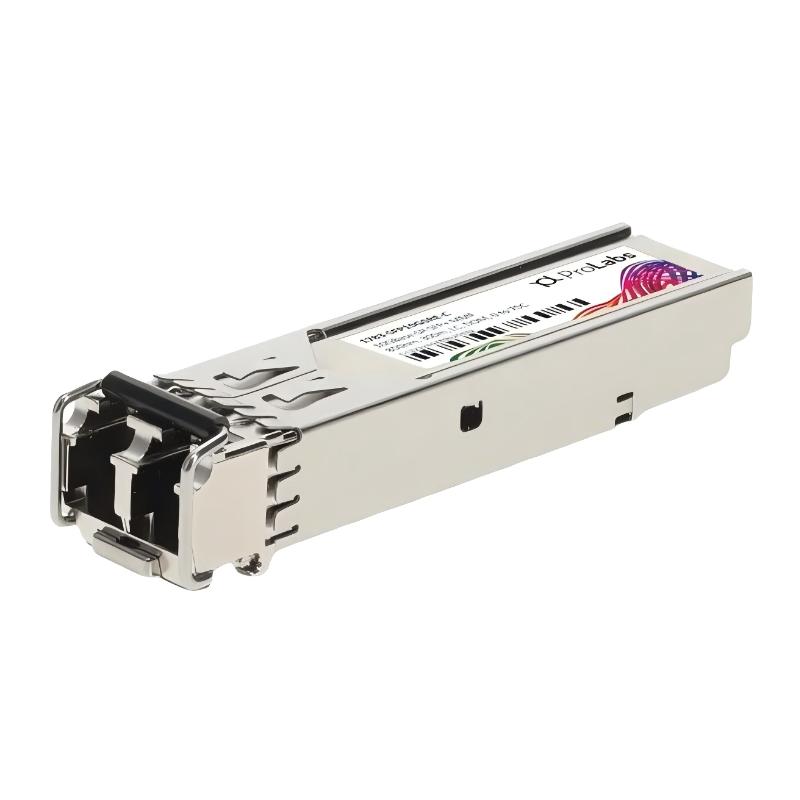

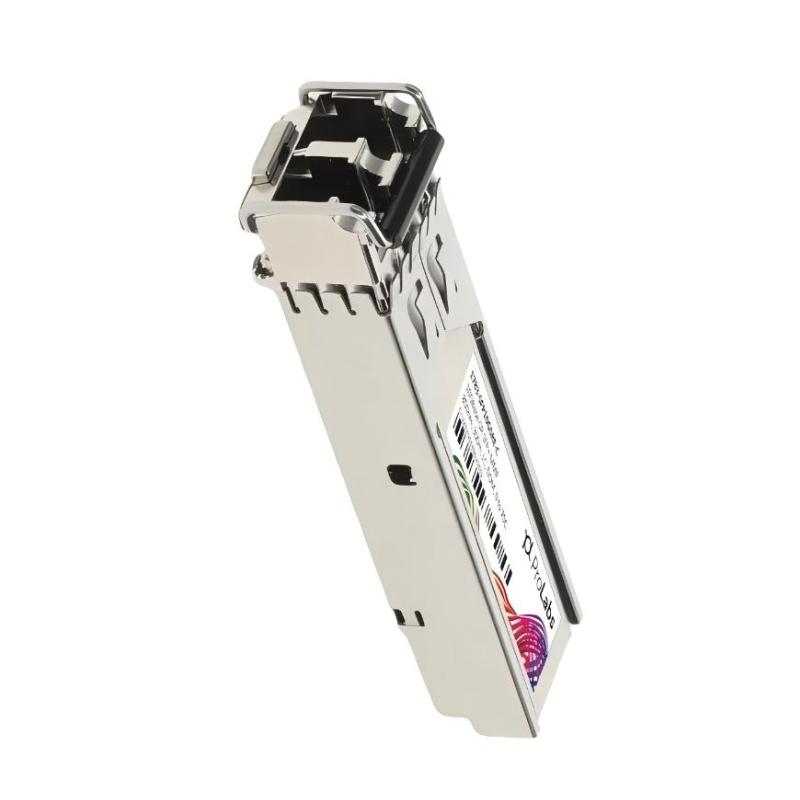

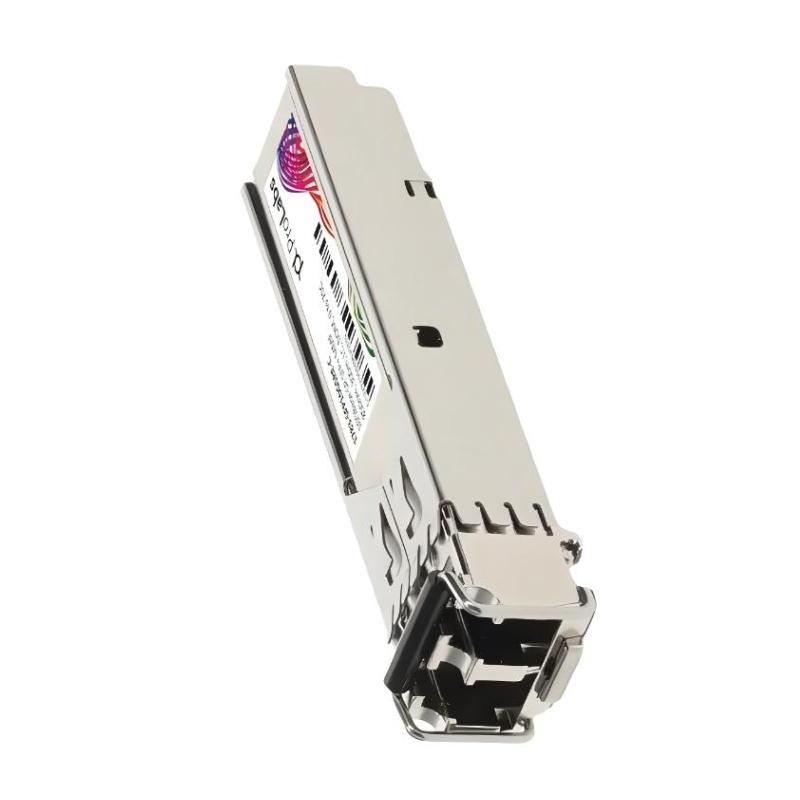

The Allen-Bradley 1783-SFP10GSRE is a 10 Gigabit Ethernet short-reach optical transceiver for compatible Stratix industrial Ethernet switches. It uses 10GBASE-SR signaling over multimode fiber, with an 850 nm optical wavelength and a duplex LC interface. Depending on the installed multimode fiber grade and its modal bandwidth, the supported link distance ranges from a few dozen meters to several hundred meters. <Cite refs={[“turn443076search23″,”turn443076search21”]}/>
In a manufacturing plant, this module can connect a local industrial switch to a nearby distribution switch, a machine-cell network, or a server-room Ethernet switch. For example, several PLCs, HMIs, and industrial computers may connect to an access switch, with the aggregated network traffic carried over a 10 Gbps fiber uplink to another part of the facility.
The SR interface is intended for shorter multimode fiber routes rather than the longer singlemode links supported by LR transceivers. The fiber grade matters: the maximum reach is not the same for OM1, OM2, and higher-bandwidth multimode fiber. A route that works with OM4 fiber may exceed the supported distance when the same transceiver is used with older multimode cabling.
The 1783-SFP10GSRE is a physical-layer transceiver. It converts electrical signals at the switch’s SFP+ interface into optical signals and converts incoming optical signals back into electrical data. The switch remains responsible for forwarding Ethernet frames, managing VLANs, and handling other network functions.
Before installing the module, confirm that the Stratix switch supports this transceiver, that the remote end uses a compatible 10GBASE-SR interface, and that the existing fiber plant meets the required distance and bandwidth specifications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley |
| Model | 1783-SFP10GSRE |
| Product Family | Stratix Ethernet Networking |
| Product Type | 10GBASE-SR Multimode Fiber SFP Transceiver |
| Transceiver Form Factor | SFP+ |
| Ethernet Standard | 10GBASE-SR |
| Data Rate | 10 Gbps |
| Transmission Medium | Multimode fiber |
| Interface Connector | Dual LC |
| Optical Wavelength | 850 nm |
| Fiber Core / Cladding | 50/125 µm or 62.5/125 µm, depending on fiber type |
| Maximum Specified Reach | Up to 400 m with supported high-bandwidth multimode fiber |
| Reach on OM1 Fiber | Up to 33 m |
| Reach on OM2 Fiber | Up to 82 m |
| Reach on OM3 Fiber | Up to 300 m |
| Reach on OM4 Fiber | Up to 400 m |
| Digital Optical Monitoring (DOM) | Supported |
| Compatible Equipment | Supported Stratix Ethernet switches |
| Dimensions | 90 × 25 × 50 mm |
| Weight | 0.45 kg |
Product Features
- 10 Gbps Ethernet transmission: Supports high-bandwidth connections between compatible industrial switches.
- 850 nm optical interface: Uses the wavelength associated with 10GBASE-SR multimode transmission.
- Duplex LC connector: Connects to standard compatible multimode fiber patch cables.
- Fiber-grade-dependent reach: Supports different link distances according to the installed multimode fiber specification.
- SFP+ form factor: Fits compatible high-speed switch interfaces.
- Optical diagnostics: DOM information can be accessed through supported switch management functions.
- Electrical isolation across the fiber span: Avoids a direct conductive Ethernet connection between the two endpoints.
- Industrial network integration: Supports high-speed uplinks and local backbone connections in compatible Stratix installations.
Working Principle
The 1783-SFP10GSRE converts the electrical Ethernet data produced by a switch into optical signals at 850 nm. The optical signals travel through the multimode fiber to a compatible receiving transceiver, which converts them back into electrical data for the remote switch.
A typical network link is arranged as follows:
Local Stratix Switch → 1783-SFP10GSRE → Duplex Multimode Fiber → Compatible 10GBASE-SR Transceiver → Remote Switch
When the local switch sends Ethernet traffic across the link, the transceiver encodes the data into optical signals. The fiber carries the signals to the receiving module, and the remote switch forwards the recovered frames to the intended network ports.
The maximum distance depends on the multimode fiber’s bandwidth characteristics. Older 62.5/125 µm fiber generally supports a shorter 10GBASE-SR link than higher-bandwidth 50/125 µm fiber. The fiber type and installed route should therefore be verified before choosing the transceiver or determining the link budget.
A link can fail even when the fiber distance appears acceptable. Dirty LC connectors, incorrect fiber polarity, damaged patch cables, or an unsupported SFP+ module can prevent the endpoints from communicating. The switch’s port status and available optical diagnostics can help narrow down the fault.
Because this module supports 10 Gbps operation, both the switch port and remote transceiver must support the intended link configuration. A 1 Gbps SFP may use a similar connector but does not provide the same data rate or optical interface.
Role in a Stratix Industrial Ethernet Network
The 1783-SFP10GSRE serves as a high-speed optical interface between compatible industrial Ethernet switches. It is particularly useful when local machine networks generate more traffic than a conventional 1 Gbps uplink can comfortably accommodate.
Machine-Level Networks → Stratix Access Switch → 1783-SFP10GSRE → Multimode Fiber Backbone → Distribution Switch
| System Element | Function |
|---|---|
| 1783-SFP10GSRE | Provides the 10GBASE-SR optical interface |
| Stratix Ethernet Switch | Forwards Ethernet traffic between connected devices |
| Multimode Fiber Backbone | Carries optical signals between nearby network locations |
| PLC or PAC | Executes machine and process control logic |
| HMI Panel | Displays machine status and accepts operator commands |
| Industrial Computer | Supports production data collection and supervisory applications |
| Fiber Patch Panel | Organizes connections between backbone and equipment cables |
| Network Management Interface | Displays link status and supported optical diagnostics |
Industrial Applications
| Application | Practical Use |
|---|---|
| Manufacturing Plant Networks | Providing high-speed links between local and central switches |
| CNC Production Cells | Aggregating network traffic from machine controllers and HMIs |
| Automated Assembly Lines | Connecting several machine networks to a distribution switch |
| Industrial Control Rooms | Linking control-network equipment over multimode fiber |
| SCADA Infrastructure | Carrying supervisory and monitoring traffic across plant networks |
| Machine Vision Systems | Supporting network links for Ethernet-based inspection equipment when bandwidth requirements are met |
| Industrial Data Acquisition | Transferring aggregated production and equipment data |
| Building-to-Building Connections | Connecting nearby buildings where the fiber type and route distance are suitable |
Installation and Maintenance
- Verify the module reference: Confirm that the transceiver is 1783-SFP10GSRE and that the intended port supports 10 Gbps operation.
- Check switch compatibility: Verify that the installed Stratix switch supports the module and its SFP+ interface.
- Identify the fiber grade: Determine whether the installed cable is OM1, OM2, OM3, OM4, or another supported multimode type.
- Confirm the transmission distance: Compare the actual fiber route with the maximum reach specified for that fiber grade.
- Verify the remote transceiver: Confirm that the opposite endpoint supports a compatible 10GBASE-SR optical interface.
- Inspect the LC connectors: Check connector cleanliness, alignment, and condition before connecting the fiber.
- Observe optical safety procedures: Avoid looking into optical ports or exposed fiber ends, and follow the applicable handling instructions.
- Install the SFP+ module: Insert the transceiver into the supported slot according to the switch installation procedure.
- Check fiber polarity: Ensure that the transmitting fiber at one end connects to the receiving port at the opposite end.
- Verify link operation: Check the switch-port status and confirm that the link operates at the expected speed.
- Use available optical diagnostics: Review supported DOM readings if the link fails to establish or experiences intermittent communication.
- Document the installation: Record the transceiver model, switch ports, fiber grade, link distance, and commissioning results.
Compatible System Components
| Component | Function |
|---|---|
| Allen-Bradley 1783-SFP10GSRE | Provides 10GBASE-SR multimode optical connectivity |
| Compatible Stratix Managed Switch | Hosts the supported SFP+ transceiver |
| Remote 10GBASE-SR Transceiver | Provides the optical interface at the opposite endpoint |
| OM1 Multimode Fiber | Supports shorter-distance links within its specified optical limits |
| OM2 Multimode Fiber | Supports compatible 10GBASE-SR connections over its specified reach |
| OM3 Multimode Fiber | Supports higher-bandwidth multimode Ethernet links |
| OM4 Multimode Fiber | Supports the specified longer-reach 10GBASE-SR applications |
| Duplex LC Fiber Patch Cable | Connects the transceiver to the fiber infrastructure |
| Fiber Patch Panel | Organizes optical connections between equipment and backbone cabling |
| Allen-Bradley ControlLogix Controller | Exchanges control and diagnostic data over the network |
| Allen-Bradley CompactLogix Controller | Connects machine-control equipment to the industrial Ethernet network |
| PanelView HMI | Provides operator interaction and machine-status visualization |
Recommended Related Models
| Model | Product Type | Typical Application |
|---|---|---|
| Allen-Bradley 1783-SFP10GLRE | Stratix 10GBASE-LR Singlemode Fiber SFP Transceiver | 10 Gbps singlemode connections with a specified reach of up to 10 km |
| Allen-Bradley 1783-SFP10GSRI | Stratix 10GBASE-SR Multimode Fiber SFP Transceiver | Comparing the related 10GBASE-SR transceiver configuration |
| Allen-Bradley 1783-SFP1GSX | Stratix 1000BASE-SX Multimode Fiber SFP Transceiver | Gigabit Ethernet over compatible multimode fiber |
| Allen-Bradley 1783-SFP1GLX | Stratix 1000BASE-LX/LH Singlemode Fiber SFP Transceiver | 1 Gbps singlemode connections with a specified reach of up to 10 km |
| Allen-Bradley 1783-SFP1GTE | Stratix 1000BASE-T Copper SFP Transceiver | Gigabit Ethernet over copper cabling |
| Allen-Bradley 1783-SFP100FX | Stratix 100BASE-FX Multimode Fiber SFP Transceiver | 100 Mbps optical links over compatible multimode fiber |
Key Advantages
- Supports 10 Gbps Ethernet over compatible multimode fiber.
- Uses an 850 nm optical interface with duplex LC connectors.
- Supports distances up to 400 m with qualifying high-bandwidth multimode fiber.
- Provides optical diagnostics through compatible switch management functions.
- Enables high-speed connections between industrial Ethernet network segments.
Technical FAQs
How does the 1783-SFP10GSRE differ from the 1783-SFP10GLRE?
The 1783-SFP10GSRE uses 10GBASE-SR signaling over multimode fiber at 850 nm, with reach depending on the fiber grade. The 1783-SFP10GLRE uses 10GBASE-LR signaling over singlemode fiber at 1310 nm and supports a specified reach of up to 10 km. The appropriate choice depends on the installed fiber infrastructure and required link distance.
What is the maximum reach over OM4 fiber?
The specified maximum reach is up to 400 m over qualifying OM4 multimode fiber. The actual usable distance depends on the cable specification, installation quality, and the requirements of the complete optical link.
Can this transceiver be used with an existing OM1 fiber installation?
Yes, if the link distance remains within the specified limit. For OM1 fiber, the listed 10GBASE-SR reach is up to 33 m. Longer routes may require a different fiber installation or a suitable singlemode optical solution.
What should be checked when the transceiver is detected but the Ethernet link remains down?
Check the remote transceiver, fiber polarity, LC connector cleanliness, fiber type, switch-port configuration, and firmware compatibility. If available, inspect optical diagnostic readings to help determine whether the received signal is within the permitted operating range.
