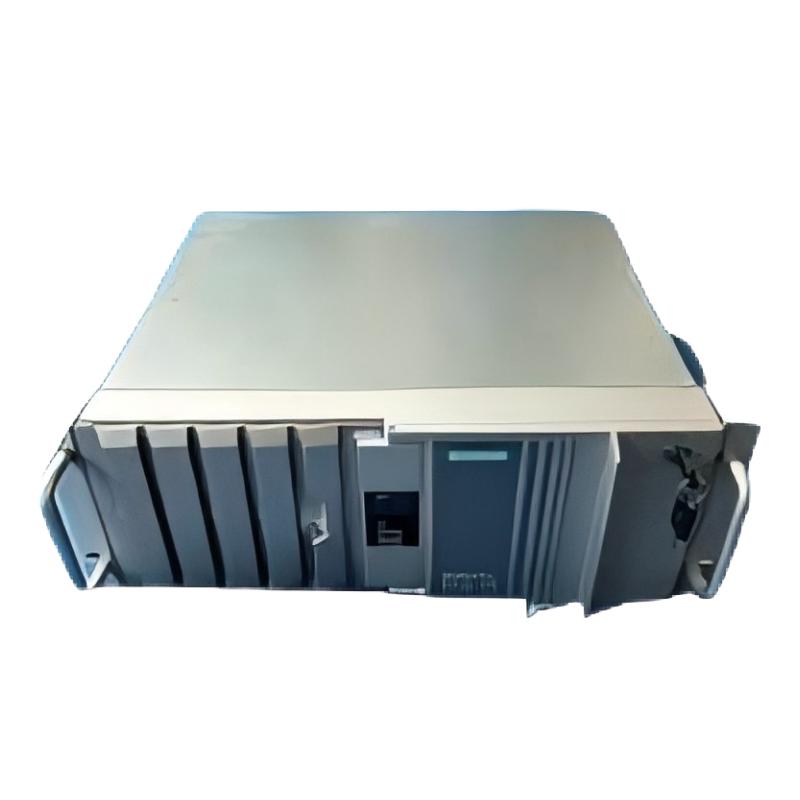

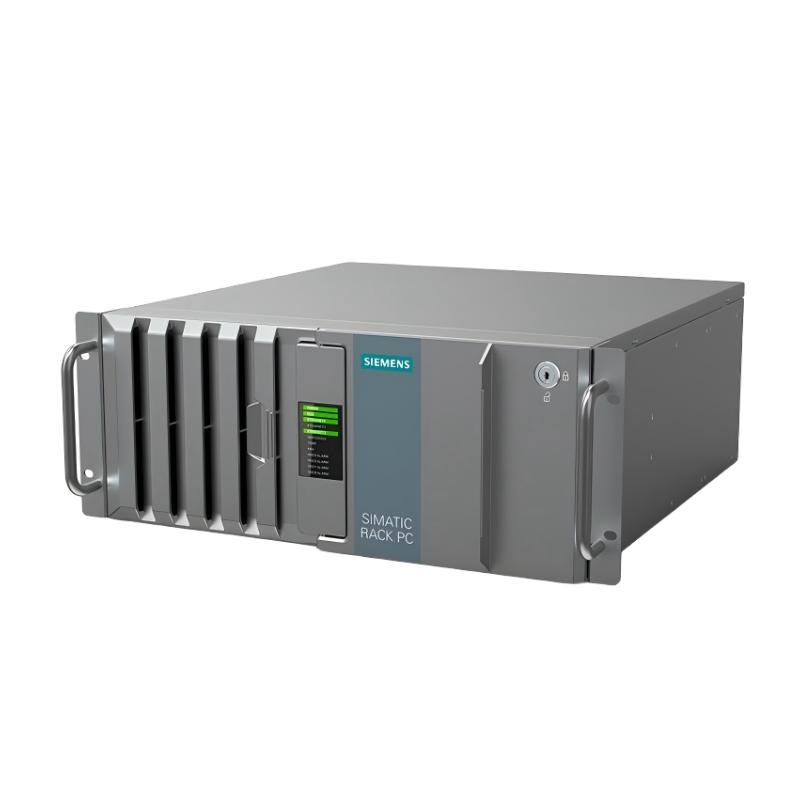

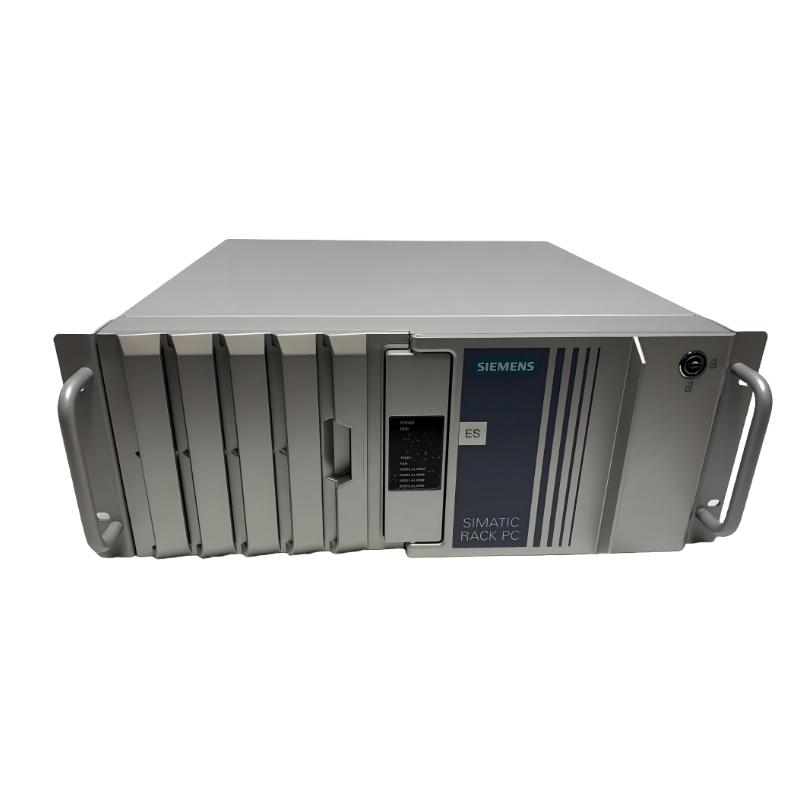

Siemens 6AG4114-3HT12-0DA3 Industrial Rack PC

1. Product Overview

The Siemens 6AG4114-3HT12-0DA3 belongs to the SIMATIC IPC847E family of industrial rack-mounted computers. This platform is designed for industrial applications that require a dependable computing system, extensive communication interfaces, local data storage, and the ability to install additional hardware.

Unlike a conventional office computer, an industrial rack PC is built to integrate into a larger technical installation. It can run supervisory control software, production data collection applications, engineering tools, machine monitoring systems, and other industrial programs that need a full computer operating environment.

The IPC847E uses a 19-inch, 4U chassis, making it suitable for industrial equipment racks, control cabinets, and centralized computing rooms. Its combination of multiple Gigabit Ethernet ports, display connections, USB interfaces, serial communication, and expansion slots provides flexibility when connecting to automation equipment and specialist hardware.

The exact ordering code is important because the IPC847E family includes multiple configurations. Processor, memory, storage devices, RAID arrangements, operating-system licensing, and power-supply options may vary between models. For this reason, the information below distinguishes platform specifications from details that should be verified against the supplied unit.

2. Brand and Product Series

The SIMATIC IPC847E family is intended for installations that need a flexible industrial computer rather than a dedicated PLC alone. It can work alongside PLCs, operator panels, industrial drives, distributed I/O systems, network equipment, and manufacturing software.

3. Detailed Technical Parameters

The following table summarizes the main technical characteristics of the 6AG4114-3HT12-0DA3 and its IPC847E platform. The chassis and interface specifications describe the product family; the exact processor, memory capacity, storage arrangement, and operating system should be checked against the unit’s configuration label or order documentation.

3.1 Processor and computing performance

The IPC847E platform supports several Intel processor options. The exact processor installed in the 6AG4114-3HT12-0DA3 should be confirmed before making a definitive performance comparison.

For reference, the Intel Core i7-8700 option has six cores and twelve threads, a base frequency of 3.2 GHz, and a maximum Turbo frequency of up to 4.6 GHz. The Xeon E-2176G option also has six cores and twelve threads, while the Xeon E-2278GE option provides eight cores and sixteen threads.

These processors offer different levels of performance and features. The appropriate choice depends on the industrial application, the software being run, the amount of data being processed, and the number of concurrent services.

In practical use, the computer might collect data from several PLCs, update a supervisory display, write production records to storage, and run background monitoring tasks at the same time. A suitable multi-core processor can help handle this combination of activities without requiring separate computers for every function.

3.2 Memory and application capacity

The IPC847E uses DDR4 DIMM memory and supports configurations of up to 128 GB, depending on the installed hardware. The actual memory capacity of the target model should be verified rather than inferred from the product-family name.

Memory capacity affects how efficiently applications can keep active data available for processing. A computer running a straightforward monitoring program may not need a large amount of RAM, whereas a system hosting several applications, large databases, or machine-vision software may require more.

When planning an upgrade, check the supported memory modules, installed DIMM arrangement, and application requirements. More memory does not automatically improve performance if the workload does not use it.

3.3 Storage and RAID considerations

The IPC847E family supports different storage configurations, including SATA SSDs and hard drives. Selected configurations also support RAID arrangements.

RAID 1 mirrors data between two drives. If one drive fails, the system may continue operating from the remaining healthy drive, provided the RAID implementation and failure conditions allow it.

This can be valuable for an industrial computer that needs to remain available during certain storage failures. However, RAID is not a replacement for independent backups. It cannot protect against every form of data loss, including accidental deletion, malicious encryption, application corruption, or complete computer failure.

For the 6AG4114-3HT12-0DA3, verify the exact drive count, drive capacity, storage type, RAID level, and controller arrangement before ordering a replacement or preparing a recovery plan.

3.4 Industrial networking

Three Gigabit Ethernet ports provide flexibility when the computer needs to communicate with several groups of industrial devices.

A typical installation could use one port for the machine network, another for supervisory communication, and a third for plant-level data exchange. This arrangement can simplify network planning and make it easier to separate different communication tasks.

The ports alone do not guarantee secure network isolation. Routing, firewall policies, IP addressing, switch configuration, and access control should be designed according to the requirements of the installation.

3.5 Display, USB, and serial interfaces

The IPC847E interface arrangement includes two DisplayPort outputs and one DVI-D output. These can connect compatible industrial monitors and engineering displays, subject to the installed graphics configuration and software requirements.

USB interfaces are available on the front and rear panels, with an additional internal USB connection. Front ports are convenient for maintenance tasks, while rear ports can be used for peripherals that remain connected during operation.

The COM1 RS-232 interface is useful when integrating older instruments or controllers that use serial communication. An additional serial interface may be available in selected configurations.

3.6 Expansion capability

A major advantage of the IPC847E platform is its ability to accommodate supported PCI and PCI Express expansion cards.

Depending on the installed motherboard arrangement, expansion cards can provide additional communication, data acquisition, vision, or specialist interface functions. This is useful where a production system depends on dedicated hardware that cannot easily be replaced with an Ethernet connection or a software-only solution.

Before installing an expansion card, confirm the slot type, electrical compatibility, physical dimensions, cooling requirements, driver support, and available power. The exact motherboard arrangement determines which combinations are supported.

4. Product Introduction

The Siemens 6AG4114-3HT12-0DA3 is designed for industrial computing tasks that require a rack-mounted computer with flexible hardware configuration and multiple communication interfaces.

The 19-inch, 4U enclosure is suited to equipment racks and industrial cabinets where several technical components need to be installed together. It provides a centralized platform for software that monitors equipment, processes production data, communicates with controllers, or supports specialized industrial operations.

Unlike a PLC, which is designed primarily for dedicated control tasks, an industrial PC can run a broader range of computer applications. It can host supervisory software, databases, reporting tools, engineering utilities, and other compatible programs that require a full operating system.

The IPC847E platform is also useful when an installation needs additional hardware interfaces. Its expansion capability can accommodate supported cards for communication, data acquisition, and other specialized tasks. This can help preserve an established machine design when replacing an older industrial computer.

Storage configuration is another important consideration. Where a model is equipped with a suitable RAID arrangement, it may offer improved tolerance to certain individual drive failures. This is especially useful in systems where unexpected downtime would interrupt production or make operational data temporarily unavailable.

For long-term industrial use, the system should be selected as part of the overall automation design. Processor performance, memory, storage, network configuration, operating-system compatibility, and recovery arrangements all affect the suitability of the final installation.

5. Product Applications

5.1 Production-line supervision

The IPC847E can operate as a central supervisory computer for a production line or group of machines. It can display machine states, collect operating counters, record alarms, and present information to operators and maintenance personnel.

For example, a packaging line may use the computer to gather production totals from several PLCs, display machine status, and store fault histories for later analysis. The collected data can also be used to generate shift reports and maintenance summaries.

5.2 SCADA and process visualization

SCADA applications collect process values, display equipment conditions, manage alarms, and maintain historical records. A suitable IPC847E configuration can provide the computing resources required for these functions.

The appropriate specification depends on the number of connected devices, data-update rate, database size, number of operator screens, and software requirements. Applications with large historical databases or several concurrent services may require more memory and storage than a simple monitoring installation.

5.3 Manufacturing data collection

Production equipment generates information about cycle times, operating states, batch identifiers, fault events, and quality results. The IPC847E can run software that collects and processes this information before storing it locally or sending it to a higher-level system.

This is useful for traceability, production reporting, maintenance analysis, and quality investigations.

Storage should be sized according to the expected data volume and retention period. If the computer records images or other large files, the storage requirements may be substantially greater than those of a system that records only counters and alarms.

5.4 Machine vision and quality inspection

Automated inspection applications may need to acquire images, process inspection results, communicate with a PLC, and store records. The IPC847E’s expansion capability can be helpful when the application uses compatible image-acquisition cards or other specialist hardware.

The system should be evaluated against the actual camera interfaces, image resolution, frame rate, processing algorithms, graphics requirements, and software recommendations. High-throughput inspection workloads should be tested under realistic operating conditions before deployment.

5.5 Industrial communication gateway

Some factories use a mixture of Ethernet-based equipment and older devices that communicate through serial interfaces. The IPC847E can run compatible gateway software to coordinate data exchange between such devices.

The computer’s physical interfaces provide the connections, while suitable drivers and software implement the required protocols. Compatibility should be verified for every connected device and protocol.

5.6 Engineering and maintenance workstation

The IPC847E can serve as a centralized workstation for engineering tools, diagnostic applications, system configuration, and maintenance software.

A rack-mounted workstation can be convenient where the computer needs to remain in an equipment room or control cabinet. Before reusing an existing software environment, confirm the operating-system version, licensing, driver compatibility, and support for the connected hardware.

5.7 Legacy-system replacement

Industrial equipment may rely on older software and dedicated interface cards that cannot easily be replaced. A computer from the IPC847E family can be considered when an aging rack PC needs to be replaced while retaining the existing machine architecture.

A successful replacement requires more than matching the chassis. The original hardware inventory, software versions, drive layout, RAID configuration, network settings, licences, and recovery procedure should all be documented and tested.

6. Main Advantages

6.1 Flexible industrial computing platform

The IPC847E family offers different processor, memory, and storage configurations. This allows the computer to be selected according to the actual workload rather than forcing every installation to use the same specification.

6.2 Standard 19-inch rack design

The 4U enclosure is suitable for standardized equipment racks and industrial cabinets. It can simplify installation in systems where the cabinet layout is already designed around rack-mounted equipment.

6.3 Multiple Ethernet interfaces

Three Gigabit Ethernet ports provide flexibility when connecting to multiple networks or groups of industrial devices. With appropriate network planning, this can help organize communication between machine-level equipment, supervisory applications, and plant systems.

6.4 Storage redundancy options

Selected IPC847E configurations support RAID arrangements that can improve availability after certain drive failures. The actual benefit depends on the installed drives, RAID implementation, and maintenance procedures.

RAID should be combined with independent backups and a tested recovery process.

6.5 Extensive expansion capability

The availability of PCI and PCI Express configurations makes the platform useful for applications that depend on dedicated communication, measurement, or other specialist cards.

This can extend the useful life of an established system when suitable replacement hardware remains available and compatible.

6.6 Broad peripheral connectivity

Ethernet, USB, display, serial, and expansion interfaces make the computer adaptable to a variety of industrial installations. The combination supports both modern networked devices and some legacy equipment.

6.7 Hardware monitoring and watchdog functions

Temperature and fan monitoring can help maintenance personnel identify certain hardware conditions. A watchdog function can support system supervision when correctly configured.

These features are useful for diagnostics but do not replace application-level monitoring, backups, preventive maintenance, or a formal recovery strategy.

6.8 Centralized system management

A rack PC can host multiple compatible software functions in one location. This can simplify maintenance and reduce the number of separate computers required.

However, centralization also creates a potential single point of failure. Where availability is critical, the system design should consider standby equipment, redundant architecture, or another suitable recovery arrangement.

7. Five Recommended Models from the Same Series or Related Range

The following five models are relevant alternatives within the SIMATIC IPC847E family. They represent standard computing, RAID storage, larger-memory configurations, and higher-performance processor options.

Specifications should be treated as representative configuration details. Exact memory, drive arrangements, operating systems, and installed accessories must be confirmed for the final order code.

The chassis dimensions are approximate platform values. Weight varies with the power supply, storage configuration, drive cage, and installed expansion cards. Confirm the actual delivered configuration before using these figures for rack loading or mechanical design.

8. Choosing Between the Related Models

The most suitable alternative depends on the required workload and existing system architecture. A higher-performance processor does not necessarily make a model the best choice if the application relies on a particular expansion card, operating-system image, or storage layout.

For replacement projects, compatibility should be the first priority. For new installations, the decision should account for application performance, storage availability, network design, maintainability, and expected service life.

9. Five Popular Siemens Models in Related Automation Categories

These products cover common functions in an industrial automation system, including PLC control, operator interfaces, motor-speed regulation, and distributed I/O. They complement an industrial computer but are not direct substitutes for the IPC847E.

Dimensions and weights are approximate reference values and may vary by hardware revision and accessories. The precise SINAMICS drive rating and dimensions must be confirmed for the intended installation.

10. How These Products Work Alongside the IPC847E

SIMATIC S7-1200 CPU 1214C — 6ES7214-1AG40-0XB0

The S7-1200 is a compact PLC designed for machine-level automation. It can read sensors, operate outputs, execute control logic, and communicate with compatible operator panels and industrial devices.

When used with an IPC847E, the PLC can handle dedicated machine-control functions while the industrial PC runs supervisory software, collects production information, and maintains reports or historical records.

SIMATIC S7-1500 CPU 1511-1 PN — 6ES7511-1AK02-0AB0

The S7-1500 is a modular PLC platform for more demanding automation applications. It provides a structured environment for control logic, communication, diagnostics, and compatible I/O modules.

It may be suitable for larger or more complex machines where the automation architecture requires a modular controller. Selection should take account of the required performance, I/O configuration, communication interfaces, and engineering environment.

SIMATIC HMI TP700 Comfort — 6AV2124-0GC01-0AX0

The TP700 Comfort provides a dedicated operator interface for displaying machine status, process values, alarms, and operating screens.

It can complement the IPC847E by giving operators a direct interface to the machine while the rack PC handles broader computing tasks. The exact functionality depends on the HMI project, controller communications, and compatible engineering software.

SINAMICS G120C — 6SL3210-1KE22-6AF1

The SINAMICS G120C is a variable-frequency drive used to control compatible electric motors. Applications may include conveyors, pumps, fans, and other equipment that benefits from controlled motor speed.

The correct variant must be selected according to the motor’s rated power and current, supply voltage, overload requirements, braking needs, cooling, and control interface.

SIMATIC ET 200SP — 6ES7155-6AU01-0BN0

ET 200SP is a modular distributed-I/O platform that allows compatible input and output modules to be installed near the machinery they serve.

This can simplify field wiring and support distributed automation architectures. The interface module must be matched to the selected I/O modules, power modules, communication network, and system configuration.

11. Installation and Maintenance Recommendations

12. Final Recommendation

The Siemens 6AG4114-3HT12-0DA3 is part of the SIMATIC IPC847E industrial rack PC family, designed for applications that require a general-purpose industrial computer with multiple communication interfaces and support for additional hardware.

Its principal advantages are the standardized 19-inch, 4U rack format, flexible processor and memory options across the product family, three Gigabit Ethernet interfaces, broad peripheral connectivity, and support for expansion cards. Depending on the delivered storage configuration, RAID may also provide additional tolerance to certain drive failures.

The platform is suitable for consideration in SCADA systems, industrial visualization, production data collection, engineering workstations, machine integration, and legacy-computer replacement projects.

Before purchasing the exact model, confirm its installed processor, memory capacity, drive arrangement, RAID configuration, operating system, expansion cards, and power supply. These details are necessary to determine whether the unit will meet the intended workload and whether it can replace an existing computer without significant system changes.

For mechanical planning, use the approximate chassis dimensions of 481.4 × 176.6 × 446.6 mm and an indicative weight of 17 kg, while confirming the actual delivered configuration for final rack-load and installation calculations.

For a replacement project, prioritize compatibility with existing software, interface cards, storage, and connected equipment. For a new system, choose the configuration based on the required processing performance, memory, data-retention needs, availability requirements, and expected service life.
