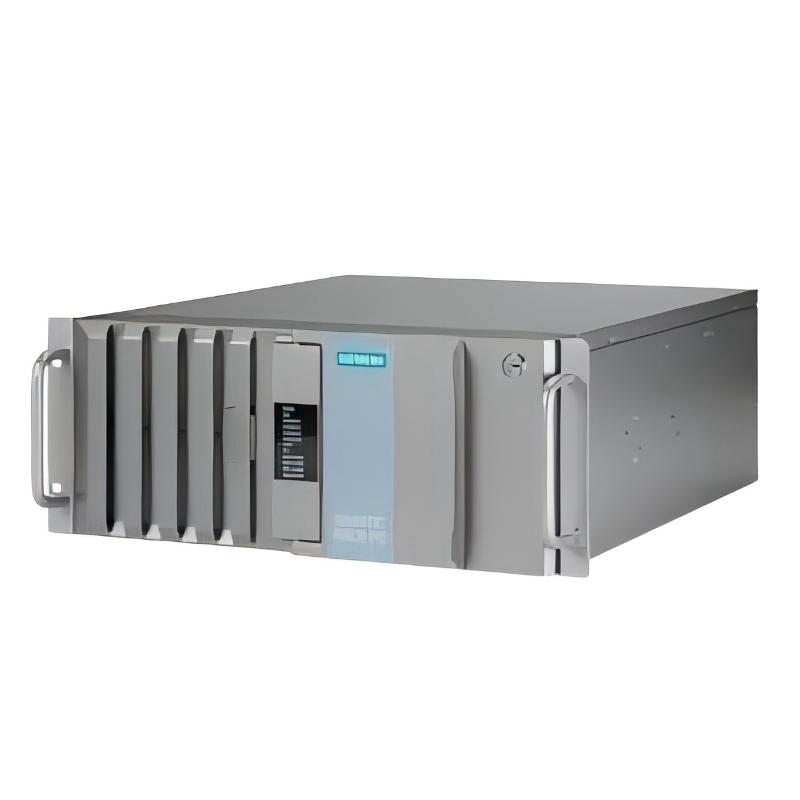

Siemens 6AG4114-3HQ02-0BX2 Industrial Rack PC

1. Product Introduction

The Siemens 6AG4114-3HQ02-0BX2 is a SIMATIC IPC847E industrial rack PC designed for industrial computing, automation applications, production monitoring, and data processing. It combines the processing capability of a desktop-class computer with a rack-mounted design intended for installation in industrial cabinets and equipment racks.

The IPC847E series is intended for applications that require more computing resources and expansion flexibility than a compact embedded computer can typically provide. Its 19-inch, 4U chassis offers room for internal storage, expansion cards, and a range of communication interfaces.

This model is suitable for running compatible industrial software, visualization applications, data acquisition programs, and supervisory computing tasks. It can communicate with PLCs, industrial Ethernet networks, displays, and other compatible peripherals.

The specified configuration includes an Intel Core i7-8700 processor, 16 GB of DDR4 memory, a 480 GB SATA solid-state drive, and Windows 10 Enterprise 2016 LTSB 64-bit. It also provides multiple network interfaces and an expansion board with 11 slots, making it useful for applications that require additional industrial communication or interface hardware.

For industrial installations, the most important considerations are not only processor speed and memory capacity, but also compatibility with existing software, installed expansion cards, storage requirements, electrical supply, cabinet dimensions, and cooling conditions.

2. Brand and Product Series

3. Detailed Technical Specifications

The following table summarizes the specified hardware configuration and the main characteristics of the IPC847E platform.

Configuration note: The specifications above describe the identified configuration. Optional accessories, expansion cards, mounting hardware, and later hardware revisions can affect the final installed arrangement. Confirm the unit’s rating label and mechanical documentation before ordering a replacement.

4. Product Description and Main Functions

4.1 Industrial Computing Platform

The IPC847E is designed to provide computing resources for industrial applications that need to operate continuously within a suitable industrial installation.

Unlike a PLC, which executes a control program on a dedicated automation platform, a rack PC runs a general-purpose operating system and compatible application software. This makes it suitable for tasks such as visualization, data processing, logging, reporting, and communication between different software systems.

The computer can be used as a central processing platform in a production cell, industrial control room, test system, or equipment rack. Its exact role depends on the application architecture.

4.2 Intel Core i7-8700 Processor

The Intel Core i7-8700 has six cores and twelve threads, a base frequency of 3.2 GHz, and a maximum turbo frequency of up to 4.6 GHz.

This processor can handle many industrial computing workloads, including data processing, visualization, database clients, communication software, and several concurrent applications.

The practical performance of the computer also depends on the application design, storage speed, available memory, graphics requirements, and operating-system configuration.

4.3 Memory and Storage

The 16 GB DDR4 memory configuration provides working memory for the operating system and industrial applications. The two 8 GB modules operate in dual-channel mode.

The 480 GB SATA SSD provides storage for the operating system, applications, configuration files, and local data. SSD storage is generally more responsive than a mechanical hard disk for operating-system and application access.

The specified configuration contains one SSD. It should not be assumed to have RAID protection. If the application requires storage redundancy, the storage arrangement must be designed accordingly, with independent backups retained for important data.

4.4 Industrial Network Connectivity

Three Gigabit Ethernet interfaces allow the computer to connect to multiple network segments or groups of devices.

For example, an installation may use separate connections for a machine network, a supervisory system, and a maintenance network. This arrangement can simplify network planning, provided that routing, access control, and cybersecurity are configured correctly.

4.5 Expansion and Peripheral Connectivity

The 11-slot expansion arrangement is a major feature of this configuration. Supported PCI and PCI Express cards can provide additional communication interfaces, measurement capabilities, or other specialized functions.

The computer also offers USB, serial, audio, and display connections for compatible peripherals and service equipment.

Before installing an expansion card, confirm the card’s electrical interface, physical dimensions, driver support, operating-system compatibility, power requirements, and cooling needs.

5. Product Applications

5.1 Factory Automation

The IPC847E can run software that monitors manufacturing processes, collects equipment data, and coordinates industrial applications.

In a production environment, it may act as a supervisory computer that receives information from PLCs and connected devices, processes the data, and presents operational information to engineers and operators.

5.2 SCADA and Industrial Visualization

The computer can host compatible SCADA applications and visualization runtimes. Typical functions include displaying machine status, production values, alarms, operating trends, and historical information.

The available display interfaces provide options for connecting compatible monitors. The final display arrangement depends on graphics support, operating-system drivers, and application requirements.

5.3 Data Acquisition and Recording

Industrial processes often generate large quantities of operating information. The IPC847E can be used to collect, process, store, and transfer data from compatible controllers, instruments, sensors, or specialized interface cards.

The 480 GB SSD provides local storage, but the required capacity should be calculated according to data volume, retention period, and backup policy.

5.4 Machine Vision and Inspection

The computer can support compatible inspection software and specialized image-acquisition hardware. Possible uses include production inspection, measurement, test-result processing, and quality-record management.

The suitability of the platform depends on the camera interfaces, image resolution, data rate, processing load, and response-time requirements of the application.

5.5 Industrial Test Systems

Automated testing equipment may need a computer to run test sequences, communicate with instruments, store measurements, and generate reports.

The IPC847E’s expansion slots can be useful when a test system requires dedicated measurement or communication cards. Compatibility must be verified for the selected hardware and software.

5.6 Production Data Management

The computer can run applications that collect production counts, operating status, alarm histories, and other process information.

This data may be used for production reporting, traceability, equipment analysis, and maintenance planning. Applications with long data-retention requirements should use an appropriate storage and backup strategy.

6. Main Product Advantages

6.1 Flexible Hardware Integration

The combination of standard interfaces and internal expansion capacity makes the IPC847E suitable for applications that require more than basic computer connectivity.

Specialized communication cards, data acquisition cards, and other compatible hardware can be installed where the available slots, power supply, cooling, and drivers permit.

6.2 Support for Established Industrial Software

The specified Windows 10 Enterprise 2016 LTSB environment can be relevant to installations that rely on existing Windows-based industrial applications.

However, software compatibility should be checked carefully. The operating system’s support status, security requirements, licensing, and driver availability must be considered before deploying or replacing the computer.

6.3 Centralized Computing

A rack PC can consolidate several application functions in one location. This may simplify administration and reduce the need for multiple independent computers.

The trade-off is that a computer failure may affect all applications hosted on that machine. Critical installations should include backup, recovery, and spare-hardware arrangements.

7. Installation and Maintenance Considerations

8. Five Related Models in the Same Series

The following IPC847E models provide alternatives for comparing storage configurations, processors, and memory capacities. They are related models rather than guaranteed drop-in replacements.

Comparison of the Related Models

– 6AG4114-3HQ02-0BX1: A close comparison for installations that need the Core i7-8700 processor, 16 GB of RAM, and a 480 GB SSD.

– 6AG4114-3HT02-0BX2: The documented RAID 1 configuration uses two 480 GB SSDs. RAID 1 can improve availability if one drive fails, but it does not replace independent backups.

– 6AG4114-3HB53-0BX2: Worth comparing when a higher-memory configuration is needed. Verify the drive arrangement and software configuration before purchase.

– 6AG4114-3MX02-0XX1: Uses a Xeon processor in its documented configuration. Check the exact CPU and storage requirements when considering it for a replacement project.

– 6AG4114-3GP52-0BX2: Provides a different storage arrangement with a front-access drive configuration. This can be useful when drive servicing and storage capacity are important considerations.

9. Five Other Popular Models from the Same Brand

These products belong to other industrial automation categories. They can complement a rack PC in a wider system, but they do not replace its computing functions directly.

Dimensions and weights for the related product families are approximate reference values. Verify the exact order code, electrical rating, mounting arrangement, and accessories before procurement.

10. How These Products Work Together

In a typical installation, the IPC847E runs general-purpose software and handles tasks such as visualization, logging, data processing, or supervisory monitoring. A PLC executes its control program, an HMI provides the operator interface, and the drive controls a compatible motor.

The final architecture depends on the process requirements, network design, safety requirements, and the responsibilities assigned to each device.

11. Procurement and Replacement Checklist

Before ordering the 6AG4114-3HQ02-0BX2 or selecting an alternative, confirm the following:

1. Complete order number: Ensure that the full model number and suffix match the required configuration.

2. Processor: Confirm the Intel Core i7-8700 processor and the performance requirements of the application.

3. Memory: Verify that the installed 16 GB DDR4 configuration is sufficient.

4. Storage: Confirm the 480 GB SATA SSD and determine whether additional drives or RAID are required.

5. Operating system: Check the Windows edition, application compatibility, driver availability, and licensing.

6. Expansion cards: Record all installed PCI and PCI Express cards and verify their compatibility with the replacement.

7. Network interfaces: Document network addresses, communication settings, and dependencies.

8. Power supply: Verify the electrical rating and the site’s power requirements.

9. Mechanical fit: Confirm the 19-inch, 4U chassis dimensions and the cabinet’s load capacity.

10. Backup and recovery: Preserve system images, application configuration, licenses, and production data.

11. Commissioning: Test the software, peripherals, network communication, and industrial application before returning the system to service.

12. Final Summary

The Siemens 6AG4114-3HQ02-0BX2 is a SIMATIC IPC847E industrial rack PC designed for industrial computing, automation software, visualization, and data processing.

Its specified configuration includes an Intel Core i7-8700 processor, 16 GB DDR4 memory, a 480 GB SATA SSD, Windows 10 Enterprise 2016 LTSB 64-bit, three Gigabit Ethernet interfaces, two DisplayPort connections, one DVI-D connection, and an 11-slot expansion arrangement.

The chassis measures approximately 430 × 177 × 444 mm and weighs 17 kg. Its rack-mounted format, multiple communication interfaces, and expansion capacity make it suitable for industrial environments that need a flexible computer platform.

When selecting a replacement or related model, pay particular attention to the processor, storage configuration, operating system, expansion hardware, power supply, and physical installation requirements. These factors determine whether the computer will integrate properly with the existing industrial system.
