Product Overview

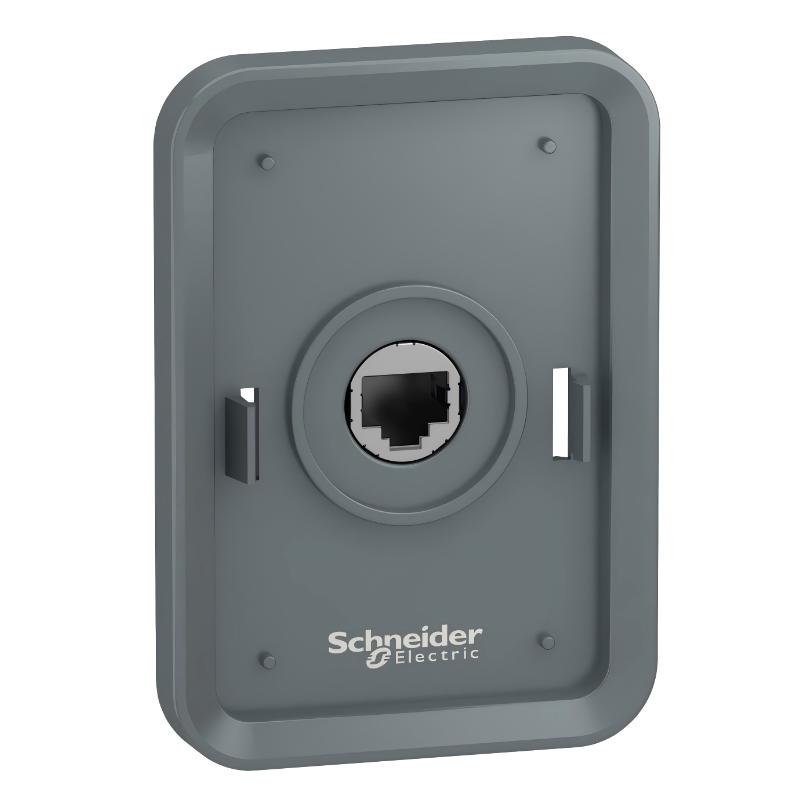

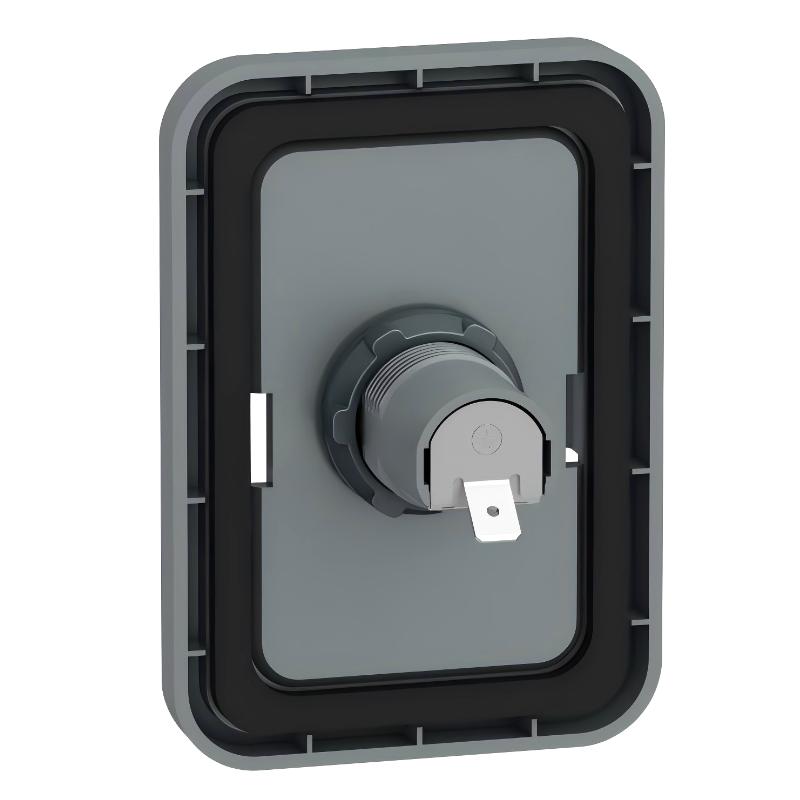

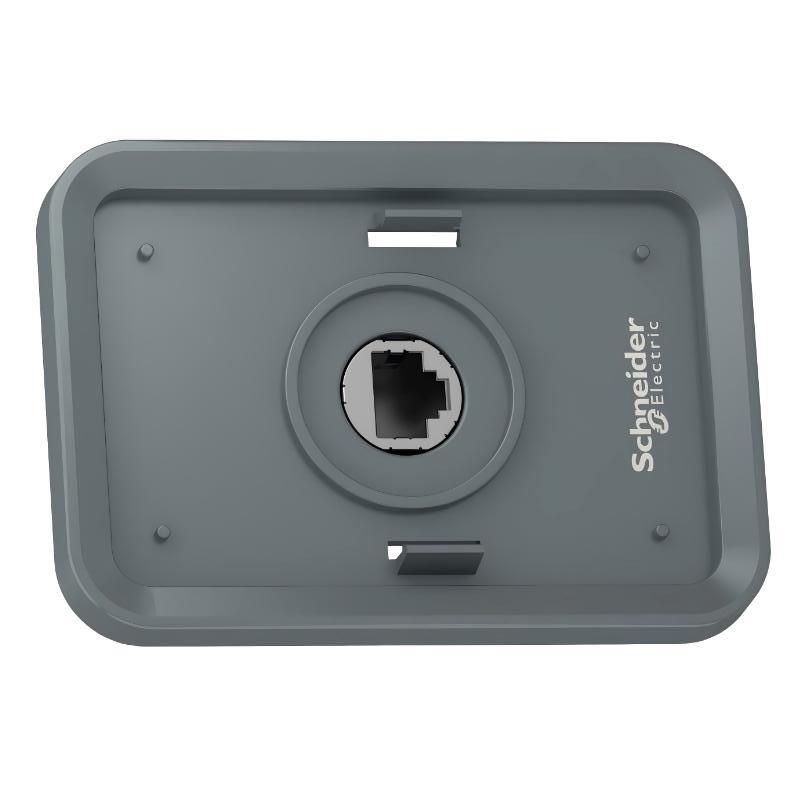

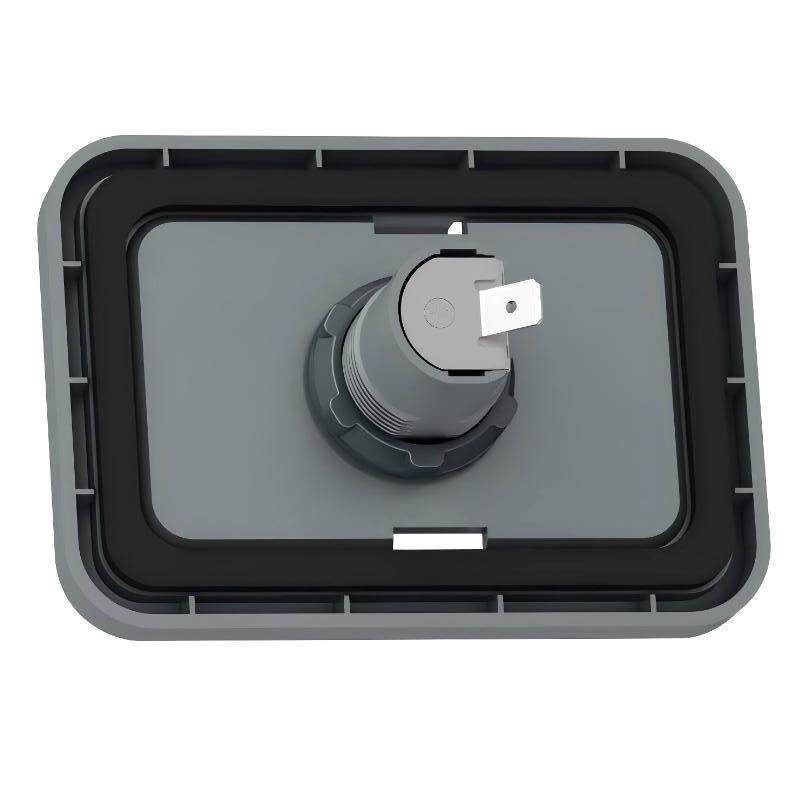

The Schneider VW3A1114 Basic Keypad Door Mounting Kit is a mounting accessory used to install a compatible Altivar basic keypad or operator interface on an electrical cabinet or control-panel door.
This arrangement is useful when the Altivar drive is installed inside the cabinet but basic drive interaction needs to remain available from the front of the enclosure. The keypad can be positioned at the operator station while the drive and associated electrical equipment remain housed behind the panel.
For machine builders and maintenance engineers, the VW3A1114 is mainly relevant to panel construction, keypad relocation, and retrofit work where an existing Altivar installation requires an accessible front-panel interface.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | VW3A1114 |
| Product Family | Altivar |
| Product Type | Basic Keypad Door Mounting Kit |
| Primary Function | Basic Keypad Door Mounting |
| System Role | Operator Interface Mounting Accessory |
| Application | Altivar Variable Speed Drive Systems |
| Installation | Electrical Cabinet / Control Panel Door |
| Dimensions | 99 × 20.16 × 70 mm |
| Weight | 0.04 kg |
Product Features
- Schneider Electric Altivar Basic Keypad Door Mounting Kit
- Model VW3A1114
- Supports installation of a compatible basic keypad on a cabinet door
- Suitable for Altivar drive control panels
- Allows operator access from the front of the enclosure
- Keeps the drive installed inside the cabinet
- Useful for machine-control panel construction
- Suitable for retrofit applications
- Applicable to maintenance and replacement projects
- Compact mounting accessory
Working Principle
The VW3A1114 provides the mechanical mounting arrangement for positioning a compatible Altivar basic keypad at the front of an enclosure.
Basic Keypad → VW3A1114 → Control Panel Door → Altivar Drive
The mounting kit itself does not process drive signals or execute motor-control functions. Instead, it secures the keypad in the required panel position so that the operator can interact with the connected Altivar system from outside the cabinet.
The electrical and communication functions remain with the keypad and Altivar drive. The VW3A1114 handles the physical installation relationship between the operator interface and the cabinet door.
Role in an Altivar Drive System
| System Element | Function |
|---|---|
| VW3A1114 | Mounts the basic keypad on the panel door |
| Basic Keypad | Provides basic operator access |
| Altivar Drive | Controls motor operation |
| Control Cabinet | Houses the drive and electrical equipment |
| Communication Connection | Links keypad and drive |
| Electric Motor | Converts electrical power into mechanical output |
| Machine / Process | Uses the controlled motor |
The VW3A1114 therefore belongs to the mechanical interface portion of the system rather than the drive-control electronics.
Industrial Applications
| Application | Typical Use |
|---|---|
| Machine Control Panels | Front-panel keypad installation |
| Conveyor Systems | Accessible drive interface |
| Pumping Equipment | Cabinet-door operator access |
| HVAC Systems | Basic drive interface mounting |
| Material Handling | Operator keypad positioning |
| Process Machinery | Drive-interface installation |
| Motor-Control Cabinets | Door-mounted keypad |
| Industrial Automation | Panel retrofit and modification |
Installation and Maintenance
- Confirm the VW3A1114 model before installation.
- Verify compatibility with the intended Altivar keypad.
- Check the cabinet-door mounting location.
- Confirm the required panel opening and mounting arrangement.
- Position the mounting kit correctly.
- Secure the mounting hardware.
- Install the compatible keypad.
- Check that the keypad is firmly retained.
- Inspect mounting points during routine maintenance.
- Check for looseness caused by repeated cabinet-door movement.
- Inspect the panel and mounting interface for mechanical damage.
- Verify keypad operation after installation.
- Check the associated connection between keypad and drive.
If the keypad becomes loose or difficult to operate after repeated door movement, inspect the mounting arrangement before troubleshooting the drive itself.
Related Components
| Component | Function |
|---|---|
| Schneider Electric VW3A1114 | Basic Keypad Door Mounting Kit |
| Altivar Basic Keypad | Basic drive operator interface |
| VW3A1112 | Door Mounting Kit |
| VW3A1102 | Variable Speed Door Mounting Kit |
| VW3A1111 | Altivar Graphic Display Terminal |
| VW3A1113 | Altivar Plain Text Display Terminal |
| Altivar Drive | Variable speed motor control |
| Control Cabinet | Houses drive equipment |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Schneider Electric VW3A1114 | Basic Keypad Door Mounting Kit | Door-mounted keypad installation |
| Schneider Electric VW3A1112 | Door Mounting Kit | Operator interface mounting |
| Schneider Electric VW3A1102 | Altivar Variable Speed Door Mounting Kit | Remote terminal installation |
| Schneider Electric VW3A1111 | Altivar Graphic Display Terminal | Drive monitoring and operation |
| Schneider Electric VW3A1113 | Altivar Plain Text Display Terminal | Basic drive information display |
| Schneider Electric VW3A1101 | Altivar Remote Graphic Terminal | Remote drive configuration |
| Schneider Electric VW3A1006 | Altivar Remote Terminal | Remote drive operation |
| Schneider Electric VW3A1007 | Altivar Remote Terminal | Remote drive operation |
Key Advantages
- Altivar Basic Keypad Door Mounting Kit
- Model VW3A1114
- Supports front-panel keypad installation
- Suitable for electrical cabinet doors
- Provides accessible operator-interface positioning
- Keeps the drive inside the enclosure
- Suitable for machine and process control panels
- Useful for retrofit and maintenance work
- Compact mounting accessory
Technical FAQs
What does the VW3A1114 mount on the cabinet door?
The VW3A1114 is intended to provide the mounting arrangement for a compatible Altivar basic keypad or operator interface, allowing the keypad to be accessible from the front of the enclosure.
Does the mounting kit change the functionality of the keypad?
No. The VW3A1114 is a mechanical accessory. It does not add drive-control functions or modify the keypad’s electrical operation.
Why would a basic keypad need a separate door mounting kit?
When the drive is located inside an electrical cabinet, the keypad may need to be relocated to the enclosure door for operator access. The mounting kit provides the mechanical arrangement needed for this type of installation.
What should be checked if the keypad moves when operated?
Inspect the mounting hardware, panel opening, and keypad-to-mounting interface. Repeated operation or cabinet-door movement can expose loose mounting hardware, which should be corrected before continued use.
