Product Overview

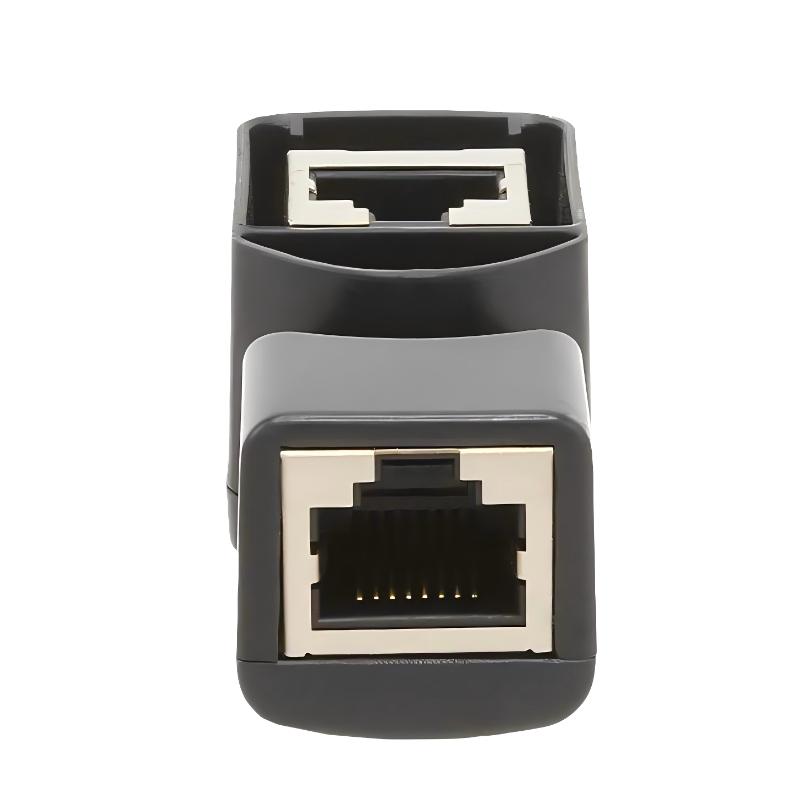

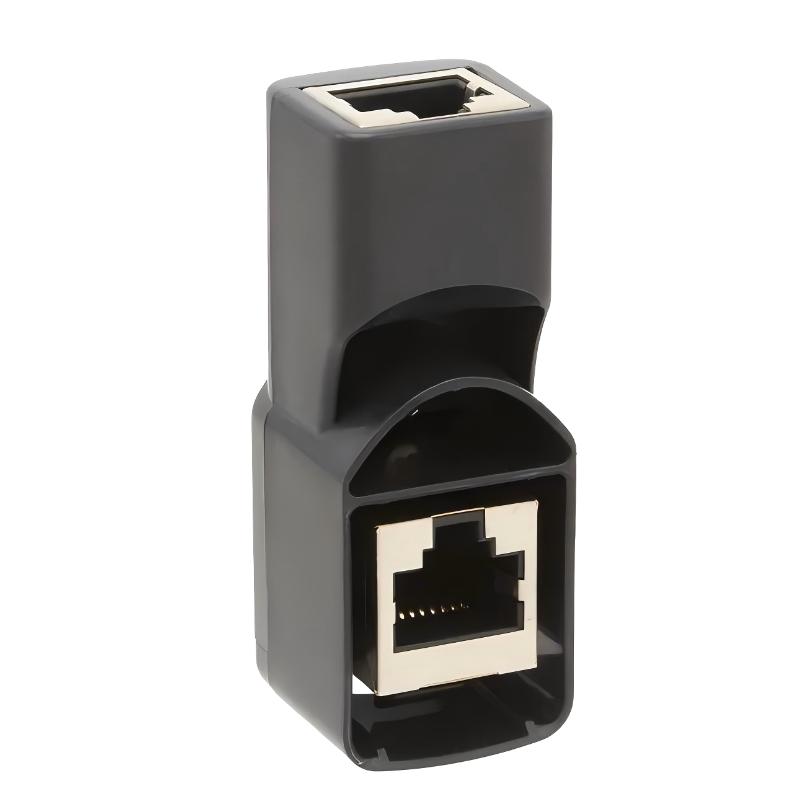

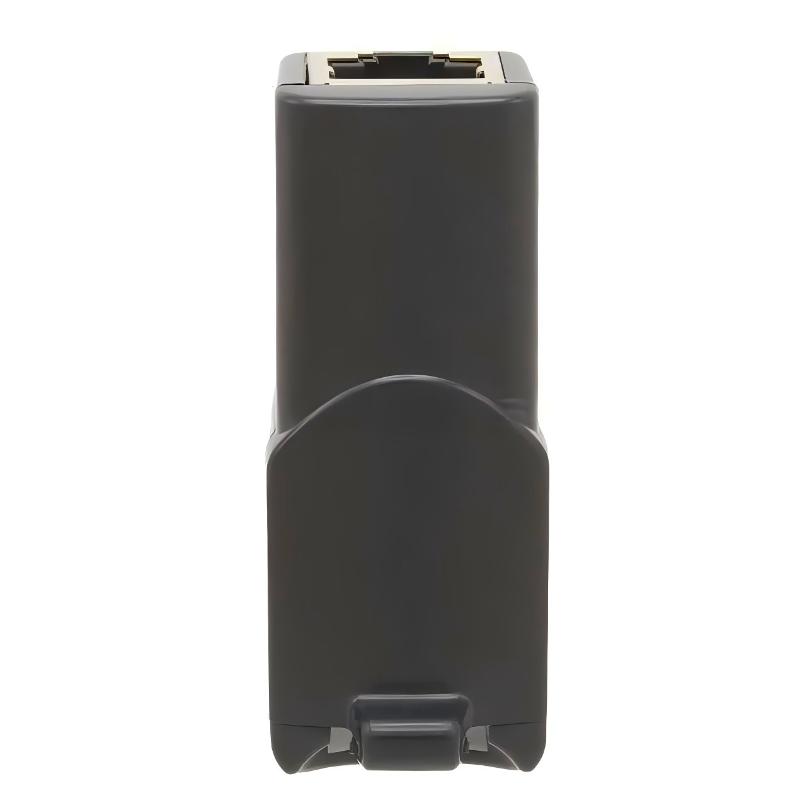

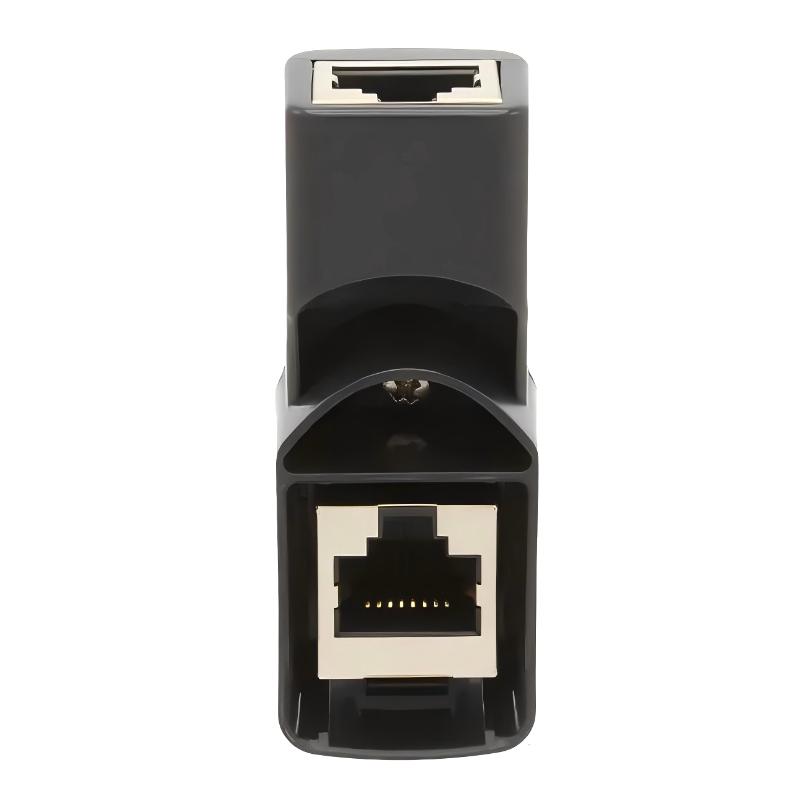

The Schneider VW3A1105 RJ45 Female Female Adaptor is an interface accessory used to connect two RJ45 male-ended connections within compatible Altivar communication and remote-terminal arrangements.
The adaptor is useful when an existing cable configuration requires a female-to-female connection rather than a direct cable-to-device connection. It can simplify connection changes during control-panel installation, remote-terminal setup, or replacement work without requiring modification of the existing cable assemblies.
Within an Altivar installation, the VW3A1105 can serve as a small but practical connection component between communication cables or interface sections.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | VW3A1105 |
| Product Family | Altivar |
| Product Type | RJ45 Female Female Adaptor |
| Connector Type | RJ45 Female to Female |
| Primary Function | RJ45 Connection Adaptation |
| System Role | Communication Interface Accessory |
| Application | Altivar Drive / Remote Terminal Connection |
| Dimensions | 85 × 50 × 20 mm |
| Weight | 0.01 kg |
Product Features
- Schneider Electric Altivar RJ45 Female Female Adaptor
- Model VW3A1105
- Female-to-female RJ45 connection
- Used to join compatible RJ45 connections
- Suitable for Altivar communication arrangements
- Useful for remote-terminal connection layouts
- Simplifies cable interconnection
- Compact interface accessory
- Suitable for control-panel modifications
- Useful for maintenance and replacement work
Working Principle
The VW3A1105 provides a direct mechanical and electrical connection between two compatible RJ45 male connectors.
RJ45 Connection → VW3A1105 → RJ45 Connection
The adaptor does not perform signal processing or protocol conversion. It maintains the connection between the two cable ends so that the communication path can continue through the adaptor.
In an Altivar remote-interface installation, it can be used where the available cable configuration requires an additional female-to-female connection point.
Role in an Altivar Communication System
| System Element | Function |
|---|---|
| VW3A1105 | RJ45 female-to-female connection |
| Communication Cable | Carries interface signals |
| Remote Terminal | Provides operator access |
| Altivar Drive | Performs drive control |
| Communication Interface | Handles connection between devices |
| Control Cabinet | Houses drive and related equipment |
The adaptor functions only as an interconnection component. It does not replace the remote terminal, communication cable, or Altivar drive.
Industrial Applications
| Application | Typical Use |
|---|---|
| Altivar Drive Panels | RJ45 cable interconnection |
| Machine Control Panels | Communication cable extension arrangement |
| Remote Terminal Systems | Interface connection |
| Industrial Automation | RJ45 connection adaptation |
| Motor-Control Cabinets | Communication wiring |
| Process Equipment | Drive interface connection |
| Retrofit Projects | Existing cable arrangement modification |
| Maintenance Work | Replacement of damaged connection hardware |
Installation and Maintenance
- Confirm the VW3A1105 model before installation.
- Verify that the connected cable ends use compatible RJ45 connectors.
- Inspect both RJ45 sockets before connection.
- Check the adaptor housing for cracks or deformation.
- Ensure the plugs are fully inserted.
- Avoid excessive mechanical force on the adaptor.
- Prevent unnecessary tension on connected cables.
- Check the communication path after installation.
- Verify that the connected Altivar equipment communicates normally.
- Inspect the adaptor if communication becomes intermittent.
- Replace the adaptor if the connector interface is damaged or unreliable.
A communication fault should be checked at the cable, RJ45 plug, adaptor, and connected equipment rather than assuming the drive or remote terminal has failed.
Related Components
| Component | Function |
|---|---|
| Schneider Electric VW3A1105 | RJ45 Female Female Adaptor |
| Altivar Remote Terminal | Operator interface |
| Communication Cable | Carries communication signals |
| Altivar Drive | Variable speed motor control |
| RJ45 Connector | Physical communication connection |
| Control Cabinet | Houses drive equipment |
| Machine Control Panel | Provides operator access |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Schneider Electric VW3A1105 | RJ45 Female Female Adaptor | RJ45 cable interconnection |
| Schneider Electric VW3A1101 | Altivar Remote Graphic Terminal | Drive operation and configuration |
| Schneider Electric VW3A1006 | Altivar Remote Terminal | Remote drive operation |
| Schneider Electric VW3A1007 | Altivar Remote Terminal | Remote drive operation |
| Schneider Electric VW3A1102 | Altivar Variable Speed Door Mounting Kit | Remote terminal installation |
| Schneider Electric VW3A1103 | Altivar Protective Front Door | Terminal protection |
| Schneider Electric ATV61 | Altivar Variable Speed Drive | Industrial motor control |
| Schneider Electric ATV71 | Altivar Variable Speed Drive | High-performance motor control |
Key Advantages
- Altivar RJ45 Female Female Adaptor
- Model VW3A1105
- Female-to-female RJ45 interface
- Joins compatible RJ45 cable connections
- Suitable for Altivar communication arrangements
- Useful for remote-terminal installations
- Compact connection accessory
- Suitable for retrofit and maintenance work
Technical FAQs
What type of connection does the VW3A1105 provide?
The VW3A1105 provides a female-to-female RJ45 connection, allowing two compatible RJ45 male connectors to be joined.
Does the adaptor convert or amplify the communication signal?
No. The adaptor functions as a connection interface and does not itself provide signal conversion, amplification, or protocol processing.
When would an RJ45 female-to-female adaptor be useful in an Altivar installation?
It can be useful when two existing RJ45-ended cables need to be connected and their connector genders do not allow a direct connection. This can occur during remote-terminal installation, panel modification, or cable replacement.
What should be checked if communication becomes intermittent after installing the adaptor?
Inspect both RJ45 connections, the adaptor sockets, and the connected cables. Check for incomplete insertion, damaged contacts, mechanical stress, or cable movement that could affect the connection.
