Product Overview

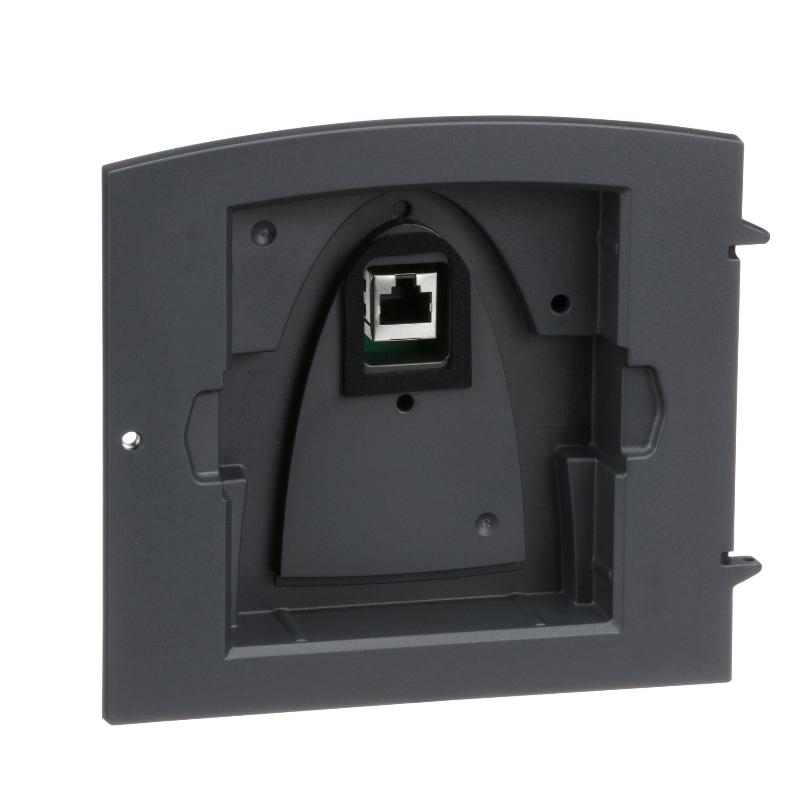

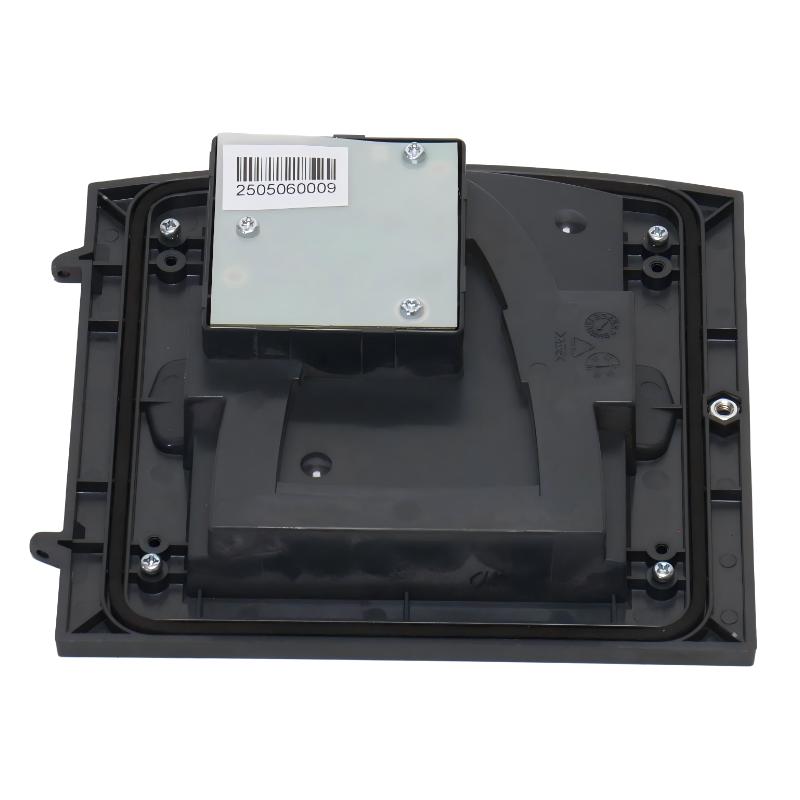

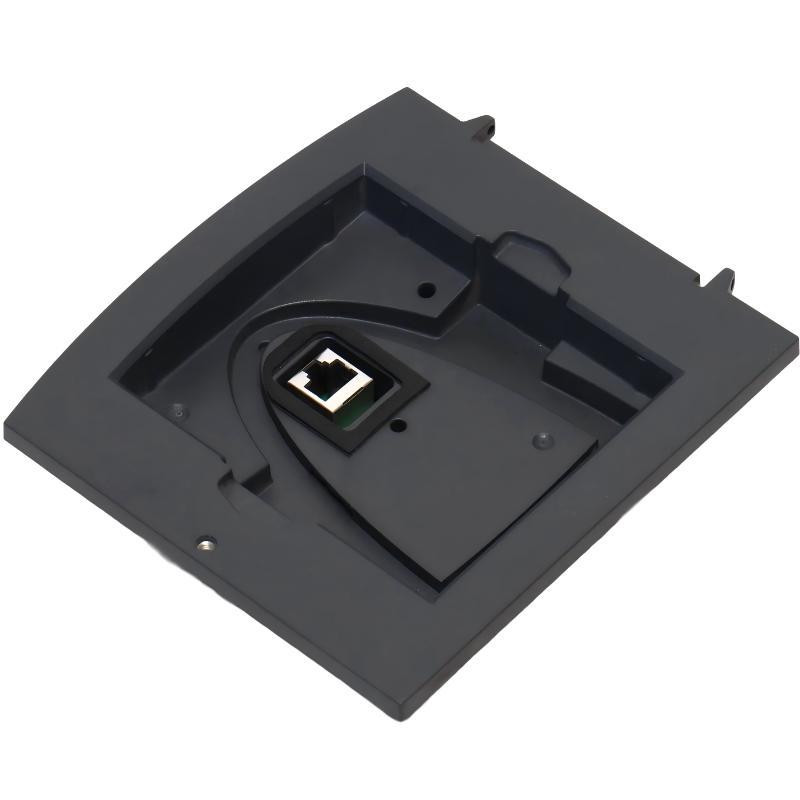

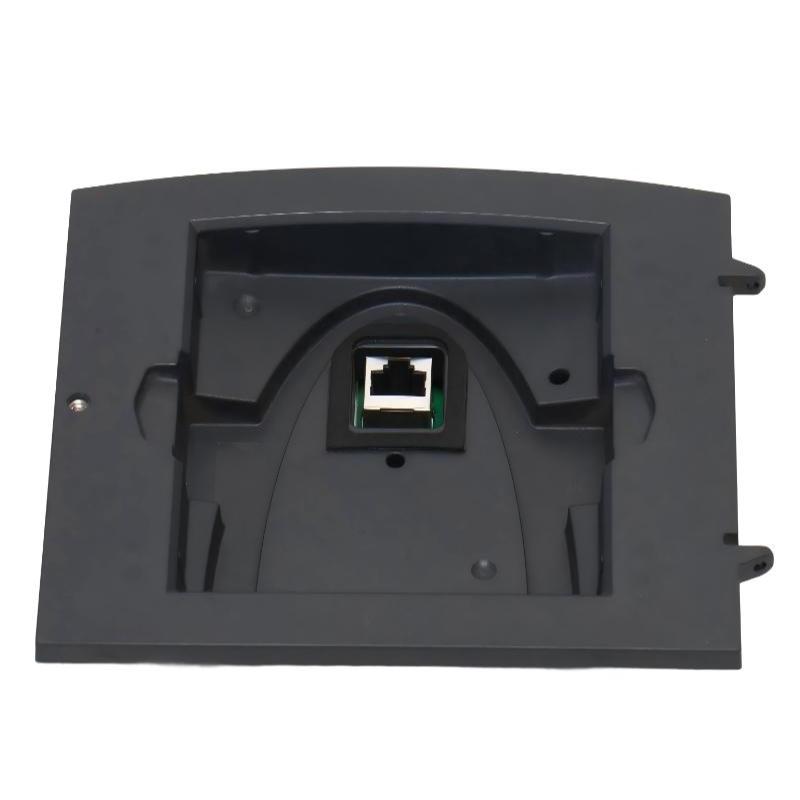

The Schneider VW3A1102 Altivar Variable Speed Door Mounting Kit is an installation accessory used to mount a compatible Altivar remote operator terminal on a cabinet or enclosure door.
The kit is useful when the variable speed drive remains inside an electrical enclosure but the operator interface needs to be accessible from the outside. The terminal can therefore be positioned on the cabinet door while the drive and associated equipment remain protected inside the enclosure.
This arrangement is common in motor-control panels where operators need to monitor or adjust drive functions without opening the cabinet. The VW3A1102 is associated with remote terminal installations and is particularly relevant when building or modifying an Altivar control panel.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | VW3A1102 |
| Product Family | Altivar |
| Product Type | Variable Speed Door Mounting Kit |
| Primary Function | Remote Terminal Door Mounting |
| System Role | Drive Operator Interface Mounting |
| Application | Variable Speed Drive Control Panels |
| Installation | Electrical Cabinet / Enclosure Door |
| Dimensions | 150 × 120 × 30 mm |
| Weight | 0.15 kg |
Product Features
- Schneider Electric Altivar mounting accessory
- Model VW3A1102
- Designed for door-mounted remote terminal installations
- Supports external operator access to compatible Altivar drives
- Suitable for electrical cabinets and control panels
- Keeps the drive inside the enclosure while allowing terminal access
- Useful for machine-control panel construction
- Applicable to remote graphic terminal installations
- Simplifies positioning of the operator interface
- Suitable for installation, retrofit, and maintenance work
Working Principle
The VW3A1102 provides the mechanical mounting arrangement for positioning a compatible Altivar remote terminal on an enclosure door.
Control Cabinet → VW3A1102 → Remote Terminal → Altivar Drive
The mounting kit itself does not process drive signals or control the motor. Its function is mechanical: it holds the remote interface in the required panel position and allows the operator to access the terminal from outside the enclosure.
A typical arrangement places the Altivar drive and power components behind the cabinet door, with the remote terminal installed through the door using the mounting arrangement. Communication between the terminal and drive continues through the appropriate connection hardware.
Role in an Altivar Control Panel
| System Element | Function |
|---|---|
| VW3A1102 | Mounts the remote terminal on the enclosure door |
| Remote Graphic Terminal | Provides operator access |
| Altivar Drive | Controls motor speed and operation |
| Control Cabinet | Houses drive and electrical equipment |
| Communication Cable | Connects terminal and drive |
| Electric Motor | Controlled mechanical load |
| Machine / Process | Uses the motor-driven equipment |
The VW3A1102 therefore belongs to the mechanical installation side of the remote operator interface rather than the electrical control or power-conversion section.
Industrial Applications
| Application | Typical Use |
|---|---|
| Motor Control Cabinets | Door-mounted drive interface |
| Machine Control Panels | External operator access |
| Conveyor Systems | Accessible drive operation |
| Pumping Equipment | Remote drive monitoring |
| HVAC Panels | Drive interface mounting |
| Material Handling | Operator access to drive functions |
| Process Machinery | Remote terminal installation |
| Industrial Automation | Cabinet-mounted operator interface |
Installation and Maintenance
- Confirm the VW3A1102 model before installation.
- Verify compatibility with the intended remote terminal and Altivar installation.
- Check the enclosure-door mounting location.
- Confirm the required panel opening and mounting arrangement.
- Ensure adequate clearance behind the door.
- Install the mounting kit securely.
- Position the remote terminal correctly.
- Check the mechanical fit before connecting the interface.
- Inspect mounting hardware during maintenance.
- Check the terminal for movement or loose mounting.
- Inspect the surrounding enclosure for deformation or damage.
- Verify terminal operation after installation.
- Check the communication connection between the terminal and drive.
A loose mounting arrangement can place unnecessary mechanical stress on the terminal and its connection, particularly when the cabinet door is opened and closed frequently.
Related Components
| Component | Function |
|---|---|
| Schneider Electric VW3A1102 | Variable Speed Door Mounting Kit |
| VW3A1101 | Altivar Remote Graphic Terminal |
| VW3A1006 | Altivar Remote Terminal |
| VW3A1007 | Altivar Remote Terminal |
| VW3A1104R10 | Communication Cable |
| VW3A1104R30 | Communication Cable |
| Altivar Drive | Variable speed motor control |
| Control Cabinet | Houses electrical equipment |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Schneider Electric VW3A1102 | Altivar Variable Speed Door Mounting Kit | Remote terminal door mounting |
| Schneider Electric VW3A1101 | Altivar Remote Graphic Terminal | Drive monitoring and configuration |
| Schneider Electric VW3A1006 | Altivar Remote Terminal | Remote drive operation |
| Schneider Electric VW3A1007 | Altivar Remote Terminal | Remote drive operation |
| Schneider Electric VW3A1103 | Altivar Protective Front Door | Remote terminal protection |
| Schneider Electric VW3A1104R10 | Altivar Communication Cable | Terminal-to-drive connection |
| Schneider Electric ATV61 | Altivar Variable Speed Drive | Industrial motor control |
| Schneider Electric ATV71 | Altivar Variable Speed Drive | High-performance motor control |
Key Advantages
- Altivar variable speed door mounting accessory
- Model VW3A1102
- Supports remote terminal installation on enclosure doors
- Provides accessible operator-interface positioning
- Keeps the main drive inside the electrical cabinet
- Suitable for machine and process control panels
- Compatible with remote-terminal installation arrangements
- Useful for new installations and retrofit projects
Technical FAQs
What is the primary purpose of the VW3A1102?
The VW3A1102 provides the mounting arrangement needed to install a compatible Altivar remote terminal on a cabinet or enclosure door. It does not perform drive control or signal processing.
Why mount the remote terminal on the cabinet door?
Door mounting allows operators to access drive information and supported functions without opening the electrical enclosure. This is particularly useful for equipment that requires frequent operator interaction.
Does the VW3A1102 replace the communication connection between the terminal and drive?
No. The mounting kit handles the physical installation of the terminal. The appropriate communication connection between the remote terminal and Altivar drive is still required.
What should be inspected if a door-mounted terminal becomes loose?
Check the mounting hardware, panel opening, enclosure-door condition, and terminal mounting interface. Repeated door movement or excessive mechanical loading can gradually loosen the mounting arrangement and place stress on connected components.
