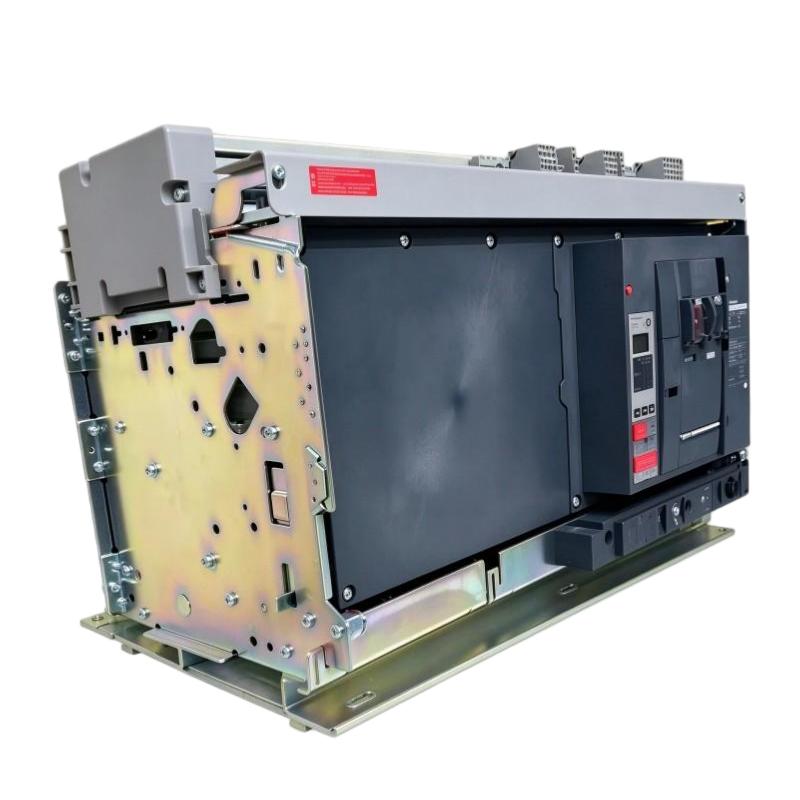

Product Overview

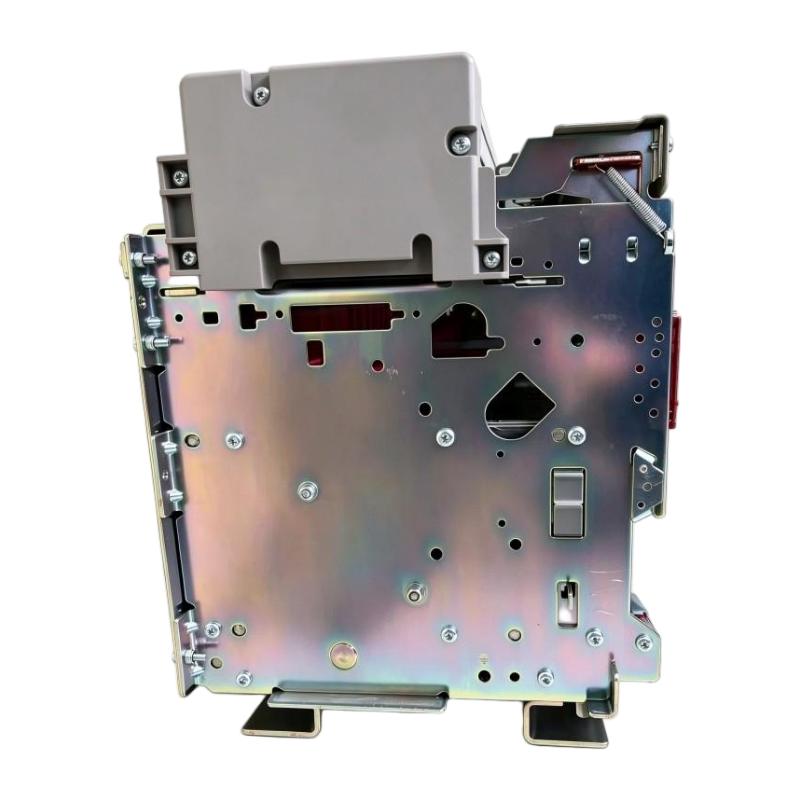

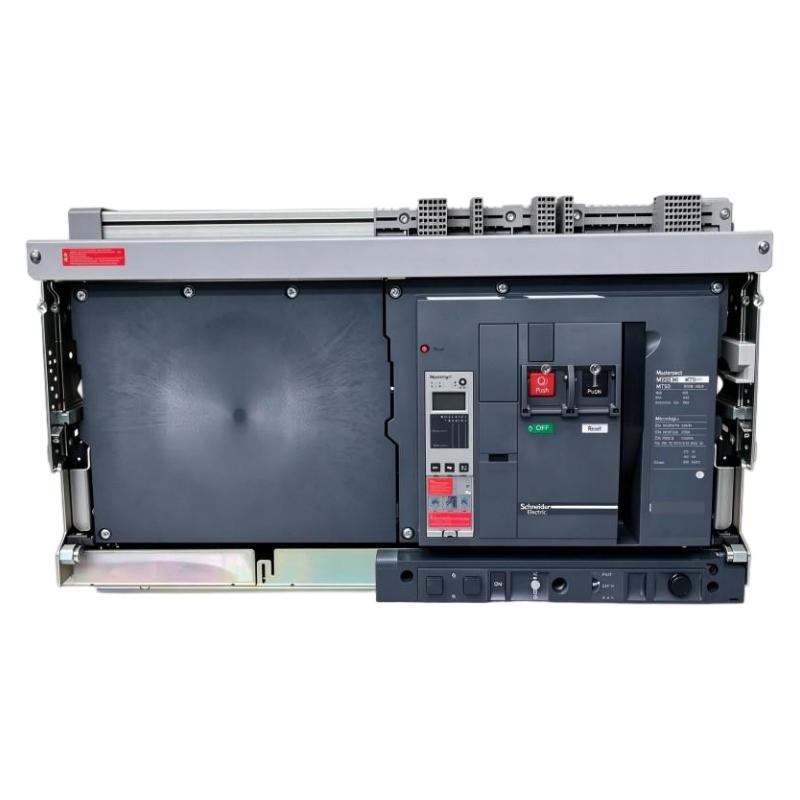

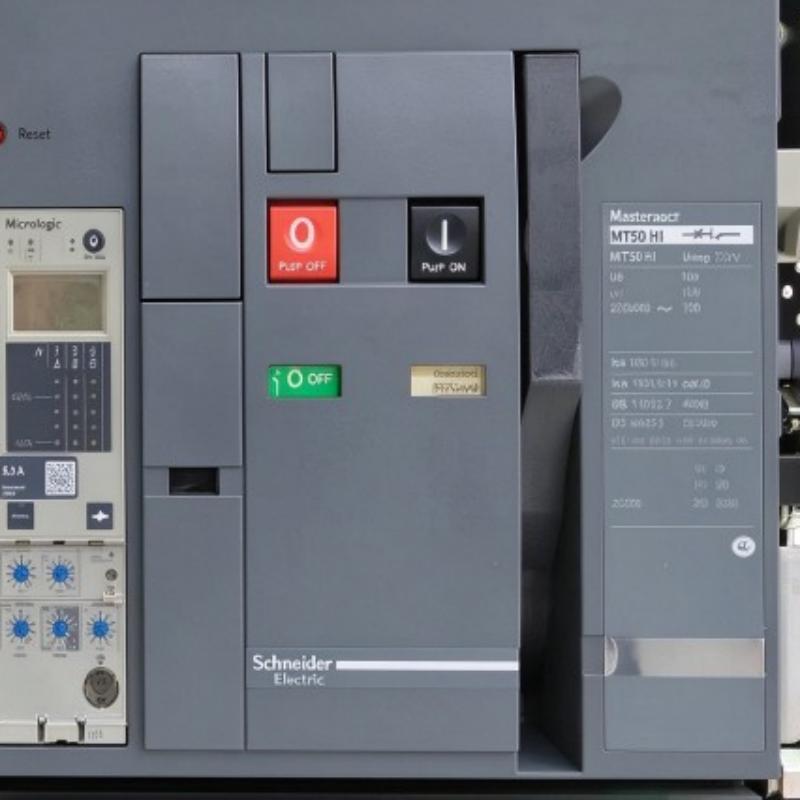

The Schneider MT50H1 Circuit Breaker is listed as a heavy-duty industrial circuit protection device intended for electrical power distribution and equipment protection applications. Circuit breakers play an essential role in industrial electrical systems by interrupting current when abnormal operating conditions, such as overloads or short circuits, occur.

In large industrial installations, circuit protection equipment must be selected according to the electrical characteristics of the power distribution network. These include rated operating voltage, continuous current, short-circuit capacity, number of poles, and the characteristics of the connected loads.

The MT50H1 designation should be checked carefully against the product nameplate and complete manufacturer catalog number before installation or replacement. Related Schneider Electric and Square D M50H1 listings describe a Masterpact-type, three-pole insulated-case circuit breaker with a maximum current designation of 5000 A and a voltage rating of 600 V. However, those specifications should not automatically be assigned to the MT50H1 without confirming that the two designations refer to the same equipment configuration.

For industrial maintenance teams, accurate identification is particularly important when dealing with large-frame circuit breakers. A model that appears similar may have a different trip unit, interruption rating, connection arrangement, or mechanical configuration.

This listing provides the supplied physical dimensions of 819 × 311 × 290 mm and a weight of 120 kg. These values should be checked against the actual unit before planning transportation, installation, or replacement work.

Technical Specifications

Important: Electrical ratings are intentionally not assigned from the related M50H1 designation. Confirm the exact MT50H1 identity and ratings from the product nameplate and manufacturer documentation before specifying or installing the breaker.

Function and Working Principle

A circuit breaker is designed to protect electrical circuits by detecting abnormal current conditions and interrupting the electrical path when the operating limits are exceeded.

The Schneider MT50H1 listing identifies a circuit protection product for industrial electrical applications. Its precise protection characteristics depend on the actual breaker configuration and installed trip unit.

1. Overload Protection

An overload occurs when a circuit carries more current than its intended operating level for a sustained period.

If the current exceeds the configured protection threshold, the circuit breaker’s trip mechanism can initiate an interruption. This helps prevent excessive heating in conductors, busbars, electrical connections, and connected equipment.

The overload protection settings must be coordinated with the conductor ratings, equipment requirements, and applicable electrical standards.

2. Short-Circuit Protection

A short circuit can produce a very high current within a short period. Without suitable protection, this fault current may cause severe thermal and mechanical stress.

Industrial circuit breakers are designed to interrupt fault currents within their specified breaking capacity. The required interruption rating must be greater than or equal to the prospective short-circuit current at the installation point.

For the MT50H1, the actual breaking capacity should be confirmed from the correct manufacturer documentation rather than inferred from a similar model designation.

3. Switching and Isolation

Depending on its configuration and installation, a large-frame circuit breaker can also serve as a switching device for controlling the connection of an electrical circuit.

Operating mechanisms and auxiliary accessories may provide local status indication, remote signaling, or electrical interlocking. These functions depend on the installed hardware and should be checked before designing a control scheme.

A circuit breaker should not be assumed to provide every isolation or safety function required by a particular installation. The complete electrical design must follow applicable safety procedures and standards.

4. Trip Mechanism and Protection Coordination

The trip unit is a central part of a circuit breaker’s protection system. It evaluates electrical conditions and determines when the breaker should open.

Depending on the actual configuration, protection may include long-time, short-time, instantaneous, and ground-fault functions. The availability and settings of these functions must be verified for the specific breaker.

Protection coordination is important in systems with multiple circuit breakers. Properly coordinated settings help ensure that a fault is interrupted by the protective device closest to the affected circuit whenever possible.

Role in Industrial Power Distribution Systems

Large industrial circuit breakers are commonly installed in main switchboards, distribution assemblies, and power control systems. They help protect electrical infrastructure and provide controlled disconnection of circuits.

Main Incoming Power Protection

A large-frame circuit breaker may be installed at the incoming section of a low-voltage distribution system. In this position, it helps protect downstream busbars, feeders, and distribution equipment.

The required current rating and short-circuit performance depend on the electrical supply, transformer capacity, system configuration, and calculated fault current.

Feeder Circuit Protection

Industrial facilities often distribute power through multiple feeders supplying production lines, motor control centers, and auxiliary systems.

Circuit breakers provide protection for these individual distribution paths. Their ratings and trip settings must be coordinated with the connected equipment and upstream protective devices.

Integration with Electrical Monitoring Systems

Auxiliary contacts and compatible monitoring accessories may allow a circuit breaker to provide status information to a PLC, supervisory control system, or electrical monitoring platform.

Typical signals can include open status, closed status, and trip indication, depending on the accessories installed.

The exact accessory arrangement should be checked before integrating the breaker into an automation or remote-monitoring system.

Equipment and Personnel Safety

Circuit protection is an important part of industrial electrical safety. By interrupting abnormal current conditions, appropriately selected breakers help reduce the risk of equipment damage and electrical hazards.

However, a circuit breaker does not replace electrical safety procedures, protective enclosures, grounding, arc-flash assessments, or properly designed isolation arrangements.

Industrial Applications

Large-frame industrial circuit breakers are used in electrical systems where substantial power distribution and reliable fault protection are required.

1. Industrial Main Switchboards

Main switchboards distribute electrical power to multiple sections of a factory or industrial facility.

A suitably rated circuit breaker can provide incoming protection and allow controlled disconnection of the main distribution circuit.

Selection requires detailed evaluation of rated voltage, current, fault level, temperature conditions, and installation requirements.

2. Manufacturing Plants

Manufacturing facilities contain production machinery, motor control centers, auxiliary systems, and distribution panels.

Circuit breakers protect these electrical circuits against overload and short-circuit conditions. Proper coordination helps maintain power distribution reliability and limits the impact of electrical faults.

3. Power Distribution Rooms

Industrial power distribution rooms contain switchgear, busbar systems, feeder equipment, and protective devices.

Large-frame circuit breakers may be installed in these assemblies to protect major electrical circuits. Their mechanical dimensions and connection arrangements must match the switchgear design.

4. Heavy Industrial Equipment

Heavy industrial equipment can require high-capacity electrical supplies. Examples include large production machines, material-processing systems, and industrial utility equipment.

Circuit protection must be selected according to the actual load profile and prospective fault current. A breaker should not be selected solely on the basis of physical size or product-family name.

5. Infrastructure and Utility Installations

Industrial infrastructure facilities may use large-frame breakers in electrical distribution systems supplying pumps, ventilation equipment, auxiliary services, and other essential loads.

Protection settings and maintenance procedures should reflect the operational importance of each circuit.

Installation and System Integration

Large industrial circuit breakers require careful installation and commissioning. Incorrect mounting, connection, or protection settings can compromise electrical safety and system reliability.

1. Verify the Complete Product Identification

Before installation, check the product nameplate and full catalog number.

Confirm:

• Manufacturer and product family.
• Complete model designation.
• Rated operating voltage.
• Rated continuous current.
• Number of poles.
• Interrupting capacity.
• Installed trip unit and protection functions.
• Connection and mounting arrangement.
• Available auxiliary accessories.

Do not rely solely on a shortened model designation when selecting a replacement.

2. Confirm Switchboard Compatibility

The supplied dimensions are 819 × 311 × 290 mm. These values should be checked against the actual product drawing and mounting configuration.

For large-frame breakers, mechanical compatibility includes more than overall dimensions. Engineers must also verify mounting points, terminal positions, connection pitch, operating clearances, and the switchboard’s structural capacity.

3. Check Electrical Ratings

The breaker’s rated current and voltage must match the intended application. Its interrupting capacity must also be suitable for the prospective short-circuit current at the installation point.

The protection settings should be coordinated with upstream and downstream devices to reduce unnecessary interruption of unaffected circuits.

4. Inspect Busbar and Cable Connections

Before energizing the equipment, inspect all electrical connections and confirm that the connection hardware is suitable for the breaker.

Check contact surfaces, terminal condition, conductor sizing, busbar alignment, and the manufacturer’s specified tightening requirements.

Poor connections can cause localized heating, voltage drops, and long-term reliability problems.

5. Verify Protection Settings

The trip unit should be configured according to the electrical protection study and the characteristics of the connected circuit.

Important considerations include overload protection, short-circuit protection, ground-fault protection where available, and coordination with upstream and downstream devices.

Only qualified personnel should configure and test protection equipment.

6. Commissioning and Functional Testing

Before returning the switchboard to service, qualified technicians should inspect the breaker, verify its mechanical operation, check auxiliary contacts where installed, and perform the applicable electrical tests.

Testing procedures should follow the manufacturer’s instructions and the site’s maintenance and safety requirements.

Compatible System Components

The MT50H1 should be considered as part of a complete electrical distribution assembly. The components below represent typical equipment that may be used alongside a large-frame industrial circuit breaker.

These are examples of system components, not a statement that they are included with the MT50H1. Accessory compatibility must be established using the complete breaker reference.

Alternative Models and Replacement Considerations

Selecting an alternative circuit breaker requires a detailed electrical and mechanical comparison. A similar product name or current rating does not establish direct compatibility.

Before replacing the MT50H1, compare:

• Rated operational voltage.
• Rated continuous current.
• Number of poles.
• Short-circuit breaking capacity.
• Trip-unit type and protection functions.
• Long-time, short-time, and instantaneous settings.
• Ground-fault protection, where applicable.
• Connection and terminal configuration.
• Mechanical dimensions and mounting arrangement.
• Auxiliary contacts and electrical accessories.
• Switchboard and busbar compatibility.

For critical power distribution systems, replacement should be approved by qualified electrical engineers and performed according to the applicable standards and manufacturer’s instructions.

Key Advantages of Industrial Circuit Breakers

Overload and Short-Circuit Protection

A correctly selected circuit breaker helps protect electrical circuits against excessive current and fault conditions.

Controlled Circuit Disconnection

Circuit breakers provide a means of opening and closing electrical circuits within their specified operating conditions.

Integration with Distribution Systems

Large-frame breakers can be incorporated into switchboards and electrical distribution assemblies designed for industrial power requirements.

Protection Coordination

When correctly configured, circuit breakers can work with upstream and downstream protective devices to help isolate faults while maintaining supply to unaffected sections.

Monitoring and Control Options

Compatible auxiliary accessories may provide breaker status information and support integration with electrical monitoring or automation systems.

Maintenance and Replacement Support

Accurate model identification helps maintenance teams source replacement equipment and plan switchboard service activities.

Technical FAQs

1. What is the Schneider MT50H1 Circuit Breaker?

It is the circuit breaker identified by the supplied model designation MT50H1. Its exact manufacturer family and electrical configuration should be confirmed using the complete product nameplate and catalog number.

2. What is the rated current of the MT50H1?

The rated current should be confirmed from the actual unit’s nameplate and manufacturer documentation. Related M50H1 listings show a 5000 A designation, but this should not be assumed to apply to MT50H1 without confirming model equivalence.

3. What is the rated voltage?

The rated voltage must be verified from the exact breaker reference. Do not use the voltage rating of a similarly named product as a substitute.

4. What is the purpose of this circuit breaker?

Its general purpose is to provide circuit protection and controlled disconnection in an electrical distribution system. The specific protection functions depend on the installed trip unit and accessories.

5. Can the MT50H1 be used in a main switchboard?

A suitably rated and correctly configured breaker may be used in a main distribution assembly. However, suitability depends on the actual voltage, current, fault level, switchboard design, and protection requirements.

6. Can it communicate with a PLC?

A circuit breaker may provide status or control signals through compatible auxiliary accessories. Direct communication depends on the installed monitoring or communication hardware.

7. What should be checked before replacing the breaker?

Verify the complete catalog number, rated current, voltage, pole count, breaking capacity, trip unit, connection arrangement, mounting dimensions, and auxiliary accessories.

8. Why is the model designation important?

Different breaker models may have similar external appearances but different electrical ratings, trip characteristics, and mechanical configurations. The full catalog number helps prevent incorrect substitutions.

9. What are the supplied dimensions and weight?

The supplied listing specifications are 819 × 311 × 290 mm and 120 kg. Confirm whether these values refer to the complete breaker, a particular mounting configuration, or packaged equipment before shipping or installation.

10. Is the MT50H1 the same as M50H1?

This has not been established from the available identification information. The related M50H1 designation appears in product listings for a three-pole Masterpact-type breaker, but the exact relationship to MT50H1 requires confirmation from the manufacturer nameplate or documentation.

Procurement and Maintenance Recommendations

When purchasing the Schneider MT50H1 Circuit Breaker, begin by confirming the complete model designation and product nameplate. This is especially important because related M50H1 information should not be treated as definitive documentation for MT50H1.

For new, surplus, or refurbished equipment, request clear photographs of the front label, side identification plate, terminals, operating mechanism, and installed trip unit. Confirm the rated current, voltage, breaking capacity, pole count, and accessory configuration before placing an order.

The supplied dimensions of 819 × 311 × 290 mm and weight of 120 kg should be checked against the actual unit. For transportation, confirm the packaged dimensions, lifting points, and handling requirements. Large circuit breakers can be heavy and may require suitable lifting equipment and qualified handling personnel.

During maintenance, inspect the operating mechanism, contacts, connection points, insulation, auxiliary circuits, and protective accessories according to the manufacturer’s maintenance instructions. Periodic testing should be carried out by qualified personnel using appropriate procedures and equipment.

For replacement projects, verify both electrical and mechanical compatibility. Changes to the trip unit, busbar connections, mounting structure, or auxiliary control circuits may require modifications to the switchboard and its protection design.

Conclusion

The Schneider MT50H1 Circuit Breaker is listed as an industrial circuit protection product with supplied dimensions of 819 × 311 × 290 mm and a weight of 120 kg. Circuit breakers of this class are important components in industrial power distribution systems, where reliable interruption of overload and short-circuit conditions is essential.

Before purchasing or installing this model, verify its complete catalog number, rated current, voltage, breaking capacity, trip-unit configuration, and mechanical arrangement. Accurate product identification is the most important step in ensuring that the breaker is suitable for the intended electrical distribution application.
