Product Overview

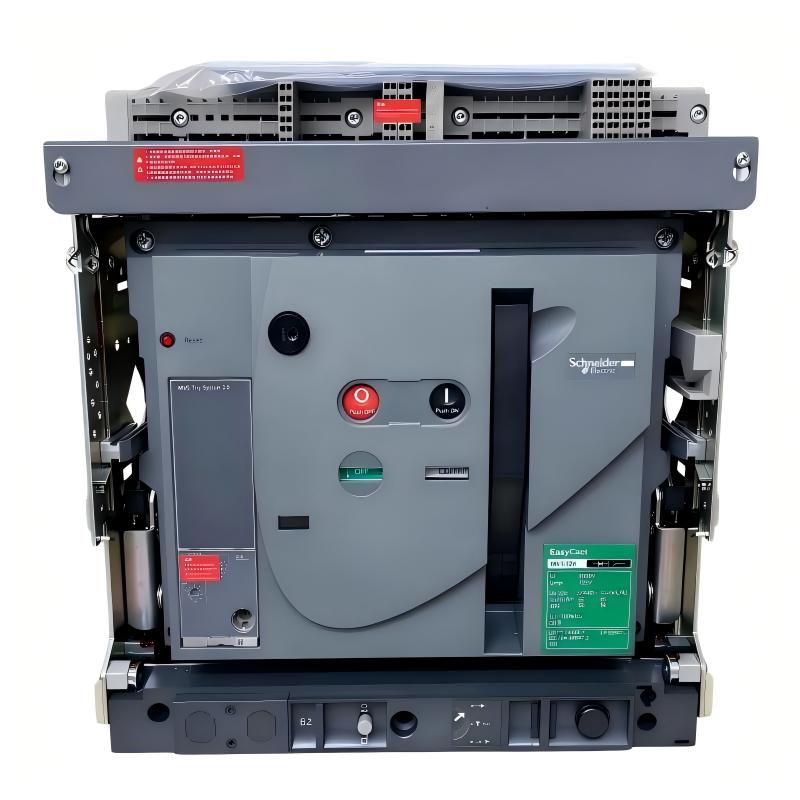

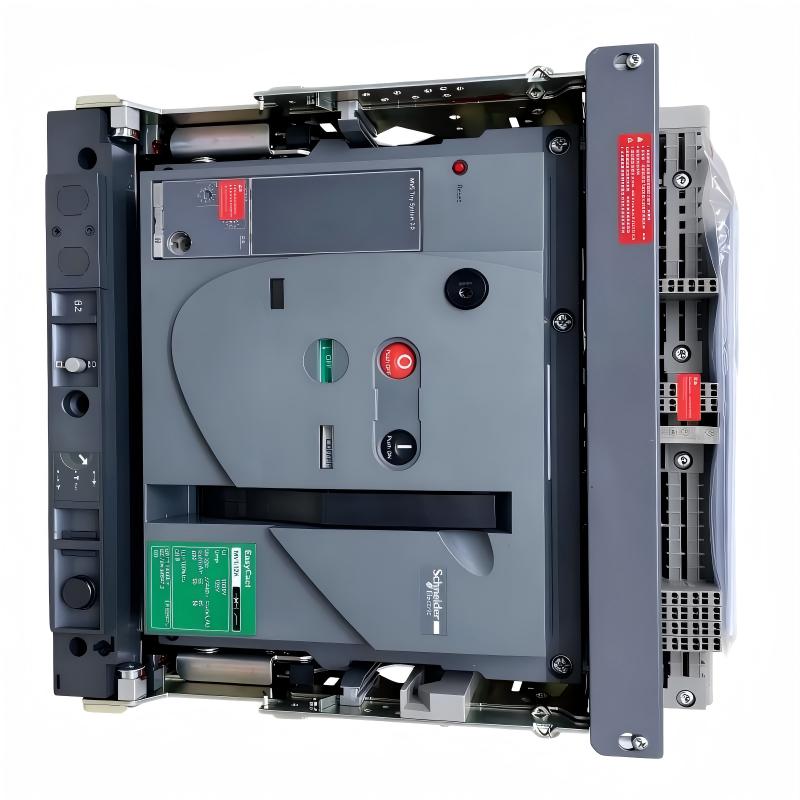

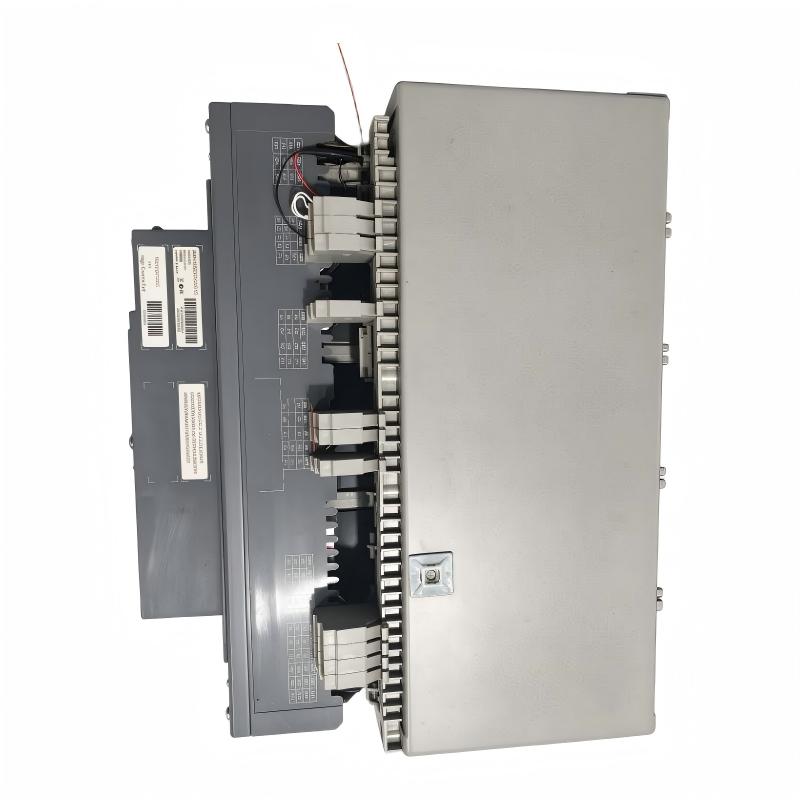

The Schneider Electric MVS32H EasyPact Circuit Breaker is a high-capacity air circuit breaker (ACB) designed for low-voltage power distribution and protection in industrial and commercial electrical systems. Part of the EasyPact MVS product family, it is engineered for applications requiring high rated current, reliable circuit interruption, and coordinated electrical protection.

The MVS32H series is designed for a rated current of up to 3200 A at 40°C and supports AC systems with an operational voltage of up to 690 V. Its H-class breaking capacity provides a rated ultimate short-circuit breaking capacity of 65 kA at 220–440 V AC and 50 kA at 690 V AC, depending on the specific configuration.

The MVS32H family is commonly used in main distribution panels, industrial switchboards, power distribution centers, and large electrical installations. It helps protect electrical circuits against overloads and short circuits while providing a means of isolating equipment for maintenance.

The specific configuration associated with the supplied dimensions and weight is consistent with the MVS32H3MF2L three-pole, fixed, manually operated version with an electronic ET2I trip unit. However, MVS32H alone does not identify every configuration detail. The complete catalog number should be checked before purchasing or replacing the breaker.

Technical Specifications

Important: The specifications above describe the MVS32H family and the cited three-pole fixed configuration. Exact trip-unit functions, pole count, operating mechanism, and connection arrangement must be confirmed against the complete catalog number.

Function and Working Principle

The MVS32H circuit breaker is designed to protect electrical distribution circuits by monitoring current conditions and interrupting the circuit when specified abnormal conditions occur.

1. Overload Protection

An overload occurs when a circuit carries more current than its permitted operating level for an extended period. This can result from excessive equipment demand, incorrect load distribution, or electrical faults.

The electronic trip unit monitors current and evaluates it against configured protection settings. When an overload condition exceeds the permitted threshold and time delay, the breaker initiates a trip operation.

This helps protect cables, busbars, transformers, and connected electrical equipment from excessive heating.

2. Short-Circuit Protection

A short circuit can produce extremely high current within a very short period. Without appropriate protection, this current may cause serious thermal and mechanical damage to electrical equipment.

The MVS32H series is designed for high-capacity circuit interruption. Its H-class breaking capability is intended for distribution systems where substantial short-circuit currents may occur.

The actual protection performance depends on the complete breaker configuration and the prospective fault current at the installation point.

3. Electronic Trip Unit

The electronic trip unit evaluates current conditions and controls the breaker’s protective response.

For the MVS32H3MF2L configuration, the ET2I trip unit provides LI protection:

• Long-time protection for overload conditions.
• Instantaneous protection for short-circuit conditions.

The exact adjustment ranges and protection characteristics should be configured according to the electrical system study and manufacturer’s instructions.

4. Circuit Isolation

The breaker can also provide a means of isolating a distribution circuit for maintenance and inspection.

Its suitability for isolation is specified in accordance with IEC 60947-2. Maintenance personnel must still follow the required isolation, lockout, and voltage-verification procedures before working on electrical equipment.

5. High-Capacity Current Interruption

The MVS32H series is designed for high-current distribution applications. Its rated current of 3200 A makes it suitable for large electrical feeders when the selected configuration matches the system requirements.

The breaker must be coordinated with upstream and downstream protective devices to achieve the required selectivity and protection performance.

Role in Industrial Power Distribution Systems

The MVS32H circuit breaker plays an important role in industrial electrical distribution. It is commonly installed in main switchboards or distribution assemblies where high-current circuits require controlled switching and fault protection.

Main Distribution Protection

In an industrial facility, the main distribution board receives electrical power from a transformer, generator, or utility supply. The circuit breaker helps protect the incoming or outgoing feeder against abnormal current conditions.

Its high current rating allows it to be considered for large distribution circuits, subject to the system design.

Transformer Feeder Protection

Transformers supply power to industrial distribution networks. A properly selected circuit breaker can protect transformer feeders and help isolate the transformer during electrical faults or maintenance.

Protection coordination must consider transformer characteristics, rated current, inrush current, and downstream fault levels.

Generator Distribution Systems

Generator systems require suitable circuit protection to manage abnormal current conditions and support safe isolation.

The MVS32H may be considered for compatible generator distribution applications. Selection must account for generator output, available short-circuit current, system grounding, and protective coordination.

Industrial Switchgear Integration

The breaker can be incorporated into low-voltage switchgear assemblies and distribution panels. It works alongside busbars, current transformers, metering equipment, protection relays, and auxiliary control devices.

The final installation must follow the approved switchgear design and the breaker’s specified mounting and connection requirements.

Industrial Applications

1. Manufacturing Plants

Large manufacturing facilities use electrical distribution systems to supply production lines, motors, compressors, heating equipment, and auxiliary machinery.

The MVS32H can provide protection for appropriately rated main feeders and distribution circuits.

2. Data Centers

Data centers require reliable electrical distribution to support servers, cooling systems, UPS equipment, and other critical infrastructure.

High-capacity circuit breakers can be used in main distribution and switchboard assemblies. Proper protection coordination and system redundancy are essential in these applications.

3. Power Distribution Stations

Industrial substations and distribution stations use circuit breakers to control and protect electrical feeders.

The MVS32H’s high current rating and H-class breaking capability make the series relevant to certain low-voltage distribution applications.

4. Commercial Buildings

Large commercial buildings may contain centralized electrical distribution systems supplying elevators, HVAC equipment, lighting, and other major electrical loads.

A suitably configured MVS32H breaker can be used in high-capacity distribution assemblies where its electrical ratings and installation requirements are appropriate.

5. Water Treatment and Process Facilities

Water treatment plants and industrial process facilities rely on pumps, motors, compressors, and control systems.

The breaker can help protect main distribution circuits supplying these systems, provided the selected configuration meets the installation’s fault-current and load requirements.

Installation and System Integration

Correct installation is essential for electrical safety, dependable protection, and long-term operation.

1. Verify Electrical Ratings

Before installation, confirm:

• System rated voltage.
• Rated operating current.
• Available short-circuit current.
• Number of poles.
• Required breaking capacity.
• System frequency.
• Grounding arrangement.
• Protection coordination requirements.

The MVS32H series supports ratings up to 3200 A and 690 V AC, but the actual breaker configuration must match the installation.

2. Confirm Mounting Configuration

The MVS32H family includes different mounting arrangements, including fixed and drawout versions.

The cited MVS32H3MF2L configuration is fixed-mounted. Its supplied dimensions are 352 × 422 × 297 mm.

Before designing a switchboard, verify the exact manufacturer’s dimensional drawing, mounting points, terminal arrangement, and required clearances.

3. Electrical Connections

The breaker uses rear connection arrangements in the cited configuration, with horizontal or vertical connection positions depending on the design.

Busbar dimensions, conductor capacity, terminal clearances, and tightening requirements must comply with the manufacturer’s installation instructions.

Incorrect connections may cause overheating, contact damage, or unreliable circuit operation.

4. Protection Parameter Configuration

The electronic trip unit must be configured according to the electrical system’s protection study.

Important considerations include:

• Long-time pickup settings.
• Long-time delay.
• Instantaneous pickup.
• Coordination with downstream breakers.
• Coordination with upstream protection.
• Available short-circuit current.

Protection settings should be reviewed by qualified electrical engineers.

5. Commissioning and Testing

Before energizing the system, inspect mechanical installation, electrical connections, grounding, and auxiliary wiring.

Verify the breaker operating mechanism and trip-unit settings. Perform the required commissioning and protection tests using approved procedures and suitable testing equipment.

Record the final settings and test results for future maintenance.

Compatible System Components

The MVS32H circuit breaker is typically integrated into a larger electrical distribution assembly.

The accessories listed above are examples of components that may be used in an MVS installation. They are not necessarily included with every breaker.

Alternative Models and Replacement Considerations

The EasyPact MVS family includes different current ratings and configuration options. Replacement selection must be based on the complete electrical and mechanical specifications rather than the series name alone.

Before replacing an MVS32H breaker, compare rated current, voltage, breaking capacity, pole count, trip-unit type, mounting arrangement, terminal position, accessory configuration, and switchboard dimensions.

A breaker with the same 3200 A rating is not automatically a suitable replacement.

Key Advantages

High Rated Current

The MVS32H series supports a rated current of 3200 A at 40°C, making it suitable for appropriately designed high-capacity distribution circuits.

High Breaking Capacity

The H-class configuration provides a rated ultimate breaking capacity of 65 kA at 220–440 V AC, supporting applications with substantial prospective fault currents.

Electronic Protection

Electronic trip-unit technology enables configurable protection functions for overload and short-circuit conditions.

Industrial Distribution Compatibility

The series is designed for integration into industrial switchboards and low-voltage distribution assemblies.

Isolation Capability

The breaker is suitable for isolation according to IEC 60947-2, subject to the specific product configuration and correct operating procedures.

Multiple Configuration Options

The MVS32H family offers different pole counts, mounting arrangements, operating mechanisms, and trip-unit configurations.

Technical FAQs

1. What is the Schneider Electric MVS32H?

The MVS32H is an EasyPact MVS air circuit breaker designed for high-capacity low-voltage electrical distribution and circuit protection.

2. What is the rated current of the MVS32H?

The series has a rated current of 3200 A at 40°C.

3. What is its breaking capacity?

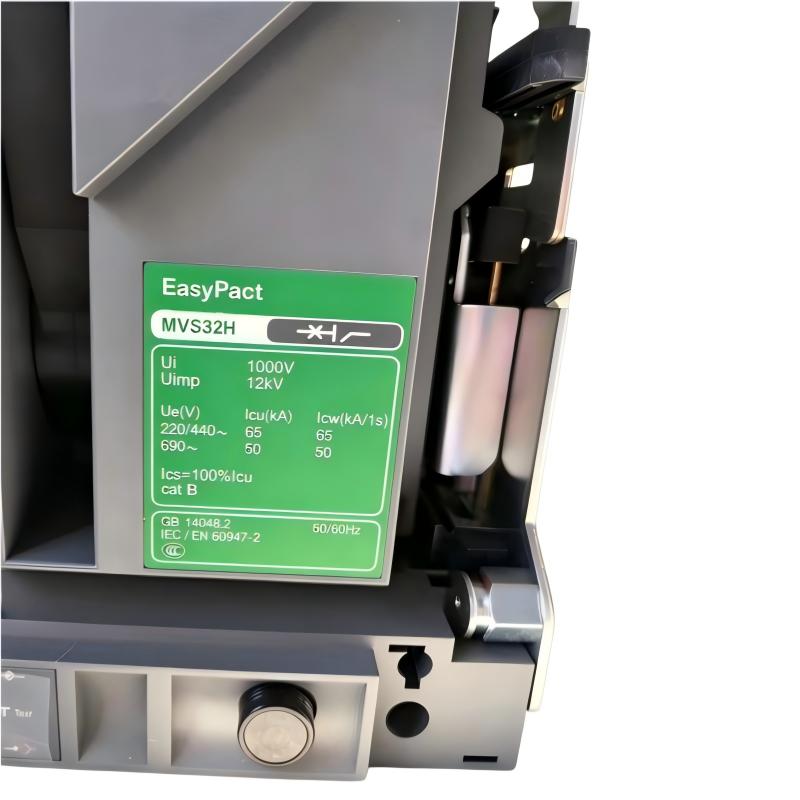

The H-class version provides a rated ultimate breaking capacity of 65 kA at 220–440 V AC and 50 kA at 690 V AC, subject to the exact configuration.

4. What voltage can the MVS32H support?

The series has a rated operational voltage of up to 690 V AC at 50/60 Hz. The actual installation must comply with the specific product rating.

5. What is the difference between fixed and drawout versions?

A fixed breaker is installed directly into the switchboard mounting arrangement. A drawout breaker can be moved between defined positions using a compatible chassis, supporting maintenance and isolation procedures.

6. What protection functions are available?

Protection depends on the installed trip unit. The cited MVS32H3MF2L configuration uses an ET2I electronic trip unit with long-time and instantaneous protection functions.

7. What are the dimensions and weight?

The supplied dimensions are 352 × 422 × 297 mm, and the supplied weight is 60 kg. These values match the referenced MVS32H3MF2L configuration.

8. Can the MVS32H replace another 3200 A breaker?

Not automatically. The voltage, breaking capacity, pole count, trip unit, mounting type, terminal arrangement, and accessory configuration must all be checked.

9. Where is the MVS32H commonly used?

It may be used in industrial switchboards, manufacturing facilities, commercial buildings, substations, and other low-voltage distribution systems.

10. What should be checked before purchasing?

Verify the complete catalog number, rated current, voltage, breaking capacity, trip unit, pole count, mounting type, physical condition, and included accessories. For used equipment, request clear nameplate photographs and appropriate functional test information.

Procurement and Maintenance Recommendations

When purchasing the Schneider Electric MVS32H, confirm the complete catalog number before placing an order. The MVS32H designation covers multiple breaker configurations, and the suffix determines important technical characteristics.

For replacement projects, compare the existing breaker’s ratings and mounting arrangement with the proposed unit. Particular attention should be given to the trip unit, pole count, fixed or drawout design, and connection position.

During routine maintenance, inspect the operating mechanism, contact condition, terminals, insulation surfaces, auxiliary wiring, and trip-unit settings according to the manufacturer’s maintenance instructions.

Electrical testing should be performed by qualified personnel using suitable equipment and approved procedures. Any abnormal contact heating, mechanical damage, or unexpected tripping should be investigated before the breaker is returned to service.

For critical power distribution systems, maintain accurate records of breaker settings, inspection results, and replacement history.

Conclusion

The Schneider Electric MVS32H EasyPact Circuit Breaker is a high-capacity air circuit breaker designed for industrial and commercial low-voltage power distribution. With a rated current of 3200 A and H-class breaking capacity of up to 65 kA at 220–440 V AC, it is suitable for appropriately engineered main distribution and feeder protection applications.

The supplied dimensions of 352 × 422 × 297 mm and weight of 60 kg correspond to a documented three-pole fixed configuration in the MVS32H family. For purchasing, installation, and replacement, verifying the complete catalog number is essential to ensure correct electrical ratings, protection functions, and mechanical compatibility.
