Product Overview

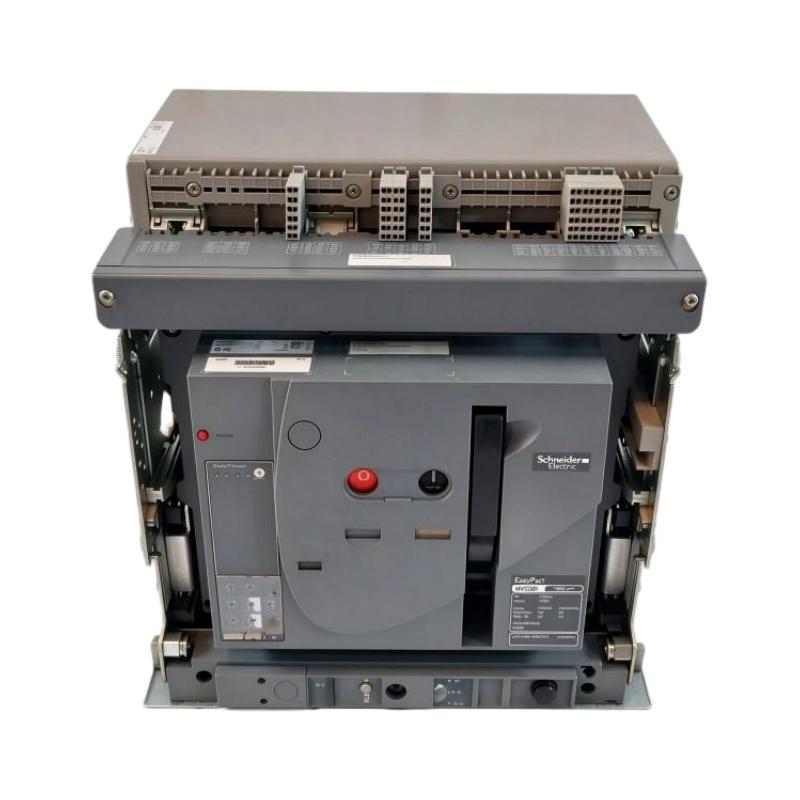

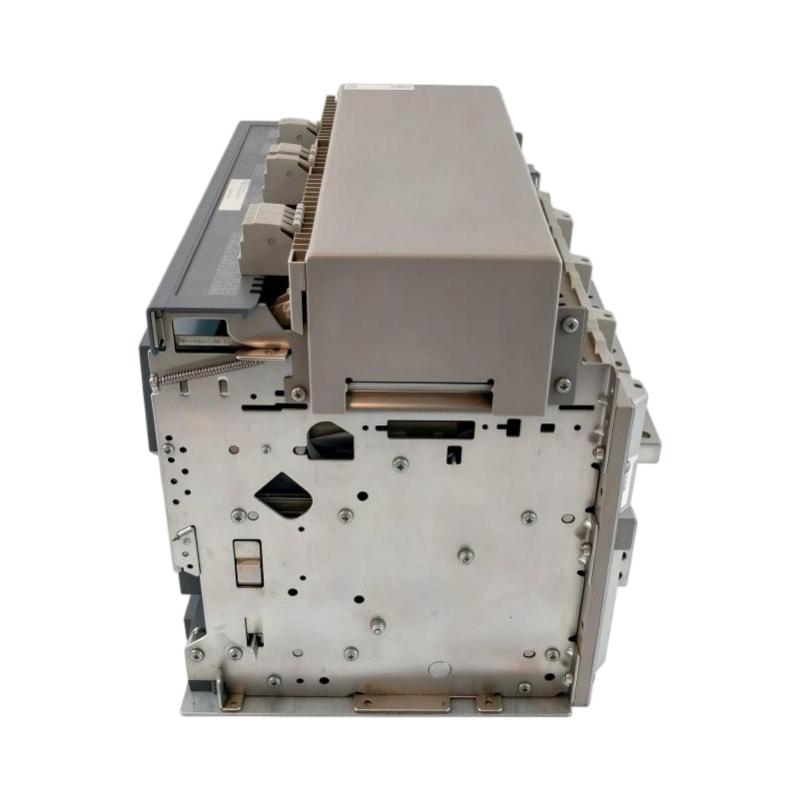

The Schneider Electric MVS08H EasyPact MVS Circuit Breaker is a low-voltage air circuit breaker designed for electrical distribution and protection in industrial and commercial power systems. With an 800 A rated current and a three-pole configuration, it is intended for applications that require reliable switching, overload protection, and short-circuit interruption.

As part of the EasyPact MVS product family, the MVS08H is designed for use in low-voltage switchboards, distribution panels, and industrial power management installations. Air circuit breakers are commonly installed at main incoming feeders, bus couplers, and major distribution circuits where substantial current capacity and coordinated protection are required.

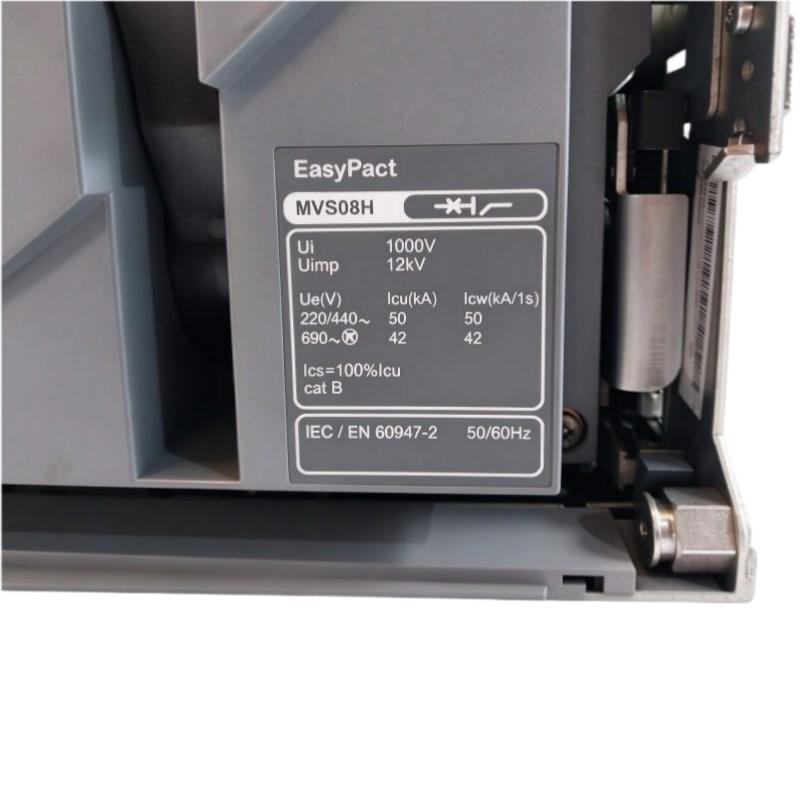

The MVS08H belongs to the H breaking-capacity class. Its published electrical specifications include operation at up to 690 V AC and a breaking-capacity rating that varies with operating voltage. The specific performance values, protection functions, and operating features depend on the complete product reference and selected trip unit.

The circuit breaker uses an electronic trip unit in the configurations documented for this product family. The trip unit monitors electrical conditions and initiates a trip when configured protection thresholds are exceeded. Depending on the selected version, protection functions may include long-time overload protection, short-time short-circuit protection, instantaneous protection, and additional ground-fault protection.

The MVS08H is suitable for applications where electrical distribution equipment must support high-current loads while providing controlled circuit isolation and fault protection. Correct selection requires consideration of rated voltage, prospective short-circuit current, protection coordination, installation arrangement, and the characteristics of the connected electrical system.

Technical Specifications

Note: MVS08H identifies a product family and rating class rather than one complete ordering reference. Trip-unit functions, breaking-capacity values at individual voltages, and mounting arrangements must be confirmed against the full catalog number.

Function and Working Principle

The MVS08H circuit breaker provides switching and protective functions for low-voltage AC distribution systems. Its main purpose is to carry normal operating current and interrupt the circuit when an electrical fault or abnormal condition requires disconnection.

1. Normal Current Switching

During normal operation, the circuit breaker allows current to flow through its main contacts. The contacts and internal current-carrying components are designed for the specified current rating and operating conditions.

The 800 A rating identifies the nominal current capacity under the manufacturer’s stated conditions. The actual permitted operating current must also consider ambient temperature, installation conditions, conductor sizing, and switchboard design.

2. Overload Protection

An overload occurs when a circuit carries more current than its intended operating level for a sustained period.

Electronic trip units monitor current and compare it with configured protection settings. When the measured current exceeds the applicable long-time threshold for the required duration, the trip unit can initiate circuit interruption.

This function helps protect cables, busbars, and connected equipment against excessive heating caused by prolonged overcurrent.

3. Short-Circuit Protection

A short circuit can produce a very large current within a short period. Without appropriate protection, this fault can cause severe thermal and electrodynamic stress on electrical equipment.

The MVS08H family provides short-circuit protection through its configured electronic trip unit. Depending on the selected version, short-time and instantaneous protection functions may be available.

Short-time delay settings can help coordinate upstream and downstream protective devices. Instantaneous protection is intended to respond rapidly to sufficiently high fault currents.

The exact settings and available functions depend on the installed trip unit.

4. Fault Interruption

When the trip unit identifies a condition requiring disconnection, the operating mechanism separates the main contacts.

As the contacts open under load or fault conditions, an electrical arc may form. The air circuit breaker’s arc-control and interruption system manages this arc and extinguishes it to interrupt current.

The circuit breaker’s breaking capacity must be suitable for the prospective short-circuit current at its installation point. A breaker should never be selected solely by its rated current.

5. Circuit Isolation

The MVS08H product family is designed to support isolation functions in accordance with applicable IEC requirements. This capability is important during maintenance and inspection of electrical distribution equipment.

Isolation procedures must still follow the site’s electrical safety rules. Operators should verify the circuit’s de-energized condition and apply the required lockout and tagging procedures before maintenance.

Role in Industrial Power Distribution Systems

The MVS08H is generally used as a major protective switching device within a low-voltage distribution architecture.

Main Incoming Protection

In a main distribution switchboard, an air circuit breaker may be installed at the incoming supply point. It provides switching and protection for the downstream busbar system and connected distribution circuits.

The 800 A rating makes the MVS08H relevant to systems whose calculated load current and protection requirements fall within its capabilities.

Feeder Protection

The breaker may also be used to protect a major outgoing feeder supplying a production area, distribution panel, or industrial machine group.

Its protective settings should be coordinated with downstream breakers and upstream protection devices to help limit unnecessary interruption during localized faults.

Busbar and Switchboard Integration

Air circuit breakers are commonly integrated into switchboard assemblies with busbars, current transformers, metering devices, protection equipment, and control circuits.

The breaker must be compatible with the switchboard’s mechanical arrangement, electrical clearances, rated current, and short-circuit withstand capability.

Power System Coordination

Protection coordination is essential in facilities with multiple distribution levels. The trip characteristics of the MVS08H must be considered alongside upstream and downstream devices.

Correct coordination can help ensure that the protective device closest to a fault operates first where the system design permits, reducing the impact on unaffected sections of the facility.

Industrial Applications

1. Industrial Main Distribution Panels

Manufacturing plants use main distribution panels to receive and distribute electrical power to production areas, machinery, and auxiliary systems.

An 800 A air circuit breaker may be used as a main protective device where the load current, voltage, and fault-level calculations support its selection.

2. Power Distribution Switchboards

The MVS08H can be applied in low-voltage switchboards that distribute power to multiple outgoing circuits. Its circuit interruption and isolation functions support electrical system operation and maintenance.

The switchboard must be designed for the circuit breaker’s electrical and mechanical requirements.

3. Manufacturing Facilities

Industrial production facilities often contain motors, heating equipment, process machinery, automation systems, and auxiliary electrical loads.

A suitably rated air circuit breaker can protect a major distribution section supplying these loads. Protection settings must account for load characteristics, motor starting currents, and the facility’s fault-current levels.

4. Commercial and Infrastructure Electrical Systems

Large commercial buildings and infrastructure facilities may require high-current low-voltage distribution equipment for central electrical rooms and major feeder circuits.

The MVS08H may be considered where its rated voltage, current, breaking capacity, and installation arrangement match the system design.

5. Utility and Auxiliary Power Distribution

Industrial plants often use auxiliary distribution systems for pumps, ventilation, cooling, lighting, and other supporting equipment.

An appropriately selected air circuit breaker can provide a central protective and switching function for these distribution sections.

Installation and System Integration

The installation of an 800 A air circuit breaker requires careful electrical and mechanical planning. Work should be performed by qualified electrical personnel using the manufacturer’s installation instructions and applicable electrical standards.

1. Verify Electrical Ratings

Before installation, confirm the system voltage, frequency, rated current, and prospective short-circuit current.

The MVS08H family supports operation at up to 690 V AC, but the actual breaking capacity varies with operating voltage and the complete breaker configuration.

The selected breaker must have adequate interrupting capacity for the installation point.

2. Confirm the Complete Product Reference

MVS08H is a family designation. Different complete references may use different trip units, protection functions, and mounting arrangements.

Before purchasing or replacing the breaker, confirm:

• Complete catalog number.
• Number of poles.
• Rated current.
• Breaking-capacity performance at the system voltage.
• Trip-unit type and protection functions.
• Fixed or drawout mounting arrangement.
• Manual or motorized operating options.
• Auxiliary contacts and accessories.

3. Mechanical Installation

The supplied dimensions are 352 × 422 × 297 mm, and the supplied weight is 40 kg.

Check the manufacturer’s dimensional drawing before preparing the switchboard. Confirm mounting points, operating clearances, connection access, and the space required for maintenance.

The breaker must be securely installed in a compatible switchboard structure. Its weight should be supported by the designated mounting arrangement.

4. Electrical Connections

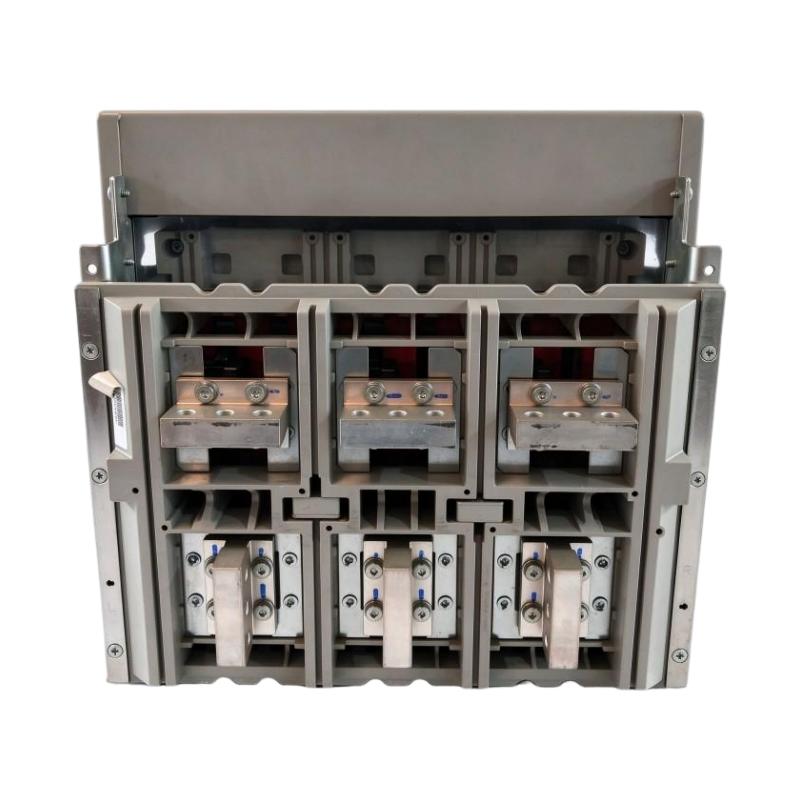

Incoming and outgoing conductors or busbars must be selected according to the rated current, temperature conditions, and applicable electrical standards.

Ensure that connection surfaces are clean and that terminals are tightened to the manufacturer’s specified torque. Incorrect connection practices can cause excessive contact resistance, localized heating, and equipment damage.

The connection arrangement may vary between fixed and drawout configurations.

5. Trip Unit Configuration

The electronic trip unit must be configured according to the protected circuit and the overall protection-coordination study.

Important settings may include:

• Long-time current threshold.
• Long-time delay.
• Short-time current threshold.
• Short-time delay.
• Instantaneous protection threshold.
• Ground-fault protection, if available on the selected version.

Do not copy settings from another breaker without verifying the electrical system and protection requirements.

6. Commissioning and Functional Testing

Before energizing the circuit, inspect the installation and confirm that all electrical and mechanical connections are correct.

Commissioning may include:

• Mechanical operation checks.
• Contact-position indication checks.
• Trip-unit configuration verification.
• Secondary injection testing where appropriate.
• Protection coordination checks.
• Auxiliary contact and indication testing.
• Verification of the switchboard’s grounding arrangement.

Testing should follow the manufacturer’s procedures and the facility’s commissioning requirements.

Compatible System Components

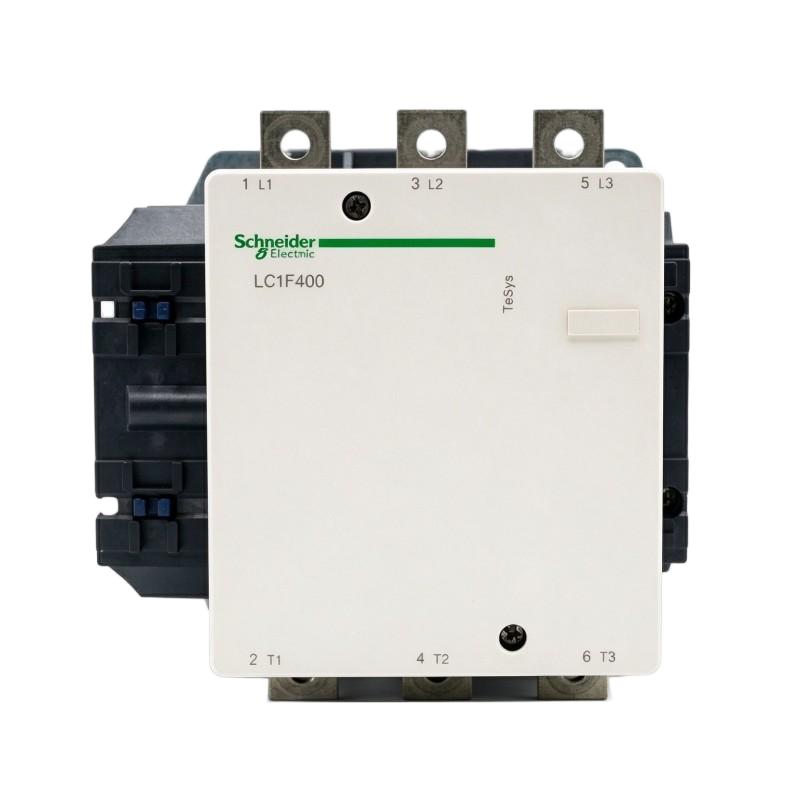

The MVS08H is normally installed as part of a larger low-voltage distribution assembly.

These components are examples of equipment used in a complete distribution system. They are not necessarily included with every MVS08H breaker.

Alternative Models and Replacement Considerations

When replacing an MVS08H, selecting another breaker with the same 800 A rating is not sufficient. The electrical and mechanical characteristics must be checked in detail.

Before selecting a replacement, compare:

• Rated operational voltage.
• Rated current and temperature conditions.
• Ultimate and service breaking capacities.
• Short-time withstand current.
• Trip-unit protection functions.
• Number of poles.
• Fixed or drawout installation.
• Busbar and terminal arrangement.
• Auxiliary contacts and accessories.
• Switchboard dimensions and clearances.
• Protection coordination with upstream and downstream devices.

Any replacement should be approved through an engineering review. Changes to the breaker may require modifications to the switchboard, wiring, protection settings, or commissioning procedures.

Key Advantages

High-Current Distribution Capability

The 800 A rated-current class makes the MVS08H suitable for appropriately designed industrial distribution circuits and major feeder applications.

Electronic Protection

The electronic trip-unit configurations available in the MVS08H family provide adjustable protection functions for managing overload and short-circuit conditions.

High Breaking-Capacity Class

The H breaking-capacity class is intended for distribution systems with substantial prospective fault currents. The applicable interrupting value must be checked at the actual operating voltage.

Three-Pole Configuration

The three-pole design supports three-phase AC distribution systems where three protected phases are required.

Isolation Capability

The breaker is designed to provide circuit isolation in accordance with the applicable product standards, supporting maintenance and electrical system management.

Industrial Switchboard Integration

The EasyPact MVS family is designed for integration into low-voltage switchboards and distribution assemblies. The exact mounting and connection arrangement depends on the selected configuration.

Technical FAQs

1. What is the Schneider Electric MVS08H?

The MVS08H is an 800 A, three-pole air circuit breaker in the EasyPact MVS family. It is designed for low-voltage AC distribution and circuit protection.

2. What is the rated current of the MVS08H?

Its rated current is 800 A under the manufacturer’s specified conditions.

3. What voltage does the MVS08H support?

The EasyPact MVS08H family is rated for operation at up to 690 V AC, 50/60 Hz. Always verify the complete product reference and nameplate.

4. What does the H breaking-capacity class mean?

The H designation identifies a breaking-capacity class within the EasyPact MVS family. Published values depend on operating voltage. For example, certain documented configurations have a 65 kA ultimate breaking capacity at 220–440 V AC, with lower values at higher operating voltages.

5. Does the MVS08H provide electronic protection?

Yes. The documented MVS08H configurations use electronic trip units. Available protection functions depend on the selected trip-unit version.

6. Is the MVS08H fixed or drawout?

Both fixed and drawout versions exist within the MVS08H family. The complete catalog number is needed to identify the exact mounting arrangement.

7. What are the dimensions and weight?

The supplied listing dimensions are 352 × 422 × 297 mm, with a weight of 40 kg. These figures match a documented fixed MVS08H configuration. Confirm the exact version before using them for panel design or logistics.

8. Can the MVS08H be used as a main incoming breaker?

It may be suitable for a main incoming application when the rated current, voltage, breaking capacity, and protection coordination match the electrical system design.

9. What should be checked before replacing an MVS08H?

Verify the complete catalog number, trip unit, breaking capacity, mounting arrangement, terminal connections, auxiliary accessories, and switchboard compatibility. Also review the protection-coordination settings.

10. What maintenance does an air circuit breaker require?

Maintenance should follow the manufacturer’s instructions and the facility’s electrical maintenance schedule. Typical checks include contact condition, mechanical operation, terminal connections, trip-unit condition, insulation condition, and functional testing.

Procurement and Maintenance Recommendations

When purchasing a Schneider Electric MVS08H, confirm the complete catalog number rather than relying only on the family designation. The trip unit, protection functions, and mounting configuration can differ between product references.

For new, surplus, or used equipment, request clear photographs of the nameplate, front panel, terminals, and operating mechanism. Confirm whether the breaker is fixed or drawout and whether the required accessories are included.

For replacement projects, compare the original breaker with the proposed replacement in terms of rated current, operating voltage, breaking capacity, trip-unit characteristics, and mechanical installation. A breaker with the same current rating may still be unsuitable if its interrupting performance or protection functions differ.

During maintenance, inspect the breaker according to the manufacturer’s recommended procedures. Check for signs of overheating, damaged insulation, abnormal contact wear, loose connections, or mechanical problems. Protection testing should be carried out by qualified personnel using suitable equipment.

Keep records of trip-unit settings, maintenance results, and any changes to the switchboard configuration. Accurate documentation helps support future troubleshooting and replacement planning.

Conclusion

The Schneider Electric MVS08H EasyPact MVS Air Circuit Breaker is an 800 A, three-pole protective switching device designed for low-voltage AC power distribution. Its H breaking-capacity class, electronic trip-unit configurations, and isolation capability make it relevant to industrial switchboards, main distribution panels, and major feeder circuits.

For successful installation and long-term operation, engineers should verify the complete catalog number, rated voltage, breaking capacity, trip-unit functions, and mounting arrangement. Careful product identification and protection coordination are essential when selecting or replacing an MVS08H circuit breaker.
