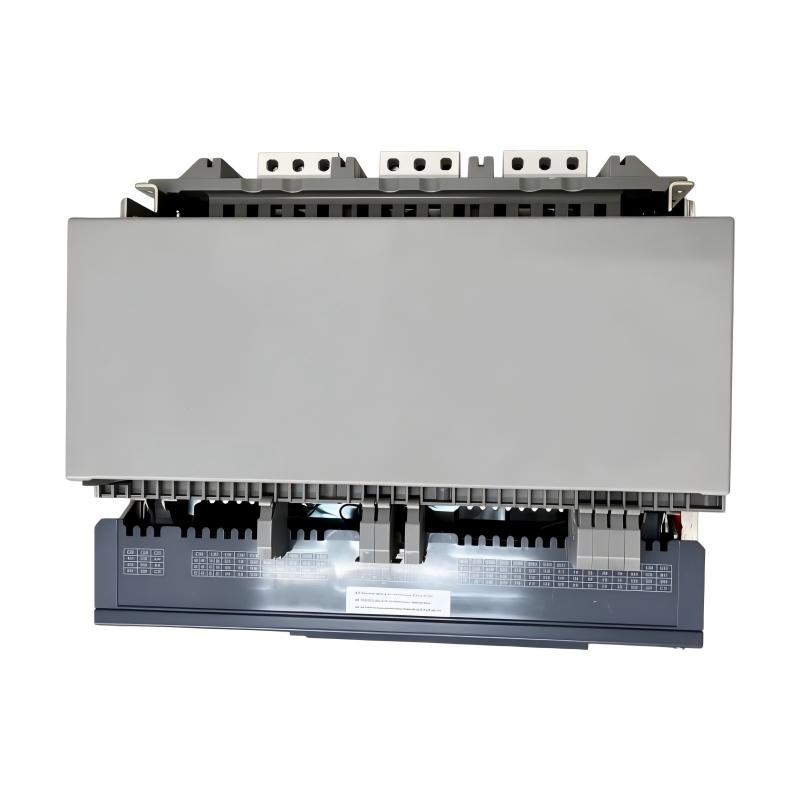

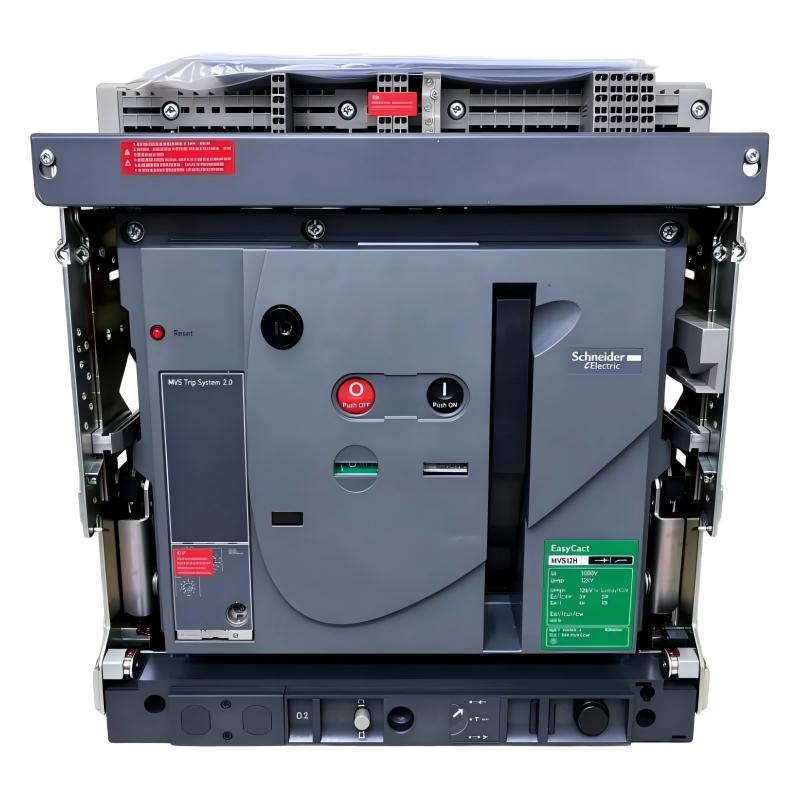

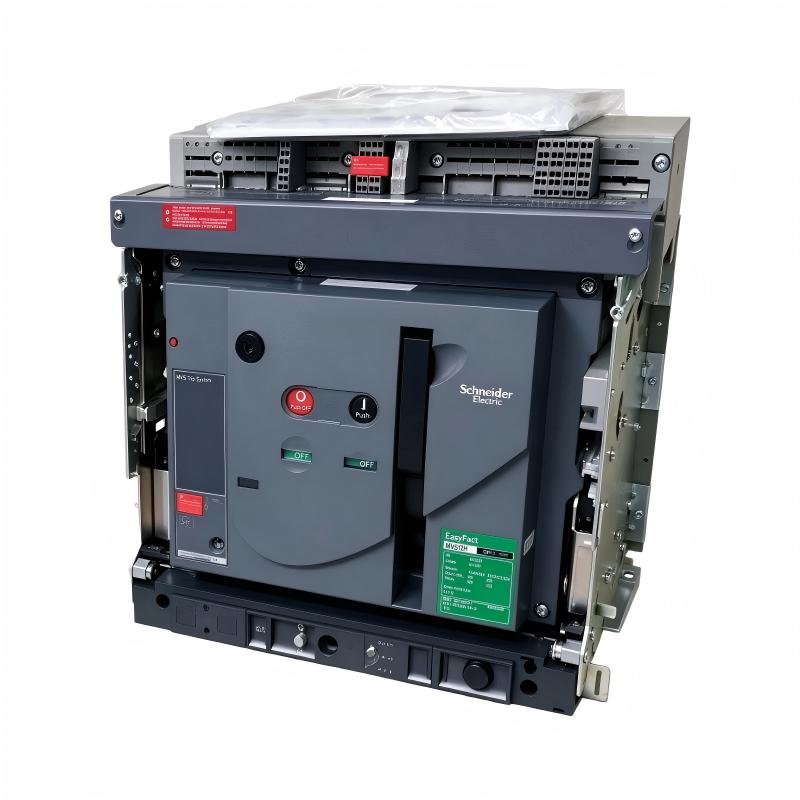

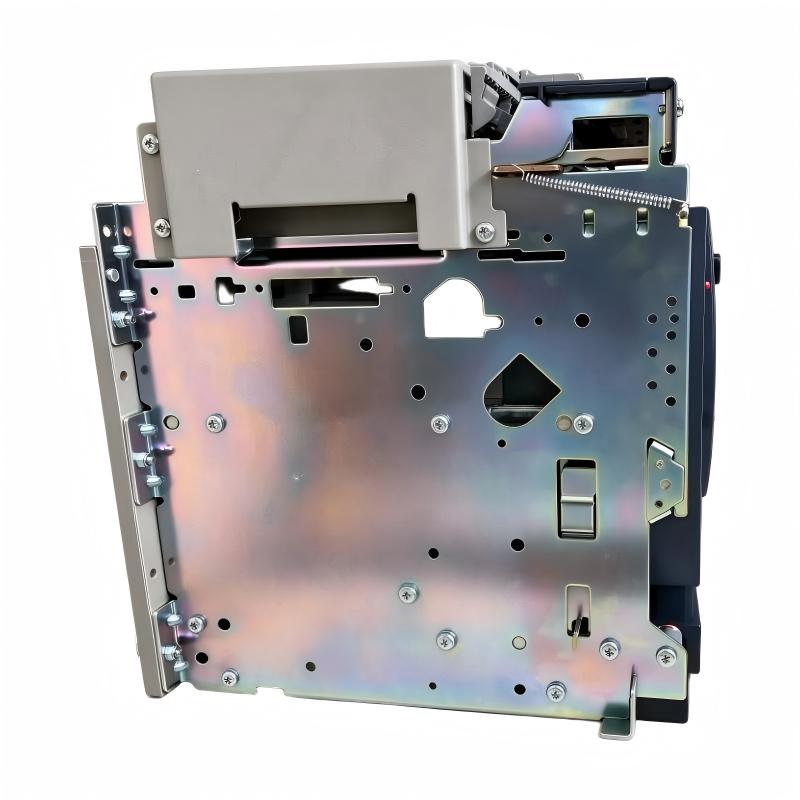

Schneider Electric MVS12H EasyPact Air Circuit Breaker – Technical Specifications, Protection Functions, and Industrial Applications

Product Overview

The Schneider Electric MVS12H Circuit Breaker is an industrial low-voltage air circuit breaker (ACB) from the EasyPact MVS product family. It is designed for electrical power distribution systems that require high-current switching, circuit isolation, and protection against overloads and short circuits.

Air circuit breakers are commonly installed in main distribution boards, industrial switchboards, power distribution cabinets, and large electrical control systems. They help protect electrical installations by interrupting abnormal current conditions before these conditions cause excessive heating, equipment damage, or wider system failures.

The MVS12H series is designed for high-current applications, with a typical rated current of 1250 A and a maximum rated operational voltage of 690 V AC. Its H breaking-capacity class provides a rated ultimate short-circuit breaking capacity of 65 kA under specified operating conditions.

The breaker uses an electronic trip unit to monitor electrical conditions and initiate protective tripping when configured thresholds are exceeded. Depending on the complete product configuration, available protection functions may include long-time overload protection, short-circuit protection, and additional protection features.

The MVS12H designation covers multiple configurations. Pole count, installation method, trip-unit type, protection functions, and accessories must be confirmed using the complete product reference. This distinction is particularly important when selecting a replacement breaker for an existing switchboard.

With its high-current capacity and industrial distribution design, the EasyPact MVS12H family is relevant to manufacturing facilities, commercial buildings, infrastructure installations, and other applications requiring dependable low-voltage power distribution.

Technical Specifications

Important: The specifications above describe the MVS12H family and a representative fixed three-pole configuration. The complete catalog number is required to confirm the exact pole arrangement, trip unit, protection functions, and installation method. Dimensions and weight are retained from the supplied product information.

Function and Working Principle

The MVS12H circuit breaker performs several important functions in an industrial electrical distribution system. Its primary purpose is to carry normal operating current and interrupt the circuit when abnormal electrical conditions are detected.

1. Overload Protection

An electrical overload occurs when a circuit carries more current than its intended operating capacity for an extended period.

Excessive current generates heat in conductors, terminals, and connected electrical equipment. If the condition continues, insulation may deteriorate and equipment damage can occur.

The electronic trip unit monitors current and compares it with configured protection settings. When an overload condition exceeds the permitted time-current characteristics, the trip mechanism opens the breaker contacts.

Long-time protection settings can be adjusted according to the electrical installation and the coordination requirements of the distribution system.

2. Short-Circuit Protection

A short circuit can produce extremely high current within a very short period. Such faults may result from damaged insulation, conductor contact, equipment failure, or wiring problems.

The MVS12H family provides short-circuit interruption capability within its specified breaking ratings.

When the electronic protection system identifies a fault exceeding the configured instantaneous or short-time threshold, the breaker initiates interruption.

The H breaking-capacity class is important in installations where prospective short-circuit current is high. Engineers must verify that the available breaking capacity is suitable for the actual fault level at the installation point.

3. Electronic Trip Protection

The electronic trip unit provides configurable protection settings. Depending on the installed trip-unit version, these may include:

• Long-time protection for sustained overloads.
• Short-time protection for delayed short-circuit interruption.
• Instantaneous protection for high fault currents.
• Ground-fault protection on configurations that support it.

The precise protection functions depend on the complete MVS12H catalog reference and installed trip unit.

Correct adjustment is essential. Protection settings should be coordinated with upstream and downstream protective devices to achieve appropriate selectivity and minimize unnecessary interruption of the electrical system.

4. Circuit Isolation

The MVS12H can also serve as an isolation device when the specific configuration is approved for isolation under the applicable standards.

Isolation allows maintenance personnel to separate a section of an electrical distribution system from its power source.

However, switching and isolation procedures must follow the manufacturer’s instructions and the facility’s electrical safety procedures. Opening a breaker does not replace the required verification of an electrically safe working condition.

5. Fault Interruption

When a fault is detected, the breaker opens its contacts to interrupt current flow.

The arc generated during contact separation must be controlled and extinguished by the breaker’s internal arc-interruption system.

This process helps prevent the fault from continuing to affect downstream equipment and electrical distribution components.

Role in Industrial Power Distribution Systems

The Schneider Electric MVS12H is designed for use in electrical distribution systems where high-current protection and controlled circuit isolation are important.

Main Distribution Board Protection

In industrial facilities, the main distribution board receives electrical power from a transformer, generator, or utility connection and distributes it to downstream circuits.

An appropriately selected MVS12H breaker can serve as a main incoming or feeder protection device, depending on the system design.

Its electronic protection functions help monitor electrical conditions and interrupt faults when configured thresholds are exceeded.

Transformer Feeder Protection

Transformers supply power to industrial distribution networks and require suitable protection against overloads and short circuits.

A correctly selected air circuit breaker can be installed on the transformer secondary side to protect the associated distribution circuit.

Selection must consider transformer rated current, available short-circuit current, inrush characteristics, cable ratings, and coordination with upstream protection.

Generator Distribution Systems

Industrial generators may supply essential loads during utility interruptions or operate as part of a standby power system.

Circuit breakers help connect and disconnect generator circuits and provide protection against abnormal electrical conditions.

When used in generator applications, the breaker must be selected according to generator output characteristics, system voltage, fault-current behavior, and protection coordination requirements.

Industrial Switchgear Integration

The MVS12H can be incorporated into suitable low-voltage switchboards and switchgear assemblies.

Its mounting arrangement, connection orientation, terminal configuration, and operating mechanism must match the switchboard design.

Engineers should also verify the compatibility of auxiliary contacts, shunt releases, undervoltage releases, and other accessories where required.

Industrial Applications

The Schneider Electric EasyPact MVS12H series is intended for high-current electrical distribution applications across different industrial and infrastructure environments.

1. Manufacturing Facilities

Manufacturing plants rely on electrical distribution systems to supply production machinery, motor control centers, process equipment, and auxiliary services.

A high-current air circuit breaker can protect the main distribution circuits and help isolate electrical sections during maintenance or fault conditions.

2. Commercial Buildings

Large commercial buildings require reliable electrical distribution for lighting, HVAC equipment, elevators, pumps, and other building services.

The MVS12H family may be used in appropriately rated main distribution boards or feeder circuits where its electrical characteristics match the installation.

3. Data Centers

Data centers require carefully coordinated electrical distribution to support servers, cooling equipment, UPS systems, and backup power supplies.

Air circuit breakers can form part of the main low-voltage distribution architecture, providing switching and protective functions for selected power circuits.

The actual breaker configuration must be evaluated according to the facility’s redundancy strategy, fault levels, and selective coordination requirements.

4. Power Distribution Facilities

Industrial substations and distribution rooms contain switchgear, transformers, busbars, and feeder circuits that require coordinated protection.

The MVS12H family can be considered for compatible low-voltage distribution applications where its current and interruption ratings meet the system requirements.

5. Water Treatment and Infrastructure

Water treatment plants and infrastructure facilities depend on electrical power for pumps, compressors, ventilation systems, and control equipment.

A suitable air circuit breaker can provide protection and isolation for major distribution feeders supplying these systems.

6. Industrial Utility Systems

Compressed-air stations, cooling facilities, and centralized utility systems often contain high-power electrical equipment.

The MVS12H may be used in compatible distribution arrangements to support electrical protection and maintenance isolation.

Installation and System Integration

Correct installation is essential for the safety, reliability, and performance of an air circuit breaker.

1. Verify Electrical Ratings

Before installation, confirm that the breaker is suitable for the system voltage, rated current, frequency, and prospective short-circuit current.

For the MVS12H family, the typical rated current is 1250 A, with a maximum rated operational voltage of 690 V AC.

The actual system must remain within the applicable electrical ratings.

2. Confirm the Installation Configuration

The MVS12H family includes different installation configurations, including fixed and drawout versions.

The fixed configuration is mounted directly in the switchboard, while a drawout configuration uses a compatible chassis to allow the breaker to be moved between operating positions.

The switchboard must be designed for the exact breaker arrangement. Do not assume that fixed and drawout models are interchangeable.

3. Check Mounting Dimensions

The supplied dimensions are 352 × 422 × 297 mm, with a listed weight of 40 kg.

These values should be checked against the complete product reference and manufacturer’s dimensional drawings before switchboard fabrication or replacement work.

Allow sufficient space for electrical connections, operating access, maintenance, and heat dissipation.

Because of its size and weight, appropriate lifting and handling equipment should be used during installation.

4. Verify Busbar and Cable Connections

The breaker must be connected to busbars or conductors with suitable current-carrying capacity.

Connection orientation, terminal arrangement, conductor size, and tightening torque must follow the manufacturer’s instructions.

Poor connections can create excessive contact resistance, overheating, and equipment damage.

5. Configure the Electronic Trip Unit

Before energizing the installation, verify the trip-unit settings.

Important parameters may include:

• Long-time current setting.
• Long-time delay.
• Short-time pickup and delay.
• Instantaneous pickup.
• Ground-fault protection settings, where available.

The settings should be based on a documented protection study and coordinated with other protective devices.

6. Verify Auxiliary Accessories

Depending on the switchgear design, additional accessories may be required, including:

• Auxiliary contacts.
• Shunt trip release.
• Undervoltage release.
• Closing release.
• Mechanical or electrical interlocks.
• Position indication accessories.

Confirm the compatibility of every accessory with the exact breaker configuration.

7. Perform Commissioning Tests

Before returning the electrical system to service, inspect the mechanical installation, electrical connections, grounding, and protection settings.

Commissioning should include appropriate operational and electrical tests performed by qualified personnel.

Verify trip functions, operating mechanisms, auxiliary signals, and interlocks according to the applicable commissioning procedures.

Compatible System Components

The MVS12H is normally installed as part of a complete low-voltage power distribution system.

These components are examples of equipment that may be used in a distribution installation. They are not necessarily included with the MVS12H breaker.

Alternative Models and Replacement Considerations

When replacing an MVS12H circuit breaker, the complete catalog number should be identified before selecting an alternative.

A replacement should be checked against the following parameters:

• Rated operational voltage.
• Rated current.
• Ultimate and service breaking capacity.
• Number of poles.
• Fixed or drawout installation.
• Trip-unit type and protection functions.
• Busbar and terminal arrangement.
• Mechanical dimensions and mounting points.
• Auxiliary accessories and control voltage.
• Switchboard and protection coordination requirements.

A breaker with the same rated current is not automatically a suitable replacement. Differences in breaking capacity, trip characteristics, and mechanical configuration can affect the safety and operation of the entire distribution system.

Key Advantages

High-Current Distribution Capability

The MVS12H family is designed for high-current industrial distribution applications, with a typical rated current of 1250 A.

High Short-Circuit Breaking Capacity

Its H breaking-capacity class provides a rated ultimate breaking capacity of 65 kA under specified voltage conditions.

Electronic Protection

The electronic trip-unit design supports configurable protection functions for monitoring and responding to abnormal current conditions.

Industrial Switching and Isolation

The breaker can support switching and isolation functions in compatible low-voltage distribution systems.

Flexible Installation Configurations

The EasyPact MVS family includes different mechanical and installation configurations to suit different switchboard designs.

Integration with Distribution Equipment

The breaker can be integrated with busbars, current transformers, auxiliary contacts, and other compatible switchgear components.

Maintenance and Replacement Support

The established MVS product family is relevant to industrial maintenance projects where accurate identification of existing circuit breakers and compatible accessories is necessary.

Technical FAQs

1. What is the Schneider Electric MVS12H?

The MVS12H is an EasyPact MVS air circuit breaker designed for low-voltage electrical distribution and protection. It is used in industrial switchboards and other high-current distribution installations.

2. What is the rated current of the MVS12H?

A typical MVS12H configuration has a rated current of 1250 A at 40°C. The exact rating should be verified against the complete catalog reference and product nameplate.

3. What is its maximum operating voltage?

The MVS12H family supports rated operational voltage up to 690 V AC at 50/60 Hz, according to the applicable product configuration.

4. What does the H breaking-capacity code mean?

The H code identifies a higher breaking-capacity class within the EasyPact MVS range. A representative MVS12H configuration has a 65 kA ultimate breaking capacity at 220–440 V AC.

5. What protection functions does the MVS12H provide?

Protection functions depend on the installed electronic trip unit. Typical configurations provide long-time overload protection and short-circuit protection. More advanced trip units may provide additional short-time or ground-fault functions.

6. Is the MVS12H a fixed or drawout circuit breaker?

The MVS12H family includes both fixed and drawout configurations. The complete catalog number is necessary to identify the actual installation type.

7. Can the MVS12H be used as a main circuit breaker?

Yes, a suitable MVS12H configuration may be used as a main circuit breaker in an appropriately designed low-voltage distribution system. Its current rating, breaking capacity, and protection settings must match the installation.

8. What is the difference between an air circuit breaker and a molded-case circuit breaker?

An air circuit breaker is generally designed for higher-current distribution applications and may offer more extensive protection adjustment and switchgear integration. A molded-case circuit breaker is commonly used for smaller feeder and branch-circuit applications, although ratings vary considerably by product family.

9. What should be checked before purchasing an MVS12H?

Confirm the full catalog number, rated current, pole count, trip-unit type, installation method, breaking capacity, accessories, physical condition, and test status.

10. Can another 1250 A breaker replace the MVS12H?

Not automatically. The replacement must also match the system voltage, short-circuit rating, mechanical arrangement, terminal connections, protection functions, and switchboard requirements.

Procurement and Maintenance Recommendations

When purchasing the Schneider Electric MVS12H, accurate product identification is essential. The MVS12H designation identifies a product family, so buyers should request the complete catalog number and clear photographs of the product nameplate.

For used or surplus equipment, inspect the breaker housing, operating mechanism, contact system, terminal connections, and electronic trip unit. Confirm whether the unit has been functionally tested and whether the required accessories are included.

The listed dimensions of 352 × 422 × 297 mm and weight of 40 kg should be checked against the actual product configuration before arranging transportation or planning switchboard installation.

During routine maintenance, inspect electrical connections for signs of overheating, check mechanical operation, and review the condition of the trip unit and auxiliary accessories. Maintenance and testing intervals should follow the manufacturer’s recommendations and the facility’s electrical maintenance procedures.

For replacement projects, compare the complete original breaker reference with the proposed replacement. Particular attention should be paid to rated current, breaking capacity, trip-unit functions, pole arrangement, fixed or drawout design, and switchboard compatibility.

Conclusion

The Schneider Electric MVS12H EasyPact air circuit breaker is designed for high-current low-voltage power distribution applications. With a typical 1250 A rated current and H-class breaking capacity, it can provide switching, isolation, overload protection, and short-circuit protection in compatible industrial electrical installations.

Its electronic trip-unit design and integration with industrial switchgear make it relevant to manufacturing facilities, commercial buildings, infrastructure systems, and power distribution networks.

For maintenance and procurement, the complete catalog number is essential. Confirming the exact pole arrangement, installation type, trip unit, and accessory configuration helps ensure that the selected MVS12H or replacement breaker meets the electrical and mechanical requirements of the installation.
