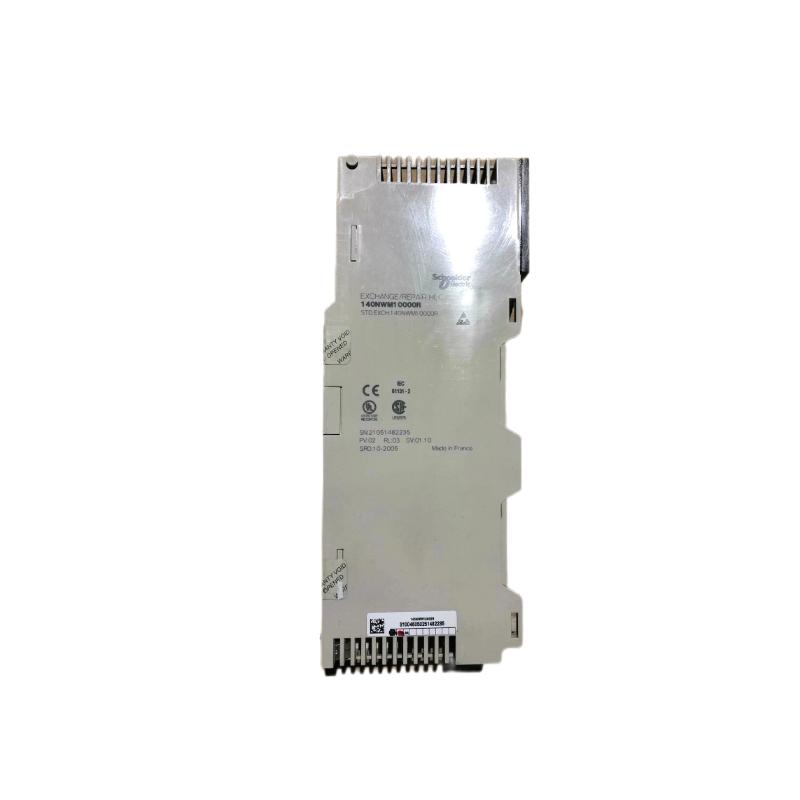

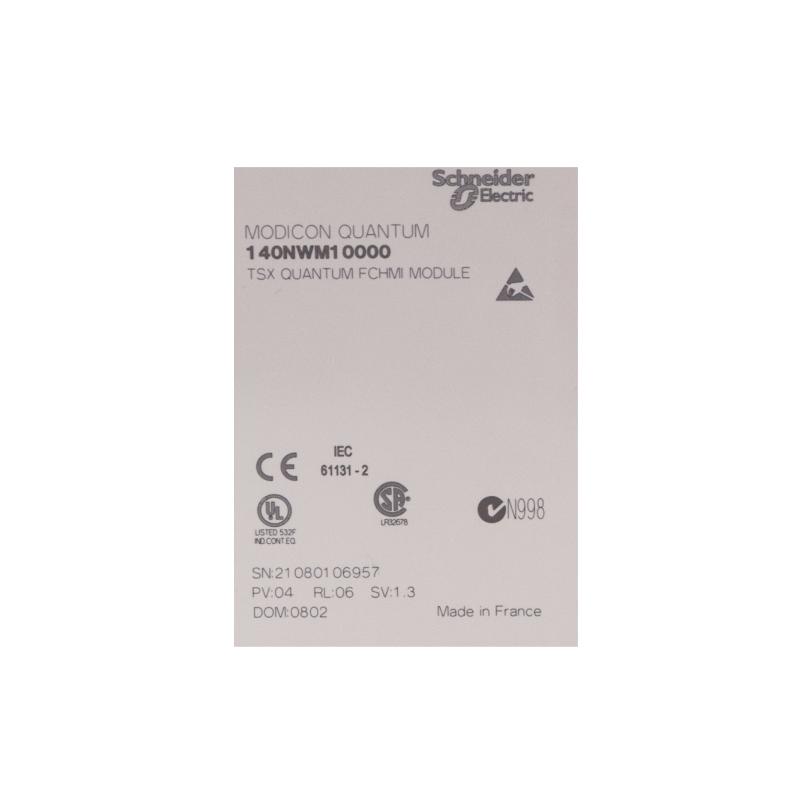

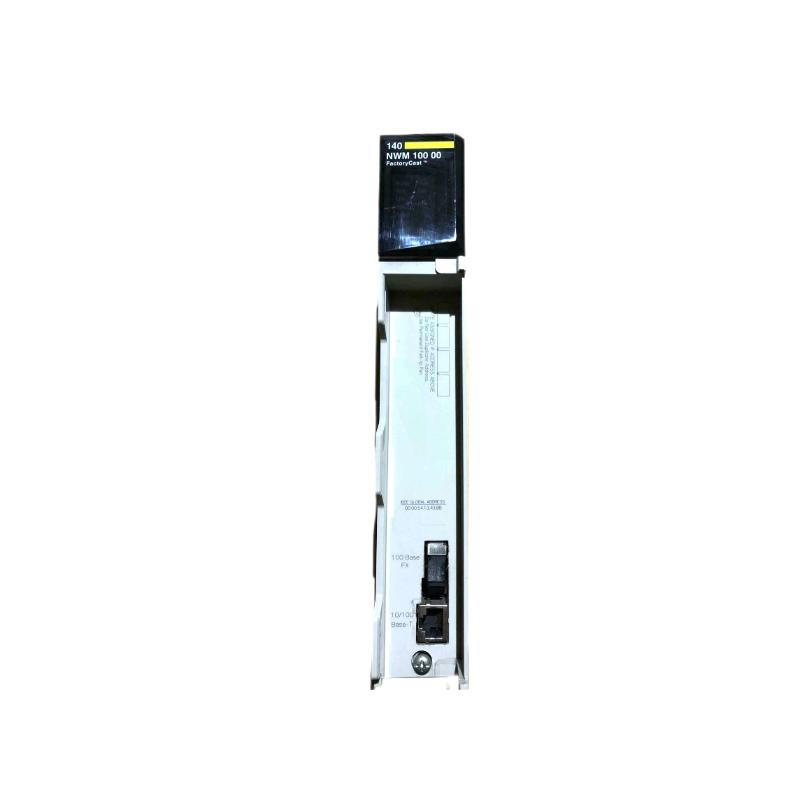

Technical Specification and Product Overview – Schneider 140NWM10000
1. Product Identification
Model: 140NWM10000
Product Type: Industrial Ethernet Communication Module
Category: PLC Network Interface Module
2. Product Introduction
The 140NWM10000 is an industrial-grade Ethernet communication module designed for use in modular PLC and distributed automation systems. It enables reliable Ethernet-based communication between controllers, supervisory systems, and networked industrial devices. This module plays a key role in modern automation architectures where fast data exchange, system transparency, and network scalability are required.
Built for continuous operation, the 140NWM10000 supports deterministic data transmission and stable network performance in electrically demanding industrial environments. Its modular design allows seamless integration into existing automation racks, making it suitable for both new installations and system upgrades.
3. Brand and Series Information
Brand: Schneider
The brand is known for developing industrial automation components with a focus on reliability, modularity, and long-term operational stability.
Series: Modicon Quantum – Network Communication Series
This series is dedicated to industrial networking and communication, offering Ethernet, serial, and remote connectivity modules that support scalable and distributed control systems.
4. Product Specifications
| Parameter | Details |
|---|---|
| Model | 140NWM10000 |
| Module Type | Ethernet Communication Module |
| Network Protocol | Industrial Ethernet (TCP/IP) |
| Transmission Speed | 10/100 Mbps |
| Ethernet Ports | 1 × RJ45 |
| Duplex Mode | Full / Half Duplex |
| Supported Topologies | Star, Linear (via switches) |
| Diagnostic Features | Status LEDs, Network Indicators |
| Power Supply | PLC Backplane Powered |
| Current Consumption | Approx. 450 mA |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity Range | 5%–95% (non-condensing) |
| Mounting Method | Rack-mounted |
| Dimensions (H × W × D) | 130 × 35 × 150 mm |
| Weight (kg) | 0.70 kg |
| Environmental Rating | Industrial Grade |
| System Compatibility | Quantum Automation Racks |
5. Product Applications
The 140NWM10000 is suitable for a wide range of industrial automation and networking applications, including:
PLC to SCADA Communication: Enables real-time data exchange between control systems and supervisory software for monitoring and control.
Factory Automation: Supports Ethernet networking between PLCs, HMIs, and industrial PCs on production lines.
Process Control Systems: Used in continuous process environments where stable and deterministic communication is required.
Machine Networking: Allows machines and subsystems to communicate efficiently within an Ethernet-based control network.
System Modernization: Ideal for upgrading legacy systems to Ethernet-based communication without changing core control hardware.
6. Product Advantages
The 140NWM10000 provides multiple benefits in industrial control environments:
Reliable Ethernet Connectivity: Designed to maintain stable communication under industrial electrical noise conditions.
Simple Integration: Easily installs into standard automation racks with no additional power wiring.
Compact Design: Minimizes rack space usage while delivering full Ethernet functionality.
Industrial Durability: Engineered for long service life and continuous operation.
Standard Communication: Supports widely adopted Ethernet standards for broad system compatibility.
7. Recommended Models – Same Series or Related
| Model | Module Type | Protocol | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| 140NWM10000 | Ethernet Module | Industrial Ethernet | 130 × 35 × 150 | 0.70 |
| 140NWM050000 | Ethernet Module | Industrial Ethernet | 130 × 35 × 150 | 0.72 |
| 140NWM051000 | Ethernet Module | Industrial Ethernet | 130 × 35 × 150 | 0.74 |
| 140NWM052000 | Ethernet Switch Module | Industrial Ethernet | 130 × 50 × 150 | 0.88 |
| 140NWM053000 | Redundant Ethernet Module | Industrial Ethernet | 130 × 40 × 150 | 0.90 |
| 140NWM055000 | Managed Ethernet Module | Industrial Ethernet | 130 × 60 × 150 | 1.15 |
8. Popular Models – Same Brand
| Model | Product Type | Main Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| 140CPU65150 | PLC Processor | Central Control Unit | 130 × 80 × 170 | 1.20 |
| 140NRP95400 | Remote Processor | Distributed I/O Control | 130 × 80 × 170 | 1.15 |
| 140DDI35300 | Digital Input Module | Discrete Input | 130 × 35 × 150 | 0.57 |
| 140DDO36400 | Digital Output Module | Discrete Output | 130 × 35 × 150 | 0.60 |
| 140ACI04000 | Analog Input Module | Signal Acquisition | 130 × 35 × 150 | 0.58 |
9. Frequently Asked Questions (FAQ)
Q1: What is the main function of the 140NWM10000?
A1: It provides Ethernet communication capability for PLC systems, enabling network-based data exchange.
Q2: What Ethernet speed does this module support?
A2: It supports 10 Mbps and 100 Mbps Ethernet communication.
Q3: How is the module powered?
A3: Power is supplied directly from the PLC backplane.
Q4: Can this module be used for SCADA connectivity?
A4: Yes, it is commonly used to connect PLCs with SCADA and HMI systems.
Q5: Is the module suitable for industrial environments?
A5: Yes, it is designed for industrial temperature and humidity conditions.
Q6: Does the module include diagnostic indicators?
A6: Yes, it features LED indicators for network and module status.
Q7: What type of Ethernet connector is used?
A7: A standard RJ45 connector is used.
Q8: Can this module be used in system upgrades?
A8: Yes, it is well suited for upgrading legacy systems to Ethernet-based communication.
Q9: What is the approximate weight of the module?
A9: The module weighs approximately 0.70 kg.
Q10: Is this module compatible with modular automation racks?
A10: Yes, it is fully compatible with Quantum modular rack systems.
