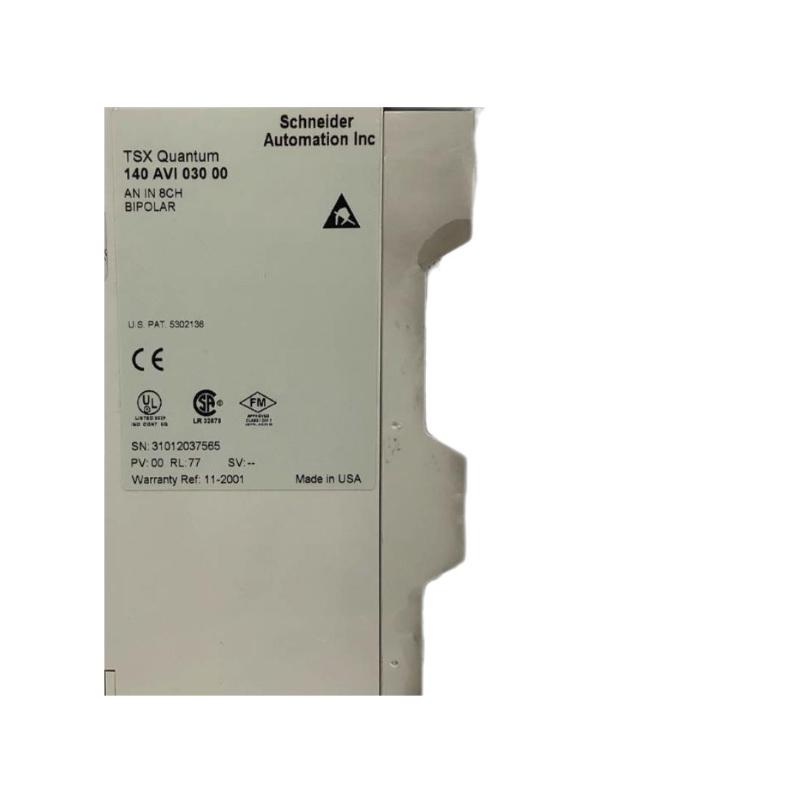

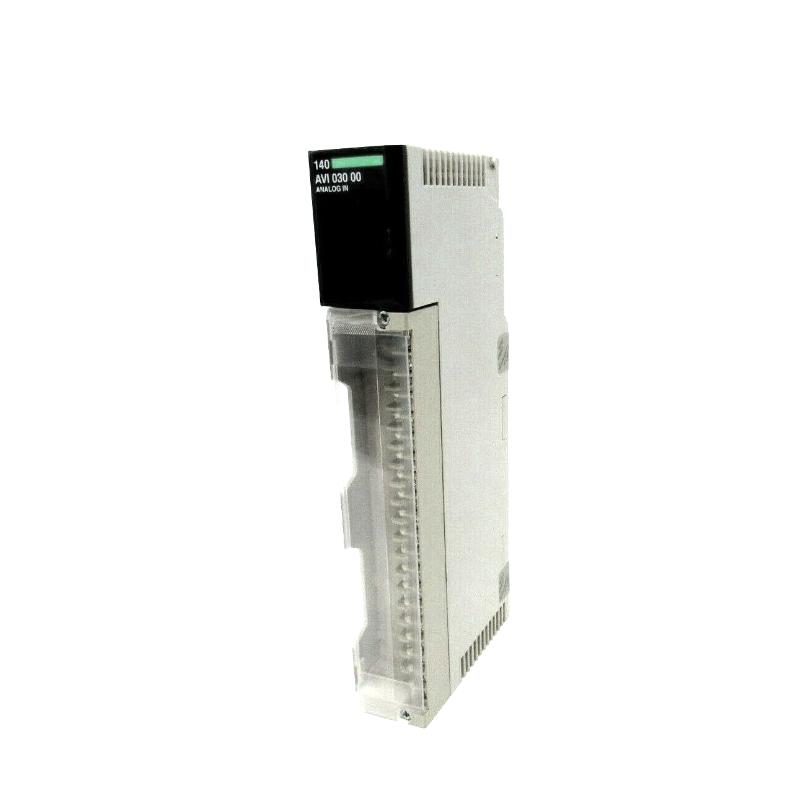

Schneider Electric 140AVI03000: Product Overview

The Schneider Electric 140AVI03000 is a digital input module designed for integration into the Modicon PLC system. This module is ideal for applications requiring the reading of digital signals, such as binary ON/OFF states, from various industrial devices and sensors. It offers high performance and reliability for controlling and monitoring processes where digital signal input is critical.

The 140AVI03000 provides 8 digital input channels and is compatible with a wide range of industrial control systems. It is designed for 24V DC operation and can be mounted easily on a DIN rail, making it a highly versatile and space-saving solution for industrial automation.

As part of the Modicon PLC system, the 140AVI03000 ensures seamless integration with other Schneider Electric automation equipment. It is built to withstand industrial environments, offering high reliability and long-term durability even under demanding conditions. The module supports standard industrial protocols such as Modbus RTU, making it suitable for integration into various control networks.

Product Specifications (Technical Details)

Product Introduction

The Schneider Electric 140AVI03000 is a reliable digital input module designed to work within Schneider Electric’s Modicon PLC system. This module features 8 digital input channels that can be used to read binary ON/OFF signals from various types of equipment, such as limit switches, proximity sensors, and other binary devices.

With a 24V DC power supply, the 140AVI03000 operates efficiently with low energy consumption (approximately 1.5W). Its DIN rail mounting feature allows for quick and easy installation into control cabinets, making it ideal for industrial environments with limited space. The module is designed to operate within a wide temperature range of -20°C to 60°C, ensuring reliable performance even in challenging environments.

The 140AVI03000 is compatible with Modbus RTU communication protocol, which enables easy integration into existing automation systems and supports reliable data exchange across industrial networks. The module is part of Schneider Electric’s Modicon PLC series, known for its flexibility, scalability, and reliability in automation applications.

Applications

1. Industrial Automation: The module is ideal for use in automated manufacturing systems where binary inputs are required to detect the status of devices like sensors, limit switches, or relays.

2. Energy Management: Used in power plants and energy distribution systems to monitor and control equipment such as circuit breakers, switches, and power meters.

3. Building Automation: Applied in HVAC systems and lighting controls for detecting the status of mechanical components and switches.

4. Process Control: In chemical, pharmaceutical, and food processing industries, it can monitor the state of various equipment such as valves, pumps, and conveyors.

5. Machine Safety Monitoring: Used to receive digital signals from safety switches or emergency stop buttons, ensuring safe operation of machinery and equipment.

Advantages of the Schneider Electric 140AVI03000

• High Reliability: The module provides consistent performance, offering 8 digital input channels that can reliably process binary signals from various industrial sensors.

• Energy Efficient: It operates with low power consumption (1.5W typical), contributing to the overall energy efficiency of the control system.

• Compact Design: Its DIN rail mounting system allows for easy installation in control panels, maximizing available space in industrial environments.

• Wide Temperature Range: With an operating range from -20°C to 60°C, this module is capable of performing well even in harsh industrial conditions.

• Flexible Integration: It supports Modbus RTU communication protocol, enabling it to integrate easily into existing control systems and industrial networks.

• Scalable: The module can be used in small or large systems, with the ability to add more modules for further expansion of input channels as needed.

Brand and Series Information

• Brand: Schneider Electric is a global leader in energy management and automation solutions. The company designs innovative products and systems that help industries optimize energy consumption, improve efficiency, and ensure sustainability in their operations.

• Series: The 140 Series is part of Schneider Electric’s Modicon PLC family, offering a range of modular, flexible, and reliable solutions for industrial automation and control. This series includes various input/output modules, controllers, and communication devices designed to meet the needs of modern industrial systems.
