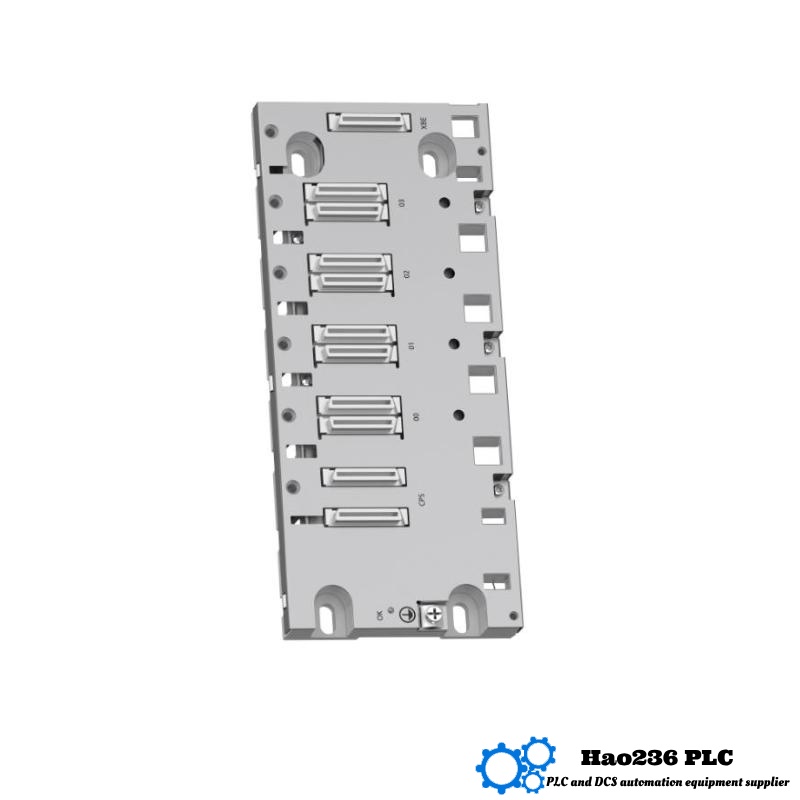

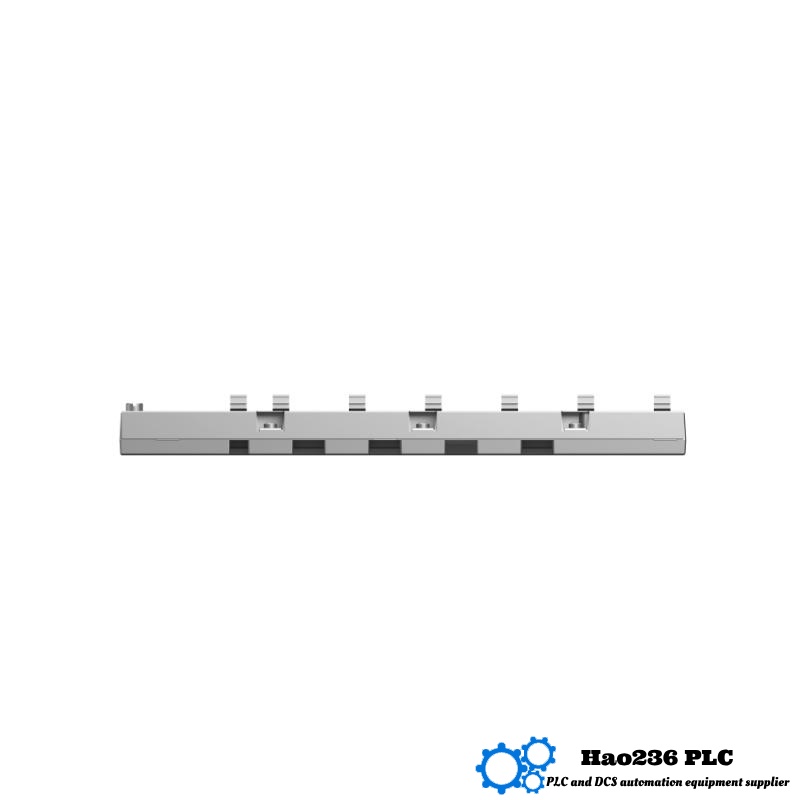

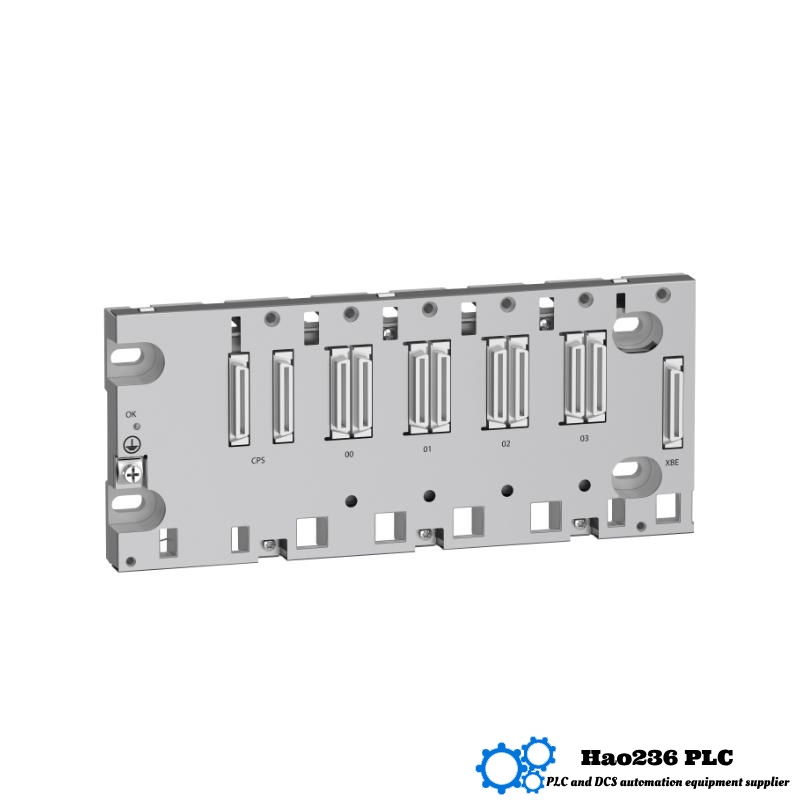

Schneider BMXXEP0400 4-Slot Ethernet Backplane
Product Overview
The Schneider BMXXEP0400 is a 4-slot Ethernet backplane designed specifically for the Modicon X80 series of automation controllers. It provides a robust and reliable platform for integrating multiple Ethernet-enabled modules in a compact and organized structure. This backplane ensures efficient power distribution and high-speed Ethernet communication between modules, facilitating seamless data exchange critical for advanced industrial control systems.
The BMXXEP0400 supports scalable industrial automation setups where fast and reliable communication is essential. It is engineered for easy installation and maintenance with a rugged design suitable for demanding environments. This product allows users to leverage Ethernet networking capabilities while maintaining compatibility within the Modicon X80 modular ecosystem.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | BMXXEP0400 |
| Product Type | 4-Slot Ethernet Backplane |
| Series | Modicon X80 |
| Brand | Schneider Electric |
| Dimensions (L x W x H) | 242.4 x 105.11 x 19 mm |
| Weight | 0.705 kg |
| Number of Slots | 4 |
| Mounting Type | DIN Rail or Panel Mounting |
| Operating Temperature | -25 °C to +70 °C |
| Communication Interface | Ethernet |
| Power Distribution | Backplane power supply |
| Material | Industrial-grade plastic and metal |
Applications
-
Industrial Control Networks: Ideal for creating modular Ethernet networks in process control and automation systems.
-
Manufacturing Automation: Supports integration of Ethernet-enabled modules for enhanced data communication and control.
-
Infrastructure and Building Automation: Enables efficient networking in building management and infrastructure systems.
-
Energy and Utilities: Facilitates reliable communication for power plants, water treatment, and distribution systems.
-
OEM Equipment Integration: Provides a flexible platform for OEMs to build custom Ethernet-enabled automation systems.
Advantages
-
Compact and Robust Design
Slim and sturdy backplane offering four slots, enabling compact system architectures without sacrificing performance. -
High-Speed Ethernet Communication
Ensures reliable, fast data transfer between modules for responsive control and monitoring. -
Flexible Mounting Options
Supports DIN rail and panel mounting for installation versatility in various control panels. -
Seamless Integration within Modicon X80
Fully compatible with other X80 series modules, allowing easy system expansion and configuration. -
Durability for Industrial Environments
Constructed from durable materials to withstand harsh operating conditions, ensuring long-term reliability.
Brand
Schneider Electric is a global leader in energy management and automation solutions, known for innovation, quality, and sustainable industrial products such as the Modicon X80 series.
Series
The Modicon X80 series offers modular automation hardware with versatile configurations designed to optimize industrial control systems with scalability and reliability.
Recommended Models in Modicon X80 Series
| Model | Description | Slots | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| BMXXBP0800 | 8-Slot Module Carrier | 8 | 103.7 x 307.6 x 19 | 0.95 |
| BMXXBP1200 | 12-Slot Module Carrier | 12 | 103.7 x 503.2 x 19 | 1.27 |
| BMXXEP0400 | 4-Slot Ethernet Backplane | 4 | 242.4 x 105.11 x 19 | 0.705 |
| BMXXIO0200 | 2-Slot I/O Module Carrier | 2 | 103.7 x 80 x 19 | 0.3 |
| BMXXBP1600 | 16-Slot Module Carrier | 16 | 103.7 x 615 x 19 | 1.8 |
Popular Schneider Electric Models
| Model | Description | Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| BMXXCPU0800 | X80 Series CPU Module | Processor | 110 x 150 x 40 | 0.7 |
| BMXXAI0800 | Analog Input Module | Input | 100 x 140 x 25 | 0.45 |
| BMXXAO0800 | Analog Output Module | Output | 100 x 140 x 25 | 0.48 |
| BMXXDI1600 | Digital Input Module | Input | 90 x 120 x 20 | 0.35 |
| BMXXDO1600 | Digital Output Module | Output | 90 x 120 x 20 | 0.38 |
Frequently Asked Questions (FAQ)
Q1: What is the BMXXEP0400 designed for?
A1: It is designed as a 4-slot Ethernet backplane for Modicon X80 series modules.
Q2: What are its physical dimensions?
A2: Dimensions are 242.4 x 105.11 x 19 mm.
Q3: How much does the BMXXEP0400 weigh?
A3: It weighs approximately 0.705 kg.
Q4: How many modules can be installed in this backplane?
A4: It can hold up to 4 Ethernet-enabled modules.
Q5: What types of mounting does it support?
A5: DIN rail and panel mounting.
Q6: What communication protocol does it support?
A6: It supports Ethernet communication.
Q7: What temperature range is suitable for operation?
A7: It operates between -25 °C and +70 °C.
Q8: Is it compatible with all Modicon X80 series modules?
A8: It is compatible with Ethernet-enabled Modicon X80 modules.
Q9: What material is the backplane made from?
A9: It is made of industrial-grade plastic and metal.
Q10: Can it be used in harsh industrial environments?
A10: Yes, it is built to withstand demanding industrial conditions.
