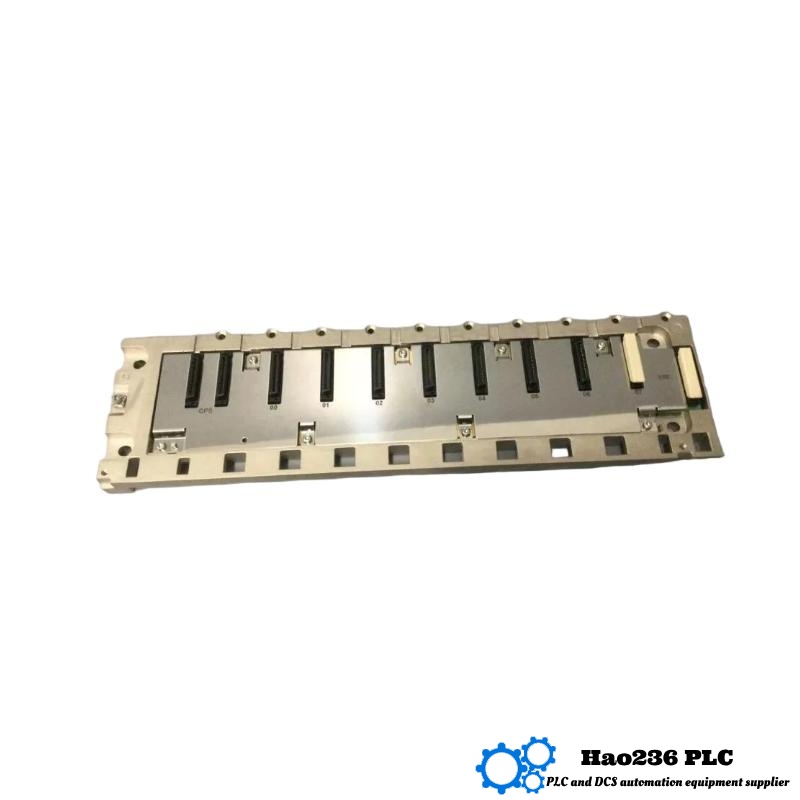

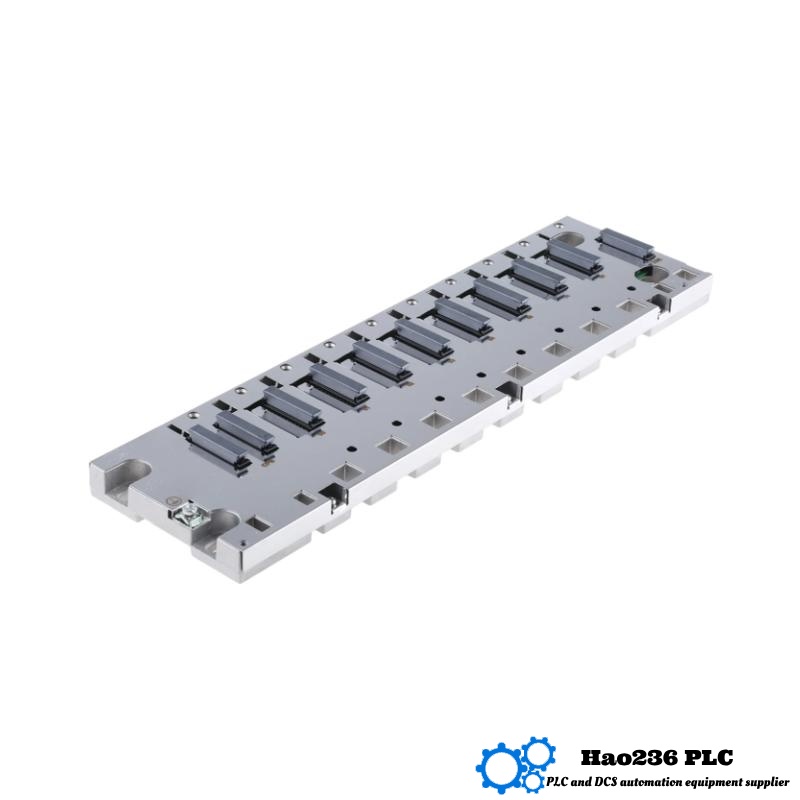

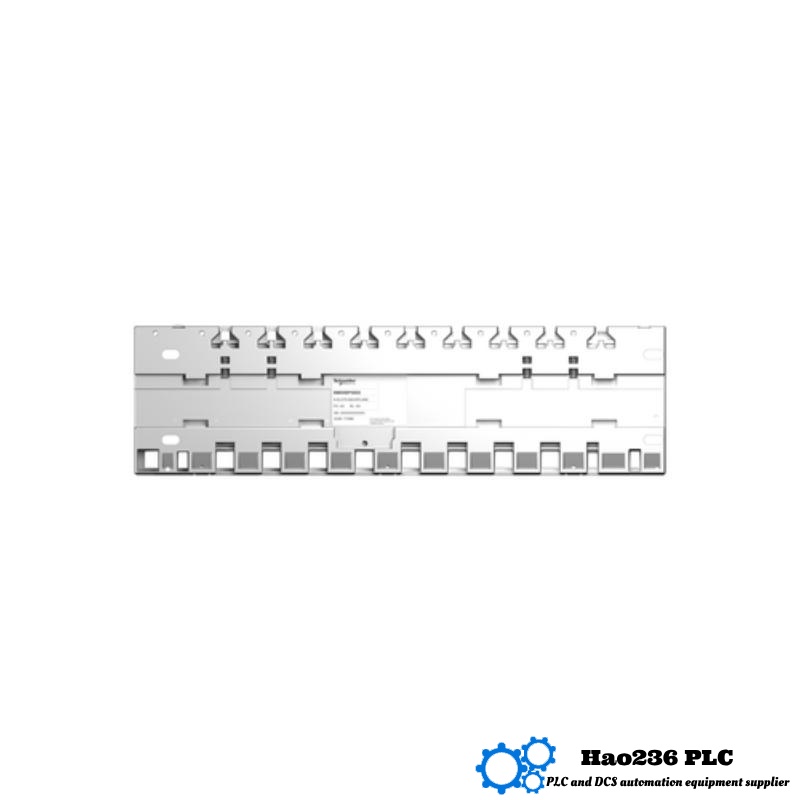

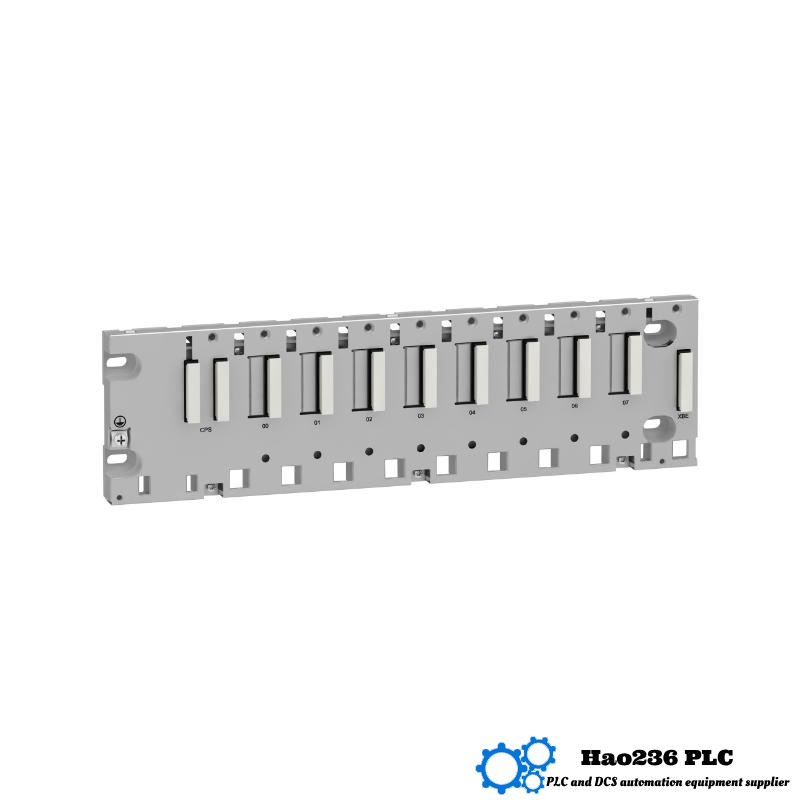

Schneider BMXXBP0800 8-Slot Module Carrier
Product Overview
The Schneider BMXXBP0800 is a robust 8-slot module carrier designed for use within the Modicon X80 series automation platform. It serves as the foundational chassis for mounting and connecting multiple automation modules, providing power, communication pathways, and signal distribution essential for complex control systems. Engineered to meet industrial standards, this module carrier ensures reliable performance, easy installation, and system scalability for various industrial automation applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | BMXXBP0800 |
| Product Type | 8-Slot Module Carrier/Backplane |
| Series | Modicon X80 |
| Brand | Schneider Electric |
| Dimensions (L x W x H) | 103.7 x 307.6 x 19 mm |
| Weight | 0.95 kg |
| Number of Slots | 8 |
| Mounting Type | DIN Rail or Panel Mounting |
| Operating Temperature | -25 °C to +70 °C |
| Communication Bus | Proprietary X80 bus system |
| Power Supply | Via Backplane |
| Material | High-quality industrial-grade plastic and metal |
Applications
-
Industrial Automation Systems: Acts as the backbone chassis for assembling and organizing multiple automation modules, ensuring smooth data and power distribution.
-
Process Control: Used extensively in chemical, oil & gas, and manufacturing plants to support modular and scalable automation setups.
-
Building Management Systems (BMS): Provides reliable hardware infrastructure for managing building automation components.
-
Infrastructure Automation: Suitable for power plants, water treatment facilities, and transportation systems requiring flexible and dependable control hardware.
-
OEM Equipment: Ideal for integration into custom control panels and equipment requiring modular flexibility.
Advantages
-
High Compatibility
Designed specifically for the Modicon X80 series, ensuring perfect module fit and connectivity. -
Robust Industrial Design
Durable materials and build quality withstand harsh industrial environments, including temperature extremes. -
Flexible Installation Options
Supports DIN rail and panel mounting to adapt to diverse control cabinet designs. -
Efficient Power and Signal Distribution
Reliable backplane bus system simplifies wiring and reduces installation errors. -
Scalability
Accommodates up to 8 modules, allowing system expansion and customization as needed.
Brand
Schneider Electric is a world-leading provider of energy management and automation solutions, known for high-quality, reliable industrial control products such as the Modicon series.
Series
The Modicon X80 series is Schneider Electric’s modular automation platform, offering versatile and scalable solutions for industrial control, combining rugged hardware with advanced communication capabilities.
Recommended Models in Modicon X80 Series
| Model | Description | Slots | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| BMXXBP0400 | 4-Slot Module Carrier | 4 | 103.7 x 160 x 19 | 0.52 |
| BMXXBP1600 | 16-Slot Module Carrier | 16 | 103.7 x 615 x 19 | 1.8 |
| BMXXMP0800 | 8-Slot Power Supply Module | 8 | 103.7 x 307.6 x 19 | 1.0 |
| BMXXIO0200 | 2-Slot I/O Module Carrier | 2 | 103.7 x 80 x 19 | 0.3 |
| BMXXBP0800-T | 8-Slot Module Carrier (with temp. rating) | 8 | 103.7 x 307.6 x 19 | 0.95 |
Popular Schneider Electric Models
| Model | Description | Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| BMXXCPU0800 | X80 Series CPU Module | Processor | 110 x 150 x 40 | 0.7 |
| BMXXAI0800 | Analog Input Module | Input | 100 x 140 x 25 | 0.45 |
| BMXXAO0800 | Analog Output Module | Output | 100 x 140 x 25 | 0.48 |
| BMXXDI1600 | Digital Input Module | Input | 90 x 120 x 20 | 0.35 |
| BMXXDO1600 | Digital Output Module | Output | 90 x 120 x 20 | 0.38 |
Frequently Asked Questions (FAQ)
Q1: What is the function of the BMXXBP0800?
A1: It serves as an 8-slot module carrier/backplane for mounting and connecting X80 series modules.
Q2: What are the physical dimensions of this module carrier?
A2: The dimensions are 103.7 x 307.6 x 19 mm.
Q3: How much does the BMXXBP0800 weigh?
A3: It weighs approximately 0.95 kg.
Q4: How many modules can this carrier support?
A4: It supports up to 8 modules.
Q5: What mounting options are available?
A5: It supports both DIN rail and panel mounting.
Q6: Is this module carrier compatible with all Modicon X80 modules?
A6: Yes, it is specifically designed for the Modicon X80 series.
Q7: What is the operating temperature range?
A7: It operates reliably between -25 °C and +70 °C.
Q8: Does the backplane provide power to installed modules?
A8: Yes, it supplies power and communication signals through the backplane bus.
Q9: What materials is the module carrier made from?
A9: It is made from industrial-grade plastic and metal for durability.
Q10: Can I expand my system using multiple carriers?
A10: Yes, multiple carriers can be connected to scale the system as needed.
