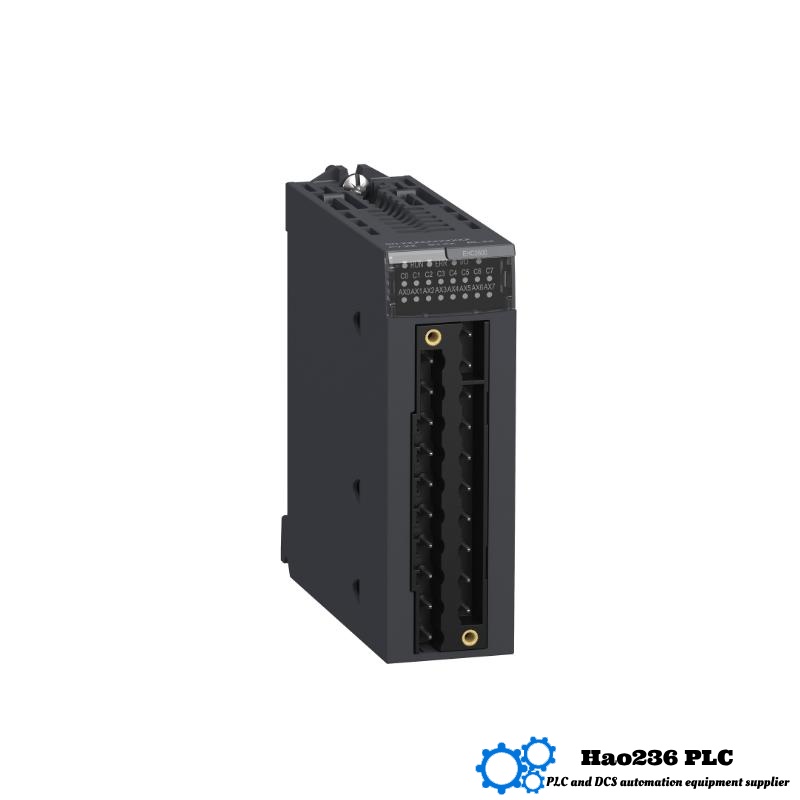

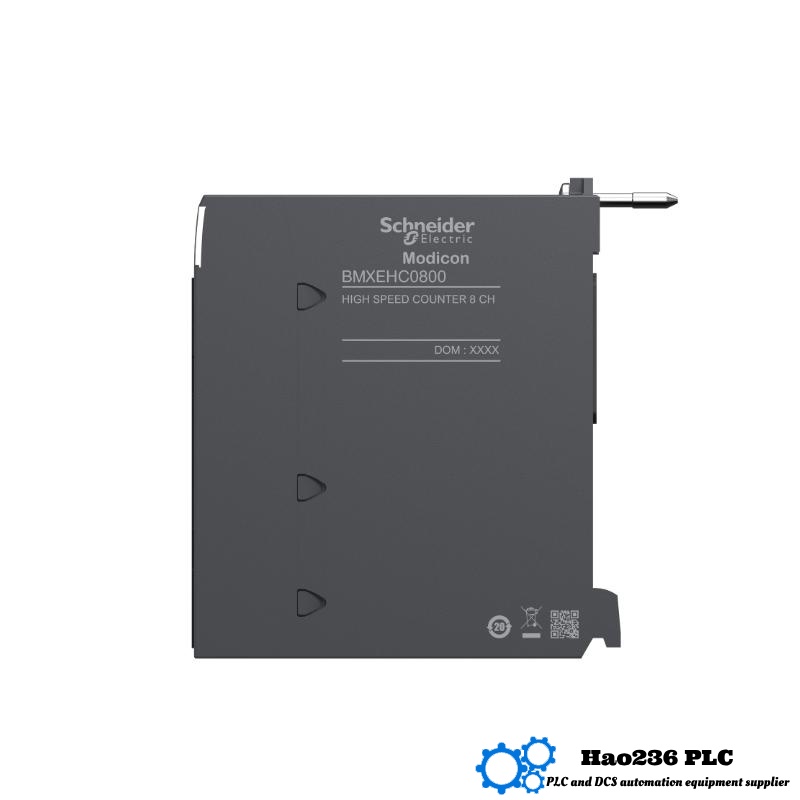

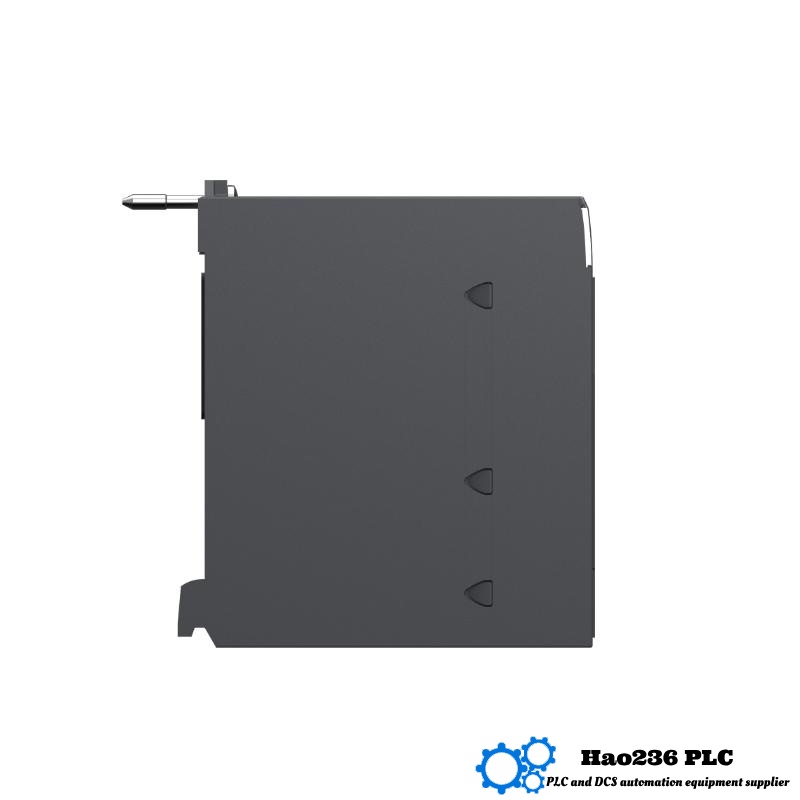

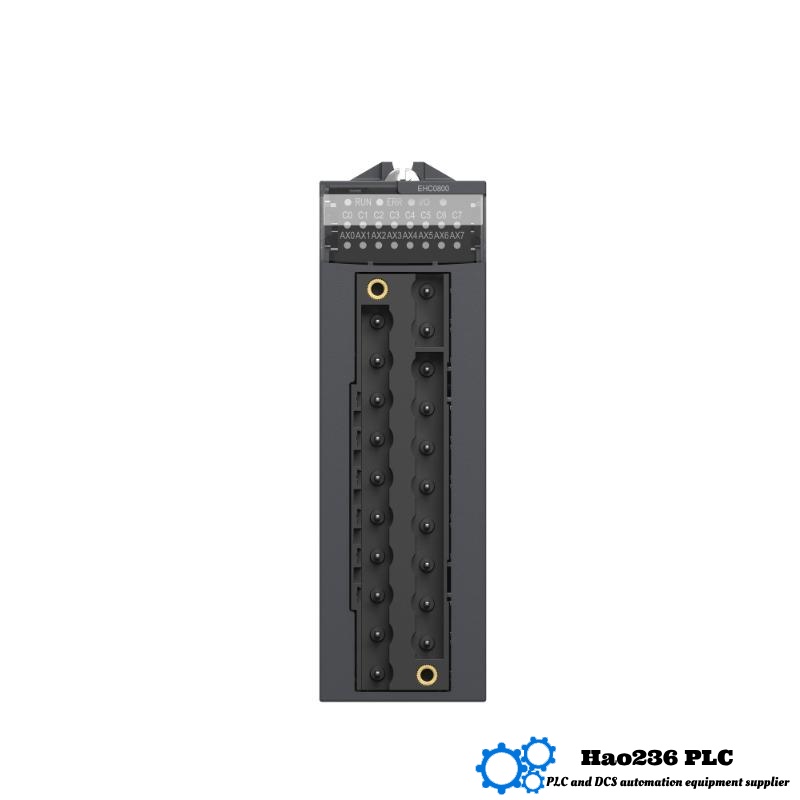

Schneider BMXEHC0800 High-Speed Counter Module
Product Introduction
The Schneider BMXEHC0800 is a High-Speed Counter Module from the Modicon X80 series, specifically designed to meet the needs of high-performance industrial automation systems. It provides precise measurement and control of high-speed signals, making it an ideal solution for counting pulses from fast-moving machinery or equipment. This module is particularly well-suited for applications that require accurate pulse counting, frequency measurement, and position tracking in industrial processes.
The BMXEHC0800 module features an innovative design, allowing it to handle fast input signals efficiently and reliably. With its integration into the Modicon X80 series PLC system, it enables seamless connectivity with other modules, ensuring a smooth workflow and system expansion. The module is engineered for high-speed processing, offering counting speeds up to 500 kHz, making it ideal for applications such as motion control, position sensing, and frequency counting.
Applications
The BMXEHC0800 High-Speed Counter Module is designed for a wide variety of industrial applications that require fast, accurate pulse counting and frequency measurement. Some typical uses include:
-
Motion Control Systems: Used in automated machines to count pulses from encoders, tachometers, or other motion-sensing devices.
-
Conveyor Belt Systems: Measures speed and position, ensuring smooth operation and monitoring of material flow.
-
Position Tracking: Tracks the position of parts or tools in automated systems for accurate alignment and control.
-
Frequency Measurement: Used in systems that require accurate measurement of frequency signals or rotational speed.
-
Packaging Machines: Measures the number of items produced in high-speed packaging and labeling systems.
-
Pump and Motor Control: Monitors and counts revolutions, ensuring proper operation in industrial motors and pumps.
Advantages
-
High-Speed Processing: Capable of handling counting speeds up to 500 kHz, making it suitable for high-precision and high-speed applications.
-
Accurate Pulse Counting: Ensures accurate and reliable pulse counting for critical applications in motion control, frequency measurement, and position tracking.
-
Compact Design: With its compact size (160 x 100 x 35 mm) and lightweight design (0.113 kg), it’s easy to install and integrate into existing systems without taking up much space.
-
Seamless Integration: Fully compatible with the Modicon X80 series, enabling smooth integration into Schneider Electric’s range of PLC systems.
-
Flexible I/O: The module supports multiple I/O types, making it flexible and adaptable to a wide range of industrial applications.
-
Durability and Reliability: Built to withstand harsh industrial environments and designed for long-term, reliable performance in demanding conditions.
Brand Information
-
Brand: Schneider Electric
-
Series: Modicon X80 series
-
Module Type: High-Speed Counter Module
-
Module Name: BMXEHC0800
-
Operating Temperature: -20°C to +60°C
-
Weight: 0.113 kg
-
Dimensions: 160 x 100 x 35 mm
-
Target Applications: Motion control, pulse counting, frequency measurement, position sensing
Parameters (Schneider BMXEHC0800)
| Parameter | Value |
|---|---|
| Module Type | High-Speed Counter Module |
| Dimensions (WxHxD) | 160 x 100 x 35 mm |
| Weight | 0.113 kg |
| Counting Speed | 500 kHz |
| Number of Inputs | 8 Inputs |
| Input Type | TTL, DC Logic |
| Input Voltage | 24V DC |
| Operating Temperature Range | -20°C to +60°C |
| Mounting | Rack-mounted (Modicon X80) |
| Certification | UL, CE, CSA, ROHS |
Recommended Models
5 Models from the Same Series or Related:
| Model | Type | Dimensions (WxHxD) | Weight | Counting Speed | Input Type |
|---|---|---|---|---|---|
| BMXEHC0801 | High-Speed Counter | 160 x 100 x 35 mm | 0.115 kg | 1 MHz | TTL, DC Logic |
| BMXEHC0802 | High-Speed Counter | 160 x 100 x 35 mm | 0.115 kg | 500 kHz | TTL, DC Logic |
| BMXEHC0803 | High-Speed Counter | 160 x 100 x 35 mm | 0.118 kg | 500 kHz | TTL, DC Logic |
| BMXEHC0810 | High-Speed Counter | 160 x 100 x 35 mm | 0.120 kg | 1 MHz | TTL, DC Logic |
| BMXEHC0811 | High-Speed Counter | 160 x 100 x 35 mm | 0.125 kg | 1 MHz | TTL, DC Logic |
5 Popular Schneider Models
| Model | Type | Dimensions (WxHxD) | Weight | Input Type | Voltage |
|---|---|---|---|---|---|
| BMXDRA1605 | Discrete Output Module | 160 x 100 x 35 mm | 0.15 kg | Sourcing | 24V DC |
| BMXDRA1601 | Discrete Output Module | 160 x 100 x 35 mm | 0.15 kg | Sourcing | 24V DC |
| BMXDRA1620 | Discrete Output Module | 160 x 100 x 35 mm | 0.18 kg | Sinking | 24V DC |
| BMXPIMT200 | I/O Module | 160 x 100 x 35 mm | 0.25 kg | – | 24V DC |
| BMXPPS5000 | Power Supply | 160 x 100 x 35 mm | 0.35 kg | – | 24V DC |
FAQ (Frequently Asked Questions)
Q1: What is the Schneider BMXEHC0800 High-Speed Counter Module used for?
A1: The BMXEHC0800 is used to accurately count fast input signals from encoders or other pulse-generating devices in industrial automation systems.
Q2: How fast can the BMXEHC0800 module count pulses?
A2: The module can count pulses at speeds up to 500 kHz, making it suitable for high-speed applications.
Q3: What is the input type for the BMXEHC0800 module?
A3: The module supports TTL and DC logic input types, providing versatility in signal processing.
Q4: How many input channels does the BMXEHC0800 have?
A4: The module has 8 input channels, each capable of handling high-speed signals.
Q5: What is the operating temperature range of the BMXEHC0800 module?
A5: The BMXEHC0800 module operates within a temperature range of -20°C to +60°C.
Q6: How is the BMXEHC0800 module mounted?
A6: The module is designed to be rack-mounted as part of the Modicon X80 series PLC system.
Q7: What is the weight of the BMXEHC0800 module?
A7: The module weighs approximately 0.113 kg, making it lightweight and easy to install.
Q8: Can the BMXEHC0800 module be used for frequency measurement?
A8: Yes, the module is capable of accurately counting pulses and can be used for frequency measurement applications.
Q9: What certifications does the BMXEHC0800 module have?
A9: The module is certified by UL, CE, CSA, and ROHS, ensuring global compliance with safety and environmental standards.
Q10: What is the voltage rating of the BMXEHC0800 module?
A10: The BMXEHC0800 operates at 24V DC, suitable for industrial automation systems.
