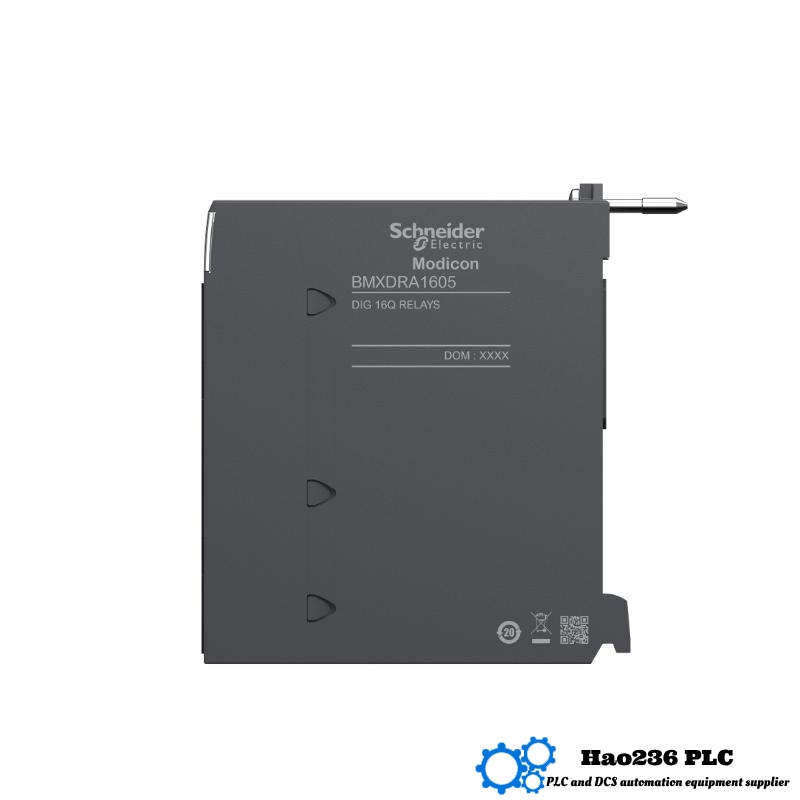

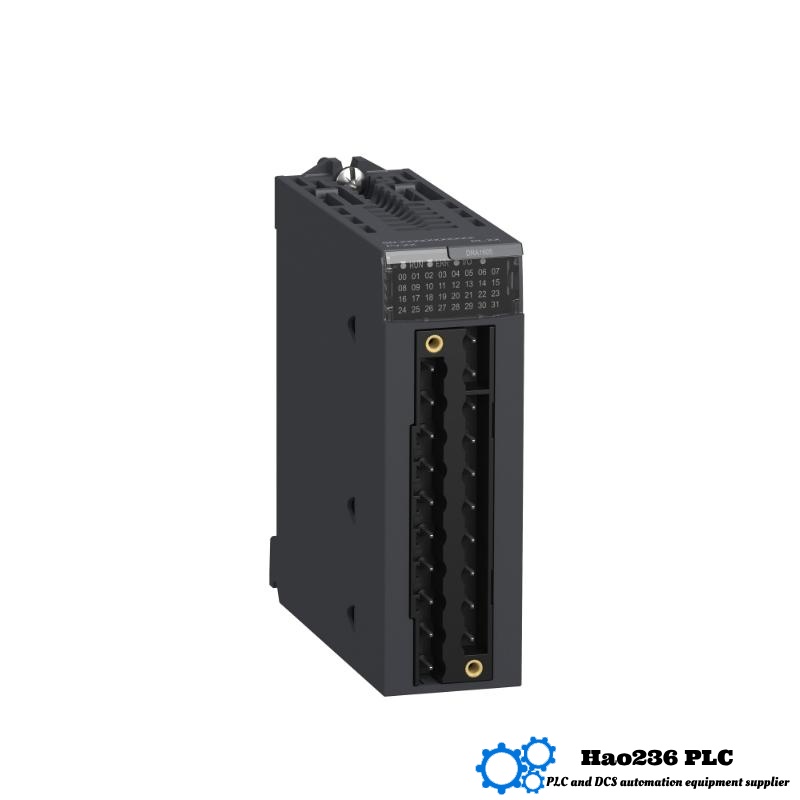

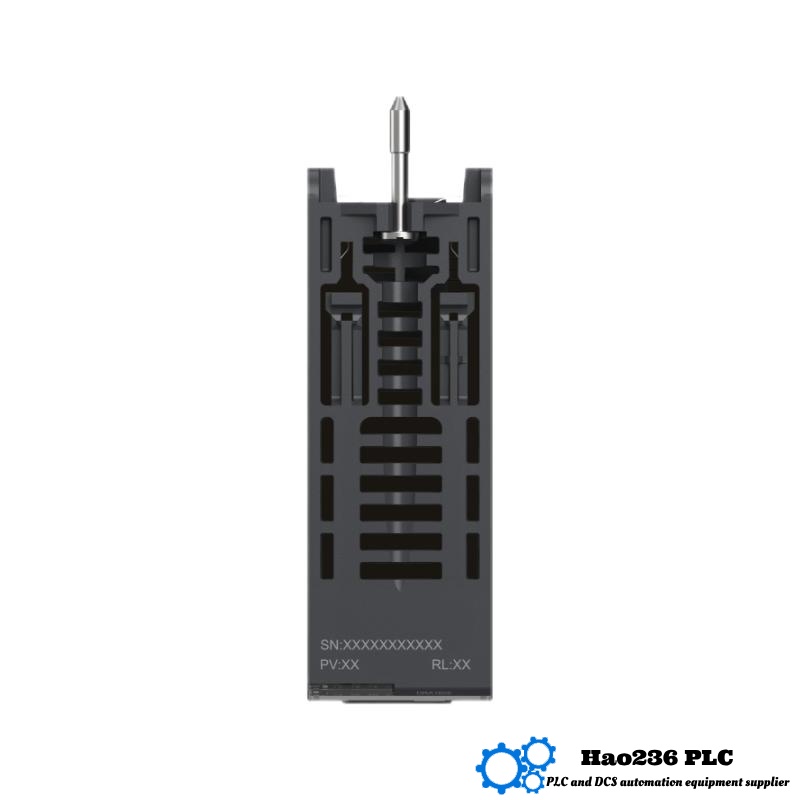

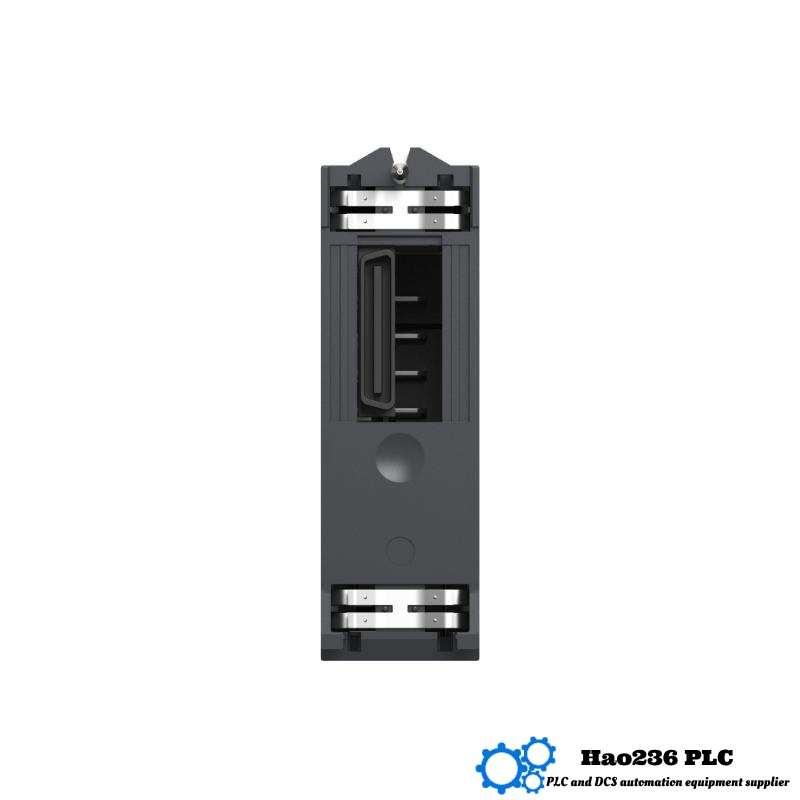

Schneider BMXDRA1605 Discrete Output Module
Product Introduction
The Schneider Electric BMXDRA1605 is a Discrete Output Module designed as part of the Modicon X80 series. This module features 16 output channels, offering high reliability and flexibility for a wide range of industrial automation applications. It is designed for use in Modicon X80 PLC systems, providing 24V DC output signals for controlling various field devices like relays, solenoids, and actuators. The module is engineered to deliver fast response times and robust performance, ensuring smooth and reliable control of industrial processes.
The BMXDRA1605 module integrates easily into existing Modicon PLC racks and is optimized for modular systems, enabling easy expansion and integration within automation solutions. With its compact design and reliable output features, this module is ideal for discrete control in manufacturing, process control, and automation systems.
Applications
The Schneider BMXDRA1605 module is designed for a wide range of applications, such as:
-
Industrial Automation: Used for controlling industrial machines, conveyor belts, and robotics.
-
Building Automation: Controls devices like lights, HVAC systems, and security systems.
-
Process Control: Integrates with control systems for temperature, pressure, and flow regulation.
-
Energy Management: Used to control devices in energy monitoring and management systems.
-
Machine Control: Controls actuators, relays, and valves in manufacturing and processing plants.
Its versatility and flexibility make it suitable for both simple and complex industrial control systems.
Advantages
-
High Output Density: The BMXDRA1605 provides 16 outputs in a compact footprint, making it ideal for applications with space constraints.
-
Fast Response Time: Designed for applications requiring high-speed signal processing with minimal latency.
-
High Durability: Built to withstand harsh industrial environments, ensuring long-term reliability and performance.
-
Modular Design: Being part of the Modicon X80 series, the module offers easy integration with other Modicon X80 series components, facilitating seamless system expansion.
-
Easy Installation: Compact size (160 x 100 x 35 mm) and lightweight (0.15 kg) design allow for simple installation and easy maintenance.
-
Wide Application Compatibility: Compatible with a wide range of industrial control systems, ensuring flexibility for various automation requirements.
Brand Information
-
Brand: Schneider Electric
-
Series: Modicon X80 Series
-
Module Type: Discrete Output Module
-
Input/Output Voltage: 24V DC Output
-
Certification: UL, CE, CSA, ROHS
-
Operating Temperature: -20°C to +60°C
-
Target Applications: Industrial automation, machine control, energy management, and building automation.
Parameters (Schneider BMXDRA1605)
| Parameter | Value |
|---|---|
| Module Type | Discrete Output Module |
| Dimensions (WxHxD) | 160 x 100 x 35 mm |
| Weight | 0.15 kg |
| Output Voltage | 24 VDC |
| Number of Outputs | 16 |
| Output Type | Sourcing (positive logic) |
| Response Time | < 1 ms |
| Mounting | Rack-mounted (Modicon X80) |
| Operating Temperature Range | -20°C to +60°C |
| Certification | UL, CE, CSA, ROHS |
Recommended Models
5 Models from the Same Series or Related:
| Model | Type | Dimensions (WxHxD) | Weight | Output Type | Output Voltage |
|---|---|---|---|---|---|
| BMXDRA1601 | Discrete Output Module | 160 x 100 x 35 mm | 0.15 kg | 8 Outputs, Sourcing | 24 VDC |
| BMXDRA1602 | Discrete Output Module | 160 x 100 x 35 mm | 0.15 kg | 8 Outputs, Sourcing | 24 VDC |
| BMXDRA1620 | Discrete Output Module | 160 x 100 x 35 mm | 0.18 kg | 16 Outputs, Sinking | 24 VDC |
| BMXDRA1603 | Discrete Output Module | 160 x 100 x 35 mm | 0.16 kg | 16 Outputs, Sourcing | 24 VDC |
| BMXDRA1630 | Discrete Output Module | 160 x 100 x 35 mm | 0.17 kg | 32 Outputs, Sourcing | 24 VDC |
5 Popular Schneider Models
| Model | Type | Dimensions (WxHxD) | Weight | Output Type | Output Voltage |
|---|---|---|---|---|---|
| BMXPPS5000 | Power Supply | 160 x 100 x 35 mm | 0.35 kg | – | 24 VDC |
| BMXDO1024 | Discrete Output Module | 160 x 100 x 35 mm | 0.20 kg | 16 Outputs, Sourcing | 24 VDC |
| BMXRTB1000 | Terminal Block | 160 x 100 x 35 mm | 0.18 kg | – | 24 VDC |
| BMXPIMT200 | I/O Module | 160 x 100 x 35 mm | 0.25 kg | – | 24 VDC |
| BMXDRA0402 | Discrete Output Module | 160 x 100 x 35 mm | 0.18 kg | 4 Outputs, Sourcing | 24 VDC |
FAQ (Frequently Asked Questions)
Q1: What is the Schneider BMXDRA1605 module used for?
A1: The Schneider BMXDRA1605 is a Discrete Output Module used in the Modicon X80 series PLC system for controlling field devices such as solenoids, relays, and actuators with 24 VDC output signals.
Q2: How many outputs does the BMXDRA1605 module have?
A2: The BMXDRA1605 module has 16 discrete outputs, all capable of sourcing 24 VDC.
Q3: What is the output voltage of the BMXDRA1605 module?
A3: The module provides a 24 VDC output, suitable for most industrial automation applications.
Q4: How does the BMXDRA1605 module mount?
A4: The module is rack-mounted and is compatible with the Modicon X80 series PLC racks.
Q5: What is the response time of the BMXDRA1605 module?
A5: The response time of the BMXDRA1605 is less than 1 ms, making it ideal for high-speed applications.
Q6: Can the BMXDRA1605 module handle both positive and negative logic?
A6: No, the BMXDRA1605 module is configured for sourcing (positive logic), but other modules in the Modicon X80 series may support sinking logic.
Q7: What is the operating temperature range of the BMXDRA1605 module?
A7: The BMXDRA1605 operates within a temperature range of -20°C to +60°C, making it suitable for a variety of industrial environments.
Q8: Is the BMXDRA1605 module certified for global standards?
A8: Yes, the BMXDRA1605 is certified by UL, CE, CSA, and ROHS, ensuring compliance with international standards.
Q9: What are the mounting options for the BMXDRA1605?
A9: The module is designed to be rack-mounted as part of the Modicon X80 series PLC system.
Q10: What is the weight of the BMXDRA1605 module?
A10: The BMXDRA1605 module weighs approximately 0.15 kg, making it lightweight and easy to install.
