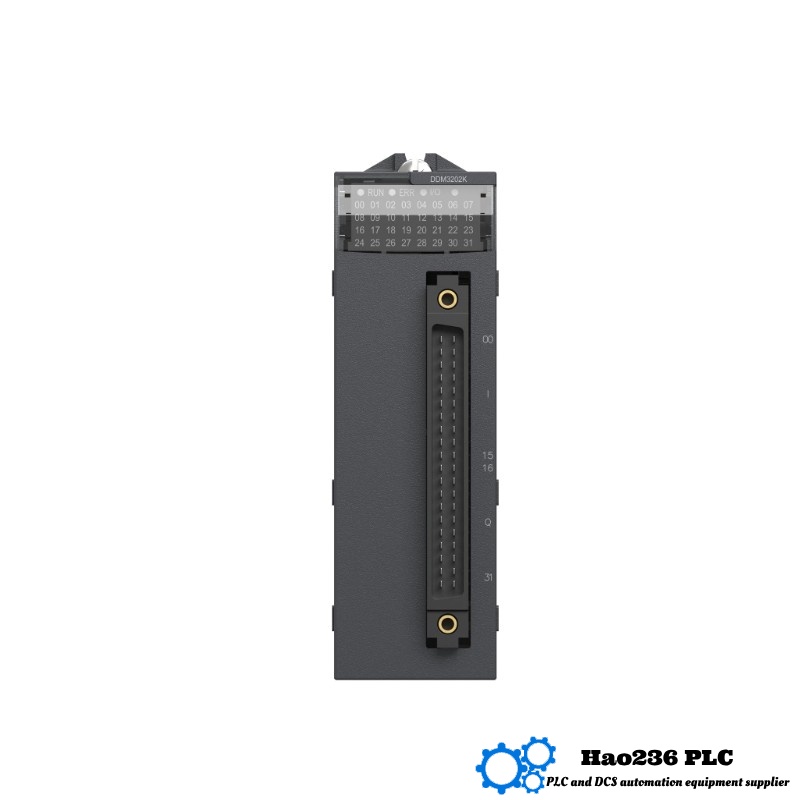

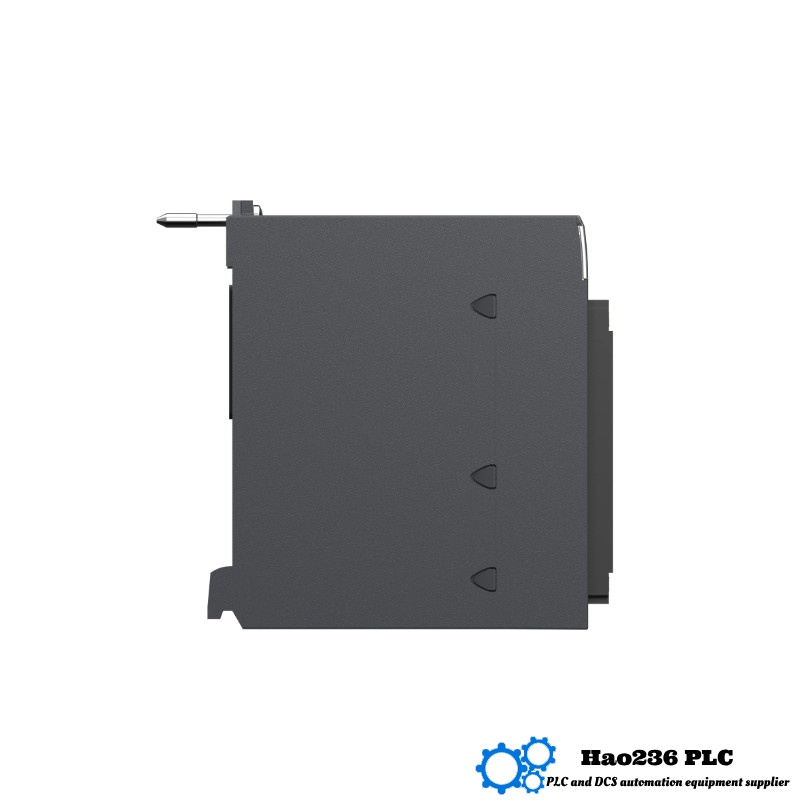

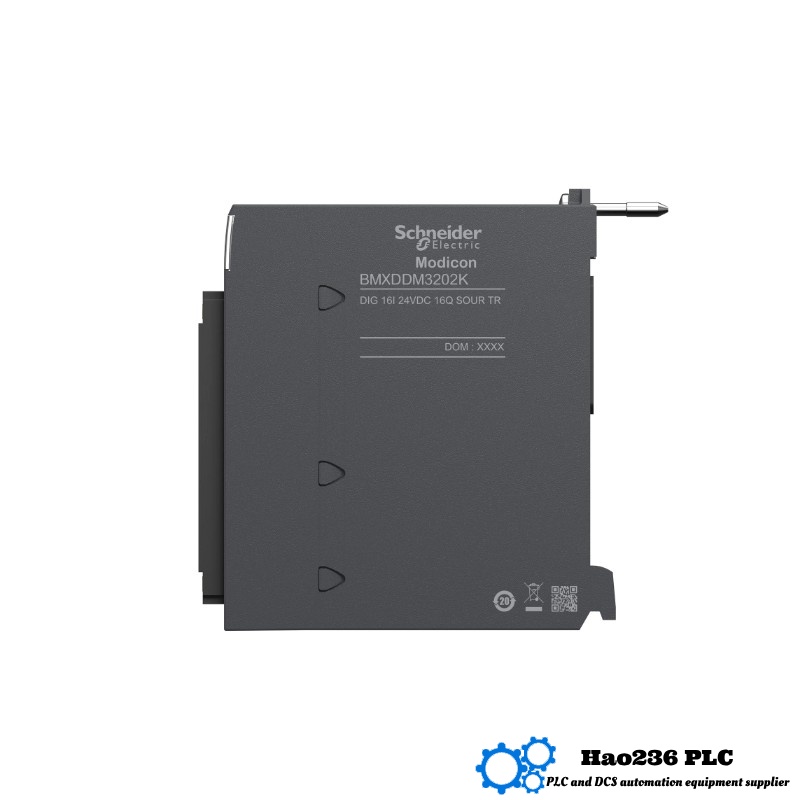

Schneider BMXDDM3202K Discrete Hybrid I/O Module
Product Introduction
The Schneider BMXDDM3202K is a versatile discrete hybrid input/output module designed for the Modicon X80 series of programmable logic controllers (PLCs). This module integrates both digital inputs and outputs within a single compact unit, enabling efficient and flexible control in automation systems. Engineered with high performance and reliability in mind, the BMXDDM3202K facilitates seamless monitoring and control of industrial processes.
The module supports 16 digital inputs and 16 digital outputs, allowing for simultaneous discrete signal processing. Its robust design includes built-in protection against electrical disturbances, ensuring long-lasting operation even in harsh industrial environments. The compact dimensions of 160 x 100 x 35 mm and lightweight of 0.11 kg make it easy to install in dense control panels or modular setups.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | BMXDDM3202K |
| Module Type | Discrete Hybrid I/O Module |
| Digital Inputs | 16 |
| Digital Outputs | 16 |
| Input Voltage | 24 V DC nominal |
| Output Voltage | 24 V DC nominal |
| Output Current | 0.5 A per output channel |
| Response Time | < 10 ms |
| Protection | Short-circuit and overload protection |
| Dimensions (L × W × H) | 160 × 100 × 35 mm |
| Weight | 0.11 kg |
| Operating Temperature | -20°C to 60°C |
| Mounting | DIN rail or panel mounting |
| Series | Modicon X80 Series |
Product Applications
The BMXDDM3202K module is widely used in:
-
Industrial automation systems requiring integrated discrete input/output solutions
-
Manufacturing process control where space-saving is essential
-
Packaging machinery needing rapid discrete signal processing
-
Building automation for managing lighting, security, and HVAC discrete signals
-
Material handling systems controlling motors, sensors, and actuators
Product Advantages
-
Hybrid I/O Functionality: Combines 16 inputs and 16 outputs in one compact module, saving panel space and simplifying wiring.
-
Robust Electrical Protection: Features short-circuit and overload protection on outputs, improving system reliability.
-
Fast Response: Provides less than 10 milliseconds response time, suitable for time-critical applications.
-
Compact and Lightweight: Easy integration into tight control panels with dimensions of 160 × 100 × 35 mm and weight of 0.11 kg.
-
Wide Temperature Range: Operates reliably between -20°C and 60°C, suitable for various industrial environments.
-
Seamless Modicon X80 Integration: Designed specifically for the Modicon X80 series, ensuring compatibility and streamlined system expansion.
Brand Information
Schneider Electric is a global leader in energy management and automation solutions. The Modicon X80 series offers advanced PLC modules designed for modularity, performance, and ease of use. Schneider’s commitment to innovation ensures that modules like the BMXDDM3202K meet the highest standards of industrial control reliability and flexibility.
Related Models in the Modicon X80 Series
| Model Number | Description | Inputs | Outputs | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| BMXDDM3202K | Discrete Hybrid I/O Module | 16 | 16 | 160 × 100 × 35 | 0.11 |
| BMXDDI3202K | Digital Input Module | 32 | 0 | 160 × 100 × 35 | 0.1 |
| BMXDDO1602K | Digital Output Module | 16 | 0 | 160 × 100 × 35 | 0.11 |
| BMXDDI0802K | Digital Input Module | 8 | 0 | 160 × 100 × 35 | 0.08 |
| BMXDDO0802K | Digital Output Module | 8 | 0 | 160 × 100 × 35 | 0.09 |
Popular Schneider Electric Models
| Model Number | Description | Inputs | Outputs | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| BMXP342020 | Analog Input Module | N/A | N/A | 160 × 100 × 35 | 0.14 |
| BMXP342020 | Analog Output Module | N/A | N/A | 160 × 100 × 35 | 0.15 |
| BMXDDI3202 | Digital Input Module | 32 | 0 | 160 × 100 × 35 | 0.1 |
| BMXDDO3202 | Digital Output Module | 32 | 0 | 160 × 100 × 35 | 0.11 |
| BMXP342040 | Analog I/O Module | N/A | N/A | 160 × 100 × 35 | 0.13 |
Frequently Asked Questions (FAQs)
Q1: How many digital inputs and outputs does the BMXDDM3202K have?
A1: It has 16 digital inputs and 16 digital outputs.
Q2: What is the nominal voltage for the inputs and outputs?
A2: Both input and output nominal voltages are 24 V DC.
Q3: Does the module include protection features?
A3: Yes, it has short-circuit and overload protection for output channels.
Q4: What is the module’s response time?
A4: It has a response time of less than 10 milliseconds.
Q5: What are the physical dimensions of the BMXDDM3202K?
A5: The dimensions are 160 × 100 × 35 mm.
Q6: What is the operating temperature range?
A6: The module operates from -20°C to 60°C.
Q7: Is this module compatible with the Modicon X80 series?
A7: Yes, it is designed specifically for the Modicon X80 series.
Q8: How is the module mounted?
A8: It supports DIN rail or panel mounting.
Q9: What is the weight of the module?
A9: The module weighs 0.11 kg.
Q10: In what industries is this module typically used?
A10: It is used in industrial automation, packaging, building automation, and material handling.
