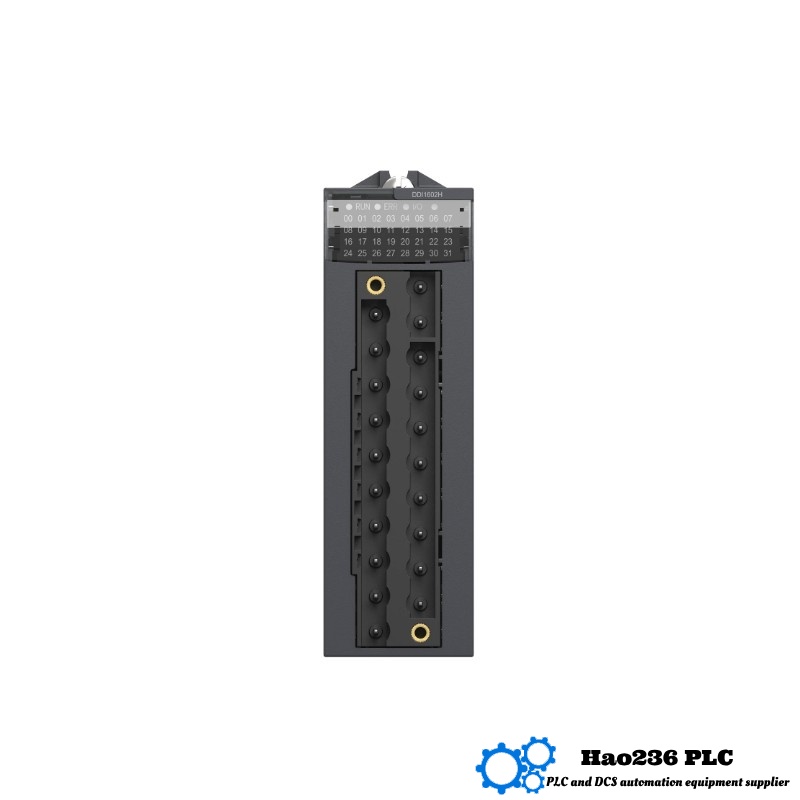

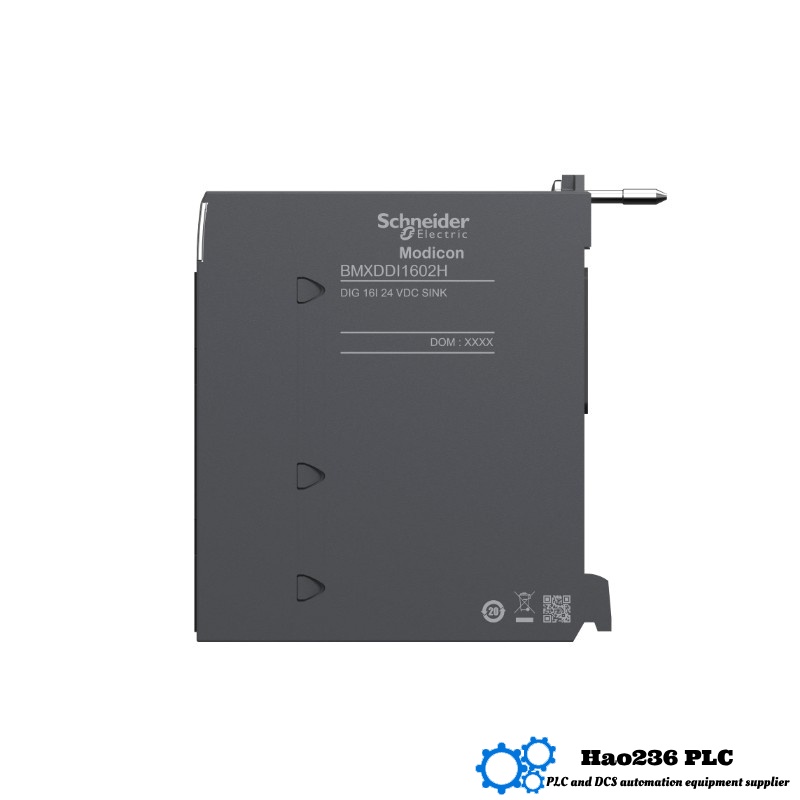

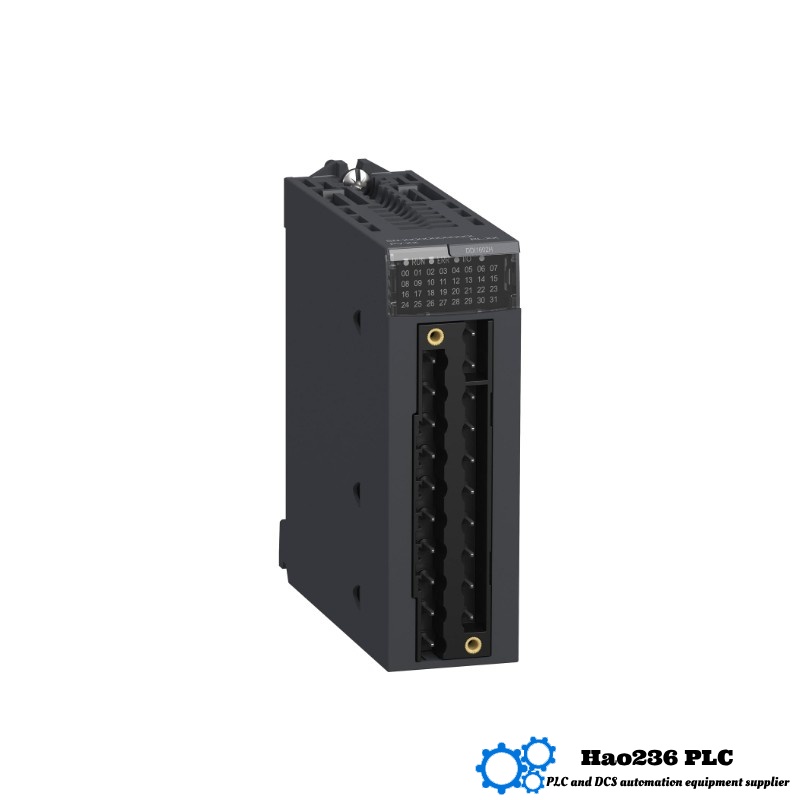

Schneider BMXDDI1602H Discrete Input Module
Product Introduction
The Schneider BMXDDI1602H is a high-performance discrete input module designed for integration into the Modicon X80 series programmable logic controllers (PLCs). It provides reliable digital input acquisition from field devices such as switches and sensors in industrial automation systems. The “H” designation indicates enhanced features such as high-speed input capability and improved noise immunity, making it ideal for demanding industrial environments where fast and accurate input detection is critical.
This module supports 16 input channels with both sink and source input options, providing flexibility and ease of integration in various control systems. Its compact design and robust construction ensure dependable operation in factory floors, process industries, and manufacturing automation.
Product Specifications
| Parameter | Value |
|---|---|
| Model | BMXDDI1602H |
| Module Type | Discrete Input Module |
| Series | Modicon X80 |
| Number of Inputs | 16 |
| Input Voltage | 24V DC |
| Input Type | Sink/Source Inputs |
| High-Speed Inputs | Yes |
| Noise Immunity | Enhanced |
| Mounting | DIN Rail |
| Dimensions | 160 x 100 x 35 mm |
| Weight | 0.115 kg |
Applications
The BMXDDI1602H is designed for use in complex automation environments that require rapid and reliable input signal processing, including:
-
High-speed monitoring and control in manufacturing assembly lines.
-
Critical digital signal acquisition in process control industries such as chemical, oil & gas, and pharmaceuticals.
-
Applications requiring robust noise immunity in electrically noisy environments.
-
Integration into Modicon X80 PLC systems for automation in water treatment, power distribution, and factory automation.
-
High-reliability systems requiring fast, accurate detection of input signals.
Advantages
-
High-Speed Input Capability: Designed to capture fast digital signals accurately, improving system responsiveness.
-
Enhanced Noise Immunity: Provides reliable operation in environments with electrical interference, reducing false triggering.
-
Flexible Input Configuration: Supports both sink and source input types for versatile integration.
-
Compact and Lightweight: At only 0.115 kg and with compact dimensions, it saves valuable panel space.
-
Seamless Compatibility: Perfectly matches the Modicon X80 series PLC family, facilitating easy system expansion.
-
Industrial Grade Durability: Built to withstand harsh factory floor conditions, ensuring long-term operational reliability.
Brand Information
-
Brand: Schneider Electric
-
Series: Modicon X80
-
Target Market: Industrial automation, process control, system integrators, control engineers.
Recommended Related Models (Same or Related Series)
| Model | Description | I/O Type | Number of Inputs | Dimensions | Weight |
|---|---|---|---|---|---|
| BMXDDI1602 | Discrete Input Module | Discrete | 16 | 160 x 100 x 35 mm | 0.115 kg |
| BMXDAI1602 | Analog Input Module | Analog | 16 | 160 x 100 x 35 mm | 0.12 kg |
| BMXDOUT1602 | Discrete Output Module | Discrete Output | 16 | 160 x 100 x 35 mm | 0.12 kg |
| BMXDDI3202 | 32-Point Discrete Input Module | Discrete | 32 | 160 x 100 x 35 mm | 0.12 kg |
| BMXDADI1602 | Analog Input & Output Module | Analog/Discrete | 16 (8 Input, 8 Output) | 160 x 100 x 35 mm | 0.12 kg |
Popular Schneider Electric Models
| Model | Description | I/O Type | Number of Inputs | Dimensions | Weight |
|---|---|---|---|---|---|
| BMXDOUT0805 | Discrete Output Module | Discrete Output | 8 | 160 x 100 x 35 mm | 0.12 kg |
| BMXDAI0805 | Analog Input Module | Analog | 8 | 160 x 100 x 35 mm | 0.12 kg |
| BMXDOUT1602 | Discrete Output Module | Discrete Output | 16 | 160 x 100 x 35 mm | 0.12 kg |
| BMXDADI1602 | Analog Input & Output Module | Analog/Discrete | 16 | 160 x 100 x 35 mm | 0.12 kg |
| BMXDCI1602 | Current Input Module | Current Input | 16 | 160 x 100 x 35 mm | 0.12 kg |
Frequently Asked Questions (FAQ)
Q1: What is the input voltage requirement for the BMXDDI1602H?
A1: The module requires a 24V DC input voltage.
Q2: How many discrete inputs does the BMXDDI1602H support?
A2: It supports 16 discrete inputs.
Q3: Does the BMXDDI1602H support both sink and source input types?
A3: Yes, it supports both sink and source input configurations.
Q4: What additional features differentiate the BMXDDI1602H from the BMXDDI1602?
A4: The BMXDDI1602H supports high-speed inputs and enhanced noise immunity.
Q5: What are the module dimensions and weight?
A5: Dimensions are 160 x 100 x 35 mm, and weight is approximately 0.115 kg.
Q6: Is the BMXDDI1602H compatible with the Modicon X80 series?
A6: Yes, it is fully compatible with the Modicon X80 series PLC system.
Q7: Can the BMXDDI1602H be used in electrically noisy environments?
A7: Yes, its enhanced noise immunity makes it suitable for such conditions.
Q8: What is the typical application of this module?
A8: It is used for fast, reliable digital input acquisition in industrial automation and process control.
Q9: How is the module mounted?
A9: It is designed for DIN rail mounting.
Q10: Can the BMXDDI1602H be combined with other modules for system expansion?
A10: Yes, it can be easily combined with other Modicon X80 series modules.
