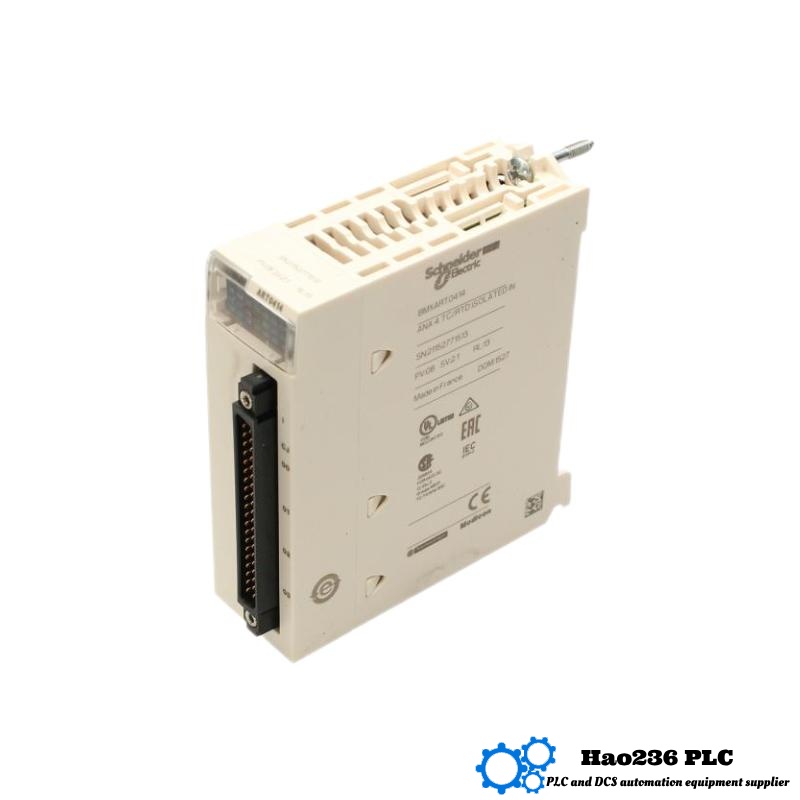

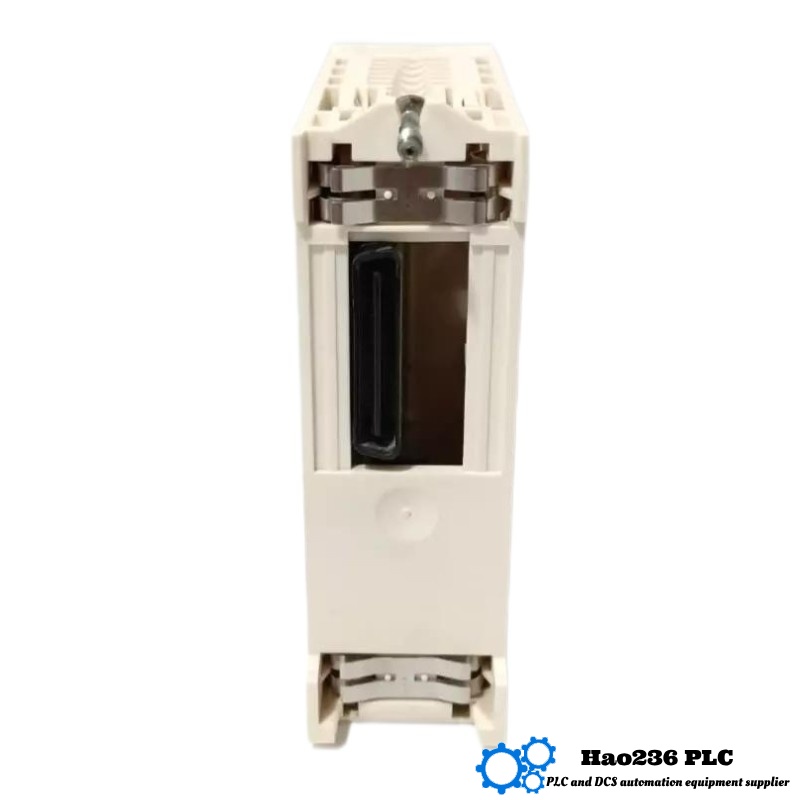

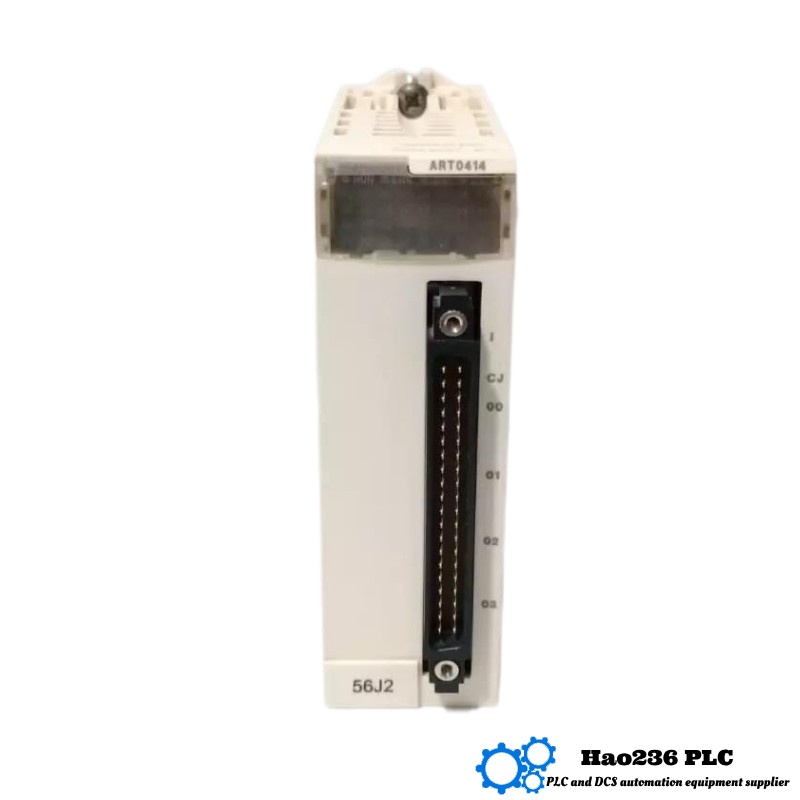

Schneider BMXART0414 – Analog Input Module
Product Introduction
The Schneider BMXART0414 is a high-performance Analog Input Module designed for use in the Modicon X80 Series. This module provides 4 analog input channels, enabling precise measurement and monitoring of various analog signals such as voltage and current. Ideal for industrial control systems, the BMXART0414 offers robust performance in a compact form factor, making it a versatile solution for controlling and measuring a wide range of industrial processes.
Part of the Schneider Electric Modicon X80 series, this module is engineered to integrate seamlessly into advanced control systems. The BMXART0414 is perfect for applications requiring real-time data acquisition, signal processing, and monitoring of analog sensors. It supports multiple input types, offering flexibility in a wide range of industrial environments.
The module supports high-resolution 16-bit inputs, ensuring precise data collection, while offering excellent compatibility with Modbus TCP and Ethernet/IP communication protocols. It is well-suited for process automation, industrial machinery, and energy management systems.
Product Specifications
| Parameter | Description |
|---|---|
| Model | BMXART0414 |
| Type | Analog Input Module |
| Input Channels | 4 Analog Inputs (Voltage/Current) |
| Input Voltage Range | 0 to 10 VDC, 0 to 20 mA |
| Resolution | 16-bit |
| Input Type | Voltage and Current |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | –40°C to +85°C |
| Power Supply | 24 VDC ±20% |
| Communication Protocols | Modbus TCP, EtherNet/IP |
| Dimensions | 98 × 33 × 104 mm |
| Weight | 0.135 kg |
Applications
The Schneider BMXART0414 analog input module is designed for various industrial applications where high-precision analog signal processing is required. Key applications include:
-
Process Control Systems: The BMXART0414 module is ideal for measuring and controlling processes such as temperature, pressure, and flow. It is commonly used in industries such as chemical processing, oil and gas, and water treatment.
-
Energy Management: This module is used in energy monitoring applications, where it captures voltage and current signals from devices such as power meters and generators to monitor energy consumption.
-
Industrial Automation: The module plays a crucial role in systems that require continuous monitoring of analog sensors, such as level sensors, flow meters, and pressure transducers, typically used in assembly lines and manufacturing environments.
-
Building Automation: The BMXART0414 is suitable for HVAC systems, lighting control, and smart building systems, where real-time monitoring and control of various analog signals is required.
-
Machine Monitoring: In machine control systems, the module helps measure critical analog signals from machines, enabling better diagnostics and process optimization.
Advantages
-
High Resolution: With 16-bit resolution, the BMXART0414 provides high-accuracy measurements, ensuring precise data acquisition for industrial control systems.
-
Wide Signal Range Compatibility: The module supports both voltage and current signals, making it compatible with a wide variety of analog sensors and instruments.
-
Modular and Scalable: Part of the Modicon X80 series, the BMXART0414 allows for easy integration and scalability in complex control systems, offering flexibility for future expansion.
-
Compact Design: The module has a compact size (98 × 33 × 104 mm) and a low weight of 0.135 kg, making it ideal for installations where space is limited.
-
Flexible Communication Options: It supports Modbus TCP and EtherNet/IP, enabling seamless integration with other Schneider Electric devices and remote systems for better monitoring and control.
-
Wide Temperature Range: The BMXART0414 operates in temperatures ranging from 0°C to 60°C, with a storage range of –40°C to +85°C, ensuring reliable operation in various industrial environments.
✅ Brand Overview
Schneider Electric is a global leader in energy management and automation, delivering innovative solutions to improve efficiency and sustainability. Known for their commitment to innovation and smart technology, Schneider Electric offers a range of products and services designed to optimize energy use and automate industrial operations.
The Modicon X80 series represents Schneider Electric’s high-performance PLC systems, offering flexibility, scalability, and robust integration. The BMXART0414 is one of the core modules in this series, providing analog input capabilities with precise measurements and flexibility for various industrial applications.
✅ 5 Related or Compatible Models
| Model | Description | Input Type | Output Type | Communication Protocol |
|---|---|---|---|---|
| BMXART0414 | Analog Input Module | 4 Analog Inputs | – | Modbus TCP, EtherNet/IP |
| BMXAMI0400 | Analog Input Module | 4 Analog Inputs | – | Modbus TCP, EtherNet/IP |
| BMXAOI0800 | Analog Output Module | – | 8 Analog Outputs | Modbus TCP, EtherNet/IP |
| BMXAMI0800 | 8-channel Analog Input Module | 8 Analog Inputs | – | Modbus TCP, EtherNet/IP |
| BMXAMM0600 | Hybrid Analog I/O Module | 3 Analog Inputs, 3 Analog Outputs | – | Modbus TCP, EtherNet/IP |
✅ 5 Popular Schneider Electric Models
| Model | Description | I/O Type | Memory | Application Area |
|---|---|---|---|---|
| BMXART0414 | Analog Input Module | 4 Analog Inputs | – | Industrial Automation |
| BMXP3420 | Power Supply Module | – | – | GE Modicon X80 Series |
| BMXDDI8000 | Digital Input Module | 8 Digital Inputs | – | Process Control |
| BMXDOUT8000 | Digital Output Module | 8 Digital Outputs | – | Automation Systems |
| BMXMOD4D4V | Modbus RTU Communication Module | – | – | Remote I/O Integration |
✅ 10 Common FAQ (Q&A Style)
Q1: What types of inputs does the BMXART0414 support?
A1: The BMXART0414 supports 4 analog inputs, which can handle both voltage and current signals.
Q2: What is the input voltage range for the BMXART0414?
A2: The input voltage range is 0 to 10 VDC, and it also supports 0 to 20 mA current inputs.
Q3: What is the resolution of the BMXART0414?
A3: The module offers 16-bit resolution, ensuring high-precision measurements.
Q4: What communication protocols are supported by the BMXART0414?
A4: The module supports Modbus TCP and EtherNet/IP for communication.
Q5: Can the BMXART0414 be used for temperature monitoring?
A5: Yes, the module is ideal for monitoring temperature sensors, as well as other process parameters like pressure and flow.
Q6: What is the power supply requirement for the BMXART0414?
A6: The module requires a 24 VDC ±20% power supply.
Q7: What are the dimensions of the BMXART0414?
A7: The module has compact dimensions of 98 × 33 × 104 mm.
Q8: How much does the BMXART0414 weigh?
A8: The module weighs 0.135 kg, making it lightweight and easy to integrate into your system.
Q9: Is the BMXART0414 suitable for use in harsh environments?
A9: Yes, the module can operate in temperatures ranging from 0°C to 60°C and can be stored in temperatures between –40°C to +85°C.
Q10: Can the BMXART0414 be integrated into existing control systems?
A10: Yes, it is compatible with Modbus TCP and EtherNet/IP, making it easy to integrate with Schneider Electric and third-party systems.
